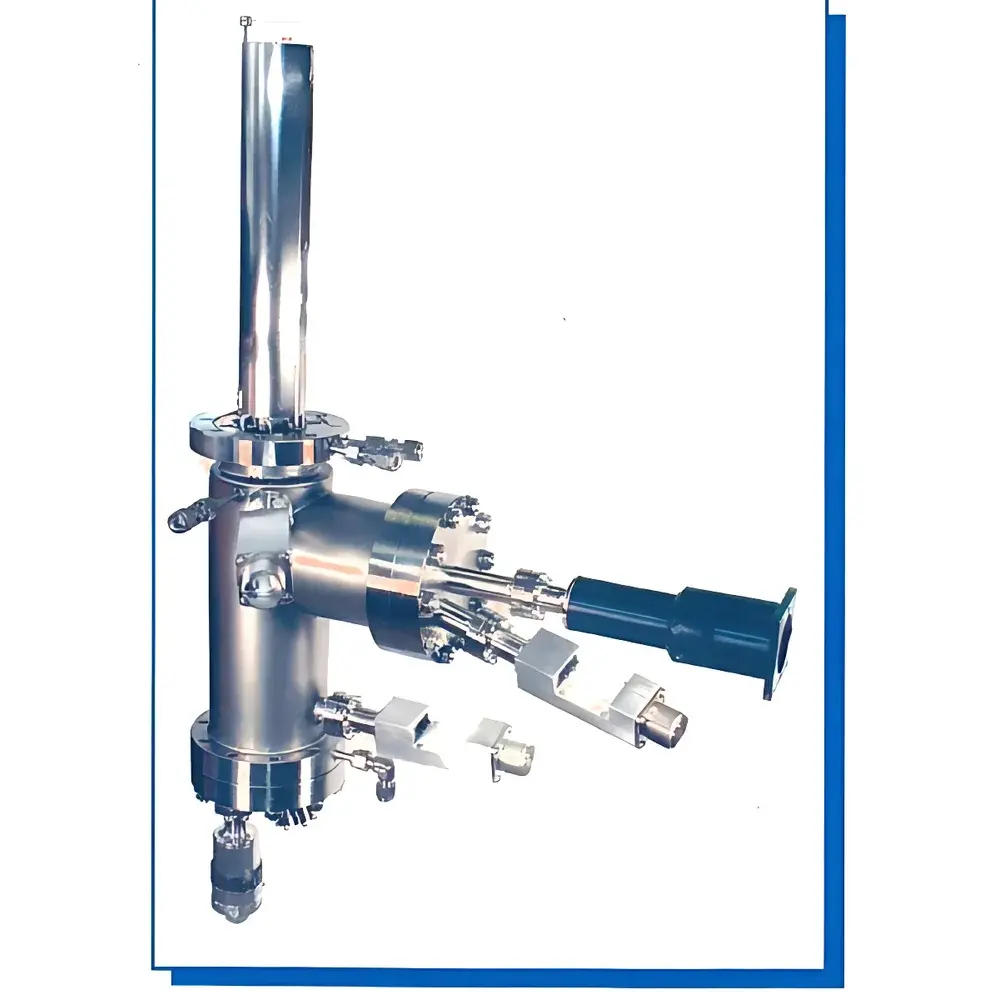

| Brand | SVT Associates |
|---|---|
| Origin | USA |
| Model | SSA Pro 100/150-25, SSA Pro 250/200-10 |
| Crucible Capacity | 10–100 cc |
| Beam Uniformity | ±1.5% over 100 mm² at 150 mm source-to-substrate distance (SSA Pro 100/150-25) |
| Beam Current Stability | ±1.0% |
| Beam Response Time | ≤250 ms |
| Shutter Actuation Time | <0.5 s |
| Maximum Deposition Rate | >10 Å/s (Alq₃ at 340 °C |
| Substrate Temperature | <40 °C during operation |
| Brand | SVT Associates |
|---|---|
| Origin | USA |
| Model | SVTA-C-30000 |
| Capacity | 30,000 cc |
| Compatible Materials | Se, Te, S |
| Feedthrough Flange | 4.5″ (DN63) CF (custom sizes available) |
| Max Bulk Evaporation Temperature | 450 °C / 500 °C (outgassing) |
| Diverting Aperture Max Temperature | 700 °C / 900 °C (outgassing) |
| Source Temperature Stability | ±0.1 °C |
| Thermocouple Type | K-type |
| Electrical Connectors | Amphenol circular feedthrough (filament), Omega subminiature T/C connectors |
| Bakeout Temperature | 200 °C |
| Beam Flux Stability | <1% (with integrated beam flux sensor) |
| Max Operating Pressure | 1×10⁻⁴ Torr |
| Deposition Uniformity | ±6% at 300 mm source-to-substrate distance |
| Heating Time to 400 °C | <60 min |
| Cooling Time to 100 °C | <120 min |

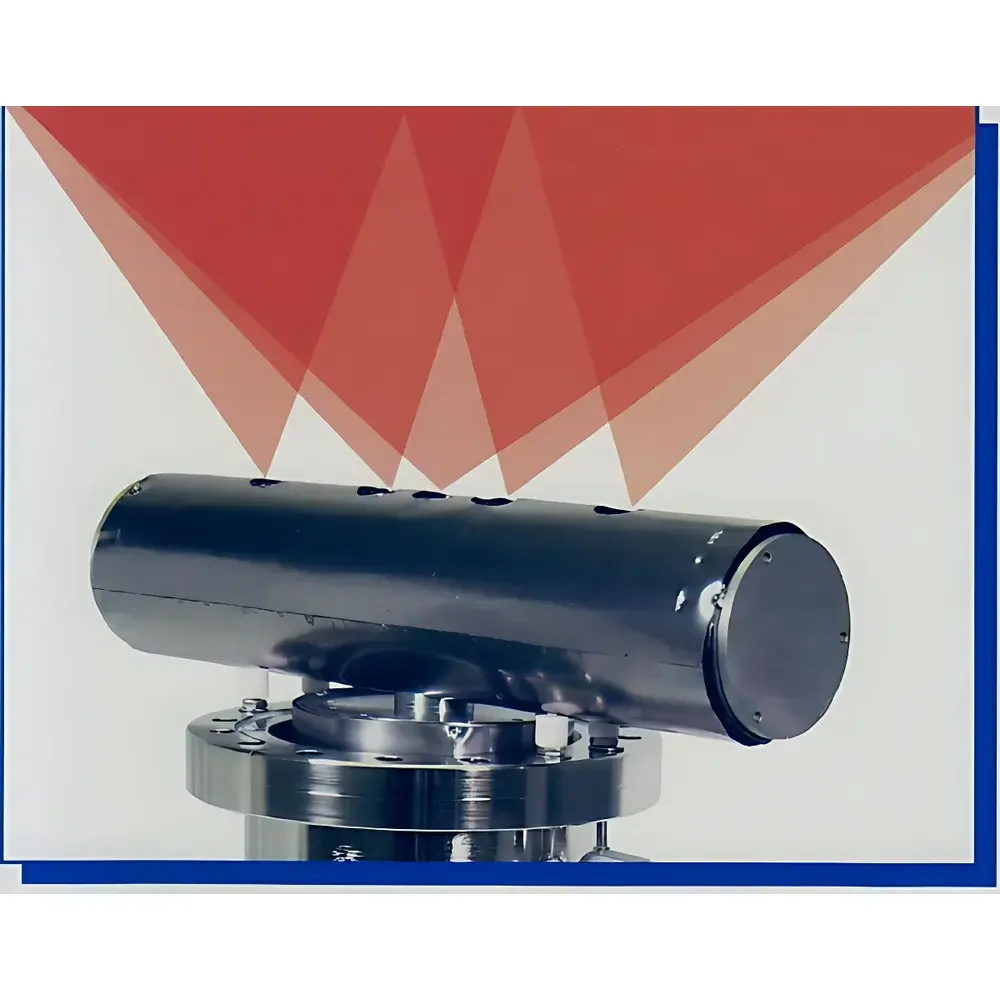

| Brand | SVT Associates |
|---|---|
| Origin | USA |
| Model | SVTA-LES-300 |
| Deposition Width | 300 mm |
| Source Capacity | 500 cc |
| Flange | 6″ (DN100) CF |
| Maximum Effusion Orifice Temperature | 1,600 °C |
| Maximum Bulk Heater Temperature | 1,500 °C |
| Source Temperature Stability | ±0.1 °C |
| Beam Flux Stability | <1% |
| Operating Pressure Range | ≤5×10⁻⁵ Torr |
| Thickness Uniformity | ±4% (at 300 mm source-to-substrate distance) |
| Thermocouple Type | Type C (Type K optional) |
| Cooling Time (from 100 °C) | <120 min |
| Bakeout Temperature | 200 °C |
| Cooling Water Connections | 2 × 1/4″ VCR (inlet & outlet) |
| Max Water Pressure | 80 psi |
| Flow Rate | 500 mL/min |

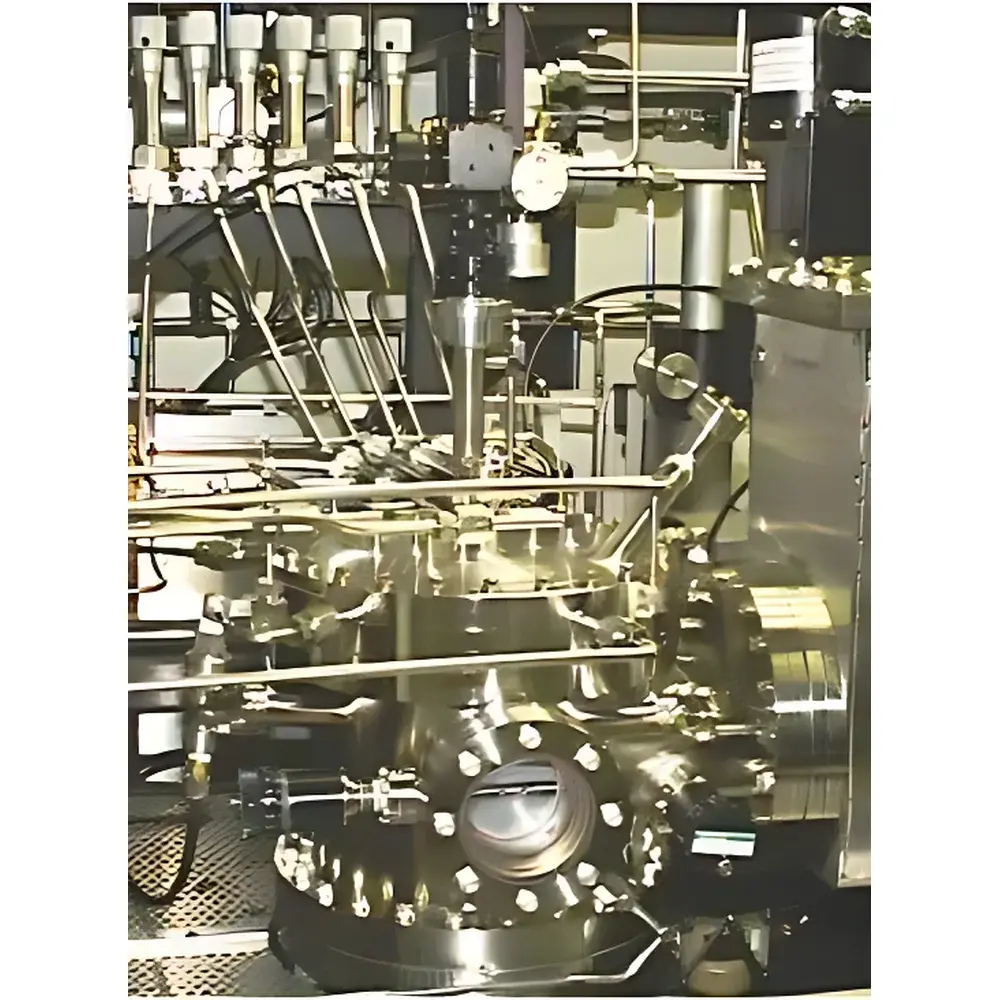

| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Models | D-180, D-125 |
| Pricing | Available Upon Request |

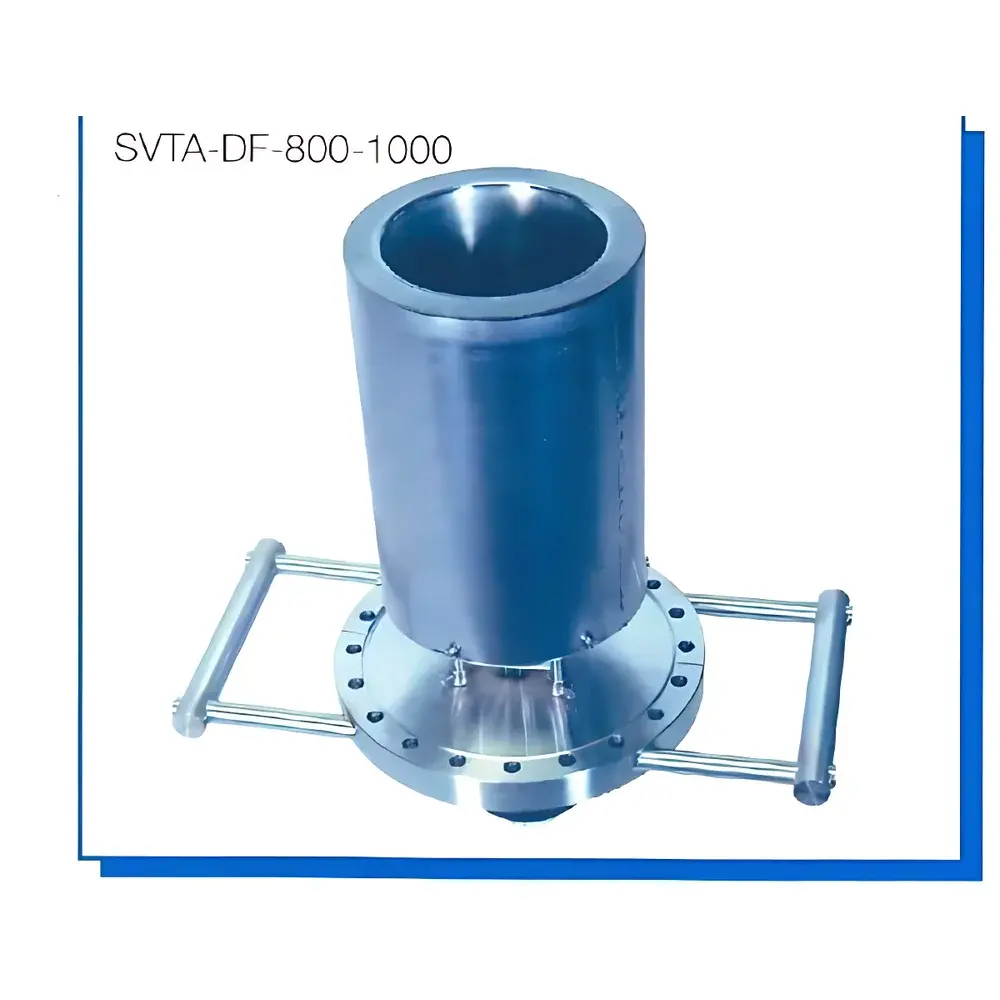

| Key | Brand: SVT Associates |
|---|---|
| Origin | USA |
| Model Variants | SVTA-DF, SVTA-LTDF, SVTA-V, SVTA-EXCEL |
| Temperature Stability | ±0.1 °C |
| Temperature Repeatability | ±0.1 °C |
| Crucible Capacities | 60 cc to 1,000 cc |
| Max Operating Temp (SVTA-DF) | 1,600 °C |
| Max Operating Temp (SVTA-EXCEL) | 600 °C |
| Flange Types | DN63 CF (4.5″), DN100 CF (6.0″), DN150 CF (8.0″) |
| In-Chamber Length | 10–14″ (standard 12″) |
| Bakeout Temperature | 200 °C |
| Thermocouple Types | Type K (<1,000 °C), Type C (≥1,000 °C) |
| Filament Connectors | Amphenol ring-type |
| Thermocouple Connectors | Omega subminiature |
