SVT Associates SVTA-C-30000 Large-Capacity Valve-Controlled Effusion Cell
| Brand | SVT Associates |
|---|---|
| Origin | USA |
| Model | SVTA-C-30000 |
| Capacity | 30,000 cc |
| Compatible Materials | Se, Te, S |
| Feedthrough Flange | 4.5″ (DN63) CF (custom sizes available) |
| Max Bulk Evaporation Temperature | 450 °C / 500 °C (outgassing) |
| Diverting Aperture Max Temperature | 700 °C / 900 °C (outgassing) |
| Source Temperature Stability | ±0.1 °C |
| Thermocouple Type | K-type |
| Electrical Connectors | Amphenol circular feedthrough (filament), Omega subminiature T/C connectors |
| Bakeout Temperature | 200 °C |
| Beam Flux Stability | <1% (with integrated beam flux sensor) |
| Max Operating Pressure | 1×10⁻⁴ Torr |
| Deposition Uniformity | ±6% at 300 mm source-to-substrate distance |
| Heating Time to 400 °C | <60 min |
| Cooling Time to 100 °C | <120 min |
Overview
The SVT Associates SVTA-C-30000 is a large-capacity, high-precision valve-controlled effusion cell engineered for ultra-stable thermal evaporation of high-vapor-pressure chalcogenide materials—specifically selenium (Se), tellurium (Te), and sulfur (S)—in vacuum-based thin-film deposition systems. Designed for extended-duration growth processes in R&D and pilot-scale semiconductor manufacturing, it operates on the principle of controlled Knudsen effusion, where material vapor is thermally generated in a heated crucible and directed through a precisely actuated needle valve and adjustable diverting aperture. This architecture enables deterministic control over molecular beam flux, critical for reproducible stoichiometry in compound semiconductor layers such as CIGS, CZTS, and perovskite precursors. Its integration into UHV or HV environments (≤1×10⁻⁴ Torr) ensures minimal background contamination and stable vapor-phase kinetics.
Key Features
- 30,000 cc high-volume crucible capacity—optimized for multi-hour uninterrupted deposition runs without manual refilling, reducing process interruption and improving throughput consistency.

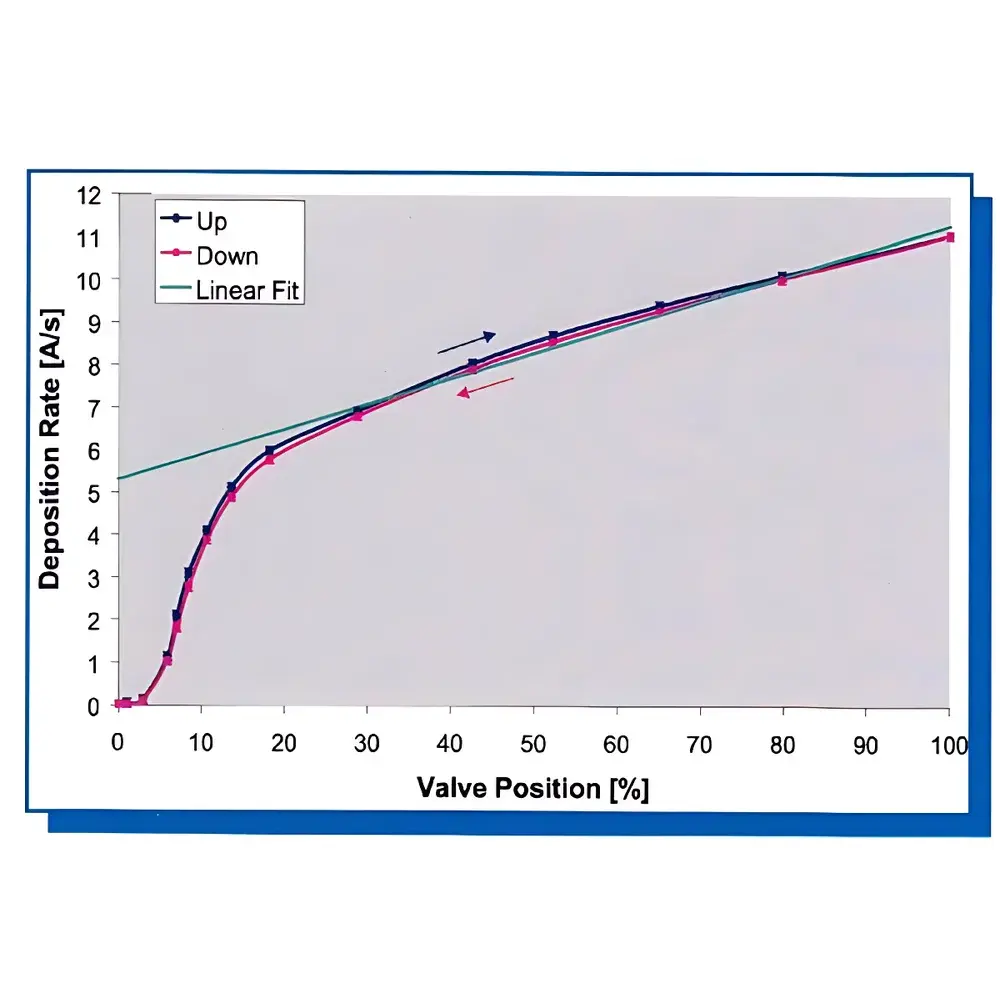

- Patented precision needle valve with real-time actuation capability—enables millisecond-level response to beam flux setpoints and supports closed-loop control when paired with optional integrated beam flux sensors.
- Adjustable diverting aperture assembly—mechanically configurable to shape and collimate the molecular beam, enhancing lateral uniformity across substrates up to 300 mm in diameter.
- Dual-zone thermal management: independently controlled bulk evaporation zone (up to 500 °C with outgassing capability) and high-temperature diverting aperture (up to 900 °C), minimizing condensation and enabling reactive species delivery.
- Thermal stability of ±0.1 °C maintained via PID-controlled K-type thermocouples and low-drift heating circuits—critical for maintaining consistent vapor pressure and avoiding compositional drift in multi-element co-evaporation.
- CF 4.5″ (DN63) standard feedthrough flange—compatible with ISO-KF, ISO-F, and custom flange interfaces upon request; supports full UHV bakeout to 200 °C.
Sample Compatibility & Compliance
The SVTA-C-30000 is validated for use with elemental chalcogens requiring precise vapor pressure regulation: Se (vapor pressure ~10⁻² Torr at 220 °C), Te (~10⁻³ Torr at 350 °C), and S (~10⁻¹ Torr at 300 °C). Its design conforms to standard vacuum interface protocols defined in ISO 3529-3 and ASTM F2781 for effusion cell integration. The system supports GLP-compliant operation when used with traceable calibration records and audit-trail-enabled controllers. All electrical feedthroughs meet IEC 61000-6-3 EMC immunity requirements for laboratory-grade vacuum instrumentation.
Software & Data Management
While the SVTA-C-30000 operates as a hardware module, its valve actuation and temperature control are fully compatible with industry-standard PLC and LabVIEW-based automation frameworks. Optional analog/digital I/O modules support 0–10 V or 4–20 mA beam flux feedback integration. When deployed with SVT’s proprietary control suite (or third-party platforms such as Keysight PathWave or National Instruments DAQmx), full data logging—including temperature ramp profiles, valve position history, and real-time flux deviation—is timestamped and exportable in CSV/CSV-T format. Audit trails comply with FDA 21 CFR Part 11 requirements when configured with user authentication and electronic signature modules.
Applications
- Co-evaporation of Se/Te/S in high-efficiency thin-film photovoltaics (CIGS, CZTSSe, Sb₂Se₃).
- Multi-source sequential or simultaneous deposition for OLED emissive layer stacks requiring strict stoichiometric control.
- Growth of phase-change memory (PCM) materials such as Ge₂Sb₂Te₅ (GST) where thermal history and vapor composition directly impact crystallinity.
- Research-scale synthesis of 2D chalcogenides (e.g., MoS₂, WSe₂) via two-step sulfidation/selenization using controlled chalcogen partial pressures.
- Calibration reference sources in beam flux metrology setups operating under UHV conditions.
FAQ
What vacuum compatibility does the SVTA-C-30000 support?
It is rated for continuous operation at pressures ≤1×10⁻⁴ Torr and is fully bakeable to 200 °C using standard UHV practices.
Can the diverting aperture be customized for non-circular beam profiles?
Yes—custom aperture plates (slit, rectangular, or annular geometries) are available upon engineering review and qualification.
Is thermal outgassing capability built-in for both crucible and aperture zones?
Both zones feature independent high-temperature outgassing modes: 500 °C for the bulk heater and 900 °C for the aperture assembly.
How is beam flux stability verified during qualification?
Each unit undergoes 72-hour flux stability testing using calibrated quartz crystal microbalances (QCMs) under nominal operating conditions; reports include RMS deviation and long-term drift metrics.
Does SVT provide installation and commissioning support outside North America?
Yes—remote technical supervision and on-site commissioning services are available globally through authorized regional partners, subject to export compliance review.
