| Brand | Taylor Hobson |
|---|---|
| Origin | United Kingdom |

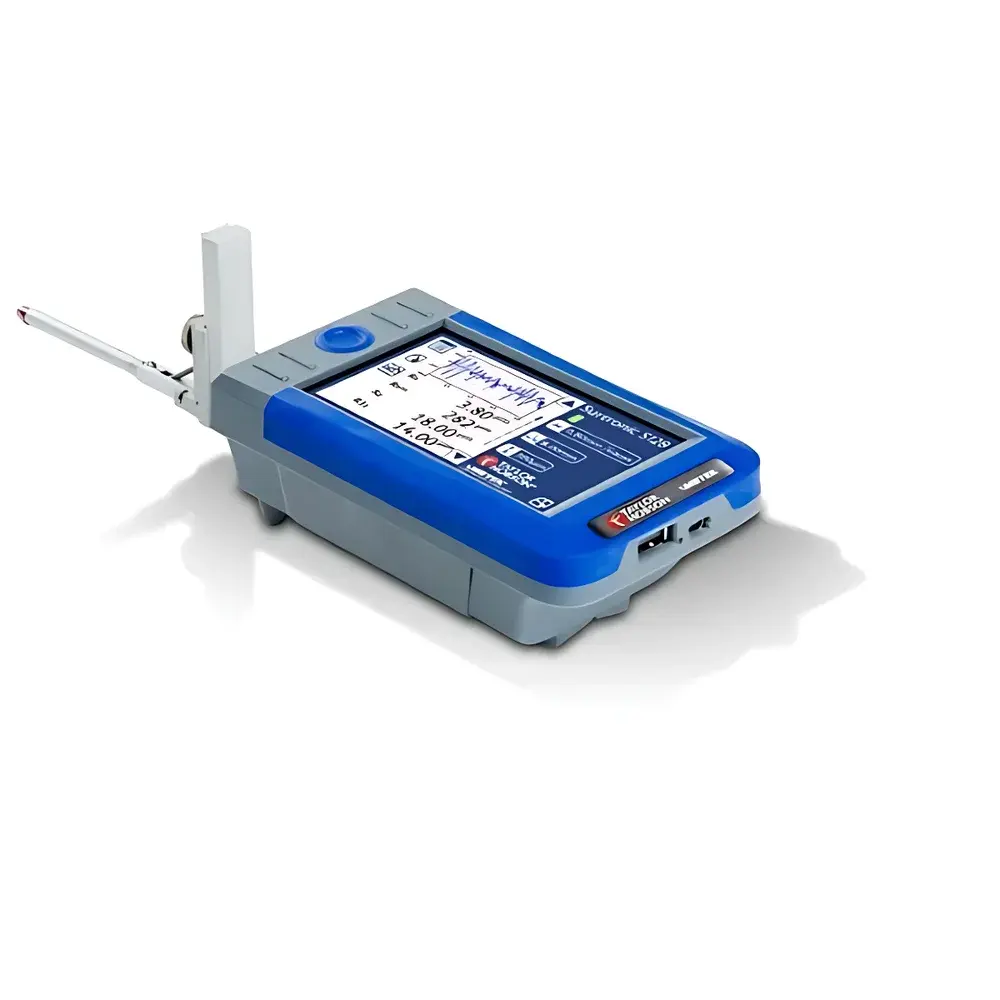

| Model | S116 / S128 |
| Type | Contact Profilometer & Surface Roughness Tester |
| Drive Mechanism | Stainless Steel Linear Actuator |
| Probe Lift Range | 50 mm |
| Maximum Measurement Depth | 70 mm |
| Display | 4.3-inch TFT Touchscreen (Rotatable 360°) |
| Battery | High-Capacity Lithium-Polymer (≥2000 measurements per charge |
| Interface | USB-A 2.0 (printer/data export), Micro-USB 2.0 (charging/data transfer) |
| Environmental Durability | Rubberized Shock-Absorbing Housing, Polyester Touchscreen Overlay, Wear-Resistant Gearing |
| Mounting Flexibility | V-Groove Feet for Flat or Curved Surfaces, Inverted Probe Capability |
| Parameter Display | Up to 7 roughness parameters simultaneously on single screen |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

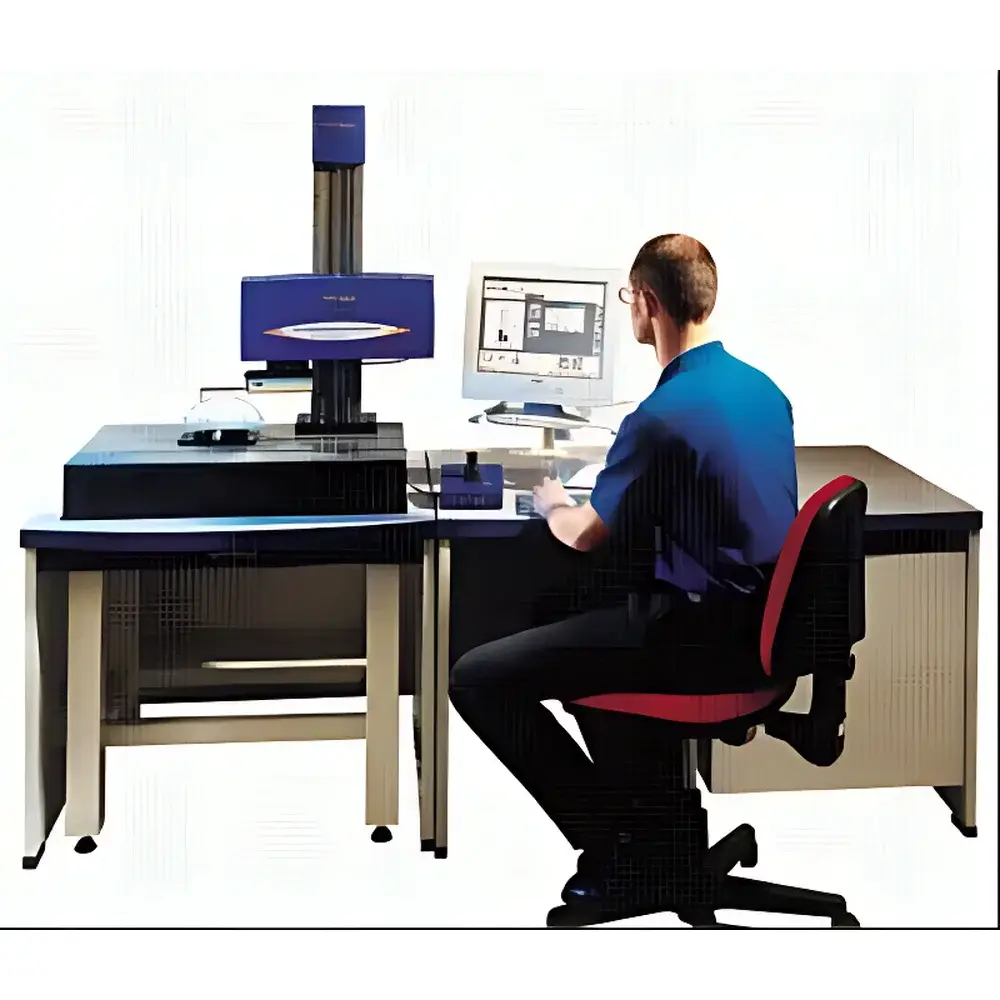

| Model | Form Talysurf Inductive |
| Price Range | USD 27,000 – 41,000 (est.) |
| Product Type | Contact Profilometer / Surface Roughness Tester |
| Measurement Length | 0.1 mm – 120 mm |
| Drive Method | Joystick or Computer-Controlled Motorized Traverse |
| Vertical Resolution | Up to 0.6 nm |
| Traverse Options | 50 mm / 120 mm / 200 mm Carriages |
| Measurement Modes | 2D Profile, 3D Areal Topography |
| Automation | Fully Programmable Auto-Operation for Batch Testing |
| Software | Multi-Option Analysis Suite with ISO 4287/4288, ISO 25178, ASME B46.1, and EN ISO 11562 Compliance |
| Brand | Taylor Hobson |
|---|---|
| Origin | United Kingdom |
| Model | PGI Matrix 1 / PGI Matrix 3 / PGI Matrix 5 |
| Type | Contact Profilometer / Surface Roughness Tester |
| Measurement Principle | Precision Stylus-Based Topographic Profiling with PGI (Precision Geometry Interferometry) Signal Processing |
| Software Platform | Form Talysurf Intra (v6.0+) with Advanced Aspheric Analysis Unit (AAU) |
| Compliance | ISO 25178-2, ISO 4287, ISO 11562, ISO 12780, ASTM E1158, USP <1058> (Analytical Instrument Qualification), FDA 21 CFR Part 11 (Audit Trail & Electronic Signatures Enabled) |
| Environmental Compensation | Real-time X-axis & radius thermal drift compensation algorithm |
| Key Output Metrics | Residual form error (sub-micron), aspheric deviation (nm-level), slope error (µrad), ring zone depth, diffraction step height reconstruction, reverse-coefficient fitting for aspheric/diffractive surfaces |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

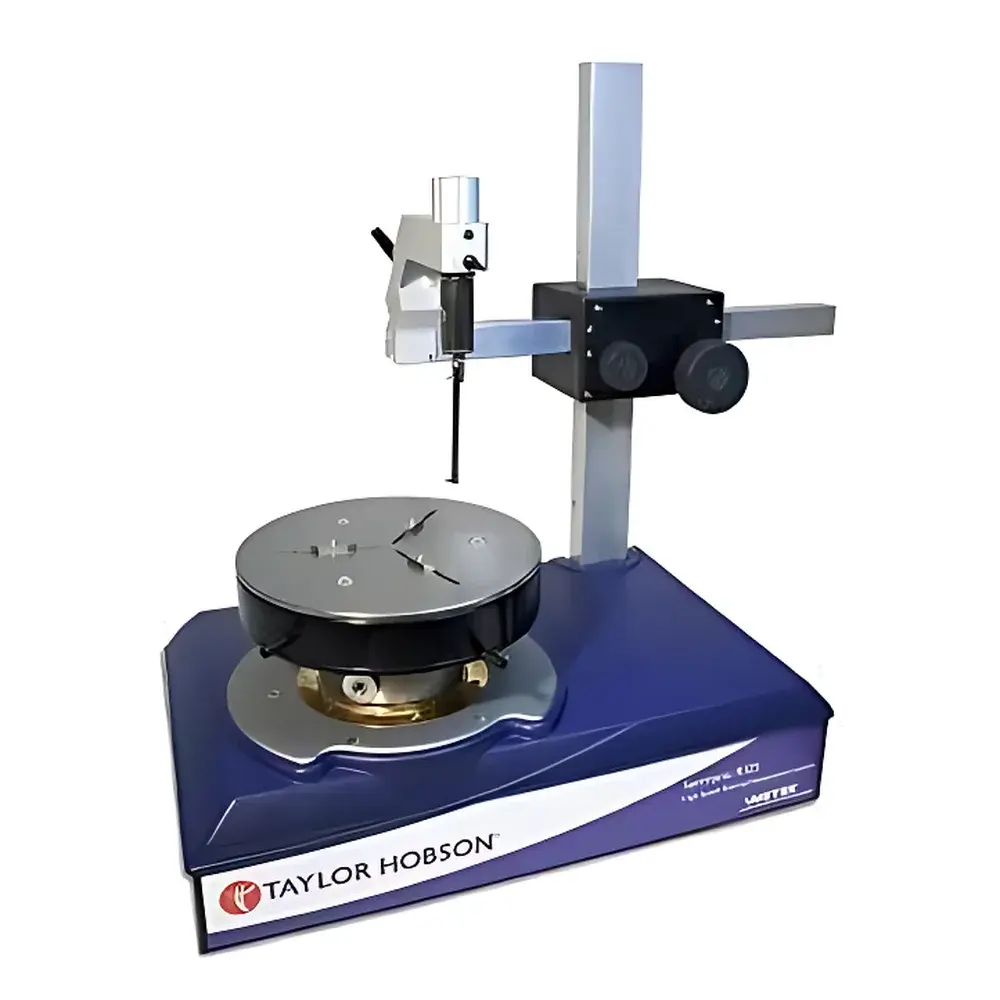

| Model | R-100 |
| Pricing | Available Upon Request |
| Max. Specimen Weight | 20 kg |
| Max. Measurable Diameter | Ø 300 mm |
| Max. Measurable Height | 280 mm |
| Radial Roundness Error Limit | ±0.025 µm |
| Angular Resolution | 6 nm |
| Power Consumption | 160 W |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

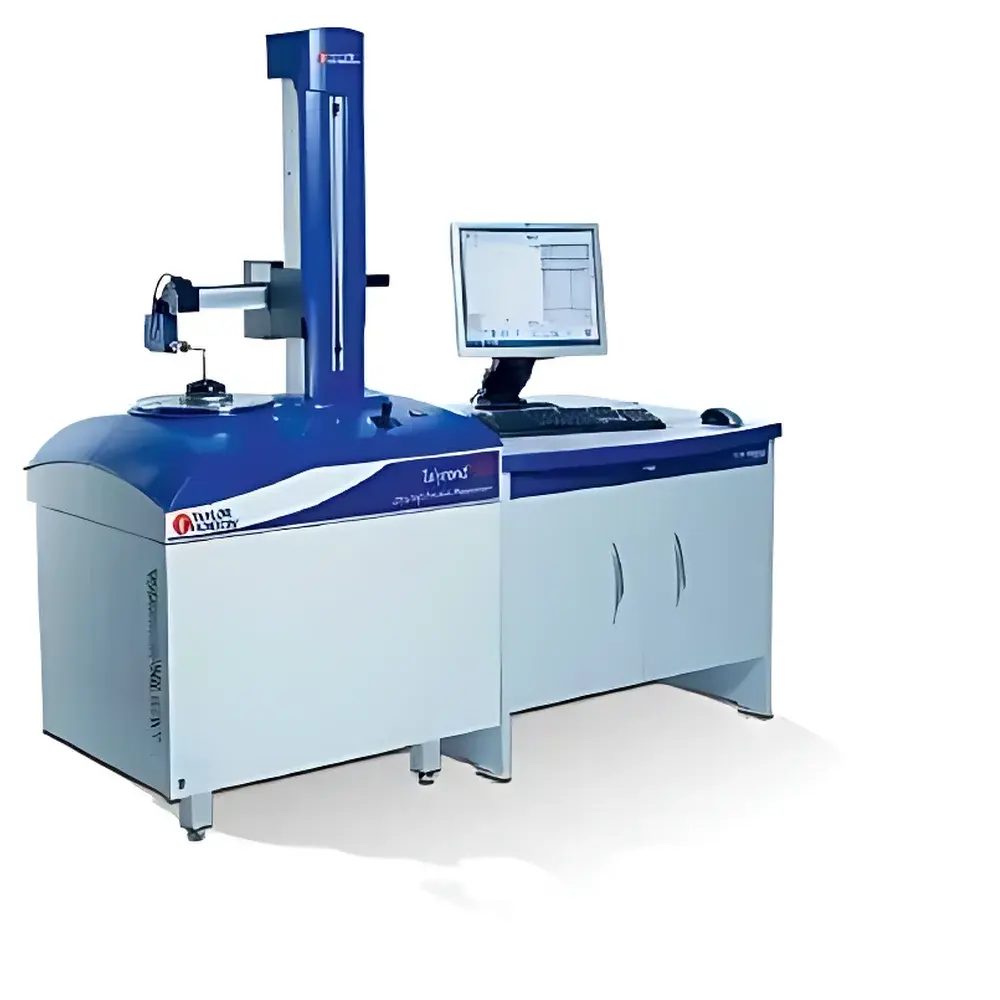

| Model | TR 565 / TR 585 |
| Quotation | Upon Request |
| Max. Workpiece Weight | 75 kg |
| Max. Measurement Height | 300 / 500 / 900 mm (configurable) |
| Max. Measurement Diameter | Ø 400 mm (expandable to Ø 485 mm) |
| Radial Error Limit | ±(0.015 µm + 0.0003 × H µm), H in mm (1–50 UPR filter) |
| Resolution | 0.5 nm |
| Maximum Data Points | 18,000 per trace |
| Calibration | Patented spherical artifact-based probe curvature compensation |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

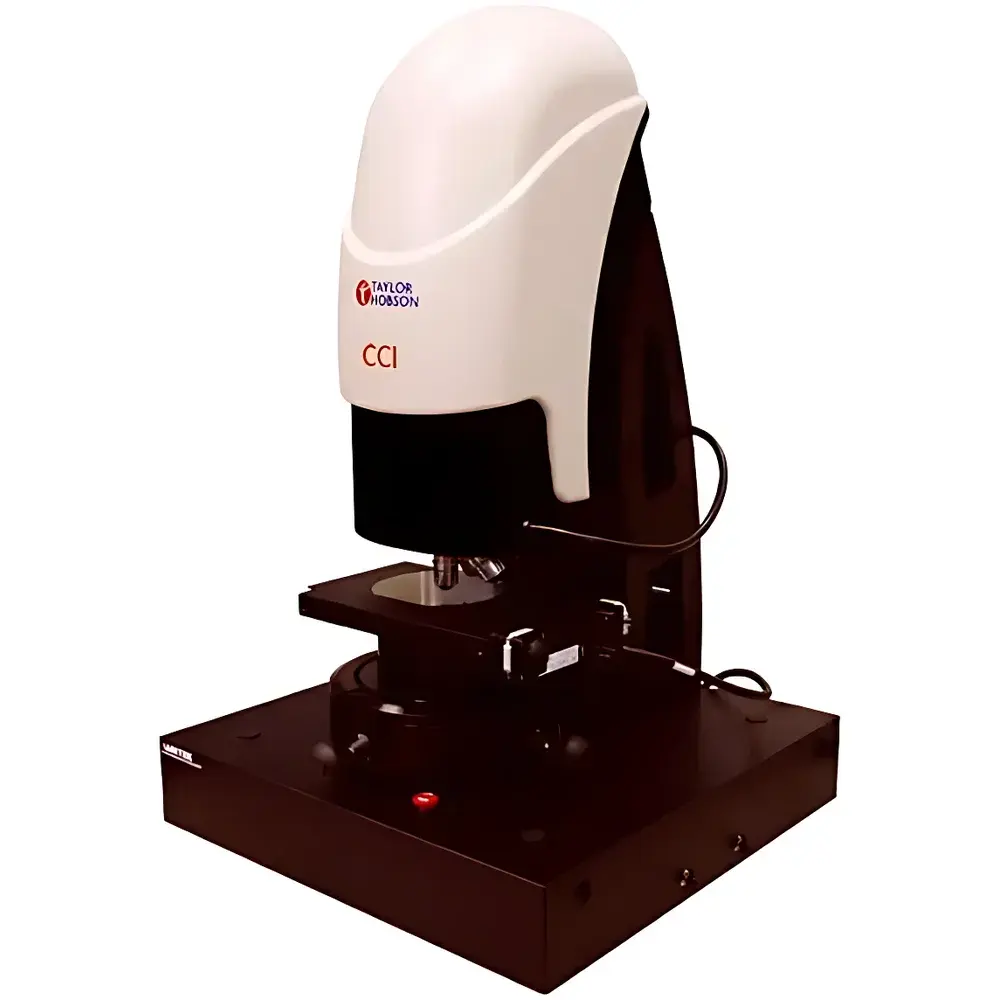

| Model | CCI MP-HS |
| Pricing | Available Upon Request |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TR 500 |
| Pricing | Available Upon Request |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model Variants | TA51, DA400, DA20 |
| Pricing | Upon Technical Consultation |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Form Talysurf PGI |
| Product Type | Contact Profilometer / Surface Roughness Tester |
| Travel Length | 200 mm or 120 mm |
| Measurement Principle | Stylus-based Inductive Displacement Sensing |
| Aspheric Measurement Mode | Phase-Grating Interferometric Reconstruction (Reverse Engineering) |
| Profile Range | 4 mm (60 mm diamond stylus, simultaneous roughness & form) / 8 mm (120 mm spherical stylus, form-only) |
| Software Capabilities | 2D/3D surface topography analysis, aspheric deviation mapping, sag table export compliant with optical design software (e.g., Zemax, Code V) |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Talyvel 5 TB80 TB100 Digital |
| Measurement Range | ±360° / 360° / ±45° |
| Resolution | 0.1 arcsec / 0.2 arcsec / 10 arcsec / 4 arcsec |
| Accuracy | 0.2 arcsec / 5 arcsec / 10 arcsec / 30 arcsec |
| Display | Digital / Visual / Visual / Digital |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

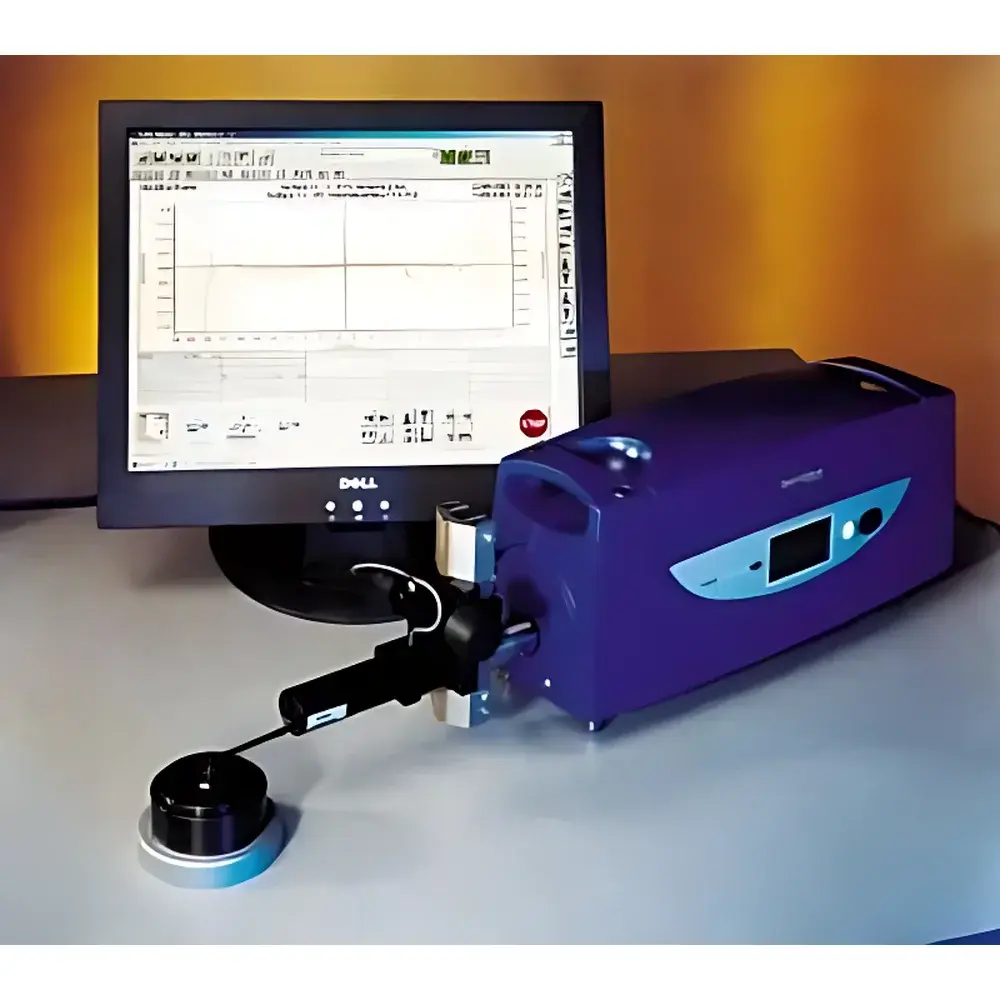

| Model | Form Talysurf Intra |
| Product Type | Contact Profilometer / Surface Roughness Tester |
| Sensor Type | Inductive |
| Vertical Measurement Range | 1 mm (standard, with 60 mm stylus) / 2 mm (optional, with 120 mm stylus) |
| Vertical Resolution | 16 nm (at 1 mm range), 3.2 nm (at 0.2 mm range) |
| Range-to-Resolution Ratio | 65,536:1 |
| Stylus Force | 0.7–1 mN |
| Brand | Taylor Hobson |
|---|---|
| Origin | United Kingdom |

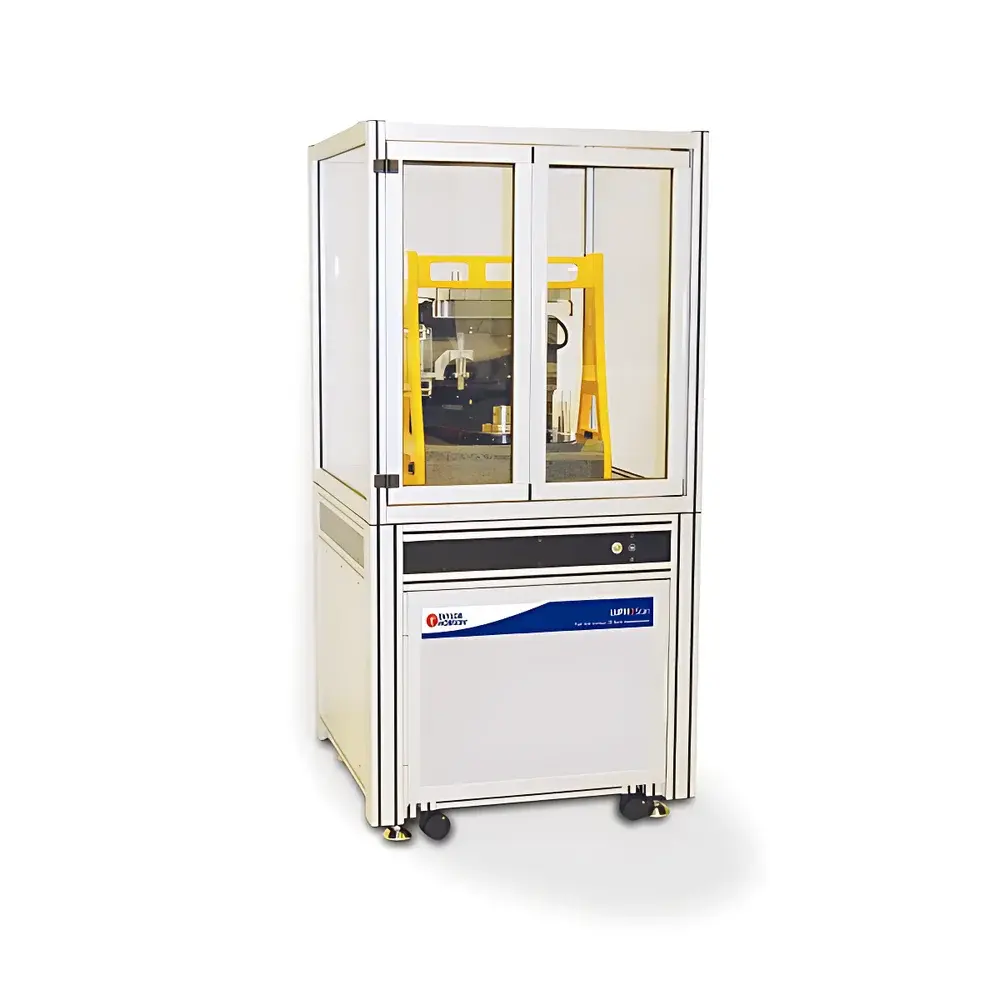

| Model | LuphoScan120 / LuphoScan260 / LuphoScan420 |
| Measurement Principle | Multi-Wavelength Interferometry (MWLI®) |
| Maximum Workpiece Diameter | 120 mm / 260 mm / 420 mm |
| Vertical Resolution | < 0.1 nm (sub-nanometer) |
| Shape Accuracy | ≤ ±50 nm (traceable to NPL/PTB standards) |
| Scan Speed | Full 3D topography of 30 mm spherical surface < 2 min |
| Surface Compatibility | Transparent optics (fused silica, CaF₂, BK7), polished metals, ground surfaces, coated substrates |
| Software Platform | Form Talysurf® with LuphoScan Module (ISO 10110-5, ISO 14999-1, ISO 25178 compliant) |
| Regulatory Compliance | Supports GLP/GMP audit trails, 21 CFR Part 11 electronic signature readiness, full measurement traceability per ISO/IEC 17025 |
| Origin | Imported |
|---|---|
| Manufacturer Type | Distributor |
| Model | MAT |
| Price | Upon Request |
| Measurement Range | ±1.2 mm |
| Optical Magnification | 34× |
| Accuracy | 5 µm at 3 m, 50 µm at 30 m |
| Maximum Effective Measurement Distance | 30 m (extendable) |
| Linear Measurement Accuracy | ±20 µm |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

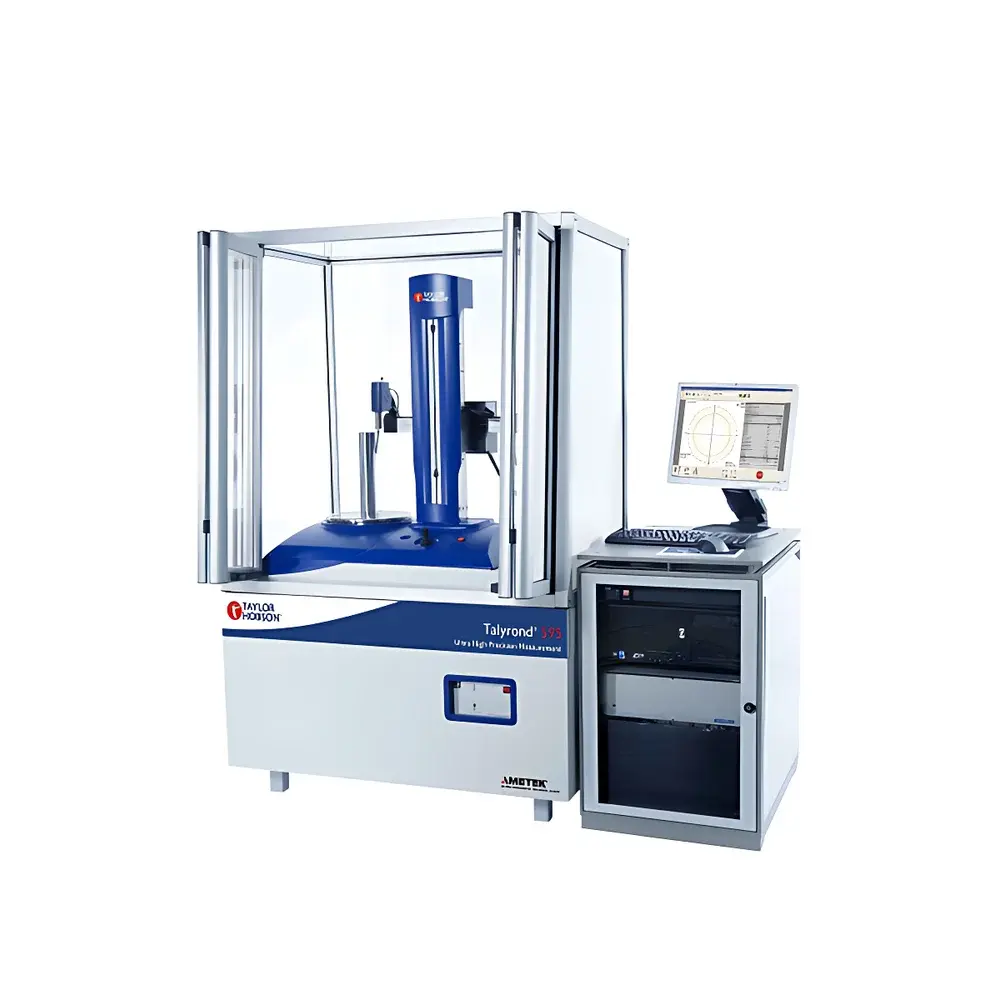

| Model | Talyrond 595 |
| Pricing | Available Upon Request |
| Brand | Taylor Hobson |
|---|---|
| Origin | United Kingdom |
| Model | PGI Freeform |
| Type | Contact Profilometer / Surface Roughness Tester |
| Measurement Principle | Stylus-based Scanning Interferometry with Radial & Grid Scan Modes |
| Vertical Range | 28 mm |
| Vertical Resolution | 0.8 nm |
| Tilt Capability | ±50° |
| Form Error Accuracy | <150 nm PV (as per ISO 5436-1 and ISO 25178-2) |
| Compliance | ASTM E1155, ISO 10360, ISO 25178, ISO 5436-1, USP <1058> for metrological validation |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | Talysurf CCI |
| Pricing | Available Upon Request |
| Product Type | Non-Contact Profilometer / Surface Roughness Analyzer |
