| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (China) |
| Model | LK-SZB564 |

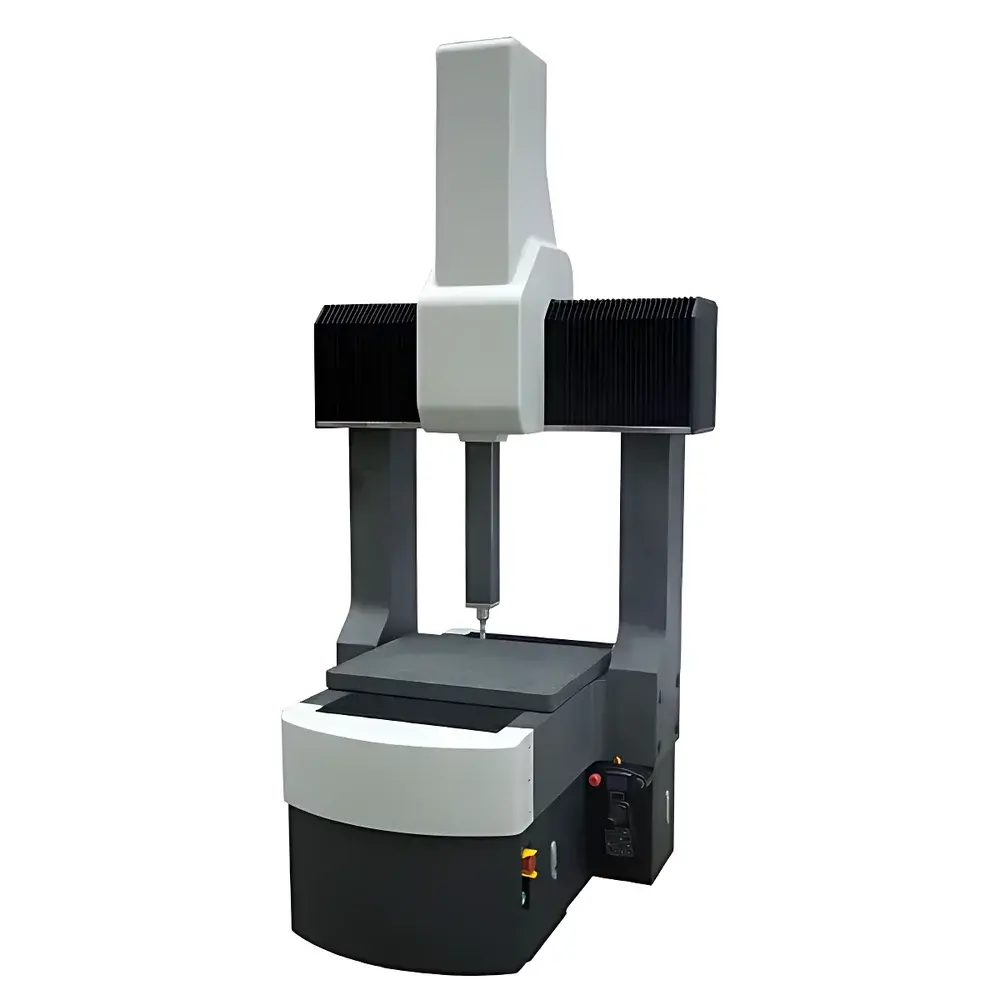

| Configuration | Bridge-Type |
| Operation Mode | Fully Automatic |
| Instrument Orientation | Vertical |
| Measurement Principle | Contact-Based Tactile Probing |
| Measurement Volume (X×Y×Z) | 500 mm × 600 mm × 400 mm |
| Volumetric Accuracy | E ≤ (2.8 + L/300) µm |
| Probe System | YF1 + RA20 + RA13 (TELES), with Standard Force Module and M2 Interface |
| Probe Tip Mass | 22 g |
| Length Measurement System | Reflective Metallic Tape Encoder Scale |
| Maximum Permissible Temperature Deviation | ±1 °C (Standard Environment: 18–22 °C) |
| Relative Humidity Range | 40–70 % RH |
| Power Supply | 220 V ±10 %, 50–60 Hz |
| Minimum Air Supply Pressure | ≥0.55 MPa |
| Maximum Workpiece Load | 100 kg |
| Structural Material | Granite (All Three Axes) |
| Y-Axis Guideway | P-Class Precision Linear Rail |
| Drive System | High-Performance DC Servo Motor with Timing Belt Transmission |
| Control Architecture | Dual-Computer Embedded CMM Controller |
| Software Platform | MSU3D PRO v5.x (Proprietary 3D Metrology Suite) |
