| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |
| Model | LK-SP800 |
| Total Magnification Range | 9.6×–80.3× |
| Zoom Ratio | 1:8.3 |
| Field Diameter | 8 mm |
| Working Distance | 90 mm |
| Objective Type | Apochromatic Plan Achromat Objective |
| Illumination | LED Ring Light (Epi-Illumination) |
| Depth of Field | 1 mm |
| Numerical Aperture | 0.1 |
| Sensor | 1/2″ CMOS, 1920×1080 @ 60 fps |
| Display | 11.6″ Integrated LCD |
| Stand Height | 300 mm (Linear Rail Column), Base Dimensions: 320×260×20 mm |
| Software Functions | Brightness/Saturation/RGB Adjustment, One-Touch White Balance & Auto Exposure, HDR Imaging, SE Enhancement, Image Freeze, Capture, On-Screen Measurement, Reference Image Overlay, Crosshair & Custom Grid Lines, Edge Detection, Mirror Flip (H/V), Color/Grayscale Toggle, LED Intensity Control |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

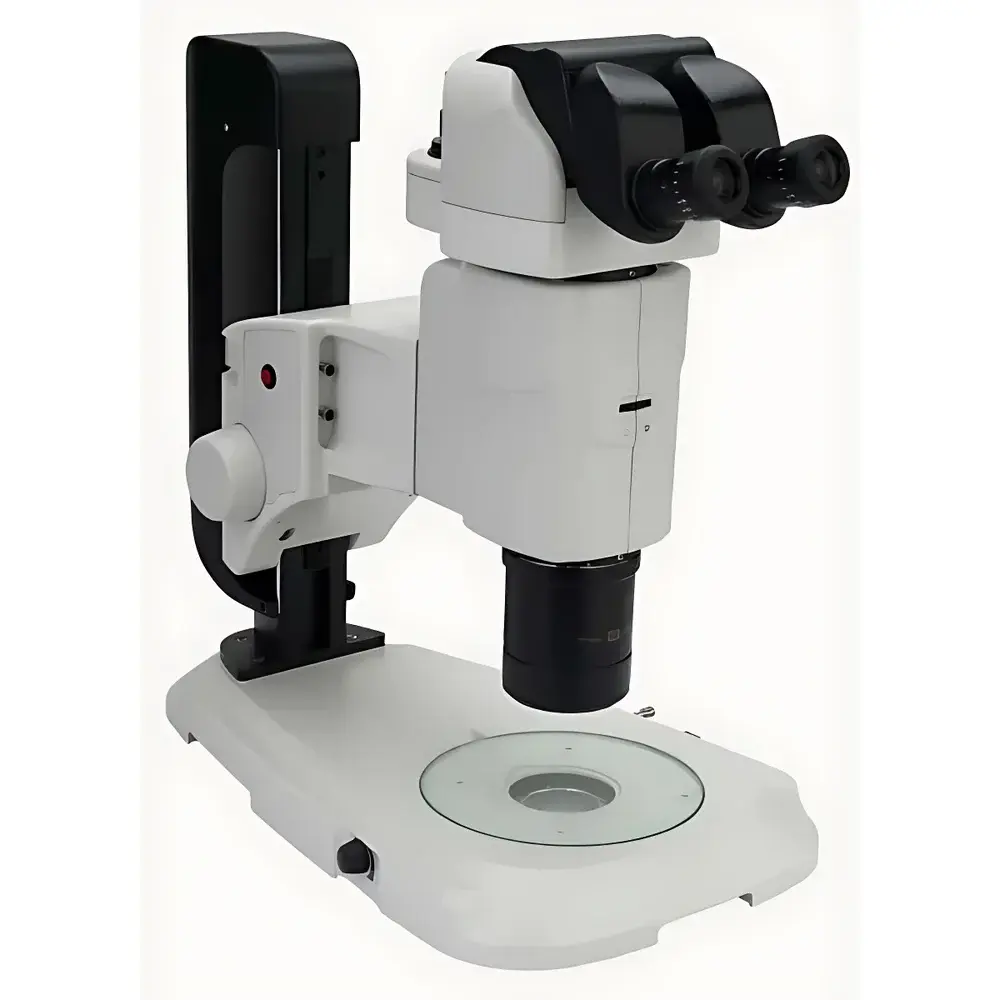

| Model | LK-TSFX-888 |
| Total Magnification Range | 7.5×–135× |
| Zoom Ratio | 1:18 |
| Working Distance | 60 mm |
| Objective Type | Apochromatic Plan (APO) Objective |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Direct Manufacturer |

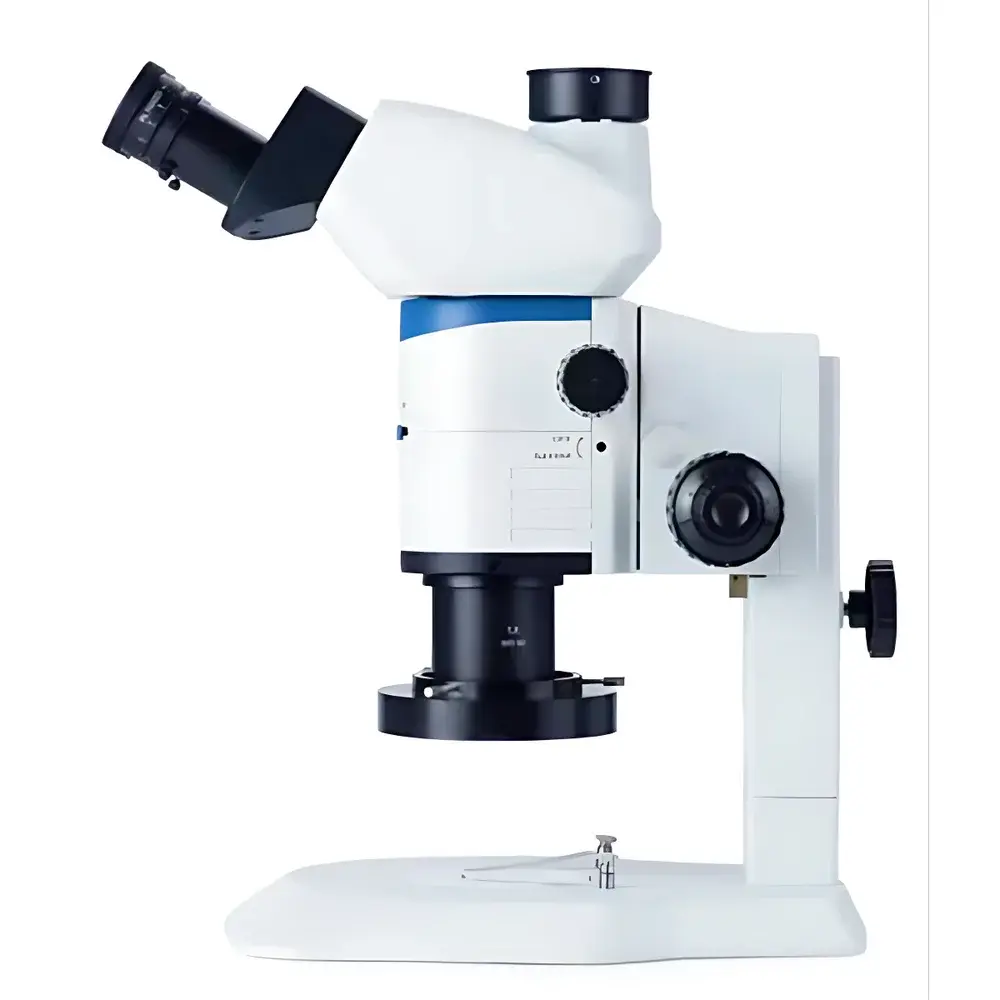

| Model | LK-TSSW12 |
| Optical System | Galilean |
| Total Magnification Range | 6.3×–80× |
| Eyepiece | Widefield WF10×/22 mm, Adjustable Diopter |
| Zoom Objective | 0.63–8× Continuous Zoom (12.5:1 Ratio) with Detent-Positioned Magnification Marks |
| Primary Objective | 1× Achromatic Apochromatic Corrected Objective |
| Working Distance | 80 mm |
| Focusing Mechanism | Coaxial Coarse/Fine Focus, 50 mm Travel, 2 µm Fine Adjustment Resolution |
| Observation Head | Tiltable Trinocular Tube (5°–45°), Dual Light Path Selection (100% Binocular or 100% Trinocular), Interpupillary Adjustment 50–76 mm |
| Illumination | Adjustable Color Temperature LED Ring Light (3000–5600 K), Brightness Control, Optional Oblique Lighting Module |
| Base | Ultra-Thin Pillar Stand with Integrated Illumination Controls |
| Compliance | Designed for ISO 10993-1 pre-screening support, GLP-aligned documentation architecture, compatible with ASTM E2912 and ISO 13536 visual inspection workflows |
| Brand | Lei-Tech |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | LK-XZTS-71 |
| Total Magnification Range | 7×–45× |
| Zoom Ratio | 1:6.7 |
| Working Distance | 110 mm |
| Objective Type | Achromatic |
| Illumination Options | Fluorescence, Halogen, LED |
| Eyepiece Field of View | 22 mm |
| Eyepiece Magnification | 10× (High-Eye-Point Plan) |
| Viewing Head | Trinocular, 45° Inclined, Interpupillary Adjustment Range: 52–76 mm |
| Focusing Mechanism | Precision Linear-Guide Vertical Focus with Dual-Side Coaxial Knobs |
| Base Type | Upright Column-Type Flat Platform Base (Compatible with ST70A1 Stand) |
| Brand | Lei-Tech |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |
| Models | LK-45, LK-71 |
| Price | USD 360 (FOB) |
| Total Magnification Range | 0.67×–4.5× |
| Zoom Ratio | 6.7:1 |
| Working Distance | 110 mm |
| Illumination | Integrated Long-Life LED Ring Light (Dual-Mode Top & Bottom Switchable) |
| Eyepiece | Widefield Plan Eyepieces PL10×/22 mm with Adjustable Diopter |
| Observation Tube | Trinocular, 45° Inclined, Interpupillary Adjustment 52–76 mm |
| Focus Mechanism | Precision Linear-Guide Vertical Focus with Dual-Side Coaxial Knobs, Tension-Adjustable |
| Base | Column-Type Compact Fan-Shaped Plate Base (Compatible with ST70A1 Auxiliary Stage) |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

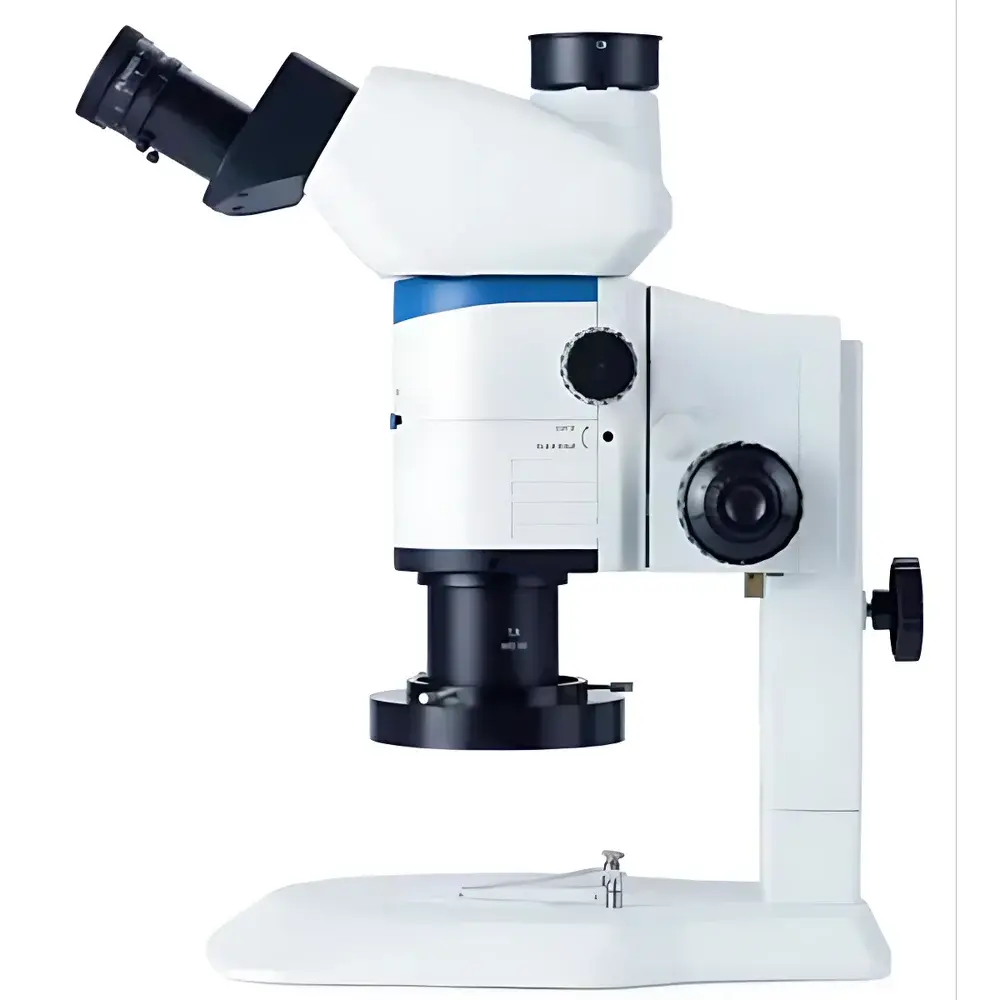

| Model | LK-TS12-TRF |
| Total Magnification Range | 6.3×–80× |
| Zoom Ratio | 12.5:1 |
| Working Distance | 80 mm |
| Illumination | Long-Life LED |
