| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM/ODM) |
| Model | LK-WIFI2600 |
| Sensor | 1.3 MP CMOS color imaging sensor |
| Resolution | 1280 × 720 pixels |
| Magnification | 5–600× (display-dependent, calibrated on 17″ monitor) |
| Optical System | 6-element precision glass lens assembly |
| Focus Mechanism | Motorized auto/manual focus with touch-initiated algorithmic stabilization |
| Illumination | Switchable triple-spectrum LED array (white: 2000K/4000K, UV: 365 nm, IR: 850 nm) |
| Power | Rechargeable 2000 mAh Li-ion battery |
| Runtime | Up to 4 hours continuous imaging |
| Dimensions | 46 × 46 × 82 mm (L × W × H) |
| Weight | 70 g |
| Connectivity | Wi-Fi 2.4 GHz direct hotspot mode & client mode |
| Interface | USB-C (data/power) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | −20–+50 °C |
| Measurement Accuracy | Micrometer-level calibration traceable via on-device reference scale and software pixel-to-unit conversion |
| Software Compatibility | Android OS 8.0+, Windows 10/11 (via browser-based web interface or dedicated APK) |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | LK-CC6000 |
| Pricing | Available Upon Request |
| Optical Design | Maksutov-Cassegrain Reflecting Refracting System |
| Working Distance (W.D.) | 200–2000 mm |
| Field of View (FOV) | 0.65 × 0.4 mm to 6 × 4 mm |
| Minimum Field Angle | 0.7° |
| Resolution | 3.5 µm @ 200 mm W.D. (1 mm FOV), 7 µm @ 500 mm W.D. (1.5 mm FOV), 15 µm @ 1000 mm W.D. (3 mm FOV) |
| Imaging Interface | USB 3.0, HDMI, Optional Ultra-High-Speed Camera (4,000–20,000 fps) |
| Sensor | Scientific-grade SONY CMOS/CCD with Ultra-Fine™ Color Engine & Real-time HDR |
| Software | Integrated Measurement Calibration (5-sec scale calibration at any W.D.), 2D Dimensional Metrology, Dynamic Image Capture & Annotation |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Model | LK-CJS211 |
| Magnification Range | 165×–3300× |
| Optical Resolution | 2 µm (at 10× objective) |
| Z-Axis Measurement Accuracy | ±2 µm |
| Sensor | Sony 1/2″ Color CMOS, 2 MP |
| Illumination | LED Coaxial Light Source (40,000 h lifetime) |
| Focus Mechanism | Coaxial Coarse/Fine Adjustment, 50 mm Travel, 0.002 mm Fine Step |
| Stage Travel | 65 mm × 55 mm |
| Base Dimensions | 330 mm × 300 mm |
| Column Height | 382 mm |
| Field of View (at 10×) | 3 mm × 1.68 mm |
| Core Capabilities | Real-time Extended Depth of Field (EDF), Wide Dynamic Range (WDR), 3D Surface Reconstruction, Automated 2D/3D Metrology, AI-assisted Edge Detection & Batch Measurement |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | OEM Manufacturer |
| Model | LK-CJS6300 |
| Imaging Sensor | 1/1.7″ CMOS, 3840 × 2160 (4K) @ 60 fps |
| Optical Zoom Range (Configurable) | 30×–500× or 80×–6500× |
| Motorized XYZ Stage | X/Y travel 205 mm × 180 mm, resolution 1 µm |
| Tiltable Objective Arm | 0°–90° left/right inclination with electronic brake |
| Rotatable Stage | 360° continuous electric rotation |
| Software Functions | Real-time extended depth-of-field (EDF) fusion, auto-focus, 2D/3D stitching, 2D metrology, 3D topography reconstruction, roughness analysis, cleanliness assessment (optional), IMC thickness measurement (optional) |
| Lens Type | Apochromatic corrected optics |
| Illumination Modes | Ring, diffuse, oblique, coaxial epi-illumination, transmitted, hybrid, brightfield, darkfield, polarized, DIC |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM/ODM) |
| Model | LK-CJS253M |
| Price Range | USD $34,000–$41,000 (FOB Tianjin) |
| Optical Interface | Standard C-mount |
| Max Total Magnification | 50×–1000× |
| Sensor | Sony 1/2" CMOS, 2.0 MP (1920 × 1080) |
| Frame Rate | 60 FPS (full HD), 30 FPS (with 3D processing) |
| Shutter | Progressive scan, auto exposure (0.1 ms–16.6 ms), manual range (1 ms–1000 ms) |
| White Balance | Auto / Manual / Region-selectable |
| Video Output | HDMI 2.0 |
| Core Functions | Real-time Extended Depth of Field (EDF), Wide Dynamic Range (WDR), 3D surface reconstruction, automated 2D/3D metrology, edge-aware segmentation, grayscale gamma correction |
| Measurement Accuracy (10× objective) | ±2 µm (2D & 3D), repeatability ≤2 µm |
| Reporting | Pass/fail classification, batch data export (CSV, PDF, XML), GLP-compliant audit trail (optional software module) |
| Brand | Lei-Tech |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Model | LK-CJS1500 |
| Imaging Sensor | 60 fps @ 1920×1080 |
| Z-Axis Drive | Motorized, 200 mm travel |
| XY Stage Dimensions | 180 mm × 155 mm, 360° rotary (R = 95 mm), translation range: X = 75 mm, Y = 55 mm |
| Magnification Range | 57.4× to 4286.3× |
| Optical Resolution | 1 µm |
| Z-Axis Resolution | 0.1 mm |
| Working Distance | 86 mm |
| FOV Range | 2 mm to 45 mm |
| Illumination | Transmitted LED dark-field + reflected LED ring light |
| Objective Turret | 4-position |
| Objectives | Infinity-corrected long-working-distance achromatic metallurgical objectives (1×/0.03, 5×/0.15, 10×/0.30) |
| Built-in OS | Yes |
| Brand | Lei-Tech |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | OEM/ODM Manufacturer |

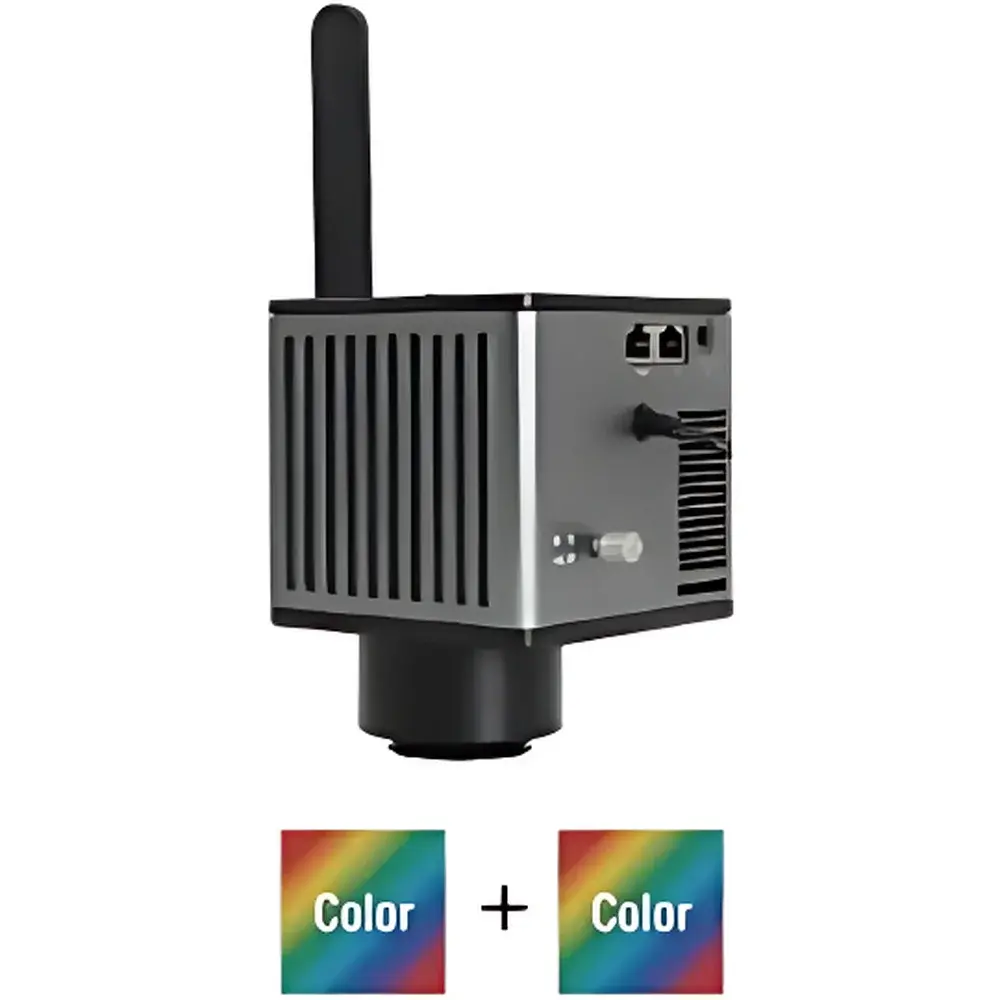

| Model | LK-CAM2YG |
| Configuration Options | Color+Color or Color+Monochrome |
| Sensor 1 (Brightfield) | Sony IMX147, 20.0 MP, 1/2.3", 1.2 µm × 1.2 µm, 380–650 nm |
| Sensor 2 (Fluorescence) | IMX482 (Color, 2.0 MP, 1/1.2", 5.8 µm × 5.8 µm, 400–800 nm) or IMX174 (Monochrome, 2.3 MP, 1/1.2", 5.86 µm × 5.86 µm, broadband transmission) |
| Exposure Modes | Rolling Shutter (BF & FL-color), Global Shutter (FL-mono) |
| Max Preview | 5184×3888@10 fps / 1920×1200@60 fps |
| Read Noise | 1.5–12.9 e⁻ (IMX482), 3.5–6 e⁻ (IMX174) |
| QE Peak | 85% (IMX482), 100% (IMX174) |
| Cooling | Two-stage thermoelectric cooler, stable at 0 ± 2 °C across 0–40 °C ambient |
| Output Interfaces | USB 3.0, 5G WiFi (IEEE 802.11ac), Gigabit Ethernet (USB and WiFi mutually exclusive) |
| Bit Depth | 12-bit (BF), 10-bit (IMX482), 12-bit (IMX174) |
| Compliance | CE, FCC, RoHS |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Direct Manufacturer |

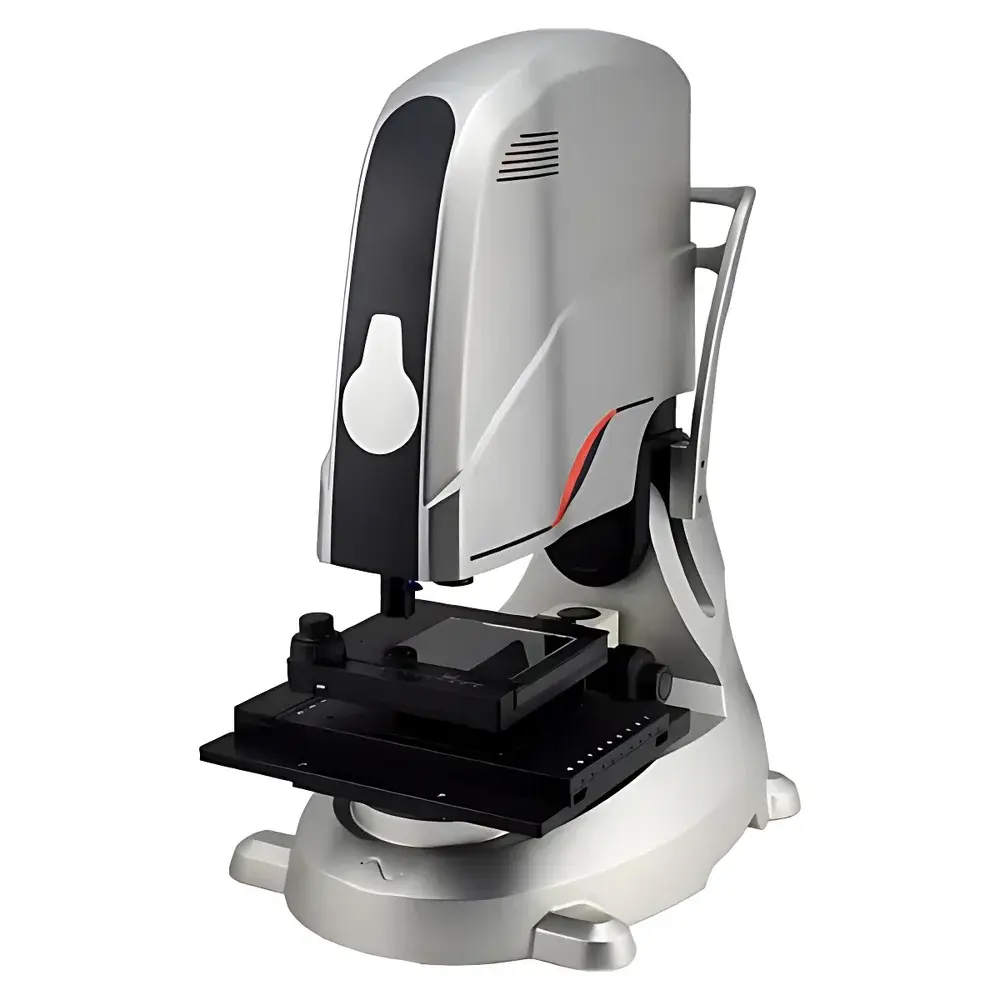

| Model | LK-JS8500 |
| Focus Drive | Motorized Zoom |
| Frame Rate | 60 fps |
| Zoom Ratio | 12:1 |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

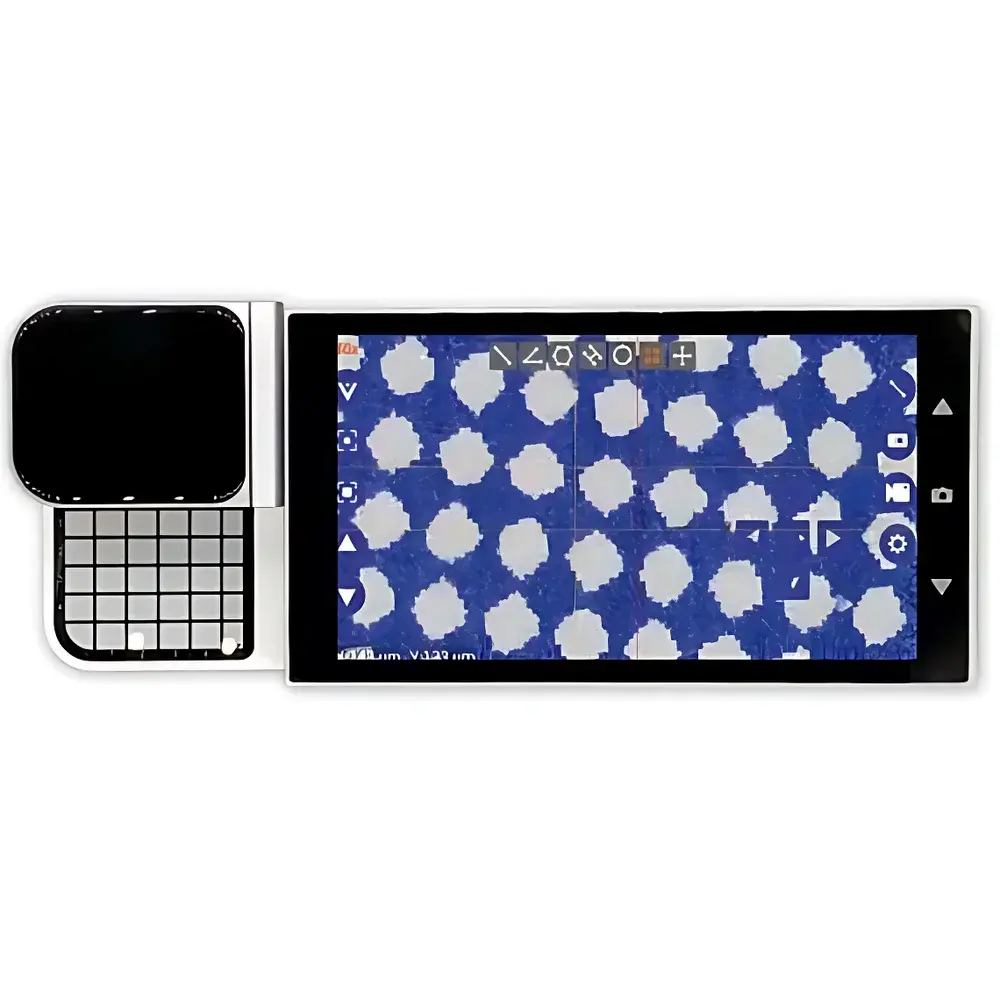

| Model | LK-ICLY2600 |
| Image Sensor | 1.3 MP Color CMOS |
| Display Resolution | 1280×720 (720p) |
| Magnification Range | 5–400× (screen-dependent, calibrated for 17″ display) |
| Touchscreen | 720p HD LCD with capacitive touch interface |
| Built-in Storage | 8 GB (expandable via microSD) |
| Onboard Memory | 2 GB ROM |
| Battery Capacity | 5200 mAh Li-ion |
| Operating Time | Up to 3 h continuous imaging |
| Charging Interface | USB-C |
| Video Output | HDMI 1.4 |
| Wireless Connectivity | Wi-Fi 802.11 b/g/n, Bluetooth 4.2 |
| Operating System | Android 5.0 |
| Measurement Accuracy | Micrometer-level (software-calibrated) |
| Illumination | 8× high-intensity white LED (6200 K), optional UV/IR modules |
| Dimensions | 185 × 70 × 55 mm |
| Weight | ~300 g |
| Operating Temperature | 5–35 °C |
| Storage Temperature | −20 to +50 °C |
| Digital Zoom | 2× |
| Image Format | JPG, BMP |
