| Brand | Narishige |
|---|---|
| Model | MF2 |
| Origin | Japan |
| Type | Microelectrode Fabrication Instrument |
| Heating Micro-Positioning Range (X/Y/Z) | 14 mm / 14 mm / 14 mm |
| Microneedle Manipulation Range (X/Z) | 12 mm / 28 mm |
| Microscope Travel (X/Y/Z) | ~7 mm / 30 mm / ~8 mm |
| Magnification | 50× / 100× (10× eyepiece + 5× / 10× objective) |
| Capillary Outer Diameter Compatibility | 1.0 mm |
| Brand | Narishige |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | Imported |

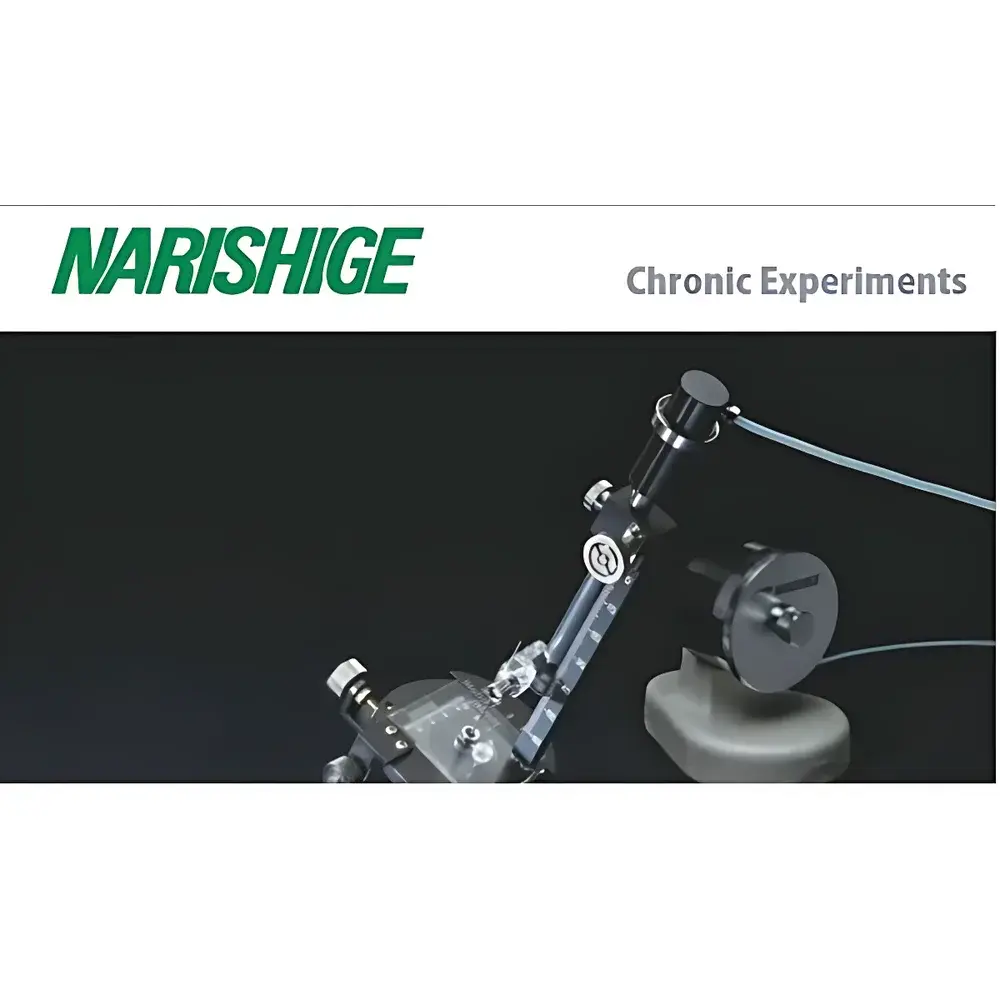

| Model | MM-891 |
| Price Range | USD 6,800 – 13,600 |
| Brand | Narishige |
|---|---|
| Model | EG-402 |
| Origin | Japan |
| Microscope Magnification | 30× (10× eyepiece + 3× objective) |
| Micropipette Positioning | Full XYZ translation + continuous 360° rotational adjustment |
| Micropipette Approach Range | ~47 mm |
| Microscope Stage Travel | X: ~7 mm, Y: 30 mm, Z: ~8 mm |
| Grinding Wheel Speed | 50–2000 rpm (continuously adjustable) |
| Grinding Medium | Diamond-coated abrasive wheel |
| Compatible Capillary Diameter | 1.0–1.5 mm |
| Brand | Narishige |
|---|---|
| Origin | Japan |

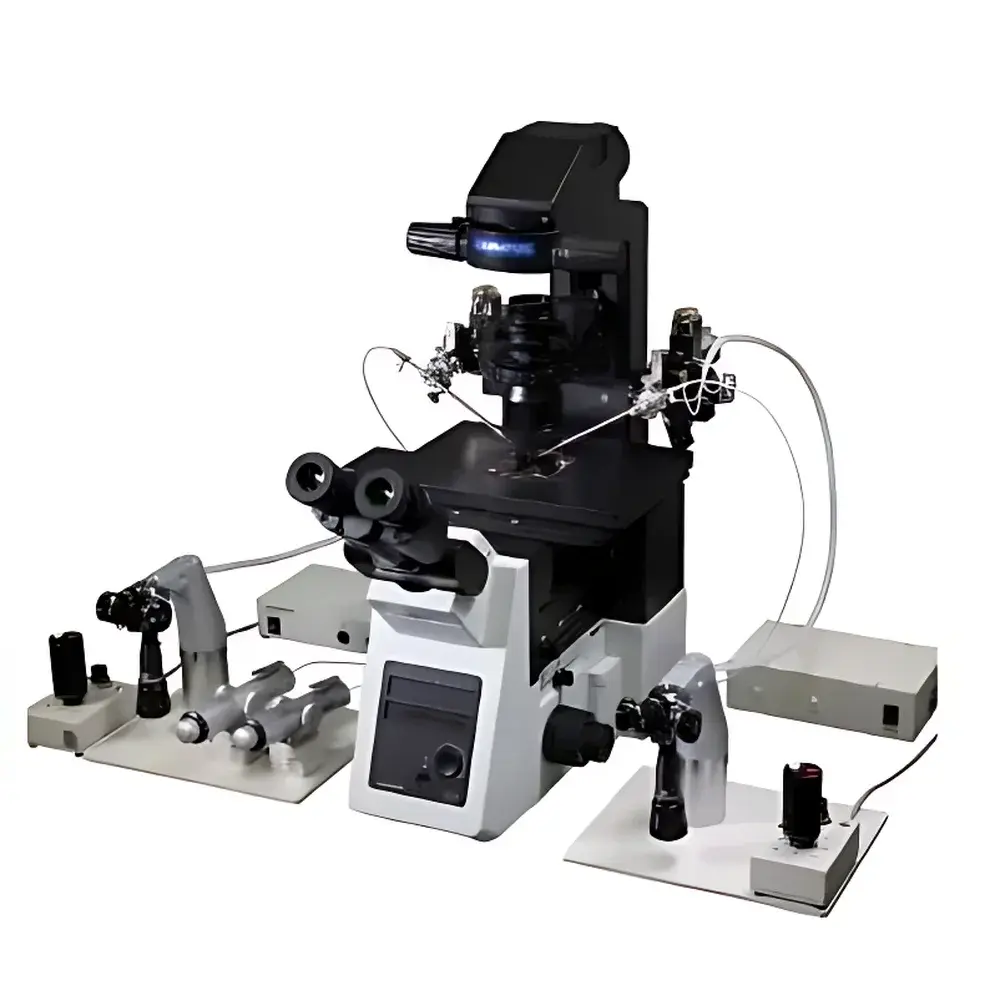

| Model Series | NTX, ON4, MTK-1 |
| Category | Import Laboratory Micromanipulation Equipment |
| Distributor Type | Authorized General Distributor |
| Brand | Narishige |
|---|---|
| Origin | Japan |
| Model | MHW-3 |
| Drive Principle | Hydraulic (Water-Based) |
| Coefficient of Thermal Expansion | Lower than oil-based systems |
| Integrated Reservoir Ratio | 5:1 |
| Coarse Travel Range (X/Y/Z) | 30 mm each axis |
| Fine Travel Range (X/Y/Z) | 2 mm each axis |
| Fine Adjustment Resolution | 0.2 µm per step |
| Full Rotation of Fine Knob | 50 µm |
| Minimum Increment | 0.2 µm |
| Ball-and-Socket Joint | B-9 included |
| Electrode Holder | H-12 included |
| Control Unit Dimensions | 115 × 115 × 132 mm, 1.6 kg |
| Drive Unit Dimensions | 155 × 155 × 100 mm, 0.9 kg |
| Hydraulic Tubing Length | 0.9 m |
| Compatibility | Compatible with UST-1 universal tilt adapter, NR-35 rotary clamp, MHW-A tilt adapter, and B-9 spherical joint |
