| Brand | Linkam |
|---|---|
| Origin | United Kingdom |
| Model | TS1500 |
| Temperature Range | Ambient to 1500 °C |
| Temperature Accuracy & Stability | ±1 °C over full range |
| Optical Aperture Diameter | 1.7 mm |
| Sample Chamber Dimensions | φ7 × 6 mm or φ7 × 3 mm |
| Maximum Heating Rate | 200 °C/min |
| Minimum Objective/Condenser Working Distance | 6.0 mm / 14.8 mm |
| Vacuum Compatibility | Down to 10⁻³ mbar |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM4 M |
| Configuration | Upright |
| Total Magnification | 600× |
| Imaging System | Integrated Digital Image Analysis Module |
| Objective Type | 32 mm Industrial-Grade Infinity-Corrected Objectives |
| Illumination | High-Stability LED with Constant CCT (Correlated Color Temperature) |
| Contrast Modes | Brightfield (BF), High-Dynamic Darkfield (HDF), Differential Interference Contrast (DIC), Polarization (POL), Fluorescence (FL) |
| Automation Features | Illumination Manager, Contrast Manager, Save & Recall Functionality via Leica LAS Software |
| Compliance | Designed for GLP/GMP-aligned workflows |
| Lifetime LED Source | ≥25,000 hours |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM1750 M |
| Configuration | Upright |
| Total Magnification | 1050× |
| Eyepieces | 5× BF/DF M32 or 6× BF M25 or 7× BF M25 |
| Objective Lenses | Up to 150× |
| Integrated Image Analysis System | Yes |
| Illumination | High-Power White LED (Cold Light, >20,000 h Lifetime) |
| Condenser | Built-in Adjustable Aperture Diaphragm |
| Objective Turret | 6- or 7-Position, Precision-Centered |
| Stage Surface | Ultra-Hard Ceramic Coating |
| Maximum Specimen Height | 80 mm |
| Tilted Illumination | Quad-LED Oblique Lighting Module |
| Optical Path | Optimized Reflected-Light Path for BF, DF, and Polarized Light |
| Brand | Linkam |
|---|---|
| Origin | United Kingdom |
| Model | LTS420 |
| Temperature Range | −196 °C to +420 °C (liquid nitrogen required for sub-ambient operation) |
| Stage Dimensions | 160 × 80 × 24 mm |
| Sample Area | 53.5 × 43 mm |
| X–Y Translation Range | 15 × 15 mm |
| Standard Slide Holder | 76 × 26 mm |
| Optical Aperture | 2.5 mm diameter |
| Temperature Stability | < ±0.1 °C at isothermal conditions |
| Heating/Cooling Rate | 0.1–50 °C/min (controller-dependent) |
| Sensor | 100 Ω Platinum RTD |
| Environmental Control | Sealed chamber with gas inlet/outlet valves (inert atmosphere or humidity control) |
| Optical Configuration | Compatible with transmitted and reflected light microscopy |
| Electrode Integration | Optional internal electrodes for electric field application or signal measurement (LCD cell-ready configuration) |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DMIL M |
| Configuration | Inverted |
| Image Analysis System | Included |
| Total Magnification | 600× |
| Eyepieces | 6× |
| Objectives | 100× |
| Illumination | Integrated 6 V / 35 W Halogen Lamp |
| Ergonomic Viewing Tube Options | 6 Types (including Ergotube with 0°–35° tilt adjustment) |
| Brand | Linkam |
|---|---|
| Origin | United Kingdom |
| Model | THMS600 |
| Temperature Range | Ambient to +600 °C |
| Maximum Heating Rate | 150 °C/min |
| Temperature Stability & Accuracy | ±0.1 °C |
| X–Y Translation Range | 16 mm each axis |
| Sample Area Diameter | 22 mm |
| Optical Aperture Diameter | 2.0 mm |
| Top Window Thickness | 0.17 mm (standard coverslip) |
| Minimum Objective Working Distance | 4.5 mm |
| Minimum Condenser Working Distance | 12.5 mm |
| Stage Dimensions | 160 × 80 × 24 mm |

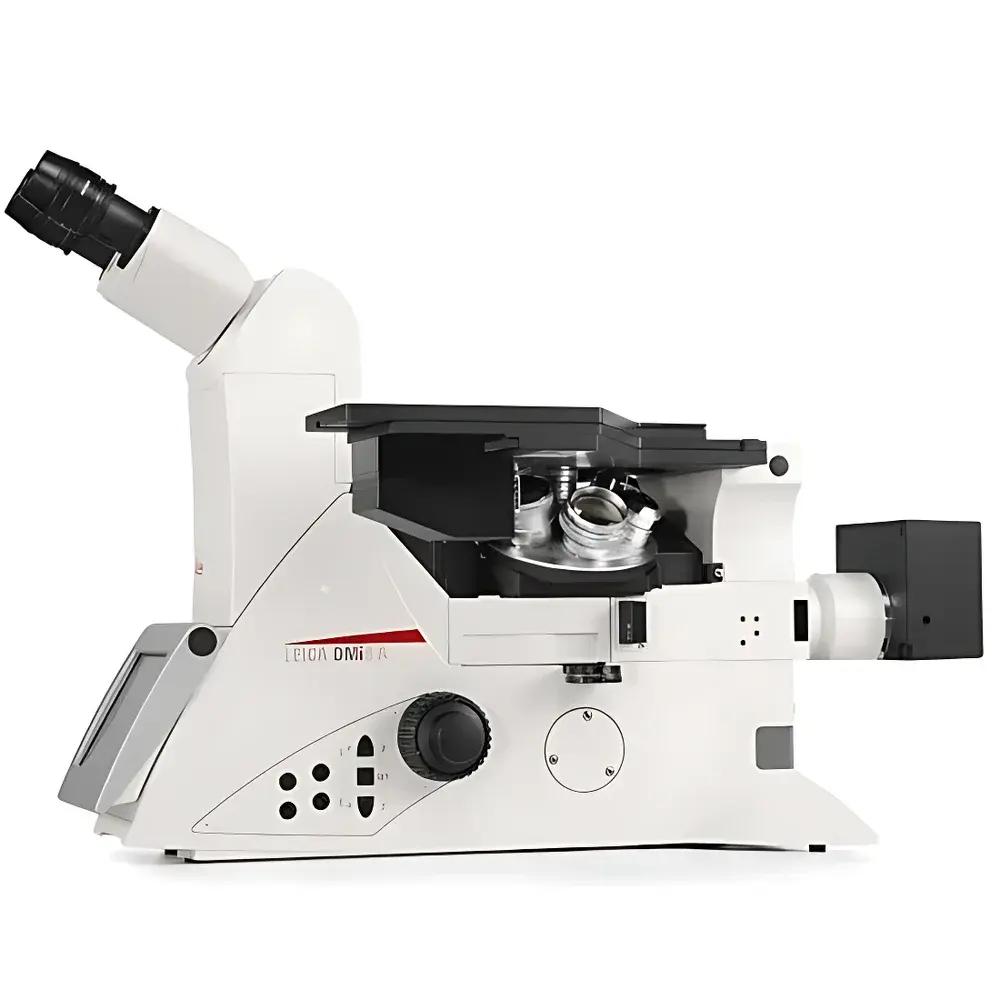

| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DMi8 M/A/C |
| Configuration Type | Inverted |
| Total Magnification | 1200× |
| Eyepieces | 6 |
| Objective Lenses | 100 |
| Integrated Image Analysis System | Yes |
| Macro Mode Field of View | 35.7 mm at 0.7× |
| Minimum Resolvable Detail | 200 nm |
| Maximum Sample Weight Capacity | 30 kg |
| Focus Drive | 3-Position Adjustable Precision Drive |
