| Brand | DITECT |
|---|---|
| Origin | Japan |
| Model | HAS-DX |
| Resolution | 1920 × 1080 (Full HD, 2 MP) |
| Maximum Frame Rate | 100,000 fps (at reduced ROI) |
| Standard Frame Rate | 2,000 fps (at full resolution) |
| Interface | USB 3.0 |
| Pixel Size | 5.86 µm |
| Sensor Type | Global Shutter CMOS |
| Compliance | CE, RoHS |
| Operating System Support | Windows 10/11 (64-bit), Linux (SDK available) |

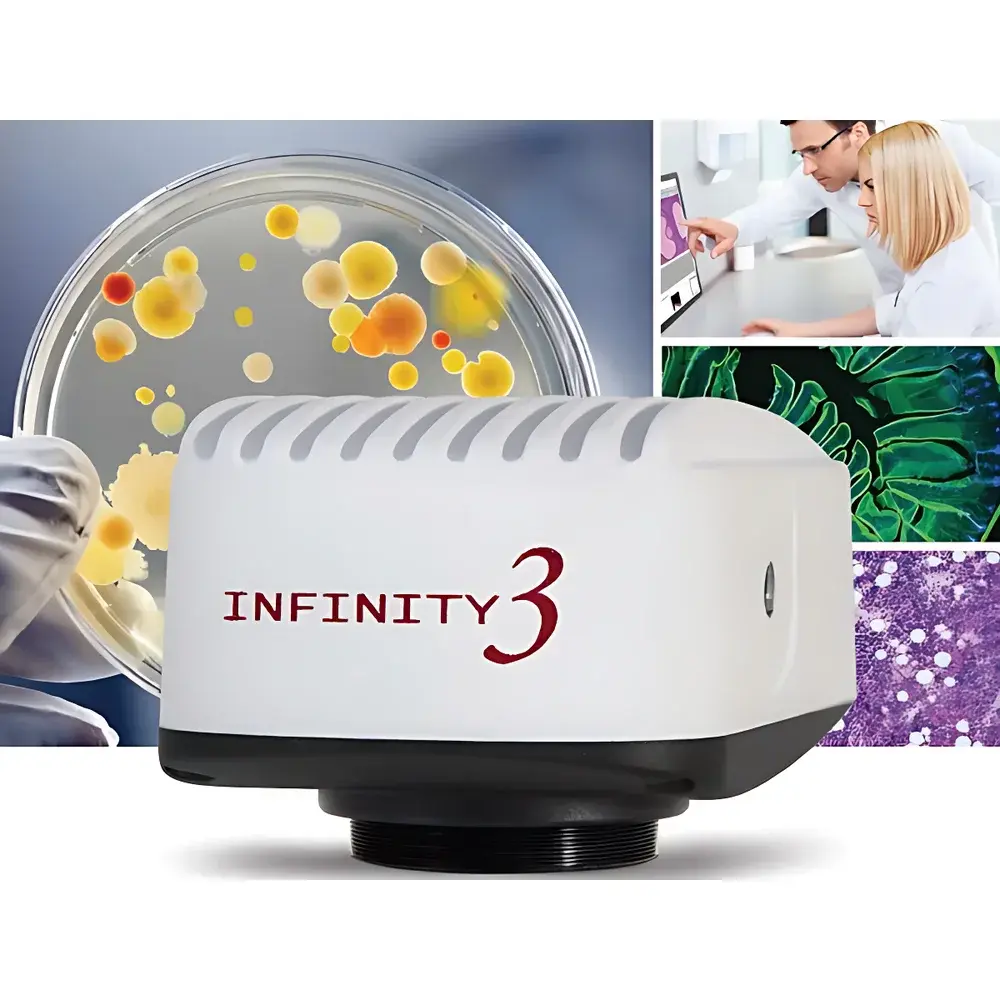

| Brand | Teledyne Lumenera |
|---|---|
| Origin | Canada |
| Model | INFINITY |
| Image Resolution | 2752 × 2192 |
| Pixel Size | 6.5 µm |
| Sensor Format | 1″ |
| Frame Rate | 27 fps |
| Dynamic Range | 16-bit |
| Quantum Efficiency | 95% |
| Interface | USB 3.1 |
| Monochrome/Color | Selectable |
| Brand | DITECT |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model Series | HAS Series |
| Price Range | USD 7,000 – 14,000 (FOB Japan) |
| Pixel Size | 10.8 µm (standard configuration) |
| Max Frame Rate | 120,000 fps (at reduced ROI) |
| Min Frame Rate | 30 fps (full resolution) |
| Sensor Type | Global Shutter CMOS |
| Interface | Camera Link HS / CoaXPress 2.0 |
| Onboard Memory | Up to 64 GB DDR4 |
| Trigger Input/Output | TTL, LVDS, Optical Isolation Supported |
| Brand | DITECT |
|---|---|
| Origin | Japan |
| Model | HAS-EX |
| Image Resolution | 1280 × 1024 pixels |
| Frame Rate | 1000 fps (up to 40,000 fps at reduced resolution) |
| Sensor Type | Monochrome (HAS-EXM) / Color (HAS-EXC) |
| A/D Conversion | 12-bit (output: 8-bit) |
| Sensor Size | 2/3" |
| Lens Mount | C-mount |
| Interface | USB 3.0 |
| Sensitivity | 9.6 V/lux·s |
| Onboard Memory | 6 GB (standard), 12 GB (optional) |
| Power Supply | DC 12 V, 1 A |
| Power Consumption | 12 W |
| Weight | 1.2 kg |
| Synchronization | Master/Slave mode |
| Pixel Shift Function | Enabled for enhanced low-light sensitivity |
| Brand | Teledyne Photometrics |
|---|---|
| Origin | USA |
| Model | PRIME 95B |
| Sensor Type | Back-Illuminated (BI) sCMOS |
| Quantum Efficiency (QE) | Up to 95% at 600 nm |
| Pixel Size | 11 µm |
| Dynamic Range | True 16-bit |
| Read Noise | <1.0 e⁻ (at high speed) |
| Frame Rate | Up to 43 fps at full 2048 × 2048 resolution |
| Interface | Camera Link HS or USB 3.2 Gen 2 |
| Mount | C-mount (PRIME 95B & PRIME 95B 22 mm), F-mount (PRIME 95B 25 mm) |
| UV Option | PRIME 95B UV (enhanced sensitivity 250–310 nm) |
| Brand | KISSEI |
|---|---|
| Origin | Japan |
| Model | KinemaTracer |
| Camera Type | Compact CCD-based optical motion capture system |
| Connectivity | Gigabit Ethernet (LAN) synchronized acquisition |
| Software Control | PC-hosted proprietary acquisition & analysis suite |
| Deployment Form Factor | Portable, space-efficient modular setup |
| Primary Use Case | Gait and biomechanical motion analysis in clinical, rehabilitation, and sports science environments |
| Brand | Teledyne Photometrics |
|---|---|
| Origin | USA |
| Model | RETIGA E7 / RETIGA E20 |
| Sensor Resolution | 7.1 MP (RETIGA E7) / 20.4 MP (RETIGA E20) |
| Read Noise | <2.1 e⁻ (typ.) |
| Dark Current | ≤0.001 e⁻/pix/s (E7) / ≤0.003 e⁻/pix/s (E20) |
| Cooling Temperature | −25 °C |
| Interface | USB 3.2 Gen 1 |
| Software Support | PVCam™ API, SDK for Python/C++/LabVIEW/MATLAB |
| Compliance | CE, FCC, RoHS |
| Brand | Teledyne Photometrics |
|---|---|
| Origin | USA |
| Model | Kinetix |
| Image Resolution | 3200 × 3200 |
| Pixel Size | 6.5 µm × 6.5 µm |
| Sensor Format | 20.8 mm × 20.8 mm (29 mm diagonal) |
| Readout Speed | 400 fps at full resolution |
| Dynamic Range | 16-bit |
| Quantum Efficiency | 95% |
| Interface | PCIe Gen3 x4 |
| Cooling | Thermoelectric (TE), adjustable to −10 °C below ambient |

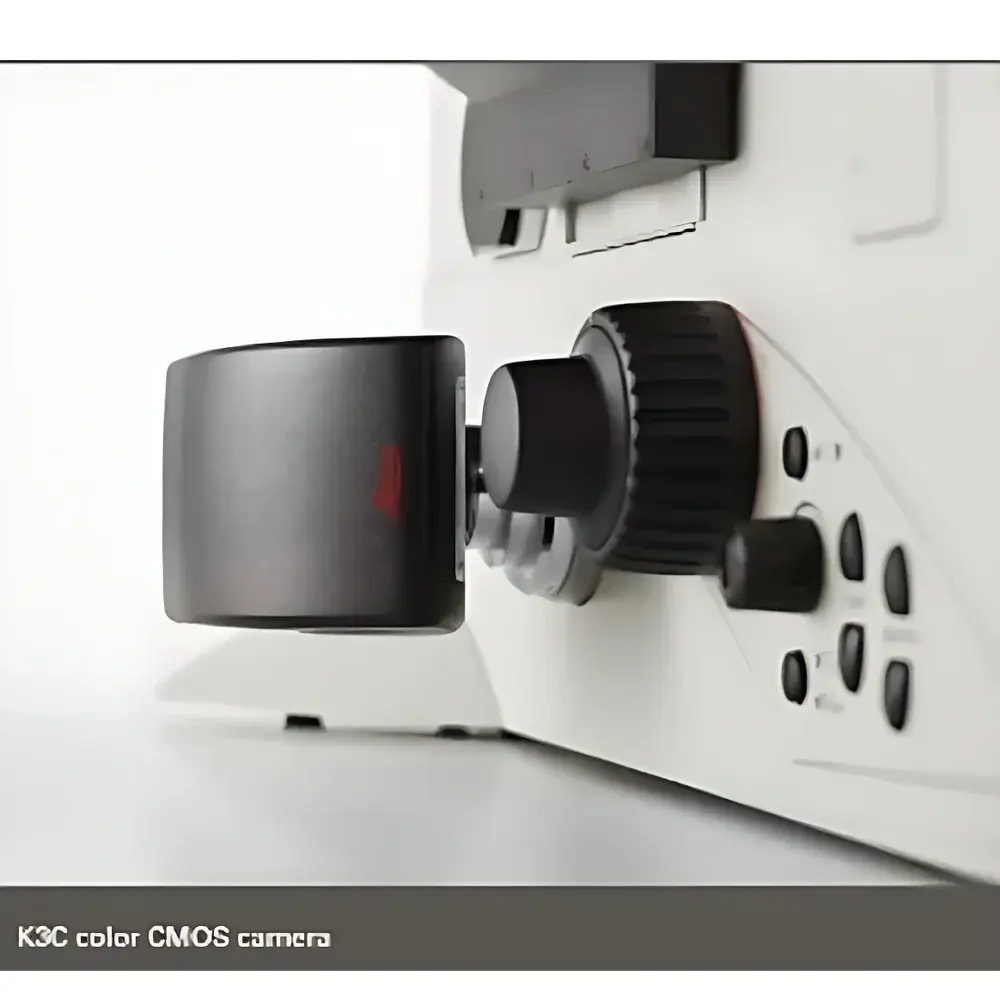

| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | K3C & K3M |
| Sensor Type | CMOS |
| Color Capability | K3C (Color), K3M (Monochrome) |
| Bit Depth | 12-bit per channel (RGB for K3C) |
| Dynamic Range | High |
| Frame Rate | High-speed acquisition |
| Interface | USB 3.0 |
| Compliance | CE, RoHS, ISO 9001 certified manufacturing |
| Intended Use | Integrated microscopy imaging for life science, clinical diagnostics, industrial QA/QC, and forensic analysis |

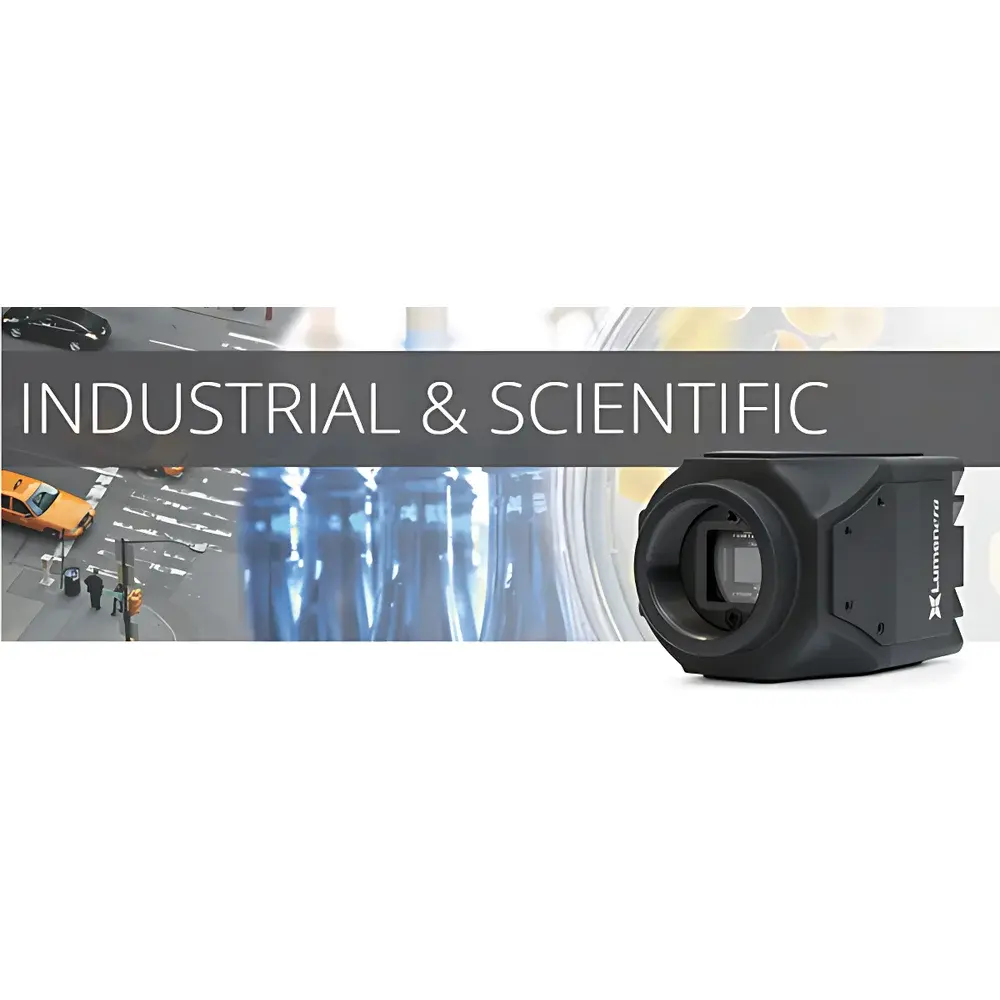

| Brand | Teledyne Lumenera |
|---|---|
| Origin | Canada |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | Lt Series |
| Price Range | USD $13,500 – $27,000 (est.) |
| Image Resolution | 6576 × 4384 |
| Pixel Size | 6.5 µm |
| Sensor Format | 35 mm |
| Readout Speed | 6 fps |
| Dynamic Range | 16-bit |
| Quantum Efficiency | 95% |
