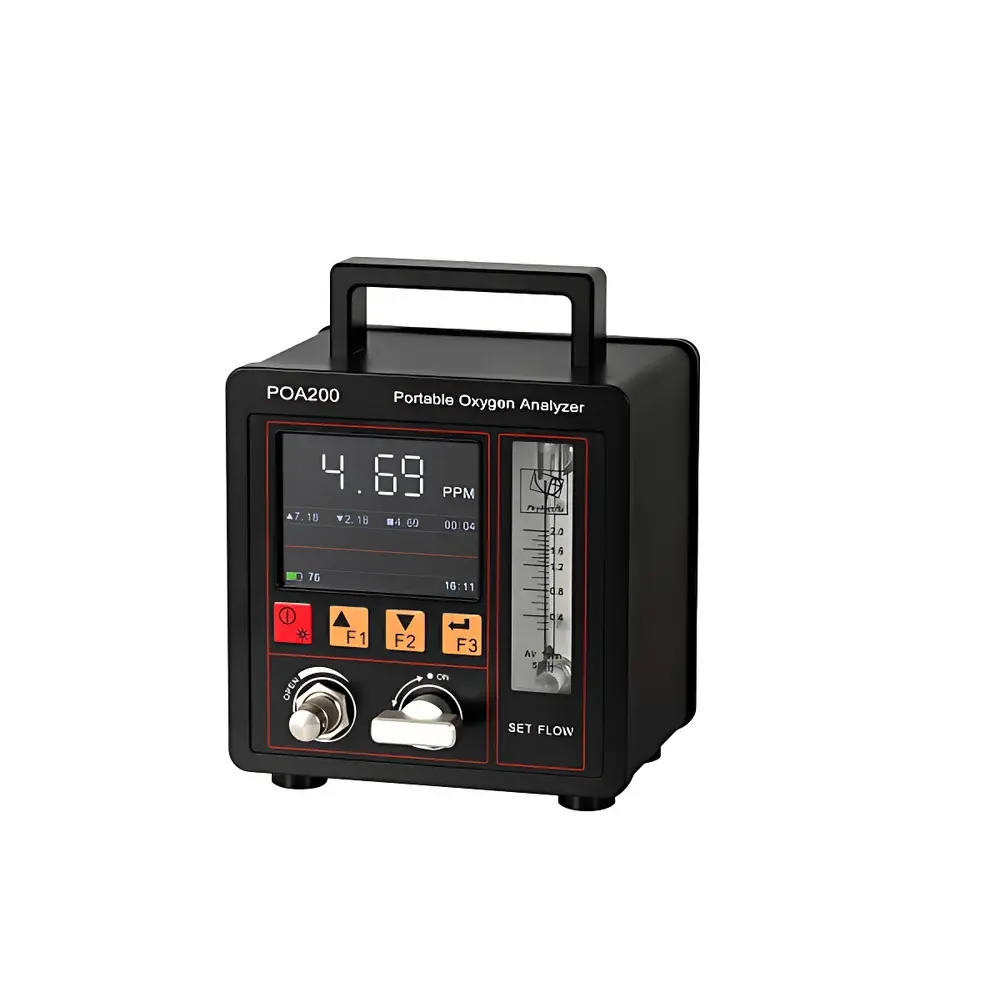

PhyMetrix POA200 Portable Trace Oxygen Analyzer

Overview

The PhyMetrix POA200 Portable Trace Oxygen Analyzer is an intrinsically safe, field-deployable electrochemical instrument engineered for high-fidelity quantification of oxygen at trace levels—from 0.01 ppm up to 25% O₂—in demanding industrial process and quality assurance environments. Utilizing a temperature-compensated, long-life electrochemical sensor cell with low-drift characteristics, the POA200 delivers stable, repeatable measurements across six auto-ranging spans (0–1 ppm, 0–10 ppm, 0–100 ppm, 0–1000 ppm, 0–1%, and ambient air mode). Its measurement principle relies on the diffusion-controlled reduction of molecular oxygen at a noble metal cathode in an aqueous electrolyte, generating a current linearly proportional to partial pressure—enabling direct, zero-background calibration traceability to NIST-maintained reference standards. Designed for use in hazardous locations per NEC Class I, Div. 1, Groups A–D, the analyzer meets stringent safety requirements without compromising analytical performance or operational flexibility.

Key Features

• Intrinsically safe architecture certified to Class I, Div. 1, Groups A, B, C, D—enabling deployment in explosive atmospheres including hydrogen, hydrocarbon, and acid gas service.
• Auto-ranging electrochemical sensor with six programmable measurement spans and seamless switching between trace (ppm) and percent-level ranges.
• High-resolution detection down to 0.01 ppm with ±1% full-scale accuracy at 20°C, supported by integrated temperature compensation (0–45°C).
• Fast response kinetics: <10 seconds for transitions within 100 ppm–1% range; <25 seconds for sub-10 ppm step changes—optimized via minimal internal dead volume and 316 stainless steel flow path.
• Robust mechanical design featuring IP67/IP68-rated enclosure, ergonomic hand-carried form factor (2.45 kg), and 1/8″ Swagelok® inlet/outlet fittings (standard or optional).
• Onboard data logging capacity exceeding 10,000 timestamped records—including O₂ concentration, sample temperature, and system pressure—with USB export capability.
• Intuitive graphical LCD with adjustable backlight, real-time trend plotting, and auto-scaling display for rapid stability assessment.

Sample Compatibility & Compliance

The POA200 is validated for continuous monitoring of oxygen in non-corrosive and mildly acidic process gases, including hydrogen (H₂), helium (He), nitrogen (N₂), argon (Ar), methane (CH₄), ethylene (C₂H₄), carbon dioxide (CO₂), and sulfur-containing streams (e.g., H₂S-diluted syngas). It is not recommended for use with strongly oxidizing agents (e.g., Cl₂, NO₂), halogenated solvents, or condensable vapors that may poison the sensor electrolyte. All wetted components—including the sensing chamber, internal tubing, and flow control valve—are constructed from electropolished 316 stainless steel to ensure chemical inertness and minimize catalytic surface reactions. The analyzer complies with ISO 9001 manufacturing protocols and supports GLP/GMP documentation workflows through audit-trail-enabled calibration logs and user-accessible firmware revision history.

Software & Data Management

Data acquisition and configuration are managed exclusively through the onboard interface—no external PC software required. Calibration routines support both automatic zero/span verification using certified 80% O₂ reference gas and manual offset adjustment. Each calibration event is time-stamped and stored with operator ID (if enabled), gas lot number, and environmental conditions. Logged datasets include O₂ concentration (ppm/%), thermistor-measured sample temperature (°C), and regulated inlet pressure (psig), all synchronized to internal RTC. Export occurs via USB 2.0 port (sealed cap included) to standard FAT32-formatted drives; CSV-formatted files are directly compatible with LIMS, SCADA historians, and statistical process control (SPC) platforms. Firmware updates are delivered as signed binary packages to maintain integrity under FDA 21 CFR Part 11-aligned validation frameworks.

Applications

• Quality control of high-purity industrial gases (e.g., semiconductor-grade N₂, He, Ar) per ASTM D6866 and ISO 8573-3 specifications.
• Leak detection and purge validation in hydrogen fueling infrastructure and ammonia synthesis loops.
• Monitoring oxygen ingress during cryogenic liquid transfer and LNG tank blanketing operations.
• Verification of inertization efficacy in pharmaceutical fluidized-bed dryers and solvent recovery systems.
• Field verification of membrane-based nitrogen generators and PSA oxygen analyzers prior to commissioning.
• Environmental compliance testing of flare gas composition and combustion air excess ratio optimization.

FAQ

What certification standards does the POA200 meet for hazardous area operation?

It is certified to UL 913 8th Edition for intrinsic safety, compliant with NEC Article 500 and CSA C22.2 No. 157, rated Class I, Division 1, Groups A, B, C, D.
Can the POA200 measure oxygen in hydrogen-rich streams without sensor poisoning?

Yes—the electrochemical cell is specifically formulated for H₂ service and includes proprietary catalyst stabilization to prevent hydrogen crossover interference and extend service life beyond 24 months in continuous operation.
Is flow control integrated, and what is the recommended sample conditioning?

A precision needle valve and built-in flowmeter (0.2–2.0 SCFH range) provide on-device regulation; no external flow controller is required. For optimal accuracy, samples should be particle-free, dew-point controlled below −20°C, and free of condensable organics.
How is calibration traceability maintained for regulatory audits?

Each calibration uses NIST-traceable 80% O₂ standard gas (certified lot number logged); calibration certificates and raw sensor output logs are exportable and support ALCOA+ data integrity principles.
Does the POA200 support remote diagnostics or network connectivity?

No—this is a standalone, battery-operated portable analyzer with no Ethernet, Wi-Fi, or Bluetooth interfaces, ensuring electromagnetic compatibility (EMC) in electrically noisy plant environments and eliminating cybersecurity attack vectors.
