| Brand | DHS |
|---|---|
| Origin | Tianjin, China |
| Model | TL3000/TL2010S |
| Sample Type | Cryogenic-compatible (liquid nitrogen pre-cooled) |
| Max. Oscillation Speed | 2000 rpm |
| Input Particle Size | ≤8 mm |
| Output Particle Size | ≤5 µm |
| Throughput Capacity | 2 × 12 × 2 mL tubes, 2 × 6 × 4/5 mL rigid tubes, 2 × 15 mL grinding jars |
| Grinding Principle | Horizontal 3D oscillation with bead impact |
| Compatible Grinding Media | Stainless steel / tungsten carbide / zirconia beads (1–8 mm diameter) |
| Jar/Tube Materials | Stainless steel / PTFE-lined / specialized polymer (e.g., Delrin®) |
| Display | Digital LED interface with programmable speed, time, cycle count, and pause intervals |

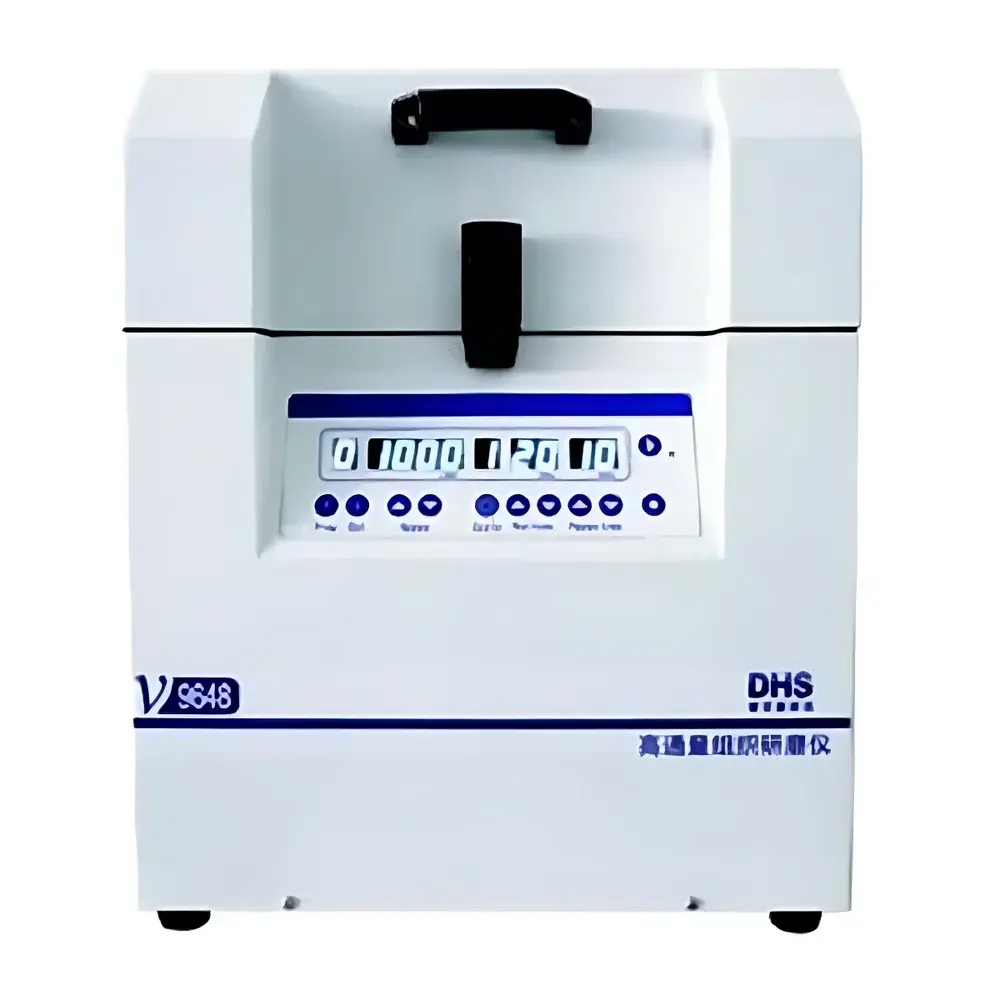

| Brand | DHS |
|---|---|
| Origin | Tianjin, China |
| Model | V4800/V9648 |
| Instrument Type | High-Throughput Tissue Grinder |
| Sample Type | Hard and Tough Biological Tissues |
| Final Particle Size | ≤5 µm |
| Feed Particle Size | Adjustable via Adapter Selection |
| Batch Capacity | 2 × 50 mL grinding jars |
| Maximum Oscillation Frequency | 2100 cycles/min |
| Operating Principle | Vertical 3D reciprocating oscillation generating impact, shear, and friction forces |

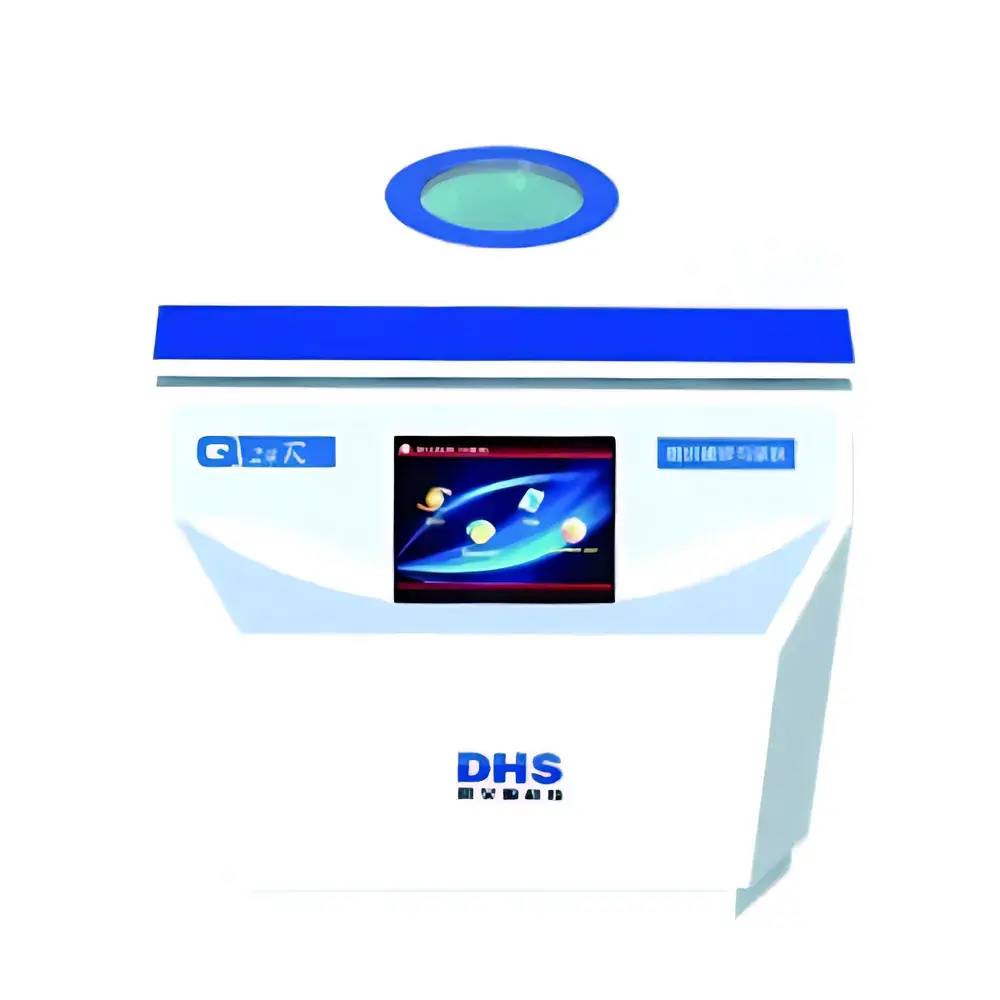

| Brand | DHS |
|---|---|
| Origin | Tianjin, China |
| Model | Q24RC / Q24R / Q24 |
| Instrument Type | Cryogenic High-Throughput Tissue Grinder |
| Sample Compatibility | Frozen & Fresh Biological Tissues |
| Maximum Input Size | ≤8 mm |
| Final Particle Size | ≤5 µm |
| Throughput | 24 × 2.0 mL Tubes per Batch |
| Operating Temperature Range | −20 °C to +4 °C (Q24R/Q24RC) |
| Centrifugation Capability | Up to 6,000 rpm (Q24RC only) |
| Noise Level | ≤56 dB(A) |
| Control Interface | 5.7″ Color Touchscreen |
| Programmable Methods | 99 Presets |
| Continuous Operation Mode | Up to 30 min |
| Compliance | Designed for GLP-compliant labs |

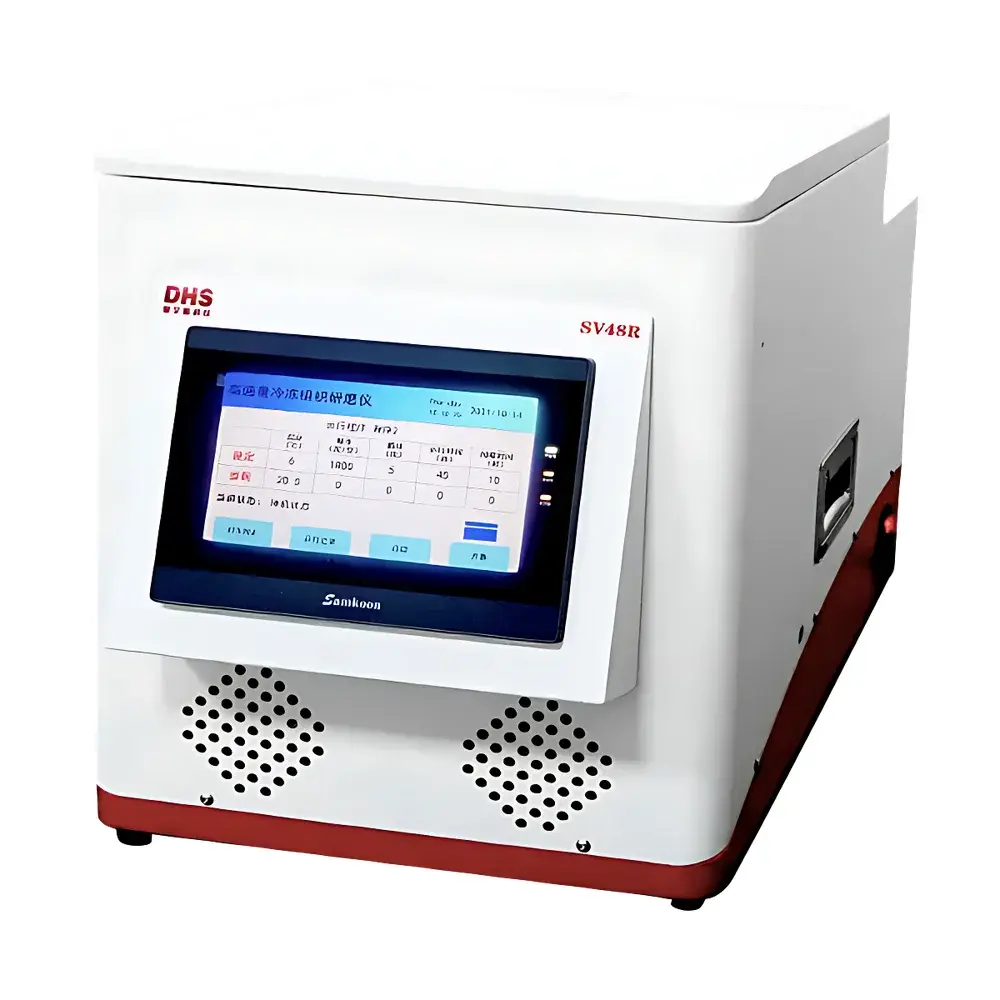

| Brand | DHS |
|---|---|
| Origin | Tianjin, China |
| Model | SV48R |
| Instrument Type | Cryogenic Grinder |
| Sample Compatibility | Hard biological tissues (animal/plant/microbial) |
| Final Particle Size | < 5 µm |
| Feed Particle Size | < 8 mm |
| Throughput Capacity | 2 × 50 mL grinding jars |
| Cooling Method | Integrated compressor-based refrigeration |
| Minimum Chamber Temperature | –20 °C (cold plate: –50 °C) |
| Temperature Range | –20 °C to +40 °C |
| Motion Mode | Vertical 3D reciprocating motion |
| Maximum Frequency | 2100 cycles/min |
| Acceleration/Deceleration Time | ≤ 2 s |
| Control Interface | 7-inch high-resolution touchscreen (Chinese UI) |
| Programmable Methods | 100 user-defined protocols |
| Construction | Stainless steel inner chamber |
| Adapter Material | Anodized aluminum alloy |
| Safety Design | Thread-locking anti-loosening lid mechanism |
