| Brand | Laballiance |
|---|---|
| Origin | USA |

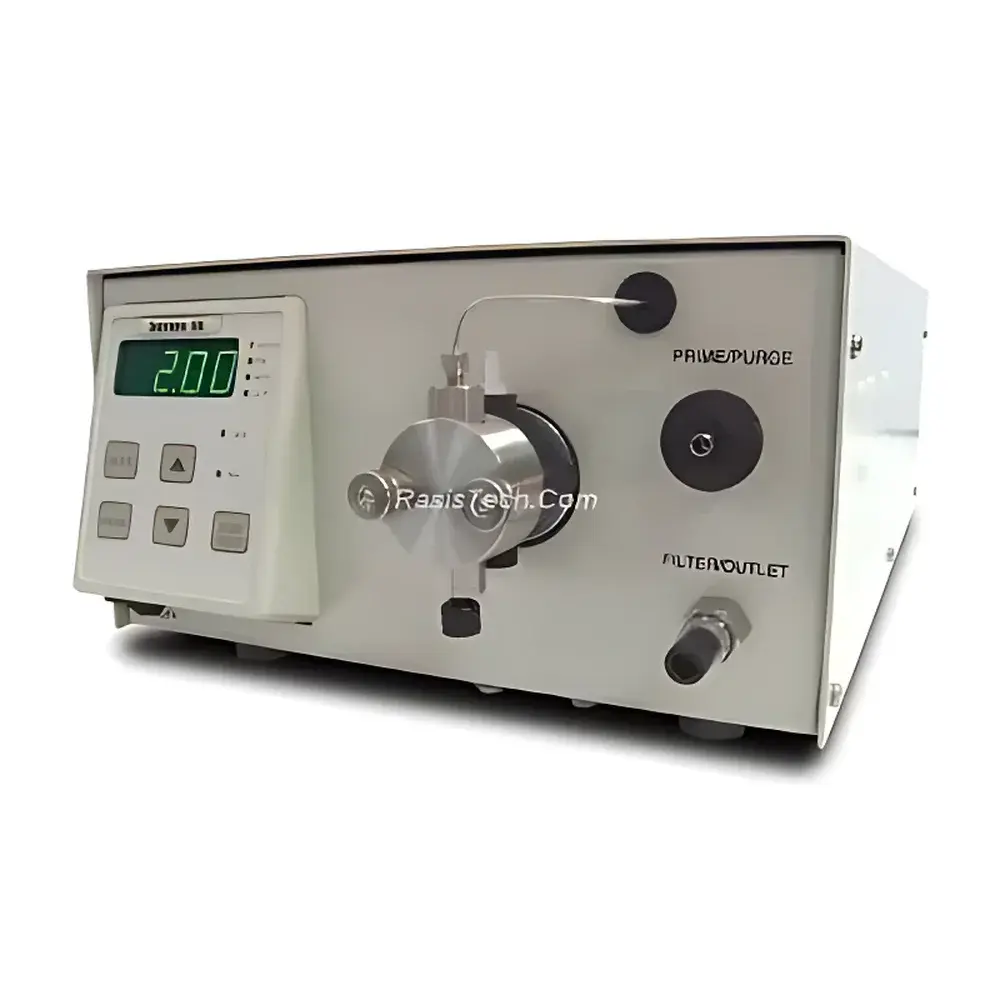

| Model | Series III |
| Flow Rate Ranges | 0.001–5 mL/min, 0.01–10 mL/min, 0.1–40 mL/min |
| Maximum Pressure | 6,000 psi (for 5 & 10 mL heads), 1,500 psi (for 40 mL head) |
| Flow Accuracy | ±1% |
| Flow Precision | ≤0.075% RSD |
| Dimensions | 5.5" H × 10.4" W × 17.5" D |
| Weight | 24 lb (11 kg) |
| Power Supply | 220 V, 50/60 Hz (or 110/120 V variants available) |
| Key Features | Integrated pressure sensor with LED display, self-cleaning pump head, patented low-volume diaphragm pulse damper, dual check valve design, RS-232 interface, 0–10 kHz frequency input (0.01–9.99 mL/min), 0–10 V start/stop control |
| Brand | Laballiance |
|---|---|
| Origin | USA |
| Model | Flash100 |
| Flow Rate Range | 0.1–100.0 mL/min |
| Maximum Pressure | 500 psi |
| Pressure Fluctuation | ±4% at 250 psi / 50 mL/min |
| Zero-Pressure Calibration Accuracy | ±2 psi |
| Flow Accuracy | ±2% |
| Flow Precision | 0.15% RSD |
| Dimensions | 5.5" H × 10.5" W × 17.5" D |
| Weight | 13.6 lb (6.6 kg) |
| Control Interfaces | TTL Start/Stop Input, 0–10 V / 0–10 kHz Analog Flow Setpoint Input, RS232 Serial Communication |
| Brand | Laballiance |
|---|---|
| Origin | USA |
| Model | Prep100/24 |
| Flow Rate | 0.1–24 mL/min (Prep24) / 0.1–100 mL/min (Prep100) |
| Maximum Pressure | 6,000 psi (Prep24) / 3,000 psi (Prep100) |
| Pressure Ripple | ±1% at 3,000 psi and 100 mL/min |
| Flow Accuracy | ±2% |
| Flow Precision | 0.15% RSD |
| Zero-Pressure Calibration | ±2 psi |
| Dimensions | 10.375" W × 17.5" D × 5.5" H |
| Weight | 35 lb (16 kg) |
| Communication Interface | RS-232 serial port |
| Control Inputs | TTL run/stop, 0–10 V analog flow control, 0–10 kHz frequency-based flow control |
| Pressure Monitoring | Real-time with user-definable upper/lower limits |
| Gradient Capability | Dual-pump high-pressure gradient configuration supported (up to 200 mL/min) |
| Pump Head | Self-cleaning design with high-speed wash valve |
| Fluid Path | Stainless steel or optional PEEK tubing |
| Valve Architecture | Dual-ball-seat check valves |
| Motor Fault Detection | Integrated |
| Display | Front-panel LED with 0.1 mL/min resolution |
| Brand | Laballiance |
|---|---|
| Origin | USA |
| Model | SFC-24 |
| Flow Rate | 0.01–24.0 mL/min |
| Maximum Pressure | 10,000 psi |
| Pressure Accuracy | ±2% of full scale |
| Flow Accuracy | ±5% (gas-volume-based liquid flow calculation) |
| Cooling | Integrated Peltier thermoelectric module |
| Control Interface | RS-232, TTL start/stop (5 V), 0–10 V analog flow setpoint, 0–10 kHz frequency input |
| Operating Modes | Constant Flow or Constant Pressure |
| Dimensions | 15 × 28 × 54 cm (H × W × D) |
| Weight | 16.5 kg |
| Materials | Aluminum pump head, stainless steel fluid path (excluding pump head), sapphire-rubied check valves, fluoropolymer seals |
| Brand | Laballiance |
|---|---|
| Origin | USA |
| Model | Flash 150 |
| Flow Rate Range | 5.0–150 mL/min per pump head |
| Maximum Pressure | 0–200 psi |
| Flow Accuracy | ±3% (at 10–150 mL/min, with solvent correction enabled) |
| Flow Precision | High repeatability across low-viscosity solvents (e.g., hexane, dichloromethane) |
| Pump Type | Dual-head positive displacement plunger pump with ceramic plungers and HPLC-grade seals |
| Wetted Materials | 316 stainless steel throughout fluid path |
| Power Input | Universal 90–260 VAC, 50–60 Hz |
| Dimensions | 18 × 31 × 19 cm (W × D × H) |
| Weight | 9.1 kg (20 lbs) |
| Control Interfaces | Front-panel digital keypad, RS-232 serial port |
| Software Compatibility | CSChrom chromatography software |
| Optional Controller | SCU-470 dual-pump standalone controller for isocratic/gradient operation |
| Solvent Correction | Built-in front-panel flow calibration function for density/viscosity compensation |
| Check Valves | Stainless-steel outlet check valves to prevent backflow during pump refill cycles |
| Brand | Laballiance |
|---|---|
| Origin | USA |
| Model | B230 |
| Flow Rate Range | 0.001–5.00 mL/min |
| Maximum Pressure | 6,000 psi (stainless steel pump heads), 5,000 psi (PEEK pump heads) |
| Pressure Accuracy | ±1% of full scale |
| Pressure Zero Drift | ±2 psi |
| Flow Accuracy | ±1% (at ≥0.2 mL/min) |
| Flow Precision | ≤0.075% RSD |
| Operating Temperature | 10–40 °C |
| Relative Humidity | 10–90% RH |
| Power Supply | 110/220 V, 50/60 Hz |
| Dimensions | 7" H × 10.5" W × 15.25" D |
| Weight | 24 lb (11 kg) |
| Interface | RS-232 |
| Compliance | Designed for GLP/GMP-aligned laboratory environments |
| Brand | Laballiance |
|---|---|
| Origin | USA |
| Model | Series I |
| Flow Range (10 mL head) | 0.01–10 mL/min |
| Flow Range (40 mL head) | 0.1–40 mL/min |
| Maximum Pressure (10 mL head) | 2500 psi |
| Maximum Pressure (40 mL head) | 650 psi |
| Flow Accuracy | ±2% (10 mL), ±5% (40 mL) |
| Flow Precision | ≤0.5% RSD |
| Control Interface | RS-232, Start/Stop TTL |
| Dimensions | 6.5" H × 6.5" W × 13" D |
| Materials | PEEK, Ceramic, Inert Polymers |
| Power Supply | 120/232 V, 50/60 Hz |
| Brand | Laballiance |
|---|---|
| Origin | USA |

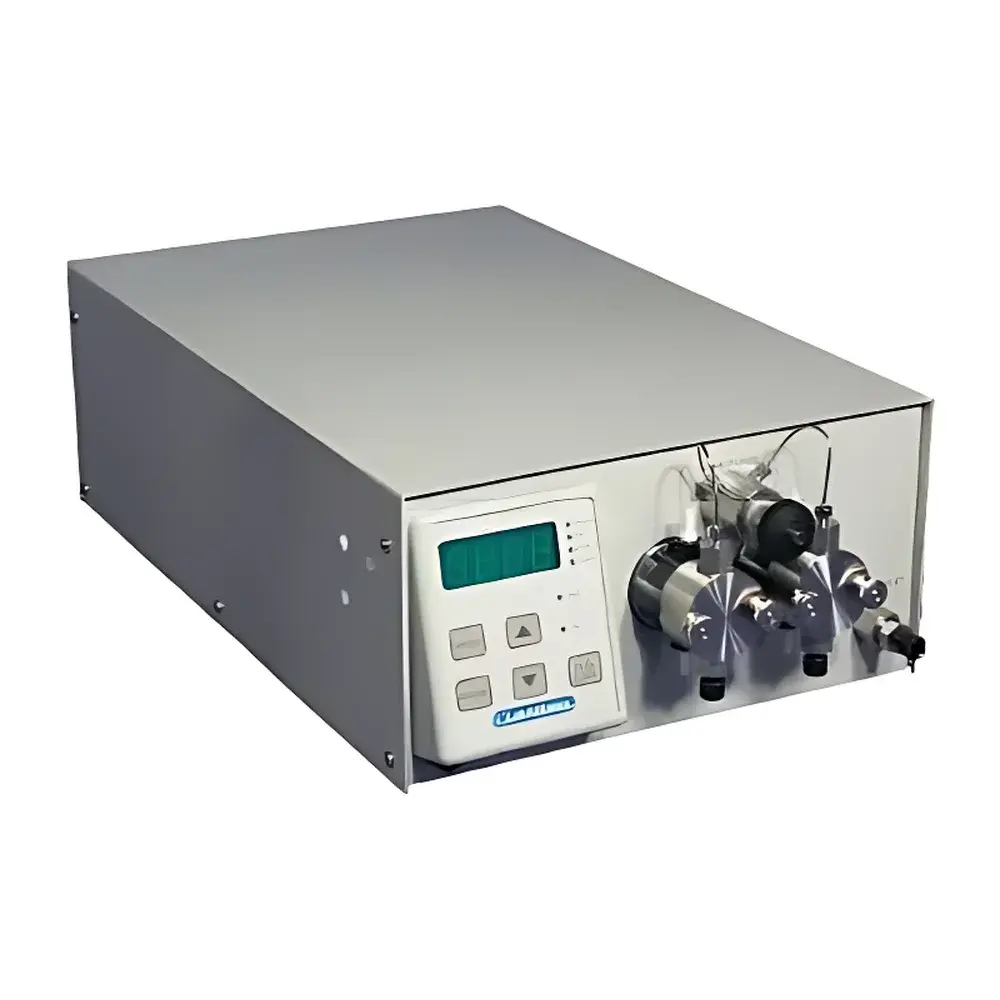

| Model | Series 1500 |
| Flow Rate Range | 0.001–12.0 mL/min |
| Maximum Pressure | 6,000 psi (stainless steel), 3,000 psi (PEEK) |
| Flow Accuracy | ±1% |
| Flow Precision | ≤0.075% RSD |
| Pressure Ripple | ±0.5% at 1 mL/min and 1,000 psi |
| Pressure Accuracy | ±1% of full scale |
| Dimensions | 15 × 26 × 46 cm (H × W × D) |
| Weight | 14 kg |
| Power Supply | 220 V, 50/60 Hz |
| Control Interfaces | RS-232, 0–10 V analog input, 0–10 kHz frequency input, TTL start/stop (5 V) |
| Materials | Stainless steel or PEEK fluidic path options |
| Standard Features | Dual-piston architecture, integrated pulse dampener (low dead volume), automatic self-cleaning pump heads, real-time pressure monitoring, LED keypad controller, Autoprime function, stepper motor fault detection, dual-ball-seat check valves, high-speed wash valve |
| Brand | Laballiance |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Model CP |
| Price | Upon Request |
| Flow Rate | 0.01–12 mL/min or 0.01–24 mL/min |
| Maximum Pressure | 9,990 psi (689 bar) |
| Flow Accuracy | ±2% |
| Flow Precision | 0.075% RSD |
| Pressure Accuracy | ±1% of Full Scale |
| Dimensions | 6" H × 11" W × 18" D (152 × 279 × 457 mm) |
| Weight | 30 lb (14 kg) |
| Interface | RS-232, 0–10 V analog input, 0–10 kHz frequency input, TTL start/stop trigger |
| Brand | Laballiance |
|---|---|
| Origin | USA |

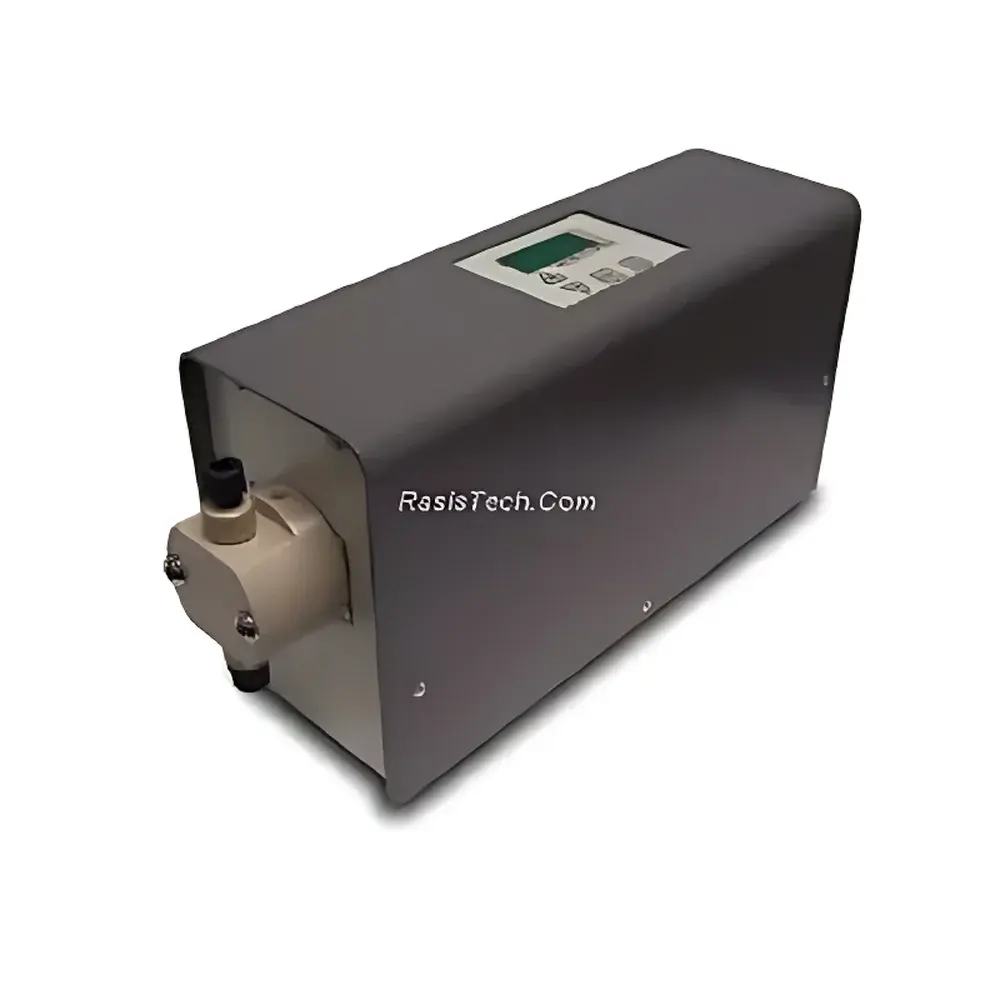

| Model | Mighty |
| Drive Type | Stepper Motor |
| Pump Head | Single Plunger |
| Max Flow Rate | 5.00 mL/min |
| Max Pressure | 500 psi |
| Control Interface | Digital Keypad + RS-232 |
| Pump Type | Positive Displacement Constant Flow Pump |
| Brand | Laballiance |
|---|---|
| Origin | USA |
| Model | PREP-250 |
| Flow Rate | 0.001–250 mL/min |
| Maximum Pressure | 6,500 psi (at 250 mL/min) / 9,000 psi (at ≤230 mL/min) |
| Pressure Ripple | ±0.5% at 3,000 psi and 150 mL/min |
| Flow Accuracy | <2% |
| Flow Precision | ≤0.5% RSD |
| Zero-Pressure Calibration | ±2 psi |
| Dimensions | 35.6 × 55.9 × 22.9 cm (W×D×H) |
| Weight | 22.7 kg |
| Communication | RS-232 serial interface, TTL run/stop input, 0–10 V & 0–10 kHz analog flow control |
| Optional Features | Real-time pressure monitoring with user-defined high/low limits, high-pressure gradient capability via dual PREP-100 configuration or standalone keypad controller |
| Brand | LabAlliance |
|---|---|
| Origin | USA |

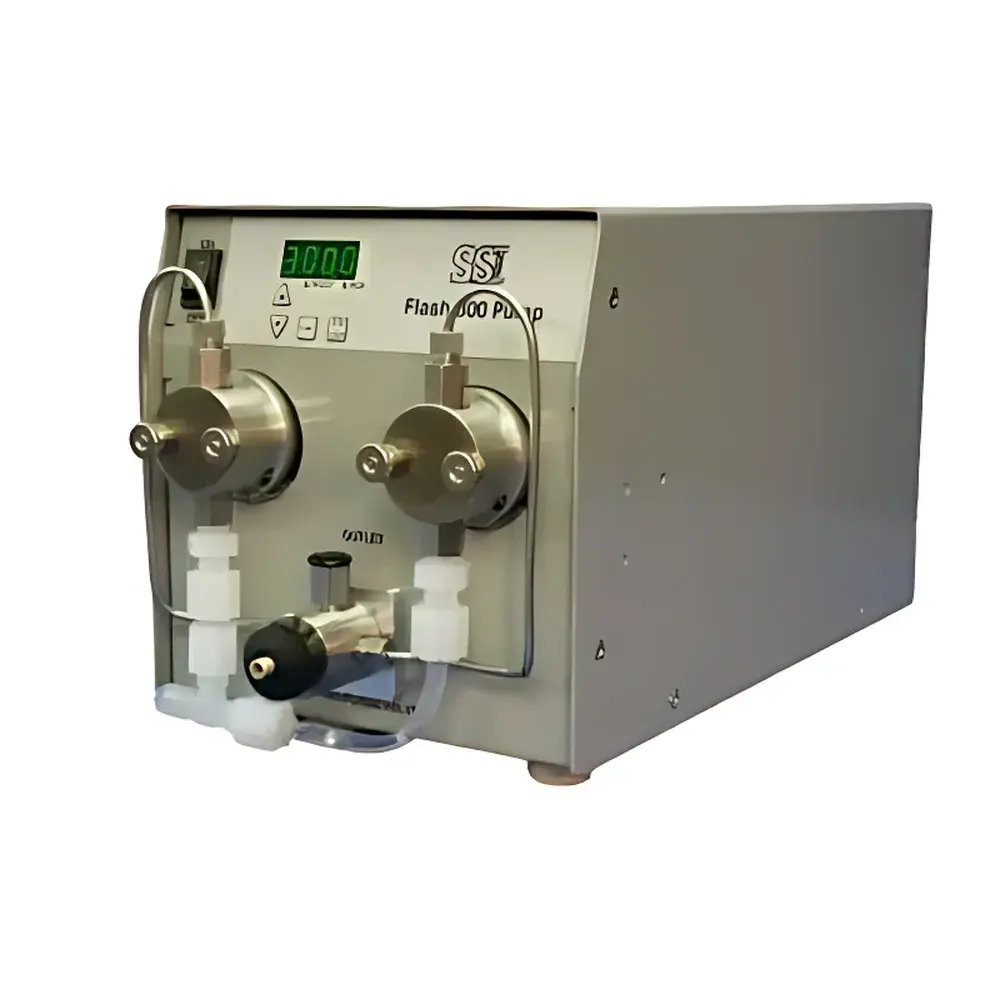

| Model | Flash 300 |
| Flow Rate | 0.1–300.0 mL/min |
| Maximum Pressure | 200 psi |
| Flow Accuracy | ±3% (at 10–250 mL/min, with calibration enabled) |
| Power Supply | 90–260 VAC, 50–60 Hz |
| Dimensions | 178 × 305 × 191 mm (W × D × H) |
| Weight | 9.1 kg (20 lbs) |
| Control Interface | Front-panel digital keypad + RS-232 serial port |
| Pump Type | Dual-head positive displacement piston pump |
| Piston Material | Ceramic |
| Seal Material | UHMWPE (ultra-high-molecular-weight polyethylene), HPLC-grade |
| Check Valve | Sapphire ball |
| Fluidic–Electrical Isolation | Yes |
| Brand | LabAlliance |
|---|---|
| Origin | USA |

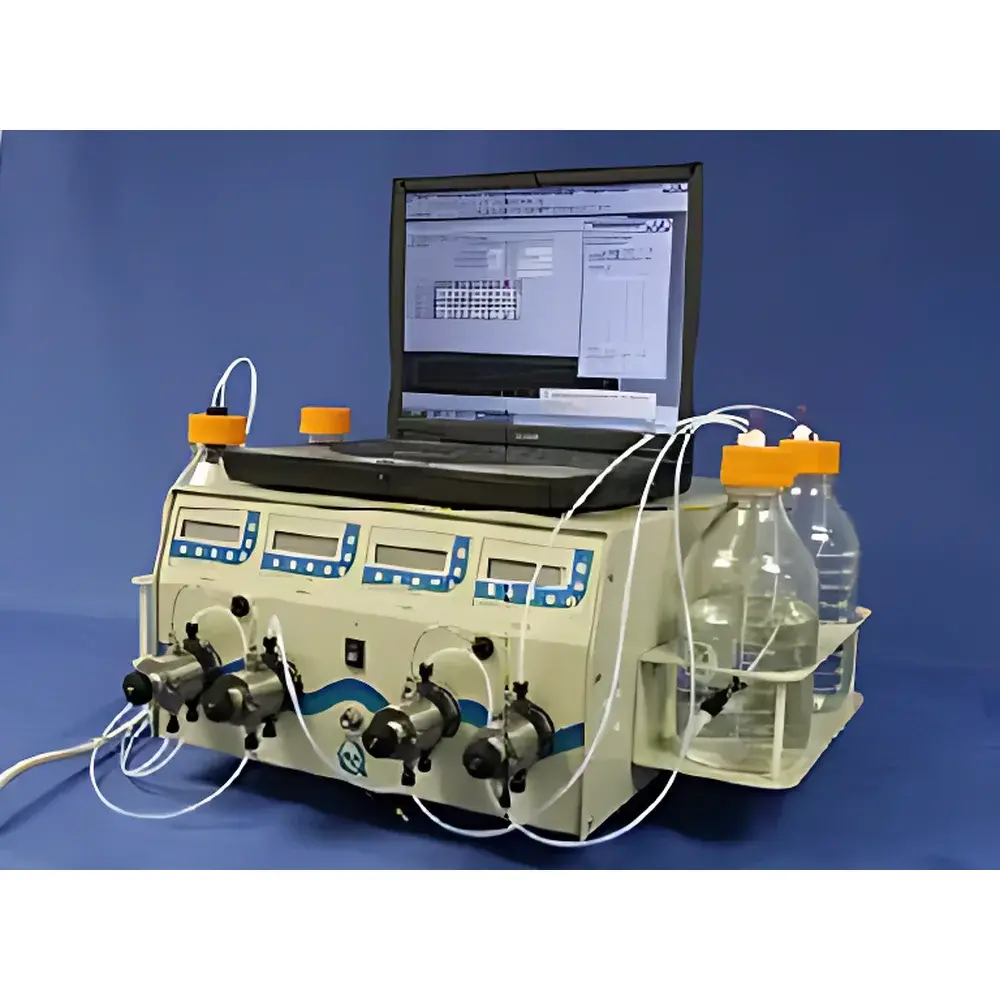

| Model | Q-Grad |
| Flow Rate | 0.001–5.0 mL/min per pump head |
| Maximum Pressure | 6,000 psi (stainless steel), 5,000 psi (PEEK) |
| Pressure Ripple | ≤1% at 1,000 psi and 1 mL/min |
| Gradient Accuracy | ±0.1% of set value at 1 mL/min and 1,000 psi |
| Flow Accuracy | ±1% |
| Flow Precision | ≤0.075% RSD |
| Pressure Accuracy | ±1% of full scale |
| Communication | RS-232 (per pump), TTL |
| Dimensions | 9" H × 15" W × 21.5" D (without solvent rack) |
| Power | 110–240 VAC |
| Brand | Laballiance |
|---|---|
| Origin | USA |

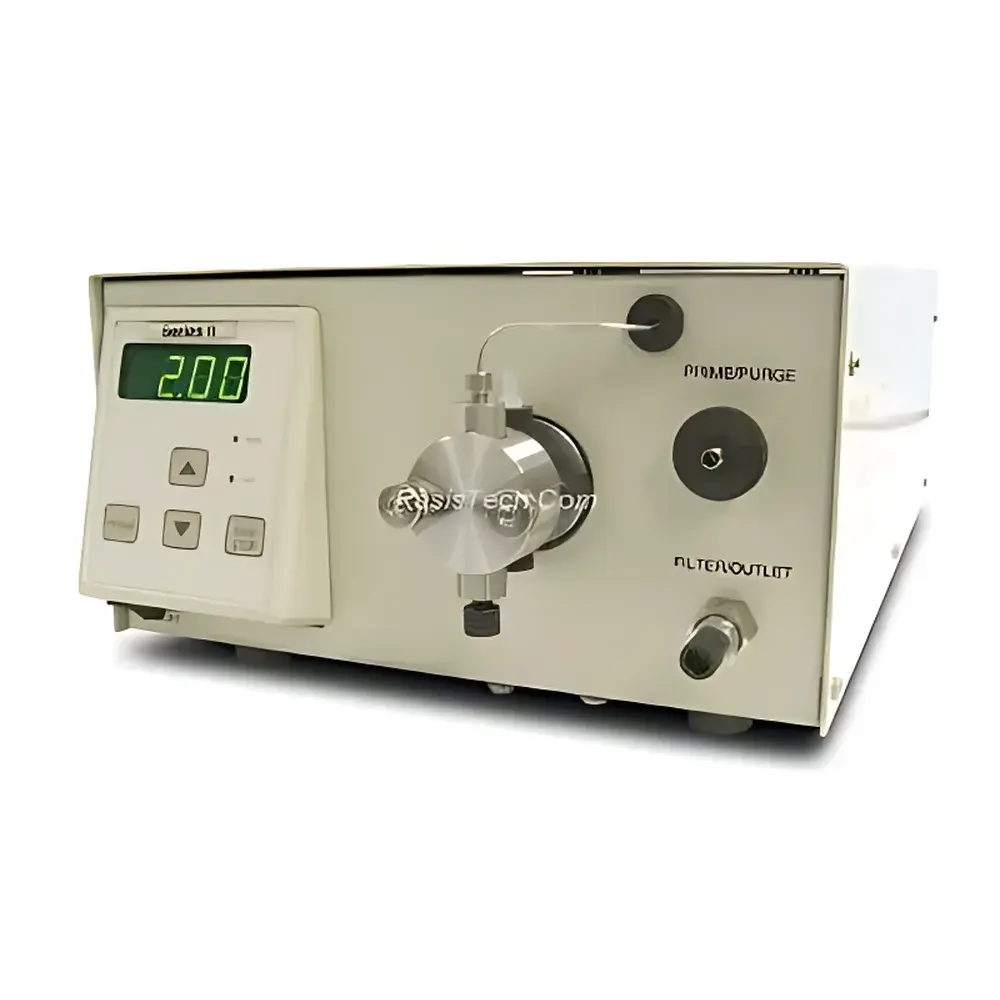

| Model | Series II |
| Flow Ranges | 0.001–5 mL/min, 0.01–10 mL/min, or 0.1–40 mL/min |
| Maximum Pressure | 6,000 psi (stainless steel heads, 5 & 10 mL), 5,000 psi (PEEK heads, 5 & 10 mL), 1,500 psi (40 mL head) |
| Flow Accuracy | ±1% |
| Flow Precision | ≤0.075% RSD |
| Dimensions | 5.5" H × 10.4" W × 17.5" D |
| Weight | 24 lb (11 kg) |
| Power | 220 V, 50/60 Hz |
| Features | Patented low-dead-volume pulse damper, integrated auto-cleaning system, stepper motor control, RS-232 interface, LED display, bypass valve |
