| Brand | Filtra |
|---|---|
| Origin | Spain |

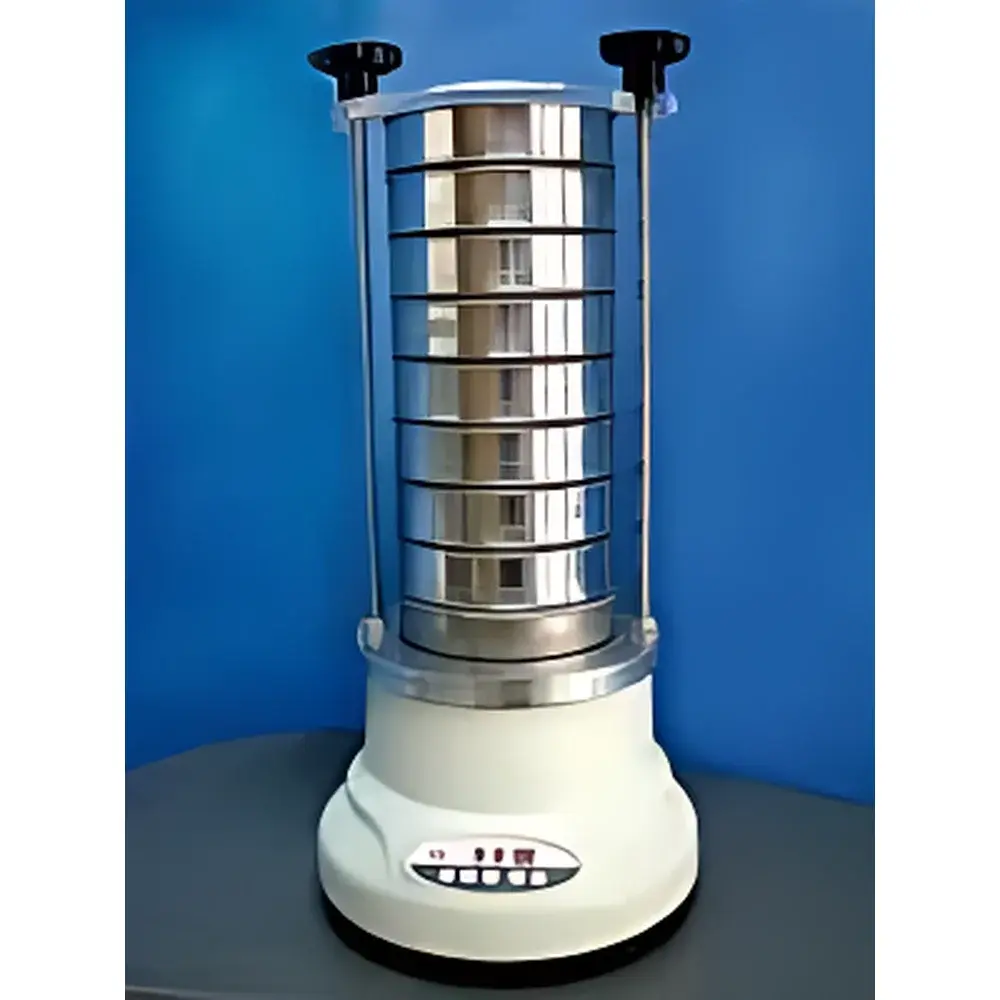

| Model | FTL-0150 |
| Sieving Range | ≥ 40 µm |
| Sieve Capacity | 8 × 50 mm-height sieves or 16 × 25 mm-height sieves |
| Drive Mechanism | 3D orbital motion with programmable intermittent operation |
| Construction | Polyurethane resin housing |
| Clamping System | Dual stainless steel threaded rods, phenolic knobs, acrylic sieve cover with diffuser |
| Power Control | Digital timer-based on/off cycling |
| Brand | Filtra |
|---|---|
| Origin | Spain |
| Model | FTLBA-0200 |
| Particle Size Range | 5 µm – 4 mm |
| Construction Material | Polyurethane Resin Housing |
| Sieve Diameter | 200 mm |
| Vacuum Monitoring | Digital Electronic Vacuum Indicator with Calibration Function |
| Sieve Assembly | Rubber Gasket Interface + Acrylic Lid |
| Vacuum Source Requirement | External Nilfisk Vacuum Cleaner (Not Included) |
| Brand | Filtra |
|---|---|
| Origin | Spain |
| Model | FTLM02-03 |
| Construction | Stainless steel V-shaped chamber with polished interior surface |
| Inlet/Outlet | Two inlet ports with silicone lids + one discharge port |
| Effective working volume | 50% of total chamber capacity |
| Drive | Single-phase motor |
| Control | Digital timer for precise mixing duration |
| Brand | Filtra |
|---|---|
| Origin | Spain |
| Model | FTL-0300 |
| Sieve Diameter Compatibility | 300 mm |
| Max Stack Height Capacity | 4 × 80 mm sieves |
| Sample Load Range | 5–30 kg (dry or wet) |
| Drive Mechanism | Mass-unbalance motor |
| Clamping System | Dual stainless steel rods, phenolic knobs, acrylic sieve cover |
| Application | Dry and wet sieving |
| Brand | Filtra |
|---|---|
| Origin | Spain |
| Model | FML2000 |
| Motor Power | 0.75 kW |
| Voltage/Frequency | 220–240 V, 50–60 Hz |
| Max Speed | 3000 rpm |
| Input Sample Size | ≤ 2 mm (recommended) |
| Output Particle Size Range | 0.01–0.5 mm |
| Sieve Options | Interchangeable round-hole stainless steel sieves (2, 3, 4, and 5 mm aperture) |
| Blade Material | AISI 304 stainless steel |
| Blade Quantity | 3 replaceable blades |
| Milling Chamber & Rotor | AISI 304 stainless steel |
| Dimensions (W×D×H) | 375 × 250 × 550 mm |
| Net Weight | 30 kg |
| Compliance | CE-marked, conforms to IEC 61000-6-2/6-4 EMC standards |
| Software Interface | None (standalone mechanical unit) |
| Brand | Filtra |
|---|---|
| Origin | Spain |
| Model | FML-0100-04 |
| Equipment Type | Benchtop Grinding Mill |
| Compliance | CE-marked |
| Power Supply | Not specified (manual or optional pneumatic actuation) |
| Weight | 50 kg |
| Footprint (W×D) | 250 × 240 mm (MPS-75 variant), 250 × 300 mm (MPS-150 variant) |
| Maximum Punch Force | 7,500 N (MPS-75), 15,000 N (MPS-150) |
| Maximum Stroke | 40 mm |
| Table Dimensions | 250 × 150 mm |
