Kipp&Zonen
Filter
Showing all 8 results
| Brand | Kipp&Zonen |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Model | CGR3 |
| Pricing | Upon Request |
| Brand | Kipp&Zonen |
|---|---|
| Origin | Netherlands (manufactured in Delft) |
| Model | LAS MkII |
| Measurement Path Length | 100 m to 4.5 km |
| Integrated Data Logger | Yes |
| Onboard Digital Signal Processing | Yes |
| Cn² and Sensible Heat Flux Output | Standard (with optional meteorological sensor kit) |
| Power Supply | Low-power DC (solar-compatible, typically 12 V) |
| Display & Keypad | Built-in monochrome LCD with membrane keypad |
| Communication Interfaces | RS-232, RS-485, SDI-12, Analog Outputs (0–5 V or 4–20 mA) |
| Software | EVATION® v3.x (real-time visualization, post-processing, export to CSV/NetCDF) |

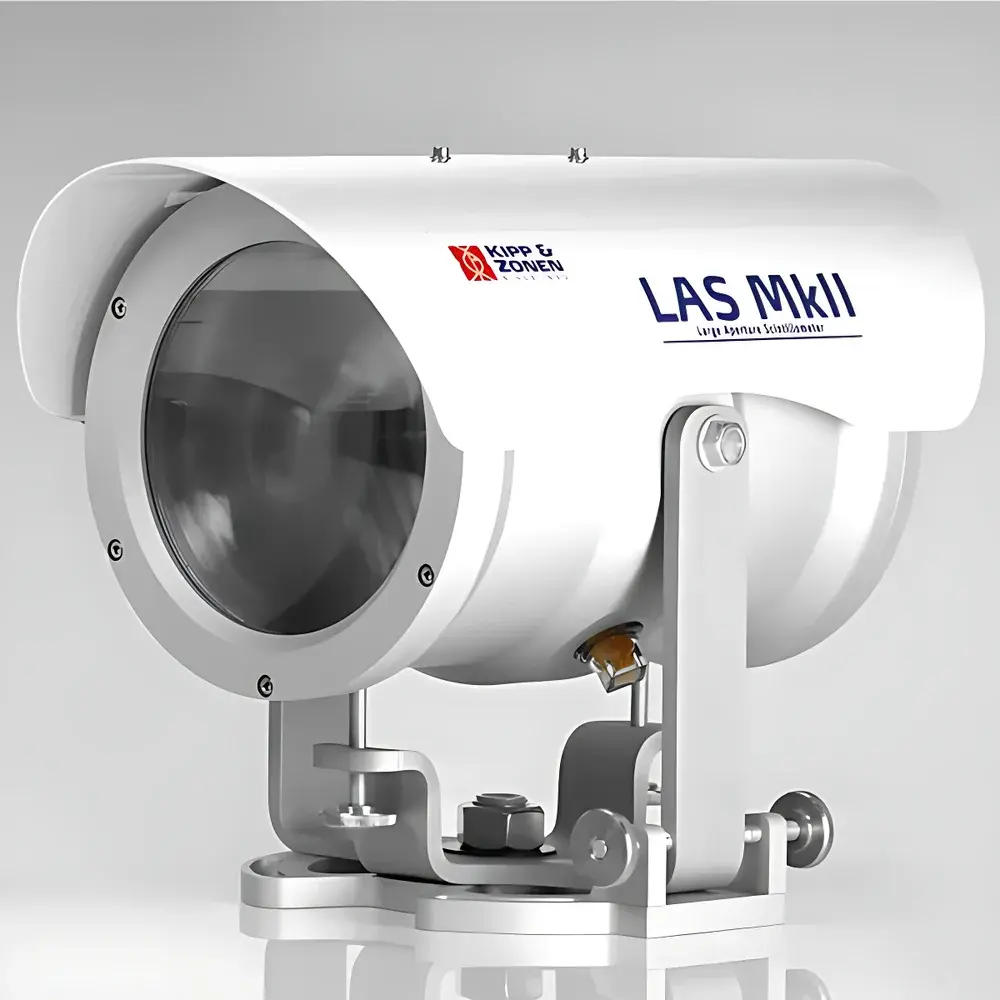

| Brand | KIPP&ZONEN |
|---|---|
| Origin | Netherlands |
| Model | LAS MkII Large-Aperture Scintillometer |
| Aperture Options | 10 cm (path range: 100 m – 1 km) / 15 cm (path range: 250 m – 4.5 km) |
| Operating Wavelength | 850 nm |
| Scintillation Bandwidth | 10⁻¹⁷ – 10⁻¹² m⁻²/³ |
| Power Supply | 12 VDC, 6 W (max 54 W with heater enabled) |
| Dimensions | 400 × 300 × 240 mm (L×H×D) |
| Weight | 8.5 kg |
| Internal Processing | Cn², sensible heat flux (H), and derived turbulence parameters |
| Data Logging | Onboard non-volatile memory for multi-month storage |
| Interface | RS-232/422 digital, 0–2 V analog output |
| Software | EVATION® (real-time monitoring, post-processing, compliance-ready export) |
| Brand | Kipp&Zonen |
|---|---|
| Origin | Imported |
| Model | RaZon+ |
| Measurement Outputs | Global Horizontal Irradiance (GHI), Direct Normal Irradiance (DNI), Diffuse Horizontal Irradiance (DHI), Sunshine Duration, Solar Zenith & Azimuth Angles, System Status |
| Data Logging Interval | ~1-minute Averaging |
| Communication Interfaces | RS-485, Ethernet, Wi-Fi, Optional 3G/4G Modem |
| Mounting Options | Tripod or Pole-Mounted |
| Compliance | IEC 61724-1:2021, ISO 9078, ASTM G167, WMO Guide to Meteorological Instruments and Methods of Observation |
| Brand | Kipp&Zonen |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Model | SGR3 |
| Pricing | Available Upon Request |
| Brand | Kipp&Zonen |
|---|---|
| Origin | Imported |
| Model | SMP |
| Power Supply | 5–30 VDC (with reverse polarity & overvoltage protection) |
| Output Interface | Modbus RTU over RS-485 |
| Maximum Devices per Network | 247 (via unique Modbus addressing) |
| Data Update Rate | ~1 Hz |
| Resolution | 24-bit differential analog-to-digital conversion |
| Temperature Compensation | Integrated thermistor + polynomial correction algorithm |
| Spectral Range | 305–2800 nm |
| Directional Response Compliance | ISO 9060:2018 Class A (Secondary Standard) |
| Calibration Traceability | NIST-traceable, with full calibration history stored onboard |
| Brand | Kipp&Zonen |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Model | Solys Gear Drive |
| Power Input | 24 VDC / 100–240 VAC dual-input |
| Operating Temperature Range | –50 °C to +60 °C (with sunshade) |
| Max Payload Capacity | < 80 kg |
| Tracking Accuracy | ≤ ±0.02° (typical, under nominal conditions) |
| Integrated GPS | Yes, auto-configures latitude, longitude, and UTC time |
| Communication Interface | Ethernet (RJ45), status LED indicators |
| Drive Mechanism | Maintenance-free high-efficiency timing belt transmission |
| Enclosure Material | Die-cast aluminum housing with optional dual side panels |
| Mounting Options | Adjustable tripod with leveling feet, top mounting plate for pyrheliometer integration |
| Heating System | Built-in heater (AC-powered) for sub-zero operation |
| Compliance | Designed per IEC 61724-1 (Photovoltaic system performance monitoring), compatible with ISO 9087, ASTM G167, and WMO Guide to Meteorological Instruments and Methods of Observation |
| Brand | Kipp&Zonen |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Model | Solys2 |
| Power Input | 24 VDC or 90–264 VAC |
| Operating Temperature Range | -40 °C to +50 °C (with AC-powered heater) |
| Payload Capacity | ≤20 kg |
| Positioning Accuracy | <0.02° RMS |
| Communication Interfaces | Ethernet, RS-232, RS-485 |
| Integrated GPS | Yes, for autonomous latitude/longitude/time synchronization |
| Sun Sensor Option | Available for closed-loop active tracking |
| Enclosure | Cast aluminum, IP65-rated, tripod-mounted with leveling feet |
| Drive System | Maintenance-free toothed belt transmission |
| Mounting | Top plate supports up to three Kipp&Zonen pyrheliometers or pyranometers |
