Kipp&Zonen Solys Gear Drive Solar Tracker

Overview

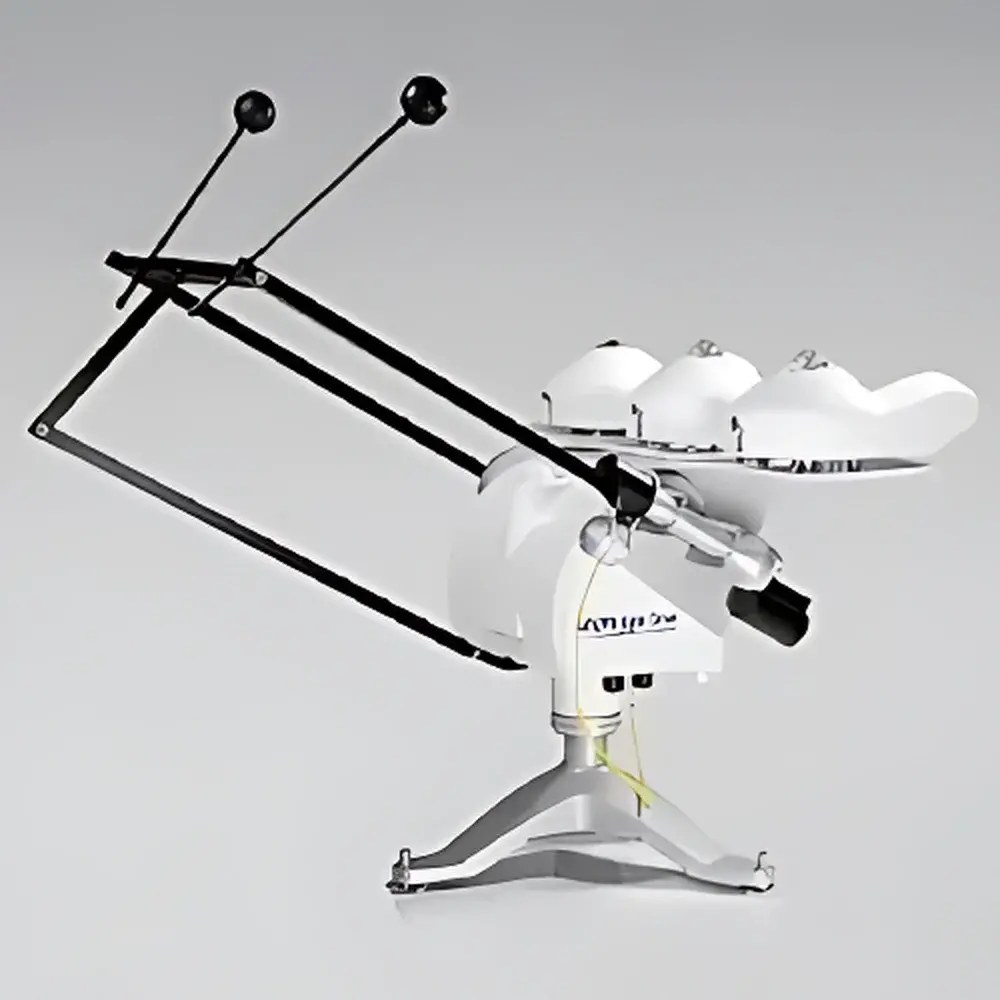

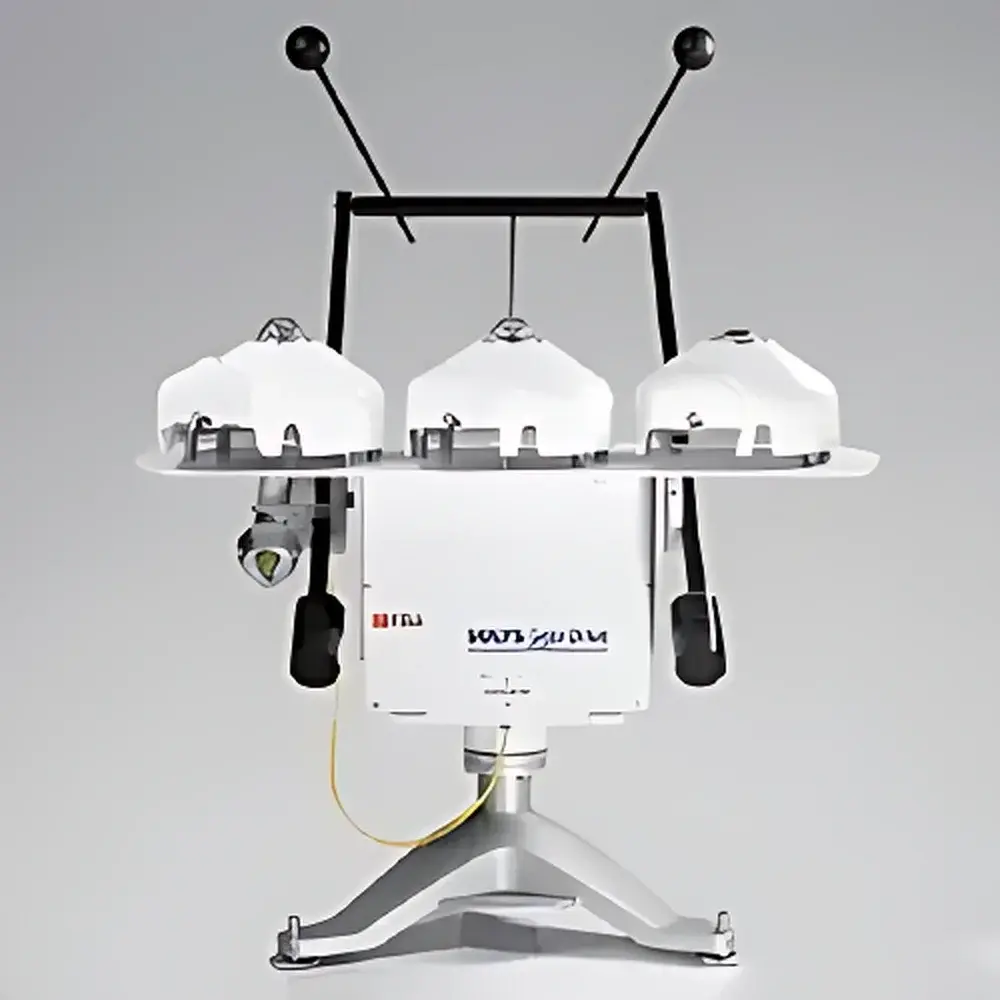

The Kipp&Zonen Solys Gear Drive Solar Tracker is a high-precision, dual-axis astronomical tracking platform engineered for continuous, autonomous solar pointing in demanding environmental and scientific applications. Based on the proven SOLYS2 architecture, the Gear Drive variant introduces enhanced mechanical robustness, extended thermal operational range, and increased payload capacity—making it suitable for deployment across global climatic zones, from equatorial deserts to polar research stations. Its core functionality relies on real-time celestial mechanics computation, synchronized via an integrated GPS receiver that continuously updates geographic coordinates and Coordinated Universal Time (UTC), eliminating time drift and ensuring long-term pointing fidelity without external clock dependency. Unlike software-dependent trackers, the Solys Gear Drive operates autonomously at firmware level: no host PC or proprietary runtime environment is required for initialization or sustained tracking. This deterministic, embedded control architecture ensures operational reliability under remote or off-grid conditions where network connectivity or computing infrastructure may be unavailable.

Key Features

• Autonomous dual-axis tracking with ≤ ±0.02° typical pointing accuracy, validated against NIST-traceable solar position algorithms (NOAA SPA model)
• Maintenance-free high-torque timing belt drive system—no lubrication, no periodic tension adjustment, and minimal backlash
• Dual-power input architecture: accepts 24 VDC (e.g., battery or PV array) and 100–240 VAC simultaneously; DC input serves as seamless backup during AC failure
• Integrated GPS module automatically configures location, altitude, and UTC—enabling rapid deployment without manual setup
• Industrial-grade die-cast aluminum enclosure with IP65-rated sealing and optional dual side panels for expanded sensor integration (e.g., DNI measurement with secondary pyrheliometer)
• Built-in heating system (AC-powered) maintains operational readiness down to –50 °C; sunshade accessory extends upper temperature limit to +60 °C
• Real-time status monitoring via multi-color LED indicators and Ethernet interface—supports remote diagnostics, firmware updates, and event logging
• Compliant with structural load requirements for Class I meteorological installations per WMO No. 8 and IEC 61724-1 Annex B

Sample Compatibility & Compliance

The Solys Gear Drive is designed as a universal mounting platform for radiometric instrumentation requiring precise solar alignment—including pyrheliometers (e.g., CHP1, SMP11), shaded pyranometers, UV radiometers, and spectral irradiance sensors. Its ≥80 kg payload capacity accommodates large-aperture instruments and auxiliary shielding assemblies. The tracker meets mechanical and electrical safety standards per IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions). It supports GLP/GMP-aligned data integrity workflows when used with SOLYSMonitor software, which records timestamped operational states, GPS lock status, motor current draw, and thermal sensor readings—providing auditable traceability for regulatory submissions under ISO/IEC 17025 or FDA 21 CFR Part 11 (when deployed with validated IT infrastructure).

Software & Data Management

SOLYSMonitor is a Windows-based desktop application provided with each unit for configuration, real-time monitoring, and diagnostic logging. It communicates over standard Ethernet using TCP/IP and stores time-synchronized status logs (CSV export supported) including azimuth/elevation error residuals, GPS fix quality, heater activation cycles, and power supply voltage stability. Logs are structured for ingestion into SCADA systems or LIMS platforms via RESTful API extensions (available under Kipp&Zonen’s Developer Program). Firmware updates are delivered as signed binary packages to ensure cryptographic integrity. No cloud dependency is required—the software operates fully offline, aligning with air-gapped laboratory and national observatory security policies.

Applications

• Baseline solar radiation monitoring networks (BSRN) requiring WMO-class accuracy and long-term stability
• Calibration laboratories performing absolute cavity pyrheliometer intercomparisons under ISO 9060:2018 Class A specifications
• Concentrated solar power (CSP) plant performance validation per IEC 62817
• Polar atmospheric science campaigns where extreme cold, low solar elevation angles, and extended twilight periods demand high torque and thermal resilience
• Photovoltaic system performance ratio (PR) analysis under IEC 61724-1 Ed. 2 (2021), particularly for bifacial yield modeling requiring rear-side irradiance synchronization
• Climate research stations requiring multi-decade instrument alignment continuity with minimal field intervention

FAQ

Does the Solys Gear Drive require a computer for daily operation?
No. Once configured via SOLYSMonitor or web interface, it runs autonomously using its internal real-time controller and GPS-synchronized timebase.
Can it operate without AC power in remote locations?
Yes—it accepts 24 VDC as primary or backup power, supporting solar-charged battery banks typical in off-grid observatories.
What is the maximum allowable wind speed for continuous tracking?
Rated for uninterrupted operation up to 25 m/s (90 km/h) with properly ballasted tripod mounting per IEC 61400-2 guidelines.
Is firmware update capability accessible via Ethernet only?
Yes—updates are delivered over Ethernet; no USB or serial interface is provided to maintain electromagnetic compatibility in sensitive radiometric environments.
How is thermal drift compensated during high-temperature operation?
The cast-aluminum structure provides inherent thermal mass stability, while the sunshade accessory reduces radiative heating of the azimuth bearing assembly—verified per ASTM E1175 test protocols.
