Showing 31–60 of 588 results
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-10SE |
| Instrument Type | Shelf-Type Freeze Dryer |
| Application | Production-Scale Lyophilization |
| Freeze-Drying Area | 10 m² |
| Ultimate Vacuum | <4 Pa |
| Condenser Capacity (24 h) | 200 kg/24 h |
| Condenser Temperature (No-Load) | <−75 °C |
| Shelf Temperature Range | −55 °C to +110 °C |
| Shelf Configuration | 9+1 shelves |
| Shelf Spacing | 100 mm |
| Control Interface | Industrial 10.4″ Touchscreen HMI |
| Data Acquisition Rate | 50 ms/sample |
| Stored Protocols | Up to 2000 user-defined or factory presets |
| Optional Features | Eutectic Point Tester, Dry Vacuum Pump, Cascade Compressor Unit, Solvent Trap, Hydraulic Oil Mist Filter, Remote PC Monitoring (up to 1.5 km) |

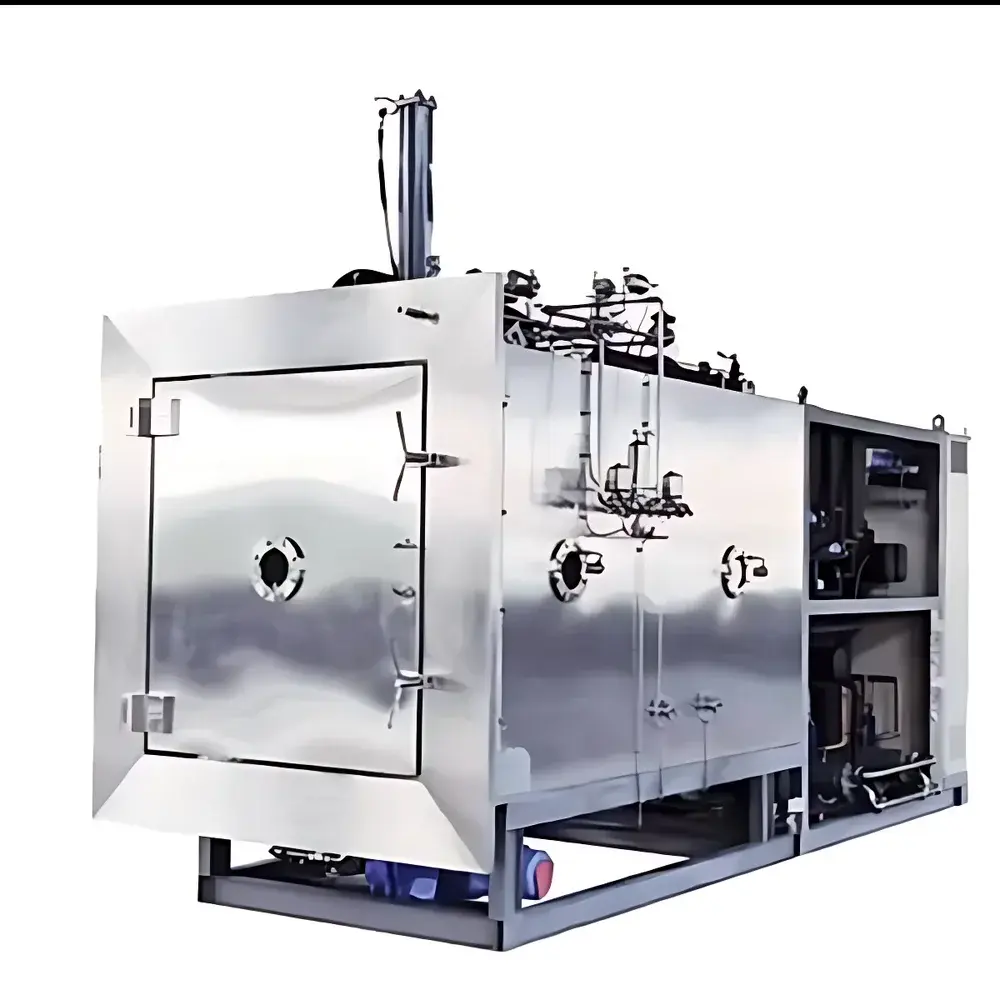

| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Equipment Type | Standard Shelf-Type Freeze Dryer |
| Application Scope | Production-Scale |
| Lyophilization Area | 13 m² |
| Ultimate Vacuum | < 4 Pa |
| Condensate Capacity (24 h) | 260 kg/24 h |
| Cold Trap Temperature | < −75 °C |
| Main Unit Dimensions (W × L × H) | 1700 × 5000 × 2800 mm |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-15 |
| Instrument Type | Shelf-Type Freeze Dryer |
| Application | Production-Scale |
| Lyophilization Area | 15 m² |
| Ultimate Vacuum | <4 Pa |
| Condensate Capacity (24 h) | 320 kg/24 h |
| Cold Trap Temperature | <−75 °C |
| Compliance | GB150-2011, PED, ASME, FDA 21 CFR Part 11, GMP |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-15E |
| Instrument Type | Shelf-Type Freeze Dryer |
| Application | Production-Scale Lyophilization |
| Freeze-Drying Area | 15 m² |
| Ultimate Vacuum | <4 Pa |
| Condenser Capacity (24 h) | 320 kg/24h |
| Condenser Temperature (No-Load) | <−75 °C |
| Shelf Temperature Range (No-Load) | −55 °C to +110 °C |
| Shelf Quantity | 9+1 (9 active + 1 bottom shelf) |
| Shelf Spacing | 100 mm |
| Control Interface | Industrial Touchscreen HMI |
| Data Acquisition Frequency | 50 ms |
| Process Recipe Storage | 2000 profiles |
| Optional Features | Eutectic Point Tester, Dry Vacuum Pump, Cascade Compressor Unit, Solvent Trap, Hydraulic Oil Mist Filter, PC-Based Remote Monitoring (up to 1.5 km) |
| Brand | BioCool |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | LYO-15SE |
| Instrument Type | Shelf-Type Freeze Dryer |
| Application Scope | Production-Scale |
| Lyophilization Area | 15 m² |
| Ultimate Vacuum | <4 Pa |
| Condensate Capacity (24 h) | 320 kg/24h |
| Cold Trap Temperature | <−75 °C |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-1E (Non-Stoppering Type) |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scope | Pilot/Production Scale |
| Lyophilization Area | 1 m² |
| Ultimate Vacuum | <4 Pa |
| Condensate Capacity (24 h) | 20 L/24h |
| Cold Trap Temperature (No Load) | <−70 °C |
| Shelf Temperature Range (No Load) | −55 °C to +110 °C |
| Shelf Count | 4 + 1 (Condenser Shelf) |
| Shelf Spacing | 100 mm |
| Control Interface | Industrial Touchscreen (HMI), 50 ms Data Acquisition Interval |
| Programmable Recipes | Up to 2000 (User-Defined or Pre-Set) |
| Vacuum Regulation | Dynamic Pressure Control During Primary & Secondary Drying |
| Reconstitution Gas Backfill | Three-Mode Pulse Control (Slow/Medium/Fast) |
| Endpoint Detection | Automated Residual Moisture Assessment via Conductivity/Pressure Rise Test |
| Calibration Support | Independent Temperature & Vacuum Sensor Calibration |
| Optional Features | Eutectic Point Tester, Dry Scroll Vacuum Pump, Cascade Refrigeration Unit, Solvent Trap, Hydraulic Oil Mist Filter, Remote PC Monitoring (Up to 1.5 km) |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-1SE |
| Instrument Type | Shelf-Type Freeze Dryer |
| Application | Production-Scale Lyophilization |
| Freeze-Drying Area | 1 m² |
| Ultimate Vacuum | <5 Pa |
| Condensate Capacity (24 h) | 20 L/24 h |
| Cold Trap Temperature | <−70 °C |
| Shelf Temperature Range | −55 °C to +110 °C |
| Shelf Configuration | 4+1 Heated Shelves |
| Vacuum Regulation System | Yes |
| Programmable Control System | Yes |
| End-Point Detection | Yes |
| Backfill Control (Pulse Mode) | Three-Speed (Slow/Medium/Fast) |
| Data Acquisition Frequency | 50 ms |
| Recipe Storage Capacity | 2000 Programs |
| Touchscreen Interface | Industrial HMI Panel |
| Remote Monitoring (Optional) | Up to 1.5 km |
| Calibration Function | Temperature & Vacuum |
| Freeze-Dry Curve Logging | Yes |
| Optional Accessories | Eutectic Point Tester, Dry Vacuum Pump, Cascade Compressor Unit, Solvent Trap, Hydraulic Oil Mist Filter |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-2 |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application | Production-Scale Lyophilization |
| Freeze-Drying Area | 2.16 m² |
| Ultimate Vacuum | <3 Pa |
| Condensate Capacity (24 h) | 40 L/24 h |
| Cold Trap Temperature | <−70 °C |
| Shelf Temperature Range | −55 °C to +80 °C |
| Power Consumption | 12 kW |
| Shelf Configuration | 4+1 shelves (600 × 900 mm), ±1.0 °C uniformity |
| Compliance | Meets GB150-2011, PED, ASME, FDA 21 CFR Part 11, GMP, and CIP/SIP requirements |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-20 |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application | Production-Scale Lyophilization |
| Freeze-Drying Area | 20 m² |
| Ultimate Vacuum | <4 Pa |
| Condensate Capacity (24 h) | 400 kg/24 h |
| Cold Trap Temperature | <−75 °C |
| Brand | BioCool |
|---|---|
| Origin | Beijing, China |
| Model | LYO-20E |
| Instrument Type | Shelf-Type Freeze Dryer |
| Application | Production-Scale Lyophilization |
| Freeze-Drying Area | 20 m² |
| Ultimate Vacuum | <4 Pa |
| Condenser Capacity (24 h) | 400 kg/24h |
| Condenser Temperature (No-Load) | <−75 °C |
| Shelf Temperature Range | −55 °C to +110 °C |
| Shelf Quantity | 11+1 (Active + Dummy) |
| Shelf Spacing | 100 mm |
| Control Interface | Industrial Touchscreen (HMI), Programmable Logic Controller (PLC)-Based System |
| Data Acquisition Frequency | 50 ms |
| Process Recipe Storage | 2000 user-defined or factory presets |
| Optional Features | Eutectic Point Tester, Dry Vacuum Pump, Cascade Compressor Unit, Solvent Trap, Hydraulic Oil Mist Filter, Remote PC Monitoring (up to 1.5 km) |
| Brand | BioCool |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | LYO-20SE |
| Instrument Type | Shelf-Type Freeze Dryer |
| Application Scope | Production-Scale |
| Lyophilization Area | 20 m² |
| Ultimate Vacuum | <4 Pa |
| Condensate Capacity (24 h) | 400 kg/24 h |
| Cold Trap Temperature | <−75 °C |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-25 |
| Type | Standard Shelf-Type Freeze Dryer |
| Application | Production-Scale |
| Lyophilization Area | 25 m² |
| Ultimate Vacuum | <4 Pa |
| Condensate Capacity (24 h) | 500 kg/24 h |
| Cold Trap Temperature | <−75 °C |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-2E |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scope | Production-Scale |
| Lyophilization Area | 2 m² |
| Ultimate Vacuum | <3 Pa |
| Condensate Capacity (24 h) | 40 L/24 h |
| Cold Trap Temperature | <−70 °C |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-2SE |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scope | Production-Scale |
| Lyophilization Area | 2 m² |
| Ultimate Vacuum | <3 Pa |
| Condensate Capacity (24 h) | 40 L/24 h |
| Cold Trap Temperature | <−70 °C |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-3 |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application | Production-Scale Lyophilization |
| Freeze-Drying Area | 3 m² |
| Ultimate Vacuum | <3 Pa |
| Condensate Capacity (24 h) | 60 L/24 h |
| Cold Trap Temperature | <−70 °C |
| Shelf Temperature Range | −55 °C to +80 °C |
| Shelf Uniformity | ±1.0 °C |
| Power Consumption | 21 kW |
| Shelf Configuration | 6+1 shelves (600 × 900 mm) |
| Compliance | Meets GB150-2011, PED, ASME, FDA 21 CFR Part 11, GMP, and CIP/SIP requirements |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | LYO-3 |
| Instrument Type | Shelf-Type Freeze Dryer |
| Application Scope | Production-Scale |
| Lyophilization Area | 3 m² |
| Ultimate Vacuum | <3 Pa |
| Condensation Capacity (24h) | 60 L/24h |
| Cold Trap Temperature | <−70 °C |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-30 |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application | Production-Scale Lyophilization |
| Freeze-Drying Area | 30 m² |
| Ultimate Vacuum | <4 Pa |
| Condensate Capacity (24 h) | 600 kg/24 h |
| Cold Trap Temperature | <−75 °C |
| Chamber Pressure Range | 0.5 Pa to 0.15 MPa (full bidirectional rating) |
| Shelf Temperature Range | −55 °C to +80 °C |
| Shelf Uniformity | ±1.0 °C |
| Control System | FDA 21 CFR Part 11–compliant PC-based process control with audit trail |
| CIP/SIP Compliance | Fully validated in-situ cleaning and steam sterilization systems |
| Construction Standards | ASME BPVC Section VIII Div. 1 / PED 2014/68/EU / GB150-2011 |
| Data Acquisition Rate | 50 ms per sample |
| Recipe Storage Capacity | 2000 user-defined or fixed lyo cycles |
| Remote Monitoring Range | Up to 1.5 km via Ethernet |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-3E |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scope | Production-Scale |
| Lyophilization Area | 3 m² |
| Ultimate Vacuum | <3 Pa |
| Condensate Capacity (24 h) | 60 L/24 h |
| Cold Trap Temperature | <−70 °C |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-3SE |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scope | Production-Scale |
| Lyophilization Area | 3 m² |
| Ultimate Vacuum | <3 Pa |
| Condensate Capacity (24 h) | 60 L/24 h |
| Cold Trap Temperature | <−70 °C |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-40 |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application | Production-Scale Lyophilization |
| Freeze-Drying Area | 40 m² |
| Ultimate Vacuum | < 4 Pa |
| Condensate Capacity (24 h) | 800 kg/24 h |
| Cold Trap Temperature | < −75 °C |
| Shelf Temperature Range | −55 °C to +80 °C |
| Shelf Uniformity | ±1.0 °C |
| Power Consumption | 174 kW |
| Structural Compliance | ASME Section VIII Div. 1 / PED 2014/68/EU / GB 150–2011 |
| CIP/SIP Certification | Validated per GMP Annex 1 & FDA Guidance for Sterile Processing |
| Data Integrity | Compliant with 21 CFR Part 11 (Electronic Records & Signatures) |
| Control System | Programmable Logic Controller (PLC) with Industrial Touchscreen HMI |
| Data Logging Frequency | 50 ms |
| Stored Protocols | 2000 user-defined or standard lyo cycles |
| Remote Monitoring Range | Up to 1.5 km via Ethernet/WAN |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-5 |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application | Production-Scale Lyophilization |
| Freeze-Drying Area | 5 m² |
| Ultimate Vacuum | <3 Pa |
| Condensation Capacity (24 h) | 100 L/24 h |
| Cold Trap Temperature | <−70 °C |
| Shelf Temperature Range | −55 °C to +80 °C |
| Shelf Uniformity | ±1.0 °C |
| Power Consumption | 24 kW |
| Compliance | Meets GB150-2011, PED, ASME, FDA 21 CFR Part 11, GMP, and CIP/SIP requirements |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-50 |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application | Production-Scale Lyophilization |
| Freeze-Drying Area | 50 m² |
| Ultimate Vacuum | <4 Pa |
| Condensate Capacity (24 h) | 1000 kg/24 h |
| Cold Trap Temperature | <−75 °C |
| Shelf Temperature Range | −55 °C to +80 °C |
| Power Consumption | 210 kW |
| Compliance | Meets GB150-2011, PED, ASME, FDA 21 CFR Part 11, GMP, and GLP requirements |
| Construction | Fully welded stainless steel chamber with mirror-polished interior, CIP/SIP-capable design |
| Control System | Industrial touchscreen HMI with 50 ms data acquisition frequency, 2000-user-programmable lyo cycles, PC remote monitoring up to 1.5 km |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-5E |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scope | Production-Scale |
| Lyophilization Area | 5 m² |
| Ultimate Vacuum | <4 Pa |
| Condensate Capacity (24 h) | 100 kg/24 h |
| Cold Trap Temperature (No-Load) | <−75 °C |
| Shelf Temperature Range (No-Load) | −55 °C to +110 °C |
| Shelf Quantity | 6+1 |
| Shelf Spacing | 100 mm |
| Maximum Vial Capacity (Ø22 mm) | 9,450 units |
| Wall-Penetration Isolation | Yes |
| Stoppering | Not equipped (S-variant required) |
| Compliance | Designed for GLP-compliant operation |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-5SE |
| Instrument Type | Shelf-Type Freeze Dryer |
| Application | Production-Scale Lyophilization |
| Freeze-Drying Area | 5 m² |
| Ultimate Vacuum | <4 Pa |
| Condensate Capacity (24 h) | 100 kg/24 h |
| Cold Trap Temperature (No-Load) | <−75 °C |
| Shelf Temperature Range | −55 °C to +110 °C |
| Shelf Count | 6+1 |
| Shelf Spacing | 100 mm |
| Control Interface | Industrial Touchscreen (HMI), Programmable Logic Controller (PLC) Based |
| Data Logging Frequency | 50 ms |
| Stored Protocols | Up to 2000 User-Defined or Predefined Lyo Cycles |
| Remote Monitoring Distance (Optional) | Up to 1.5 km |
| Calibration Capability | Temperature & Vacuum Sensors |
| Optional Accessories | Eutectic Point Tester, Dry Vacuum Pump, Cascade Compressor Unit, Extended Vacuum Pump Array, Organic Solvent Trap, Vacuum Oil Mist Filter |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-7 |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scope | Production-Scale |
| Lyophilization Area | 7 m² |
| Ultimate Vacuum | <4 Pa |
| Condensate Capacity (24 h) | 150 kg/24 h |
| Cold Trap Temperature | <−75 °C |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-7E |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scope | Production-Scale |
| Lyophilization Area | 7.5 m² |
| Ultimate Vacuum | <4 Pa |
| Condensate Capacity (24 h) | 150 kg/24 h |
| Cold Trap Temperature | <−75 °C |
| Shelf Temperature Range | −55 °C to +110 °C |
| Shelf Count | 7+1 |
| Shelf Spacing | 100 mm |
| Vial Capacity (Ø22 mm) | 15,750 units |
| Wall-Penetrating Isolation | Yes |
| Stoppering | Not equipped |
| Compliance | Designed for GLP-aligned production environments |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-7SE |
| Instrument Type | Shelf-Type Freeze Dryer |
| Application | Production-Scale Lyophilization |
| Freeze-Drying Area | 7.5 m² |
| Ultimate Vacuum | <4 Pa |
| Condenser Capacity (24 h) | 150 kg/24h |
| Condenser Temperature (No-Load) | <−75 °C |
| Shelf Temperature Range | −55 °C to +110 °C |
| Shelf Configuration | 7+1 shelves |
| Shelf Spacing | 100 mm |
| Programmable Recipes | 2000 |
| Data Acquisition Rate | 50 ms |
| Touchscreen Interface | Industrial HMI Panel |
| Optional Features | Eutectic Point Tester, Dry Vacuum Pump, Cascade Compressor System, Solvent Trap, Vacuum Oil Mist Filter, Remote Monitoring (up to 1.5 km) |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | LYO-F Series |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scope | Production-Scale |
| Lyophilization Area | 400 m² |
| Ultimate Vacuum | 4 Pa |
| Condensate Capacity (24 h) | 8,000 L |
| Cold Trap Temperature | −75 °C |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | Pilot Serials OEM |
| Instrument Type | Shelf-Type Freeze Dryer |
| Application Scope | Pilot-Scale |
| Lyophilization Area | 0.1–1 m² |
| Ultimate Vacuum | <3 Pa |
| Condensate Capacity (24 h) | 6 L/24 h |
| Cold Trap Temperature | <−100 °C |
| Shelf Temperature Range (Customizable) | −60 to −100 °C |
| Cold Trap Temperature Range (Customizable) | −100 to −130 °C |
| CIP/SIP Integration | Available for 0.1–1 m² silicone oil-based units |
| Nitrogen Purge & Organic Solvent Compatibility | Optional |
| Dual-Redundant Systems | Refrigeration, Vacuum, Circulation, and Electrical Subsystems |
| Control System | Industrial PLC + HMI Touchscreen |
| Shelf Temperature Uniformity | ±0.1 °C (per shelf area) |
| Eutectic Point Detection | AC Excitation (1 kHz), NI Hardware + Proprietary Algorithmic Analysis |
| In-Line Moisture Monitoring | Gravimetric Method |
| Brand | BIOCOOL |
|---|---|
| Origin | Beijing, China |
| Model | Pilot1-2LD |
| Type | Shelf-Type Freeze Dryer |
| Application | Pilot-Scale Processing |
| Lyophilization Area | 0.1 m² |
| Ultimate Vacuum | <9 Pa |
| Condensate Capacity (24 h) | 2 L/24 h |
| Cold Trap Temperature | −55 °C |
| Compressor | International Brand |
| Vacuum Pump | Korean Brand |
| Control Interface | Industrial Touchscreen |
| Programmable Logic Control | Yes |
| Optional Features | Nitrogen Backfilling, Vacuum Regulation, Endpoint Detection, Non-Electric Defrost, Pulse Backfill, Auto Drain Interlock, Multi-Mode Data Logging |
