| Brand | OEM / Custom Brand Available |
|---|---|
| Origin | Imported |
| Supplier Type | Authorized Distributor |
| Speed Range | 150–300 rpm |
| Speed Resolution | 0.1 rpm |
| Vibration Mode | Reciprocating (Linear) |
| Peak-to-Peak Amplitude | 25.4 mm |
| Load Capacity | 45.4 kg (100 lbs) |
| Effective Table Size | 1.0 m × 1.0 m |
| Timing Range | 1 s to 99 h (or 0.1 s to 300 h) |
| Start Delay Adjustment | 0–15 s |
| Motor Power | 1 HP |
| Speed Control | DC or AC Variable-Frequency Drive |
| Input Voltage | 220 V / 50–60 Hz or 380 V / 50–60 Hz |
| Compliance | ISTA 3A, EN 71-1, ASTM D999 |
| Brand | OK Instruments |
|---|---|
| Frequency Range | 2–2000 Hz |
| Max Acceleration | 20 g (peak) |
| Peak-to-Peak Amplitude | 5 mm (adjustable per frequency limit) |
| Load Capacity | 50 kg |
| Effective Table Surface | 1000 × 1000 mm |
| Speed Control | DC adjustable |
| Motor Power | 1 HP (0.75 kW) |
| Power Supply | 380 V, 50 Hz |
| Timer Range | 0 s – 99 h 59 min |
| Display Resolution | 0.1 rpm |
| Compliance Standards | EN 60068-2-64, ANSI S2.18, ASTM D999, ISTA 3A/3E/3H, UL 60950, ISO 10326-1 |
| Weight | ~300 kg |
| Dimensions (W×D×H) | 1100 × 1300 × 650 mm |
| Brand | Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Table Surface Dimensions | 50 × 50 cm |
| Shaker Body Dimensions (L×H×W) | Horizontal Mode: 50 × 26.5 × 50 cm |
| Vertical Mode | 50 × 20 × 50 cm |
| Payload Capacity | 100 kg |
| Vibration Axis | Vertical or Horizontal (90° rotatable) |
| Waveform | Sine |
| Frequency Range | 2–600 Hz |
| Programmable Sweep Range | 2–600 Hz |
| Adjustable Peak-to-Peak Amplitude | 0–5 mm |
| Maximum Acceleration | 20 g |
| Rated Power | 2.2 kW |
| Supply Voltage | 220 V AC |
| Max Current Draw | 5 A |
| Control Interface | RS-232 / USB for PC-based operation |
| Frequency Resolution | 0.01 Hz |
| Frequency Accuracy | ±0.1 Hz |
| Operating Temperature Range | 0–40 °C |
| Relative Humidity | ≤80% RH (non-condensing) |
| Platform Dimensions | 500 × 500 mm |
|---|---|
| Shaker Body Dimensions | 500 × 450 × 500 mm |
| Mounting Pattern | 25 × M10 threaded holes on platform surface |
| Vibration Axes | Independent or simultaneous excitation along X (horizontal, left–right), Y (vertical, up–down), and Z (horizontal, front–back) |
| Frequency Range | 1–5000 Hz (display resolution: 0.01 Hz) |
| Peak-to-Peak Displacement | 0–4 mm adjustable |
| Maximum Load Capacity | 75 kg |
| Peak Sinusoidal Force | 1125 kgf (≈11.03 kN) |
| Maximum Acceleration | ≤15 g (peak) |
| Waveform Options | Sinusoidal (full- or half-wave), programmable random, road-profile-simulated vibration, multi-axis coupled motion (4-DOF synchronized), mixed-mode (e.g., half-wave on Y + full-wave on X) |
| Test Duration Setting | 0–999,999 s (user-defined) |
| Power Consumption | 3.8 kW |
| Input Current | ≤15 A |
| Supply Voltage | 380 V ±20%, 3-phase, 50/60 Hz |
| Acceleration–Amplitude–Frequency Relationship | aₚₑₐₖ (g) = 0.002 × f² (Hz²) × D (mm, p–p) |
| Brand | OEM |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Model | OK-100 |
| Price | USD 5,280 (FOB) |
| Load Capacity | 100 kg |
| Table Dimensions (L×W) | 120 × 100 cm |
| Vibration Mode | Reciprocating (Linear Horizontal) |
| Speed Range | 60–300 rpm |
| Peak-to-Peak Amplitude | 25.4 mm |
| Frequency Range | 1.0–5.0 Hz |
| Timer Range | 0.1 s – 999.99 h |
| Drive System | AC Variable-Frequency Motor |
| Power Supply | 220 V, 50/60 Hz |
| Compliance | ISTA 3A, ISTA 3E, ASTM D999, EN 71-1, ISO 8766 |
| Brand | OK |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Price | USD 14,000–20,000 (FOB) |
| Load Capacity | 25–1000 kg |
| Frequency Range | 5–80 Hz |
| Maximum Displacement | 5–10 mm peak-to-peak |
| Maximum Acceleration | 100 m/s² |
| Drive Power | 1.5–11 kW |
| Input Voltage | AC 220 V ±10% or AC 380 V ±10% |
| Table Dimensions | 40×40 to 140×140 cm |
| Weight | 500–3600 kg |
| Brand | OK Instruments |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Electrodynamic Vibration Shaker |
| Rated Thrust | 1.98 kN |
| Frequency Range | 5–5000 Hz |
| Maximum Payload Capacity | 70 kg |
| Tabletop Dimensions | 300 × 300 × 30 mm |
| Peak Acceleration | 10 g |
| Brand | Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | General Distributor |
| Price | USD 21,000 (approx.) |
| Speed Range | 100–300 RPM (continuously adjustable) |
| Speed Accuracy | ±3 RPM |
| Amplitude | 25.4 mm (1 inch) ±15% |
| Maximum Load Capacity | 100 kg |
| Test Table Dimensions | 1200 × 1000 mm (customizable) |
| Timer Range | 0–99.99 hours |
| Motor Power | 1.5 kW |
| Supply Voltage | 220 V, 50 Hz |
| Net Weight | ~250 kg |
| Drive System | DC motor with synchronous silent belt transmission |
| Mounting | Linear rail-based sample clamping |
| Base Construction | Heavy-duty channel steel frame with vibration-damping rubber pads |
| Vibration Mode | Rotary (orbital/circular motion, commonly referred to as “galloping” or “eccentric rotation”) |
| Key | Brand: Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Frequency Range | 1–5000 Hz (optional with PC control) |
| Standard Table Dimensions | 50×50×25 cm (horizontal), 50×50×20 cm (vertical) |
| Vibration Modes | Vertical (CZ), Horizontal (SP), Combined (CZ+SP) |
| Compliance | ASTM D999, ISO 8767, ISTA 3A/3E/3H, GB/T 4857.7, MIL-STD-810H Method 514.8 |
| Control Options | Fixed-frequency (50 Hz), Sweep & Random (1–600 Hz or 1–5000 Hz), PC-integrated digital controller |
| Max. Load Capacity | 60 kg |
|---|---|
| Frequency Range (Manual/Scan) | 1–200 Hz |
| Table Surface Dimensions | 550 × 550 × 46 mm |
| Table Body Dimensions | 550 × 550 × 350 mm |
| Displacement Amplitude (Empty Load) | 0–5 mm |
| Vibration Direction | Vertical |
| Waveform | Sinusoidal |
| Power Supply | 220 V / 50 Hz ±2% |
| Rated Power Consumption | 1.7 kVA |
| Timer Range | 0.01 s – 99.99 h |
| Control Interface | Digital LCD with Real-Time Parameter Display |
| Sweep Programs | Up to 30 Segments |
| Compliance Standard | GB/T 2423.10 |
| Vibration Mode | Fixed-Frequency & Linear Sweep |
| Base Construction | Heavy-Duty Steel Frame with Vibration-Damping Rubber Mounts |
| Drive Mechanism | Electromagnetic Shaker with Four-Point Synchronous Excitation |
| Brand | Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Frequency Range | 1–600 Hz |
| Max. Load Capacity | 100 kg |
| Peak Acceleration | 20 g |
| Adjustable Peak-to-Peak Amplitude | 0–5 mm |
| Vibration Axis | Vertical (configurable to horizontal, vertical+horizontal, 4-DOF or 6-DOF) |
| Control Modes | Sine, AM, Fixed-Frequency Sine, Programmable Sweep, Logarithmic Sweep, Octave Sweep, Time-Controlled Operation |
| Interface | RS-485 |
| Power Supply | 220 V ±20%, 10 A, 2.2 kW |
| Table Dimensions (L×W) | 50×50 cm |
| Unit Dimensions (L×H×W) | 50×20×50 cm |
| Frequency Resolution | 0.01 Hz (display), ±0.1 Hz accuracy |
| Compliance | Designed for ISO 2041, ASTM D999, IEC 60068-2-6, MIL-STD-810H vibration test standards |
| Brand | OK Instruments |
|---|---|
| Model | OK-ES-10 |
| Type | Dual-Axis Electromechanical Vibration Shaker |
| Vibration Mode | Reciprocating (Linear, Bidirectional) |
| Frequency Range | 1.7–5.0 Hz (100–300 rpm) |
| Max. Acceleration | 20 g (196 m/s²) |
| Peak-to-Peak Amplitude | 5.0 mm (standard), up to 25.4 mm (1 in) at low frequency |
| Load Capacity | 50 kg (standard), 100 kg (reinforced configuration) |
| Effective Table Size | 1000 × 1000 mm |
| Timer Range | 0 s – 99 h 59 min |
| Speed Display Resolution | 0.1 rpm |
| Drive Motor | 1 HP (0.75 kW) DC Motor with Analog Speed Control |
| Power Supply | 380 V AC, 50 Hz, 3-phase |
| Dimensions (W×D×H) | 1100 × 1300 × 650 mm |
| Net Weight | ~300 kg |
| Compliance | ASTM D999, ISTA 3A/3B/3E, EN 60068-2-6, ANSI S2.18, UL 60950-1 |
| Brand | Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Price | USD 21,000 (FOB) |
| Max Acceleration | 20 g (peak) |
| Frequency Range | 5–3,000 Hz |
| Displacement (p-p) | Up to 25.4 mm |
| Velocity Range | 150–300 rpm equivalent (mechanical drive mode) |
| Payload Capacity | 50 kg |
| Effective Table Area | 1.0 × 1.0 m |
| Control Mode | DC Speed Regulation |
| Power Supply | 380 V, 50 Hz, 1 HP |
| Compliance | EN 60068-2-6, EN 60068-2-64, ANSI S2.18, ASTM D999, ISTA 3A/3E/3H, UL 746C |
| Brand | OEM / Custom-Built |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Tabletop Dimensions | 500 × 500 mm |
| Shaker Body Dimensions | 500 × 450 × 500 mm |
| Mounting Pattern | 25 × M10 threaded holes on tabletop |
| Vibration Axes | Vertical (Y-axis) and Horizontal (X-axis) |
| Frequency Range | 1–5000 Hz, resolution 0.01 Hz |
| Peak-to-Peak Displacement | 0–4 mm adjustable |
| Maximum Load Capacity | 75 kg |
| Rated Sinusoidal Force | 1125 kgf (11.03 kN) |
| Maximum Acceleration | ≤15 g |
| Waveform | Sine (full- or half-cycle) |
| Test Duration Setting | Programmable in seconds (0–999,999 s) |
| Power Consumption | 3.8 kW |
| Input Current | ≤15 A |
| Supply Voltage | 380 V ±20%, 3-phase, 50/60 Hz |
| Operating Temperature | −10 °C to +60 °C |
| Relative Humidity | ≤95% RH (non-condensing) |
| Recommended Ambient | ≤28 °C with adequate ventilation |
| Brand | OEM / Custom-Built |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Price | USD 21,500 (FOB) |
| Frequency Range | 1–5000 Hz |
| Max. Load Capacity | 150 kg |
| Adjustable Amplitude | 0–5 mm peak-to-peak |
| Acceleration Range | 0–20 g |
| Drive Power | 2.2 kW |
| Input Voltage | 220 V, 50 Hz |
| Vibration Axes | Vertical (Y), Horizontal (X/Z), or Triaxial (X/Y/Z) |
| Waveform | Sine (half/full cycle), programmable |
| Sweep & Logarithmic Modes | 3-directional sweep profiles with 15-segment frequency stepping |
| Programmable Test Sequences | Up to 15 user-defined segments with independent time/frequency/acceleration/amplitude settings |
| Control Interface | Integrated digital controller + optional PC-based software with real-time waveform monitoring, data logging, and report generation (compliant with ISO 10816, ASTM D999, IEC 60068-2-6, MIL-STD-810H) |
| Key | Brand: Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Price | USD 21,000 (FOB) |
| Compliance | GB/T 2423.5, GJB 150.18–1986 |
| Drive Type | Pneumatic + Electromagnetic Hybrid |
| Max Payload Capacity | Up to 2× Rated Load (Model-Dependent) |
| Platform Material | Monolithic Cast Aluminum Alloy |
| Guidance System | Chrome-Plated Precision Linear Rails |
| Impact Repeatability | ±0.5 mm (via Photoelectric Height Sensing) |
| Built-in Damping Base | High-Mass Isolation Substructure |
| Operating Mode | Sweep, Fixed-Frequency, Shock Pulse, Random Vibration (with Optional Controller) |

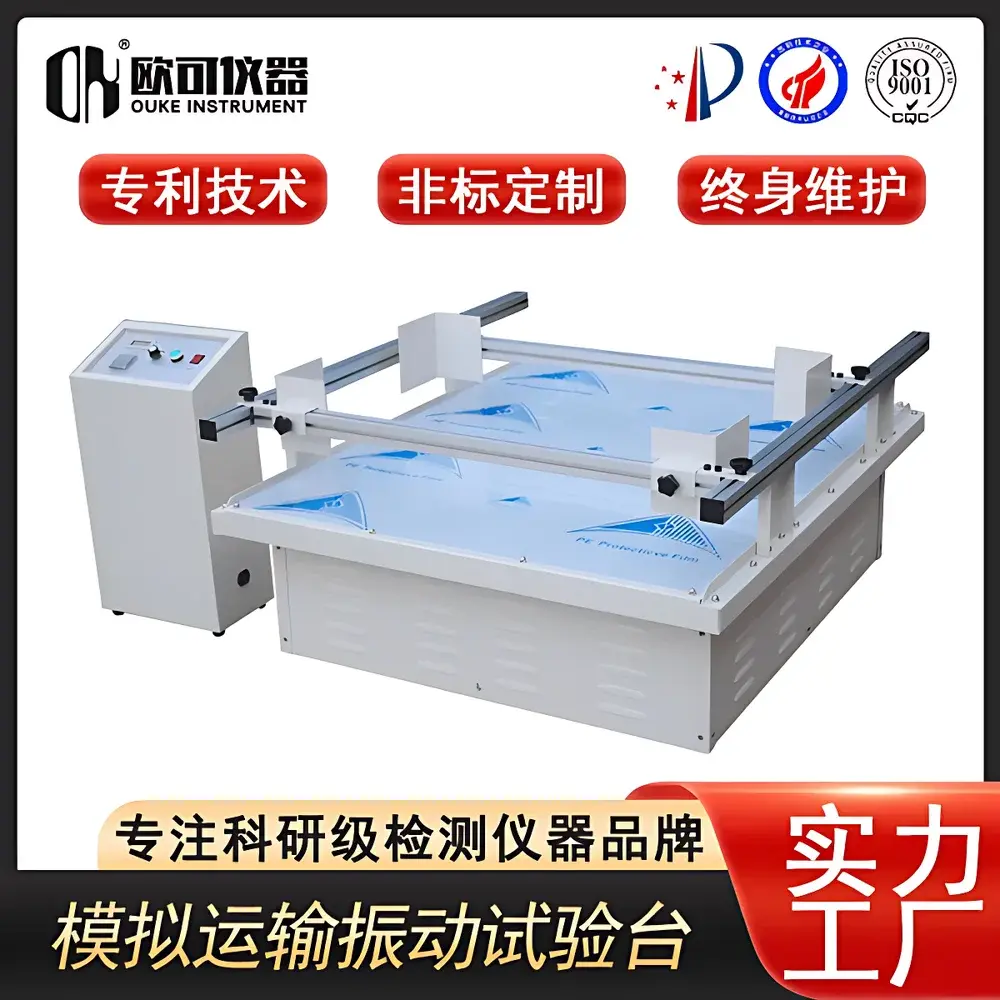

| Brand | OK Instruments |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Product Category | Domestic |
| Model | OK-100.000 |
| Instrument Type | Automotive Transport Simulation Vibration Tester |
| Rated Thrust | 1.98 kN |
| Rated Frequency Range | 5–5000 Hz |
| Maximum Test Load | 70 kg |
| Tabletop Dimensions | 1200 × 1000 mm |
| Maximum Acceleration | 10 g |
| Brand | OK Instruments |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Electromagnetic Vibration Shaker |
| Rated Force | 1.98 kN |
| Frequency Range | 5–5000 Hz |
| Max. Test Load | 70 kg |
| Tabletop Dimensions | 300 × 300 × 30 mm |
| Peak Acceleration | 10 g |
| Brand | Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | General Distributor |
| Frequency Range | 5–3000 Hz |
| Rated Sinusoidal Force | 14.2 kN |
| Rated Random Force (rms) | 14.2 kN rms |
| Max Acceleration | 784.98 m/s² |
| Max Velocity | 2.00 m/s |
| Max Displacement (p-p) | 51 mm |
| Payload Capacity | 300 kg |
| Moving Mass | 18 kg |
| Table Diameter | Ø280 mm |
| Allowable Eccentric Moment | 300 N·m |
| Amplifier Output Power | 20 kVA |
| System Power Requirement | 28 kVA |
| Compliance | GB/T 2423.1–2001, GB/T 2423.2–2001, GB/T 2423.3–1993, GB/T 2423.10–1999, JJG 190–1997 |
| Brand | OK Instruments |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | OK-ES-2.2 |
| Instrument Type | Electromagnetic Vibration Shaker |
| Rated Thrust | 1.98 kN |
| Rated Frequency Range | 5–5000 Hz |
| Maximum Test Load | 70 kg |
| Table Dimensions | 400 × 400 × 30 mm |
| Maximum Acceleration | 10 g |
| Brand | OEM / Third-Party Manufacturer |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Max Acceleration | 20 g (peak) |
| Max Displacement | 5 mm p-p |
| Frequency Range | 1–600 Hz (standard), up to 5000 Hz (customizable) |
| Load Capacity | 100 kg |
| Power Rating | 2.2 kW |
| Table Surface Options | 30×30 cm, 50×50 cm, 75×75 cm, or 100×100 cm |
| Vibration Axes | Vertical (Z-axis) and Horizontal (X/Y-axis) |
| Waveform | Sinusoidal |
| Control Modes | Sweep, Programmable (15-segment), Logarithmic, Octave (15-step), Frequency Tuning |
| Brand | OEM / Custom Brand |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Load Capacity Options | 25 kg / 50 kg / 75 kg / 100 kg |
| Table Surface | 350 × 350 mm (customizable) |
| Vibration Axis | Vertical and/or Horizontal (selectable) |
| Frequency Range | 1–600 Hz / 1–3000 Hz / 1–5000 Hz (model-dependent) |
| Peak-to-Peak Displacement | 0–5 mm (adjustable, 5 mm max) |
| Maximum Acceleration | <20 g |
| Waveform | Sinusoidal |
| Frequency Resolution | 0.01 Hz |
| Frequency Accuracy | ±0.1 Hz |
| Test Duration Range | 0–9999 h / min / sec (programmable) |
| Drive Power Supply | AC 220 V / 50 Hz or AC 380 V / 50 Hz |
| Brand | OEM |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Price | USD 13,800 (FOB) |
| Frequency Range | 100–300 RPM (continuous adjustment) |
| Amplitude | 25.4 mm (1 inch, peak-to-peak) |
| Maximum Load Capacity | 100 kg (customizable up to 200 kg) |
| Timer Range | 0–9999 hours/minutes/seconds |
| Motor Power | 1 HP (746 W) |
| Rated Current | 4 A |
| Test Table Dimensions | 1000 mm × 1200 mm (customizable) |
| Drive Mechanism | Synchronous low-noise belt transmission |
| Compliance | ASTM D999, ASTM D3580, ISTA 1A/2A/3A, EN 1181, ANSI MH1, UL 60950-1, ISO 13355 |
| Brand | OK Instruments |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |
| Model | OK-ES-3.001 |
| Instrument Type | Electrodynamical Shaker |
| Rated Force | 1.98 kN |
| Frequency Range | 5–5000 Hz |
| Maximum Payload | 70 kg |
| Tabletop Dimensions | 300 × 300 × 30 mm |
| Peak Acceleration | 10 g |
Show next
