| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM/ODM Producer |
| Country of Origin | China |
| Model | AUTO GQ300 |
| Price | Upon Request |
| Gas Measurement Range | O₂: 0–30% (v/v), CO₂: 0–20% (v/v), C₂H₄: 0–200 ppm |
| Gas Measurement Accuracy | O₂: ±0.01%, CO₂: ±0.01%, C₂H₄: ±0.1 ppm |
| Gas Purity Requirement | ≥99.9% for O₂, CO₂, N₂, and C₂H₄ |
| Gas Flow Control | O₂/CO₂/N₂: 0–500 mL/min each |
| Temperature Range | −5°C to +45°C |
| Temperature Uniformity & Stability | ±0.5°C |
| Humidity Range | Ambient to 95% RH |
| Humidity Fluctuation | ±3% RH |
| Refrigeration Capacity | 1 HP |
| Humidifier Power | 50 W |
| Illumination Power | 10 W |
| Chamber Material | Color-coated steel exterior, stainless-steel interior |
| Dimensions (W×D×H) | 935 mm × 1290 mm × 1850 mm |
| Total Power Consumption | 3 kW |
| Number of Independent Test Chambers | 3 |
| Power Supply | AC 220 V |
| Brand | GBPI |
|---|---|
| Model | GQ-300B |
| Origin | Guangdong, China |
| Manufacturer | GBPI Packaging Instruments Co., Ltd. |
| Gas Measurement Range | O₂: 0–30% (v/v), CO₂: 0–20% (v/v), C₂H₄: 0–200 ppm |
| Gas Measurement Accuracy | O₂: ±0.01% (v/v), CO₂: ±0.01% (v/v), C₂H₄: ±0.1 ppm |
| Gas Purity Requirement | ≥99.9% for O₂, CO₂, N₂, and C₂H₄ |
| Gas Flow Control | 0–500 mL/min per gas (O₂, CO₂, N₂) |
| Temperature Range | −5°C to +45°C |
| Temperature Uniformity | ±0.5°C |
| Humidity Range | Ambient to 95% RH |
| Humidity Stability | ±3% RH |
| Refrigeration Capacity | 1 HP |
| Humidifier Power | 50 W |
| Illumination Power | 10 W |
| Chamber Material | Color-coated steel exterior, stainless-steel interior |
| Dimensions (W×D×H) | 935 mm × 1290 mm × 1850 mm |
| Total Power Consumption | 3 kW |
| Number of Independent Test Chambers | 3 |
| Power Supply | AC 220 V |
| Brand | GBPI |
|---|---|

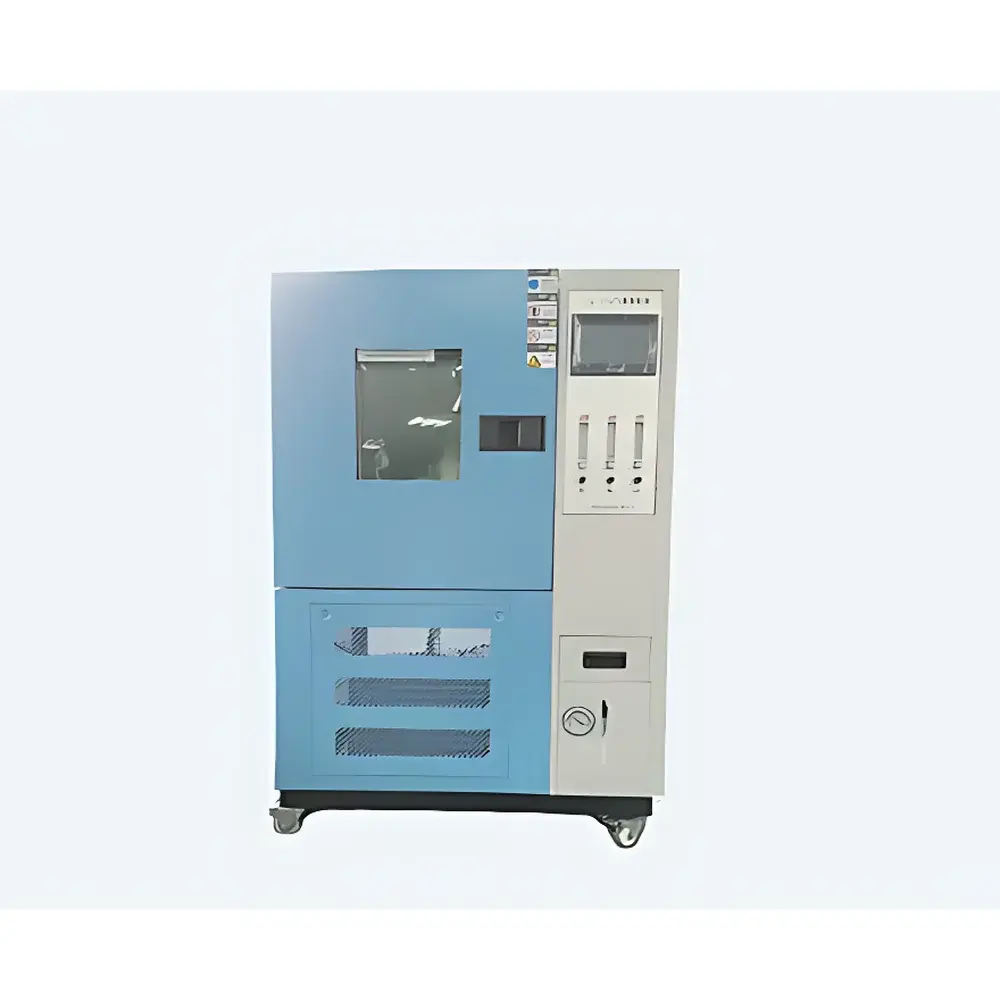

| Model | GQ-160A |
| Origin | Guangdong, China |
| Manufacturer | GBPI Packaging Instruments Co., Ltd. |
| Internal Dimensions | 50 × 50 × 60 cm (W×D×H) |
| External Dimensions | 100 × 100 × 170 cm (W×D×H) |
| Temperature Range | 0–60 °C (3–50 °C with humidification) |
| Temp. Accuracy | ±1 °C |
| Temp. Stability | ±0.1 °C |
| Humidity Range | Ambient–95 %RH |
| Humidity Fluctuation | ±5 %RH |
| O₂ Measurement Range | 0–100 % |
| CO₂ Measurement Range | 0–5 % |
| N₂ Balance | Computed by difference |
| O₂/CO₂ Resolution | 0.01 % |
| Gas Flow Control | O₂/CO₂/N₂: 0–100 mL/min each |
| Mass Flow Controller Resolution | 0.01 mL/min |
| Refrigeration Capacity | 1 HP |
| Total Power Consumption | 2000 W |
| Humidifier Power | 15 W |
| Illumination Power | 100 W |
| Supply Voltage | AC 220 V, 50 Hz |
| Ambient Operating Temp. | 0–40 °C |
| Minimum Gas Purity | ≥99.9 % |
| Standard Accessories | Power cord, #6 & #8 silicone tubing, fittings, hex key, Phillips screwdriver |
| Optional Modules | 3-HP refrigeration kit, ethylene scrubber, UV sterilization unit, on-site nitrogen generator |
| Brand | GBPI |
|---|---|

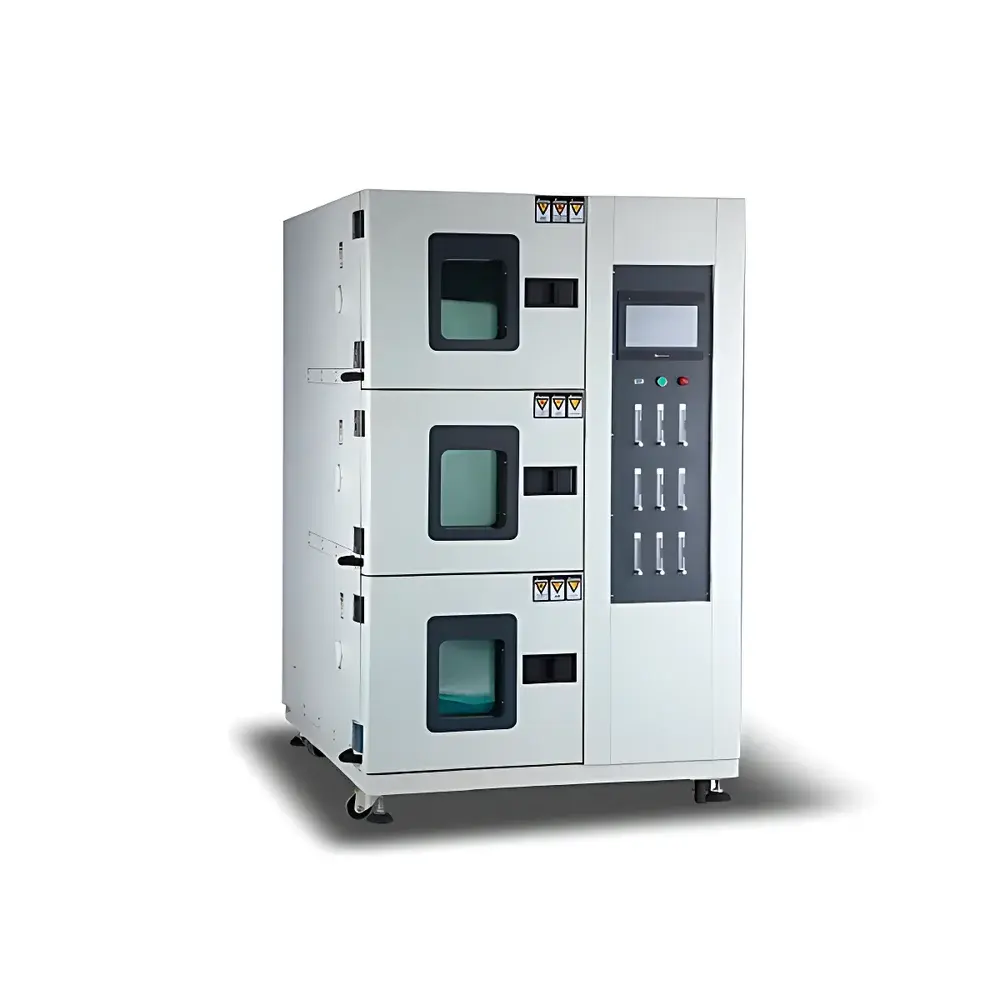

| Model | GQ-300F |
| Chamber Count | 3 × 120 L |
| O₂ Range | 0–50% (0.01% resolution, ±1% accuracy) |
| CO₂ Range | 0–20% (0.01% resolution, ±1% accuracy) |
| N₂ Range | 0–100% (balance gas) |
| C₂H₄ Range | 0–200 ppm (0.1 ppm resolution, ±1% accuracy) |
| Temperature Range | −5°C to +50°C (±0.5°C control accuracy, ±2°C uniformity) |
| Humidity Range | Ambient to 95% RH (±3% RH control accuracy) |
| Refrigeration Capacity | 1 HP |
| Humidification Power | 2000 W (per chamber, independent) |
| Illumination Power | 10 W (per chamber, LED) |
| Total Rated Power | 15 kW |
| Supply | AC 380 V, 3-phase 5-wire |
| Dimensions (W×D×H) | 170 cm × 116 cm × 192 cm |
| Net Weight | 550 kg |
| Construction | Stainless steel interior (rounded corners), double-glazed vacuum-insulated viewing doors, color-coated steel exterior |
| Gas Delivery | External N₂ generator (optional), O₂/CO₂ cylinder supply (regulated to 0–0.4 MPa), integrated C₂H₄ catalytic scrubber & gas exchange pump |
| Flow Control | High-precision mass flow controllers (1 mL/min resolution) |
| Control System | Embedded microcomputer with 10-inch true-color touchscreen HMI, real-time multi-parameter logging, independent per-chamber setpoint programming |
| Safety | Over-temperature/over-current protection, fuse-based fault isolation, ozone sterilization module (timed manual activation) |
| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |
| Model | GQ-300a |
| Pricing | Available Upon Request |
| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | GQ-300 |
| Price Range | USD 4,200 – 7,000 |
| Temperature Control Range | 0–60 °C (3–50 °C with humidification) |
| Temperature Accuracy | ±1 °C |
| Temperature Stability | ±0.1 °C |
| Humidity Range | Ambient – 95 % RH |
| Humidity Fluctuation | ±5 % RH |
| Gas Measurement | O₂ (0–100 %), CO₂ (0–5 %), C₂H₄ (0–100 ppm, optional) |
| Gas Measurement Resolution | O₂/CO₂ ±0.01 %, C₂H₄ ±1 ppm |
| Mass Flow Control Range | 0–100 mL/min per gas (O₂, CO₂, N₂) |
| Mass Flow Resolution | 0.01 mL/min |
| Refrigeration Capacity | 1 HP (3 HP optional) |
| Total Power Consumption | 2000 W |
| Internal Dimensions | 480 × 380 × 730 mm |
| External Dimensions | 610 × 625 × 1600 mm |
| Construction | Prefinished Color-Coated Steel Panels |
| Gas Purity Requirement | ≥99.9 % |
| Power Supply | AC 220 V, 50 Hz |
