| Brand | GBPI |
|---|---|
| Model | HP-100 |

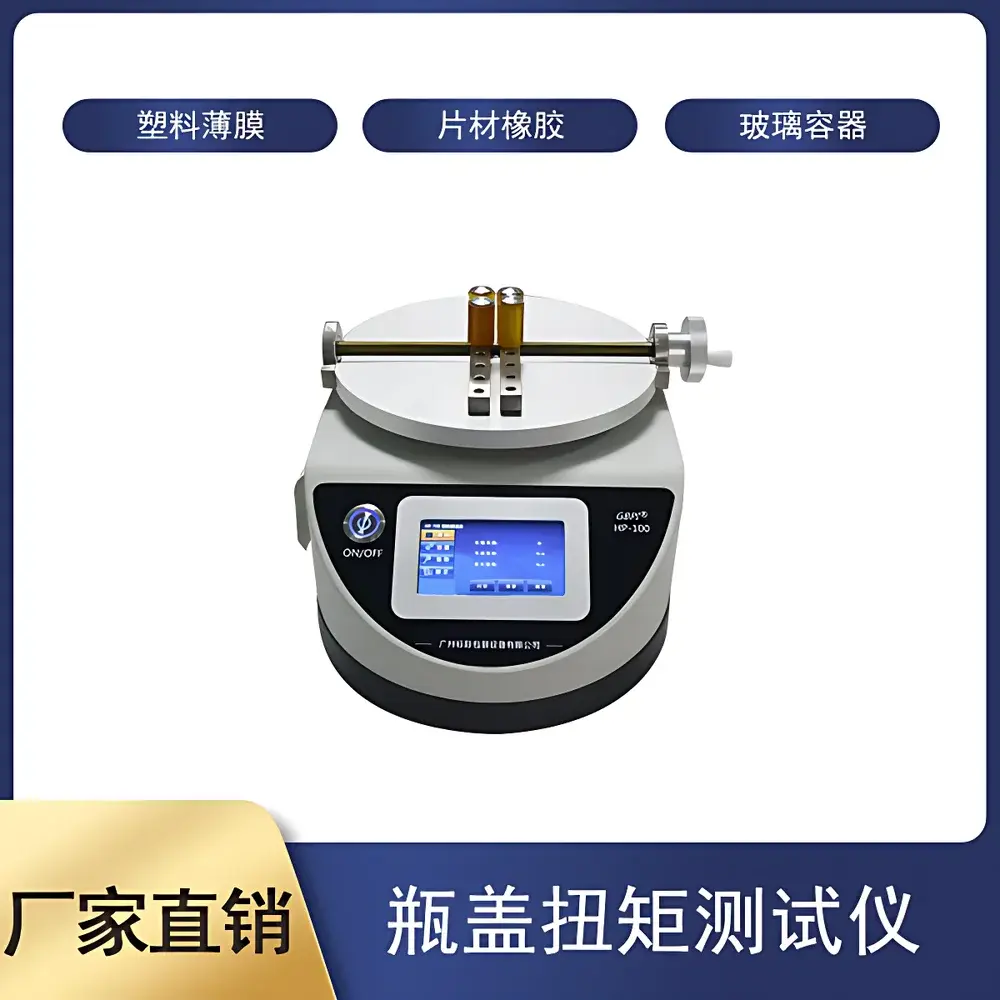

| Type | Digital Cap Torque Tester |
| Torque Measurement Range | 0.01–10 N·m (0.001–20 N·m optional) |
| Torque Resolution | 0.001 N·m |
| Accuracy | ±1% of full scale |
| Twist Angle Compatibility | Φ10–150 mm |
| Motor Power | 1 W |
| Dimensions | 410 × 320 × 200 mm |
| Weight | 9.5 kg |
| Display | 4.3-inch high-resolution capacitive touchscreen |
| Data Storage | Local storage for up to 10 test records with statistical analysis (max/min/mean/SD) |
| Output | Built-in thermal printer (3-part moisture-, dust-, and scratch-resistant paper) |
| Units | N·m, lbf·in, kgf·cm |
| Bidirectional Testing | Clockwise & counterclockwise torque measurement |
| Peak Hold & Auto-Alarm | Configurable overload threshold with audible/visual alert |
| Calibration & Settings | Non-volatile memory retention across power cycles |
| Compliance | Designed for ISO 8503-2, ASTM D3474, USP <661>, and packaging integrity validation per FDA 21 CFR Part 11–compliant data handling protocols |
