| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |
| Model | GBG-L2 |
| Instrument Type | Pendulum Impact Tester |
| Nominal Impact Energy | 5 J (8 J optional) |
| Energy Resolution | 0.001 J |
| Pendulum Lift Angle | 90° |
| Pendulum Radius | 285 mm |
| Impact Tip Diameter | Φ19 mm and Φ25.4 mm |
| Clamp Aperture | Φ60 mm and Φ89 mm |
| Specimen Size | 100 mm × 100 mm |
| Dimensions (L×W×H) | 773 mm × 378 mm × 606 mm |
| Power Consumption | 75 W |
| Supply Voltage | AC 220 V, 50 Hz |

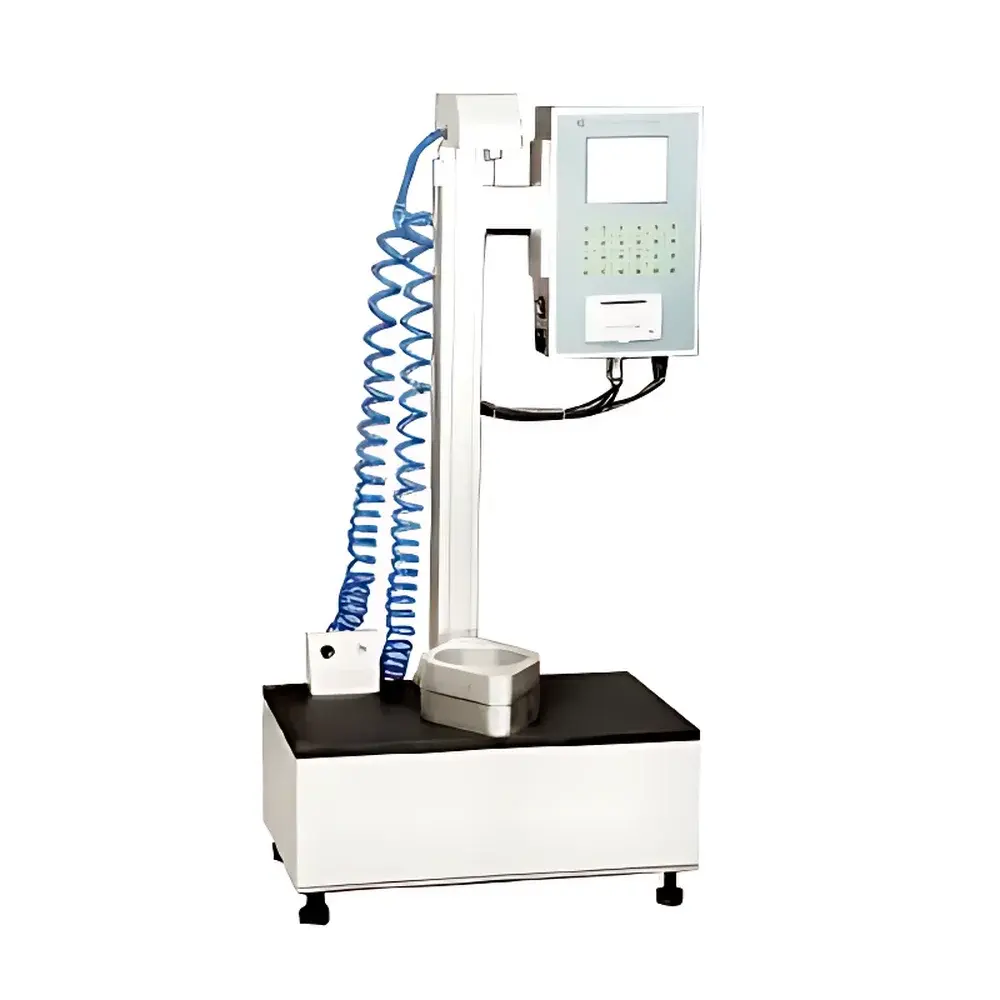

| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer | GBPI Packaging Equipment Co., Ltd. |
| Model | GBD-I1 |
| Instrument Type | Dart Impact Tester |
| Impact Mass Range | 50–2000 g (5 g increments, mass tolerance ≤ ±0.5%) |
| Dart Tip Diameter | A-method: 38 ± 1 mm |
| B-method | 50 ± 1 mm |
| Clamp Dimensions | Outer Ø 150 mm, Inner Ø 125 mm |
| Maximum Drop Height | 1500 mm (standard), 660 mm (low-height configuration) |
| Force Sensor Capacity | 50 kg |
| Test Accuracy | ±1 g |
| Compliance Standards | ISO 7765-1, ASTM D1709, GB/T 9639, GB/T 15267, JIS K7124 |
| Power Supply | AC 220 V, 50 Hz |
| Dimensions (L×W×H) | 650 × 650 × (2200–2600) mm |
| Net Weight | 50 kg |
| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Pendulum Impact Tester |
| Nominal Impact Energy | 5 J (8 J optional) |
| Resolution | 0.001 J |
| Pendulum Lift Angle | 90° |
| Pendulum Radius | 285 mm |
| Impact Tip Diameter | Φ19 mm / Φ25.4 mm |
| Clamp Aperture | Φ60 mm / Φ89 mm |
| Specimen Size | 100 mm × 100 mm |
| Dimensions (L×W×H) | 773 mm × 378 mm × 606 mm |
| Power Consumption | 75 W |
| Supply Voltage | AC 220 V, 50 Hz |
