| Brand | MingShen Science |
|---|---|
| Origin | Henan, China |
| Model | GF-3000 |
| Power Supply | 220 V, 50 Hz, 6 kW (main unit) |
| Gas Requirements | O₂ purity ≥99.5%, regulated pressure 0.25 MPa |
| Operating Temperature | 10–40 °C |
| Relative Humidity | 35–85% RH |
| Atmospheric Pressure | 86–106 kPa |
| Sample Mass | 0.9000–1.1000 g |
| Furnace Temperature Range | Ambient to 1000 °C |
| Capacity | Up to 19 samples per run |
| Dimensions | 655 × 600 × 575 mm (L×W×H) |
| Weight | 60 kg |
| Compliance | GB/T 212–2001 |
| Brand | MingShen Science |
|---|---|
| Origin | Henan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |
| Model | GF-6000 |
| Furnace Configuration | Dual independent furnaces (A-furnace for moisture/ash/volatiles |
| Sample Capacity | 19 samples per run |
| Temperature Range | Ambient to 1000 °C |
| Test Temperatures | Moisture at 105 °C, Ash at 815 °C, Volatiles at 900 °C |
| Sample Mass | Moisture/Ash: 0.6–1.1 g |
| Volatiles | 0.9–1.1 g |
| Compliance | Fully conforms to GB/T 212–2008 “Methods for Proximate Analysis of Coal” |
| Gas Requirements | N₂ and O₂, both ≥99.5% purity, regulated to 0.1 MPa |
| Power Supply | AC 220 V, 50 Hz |
| Power Consumption | A-furnace: 5 kW |
| B-furnace | 2 kW |
| Net Weight | A-furnace ≈ 95 kg |
| Crucible Capacity | 20 positions (19 active test stations) |
| Integrated Analytical Balance | Modular high-stability microbalance with automated tare and sample loading |

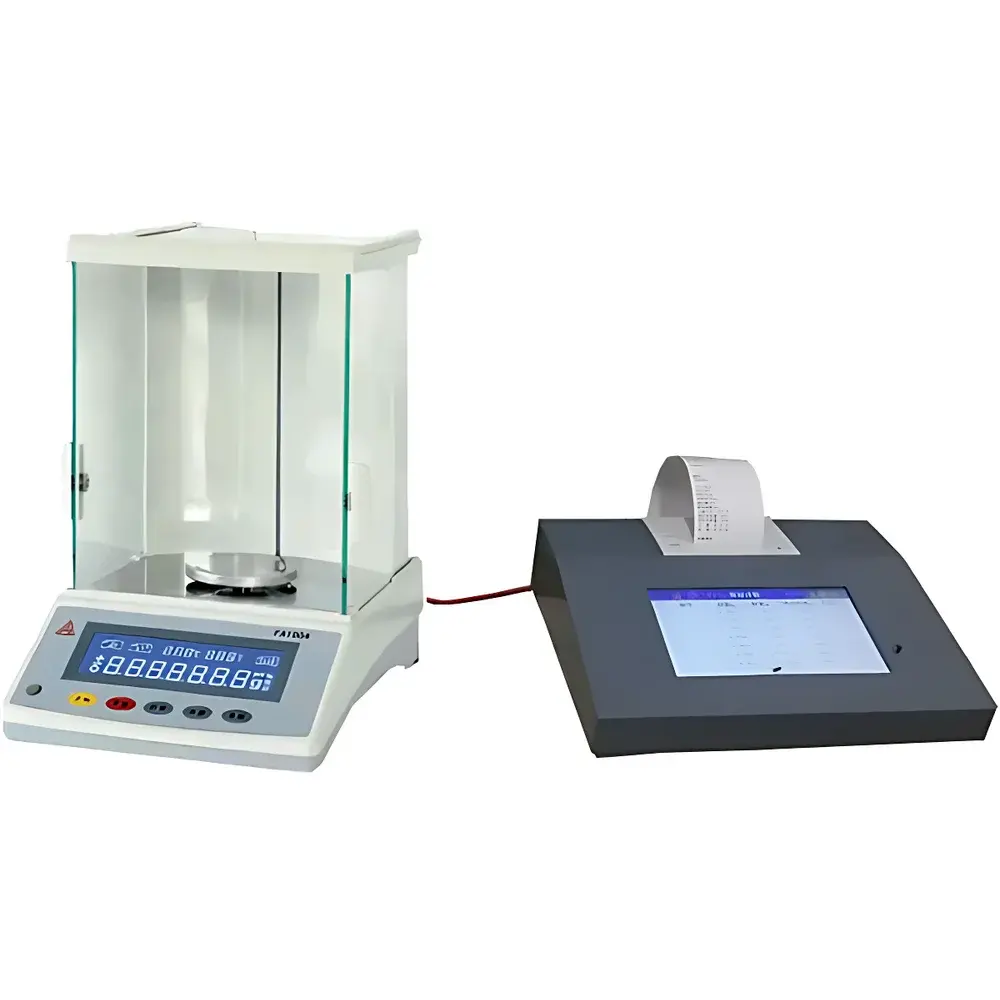

| Brand | MingShen Science |
|---|---|
| Origin | Henan, China |
| Model | MTP-6 |
| Power Supply | AC 220 V ±20 V, 50 Hz |
| Power Consumption | ≤25 W |
| Balance Interface | RS-232 serial communication (supports continuous output mode) |
| Data Storage | 200-entry circular buffer (per parameter: moisture, ash, volatile matter, fixed carbon, G-index) |
| Print Function | Single-entry, page-wide, and historical report printing |
| Operating Modes | Error-prevention mode & continuous operation mode (switchable) |
| Compliance Support | ASTM D3172, ASTM D3173, ASTM D3174, ASTM D3175, ISO 1171, ISO 562, ISO 687, GB/T 212–2008 |
