| Brand | MingShen Science |
|---|---|
| Origin | Henan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | XL-1 |
| Instrument Type | Box-Type Muffle Furnace |
| Maximum Temperature | 1000 °C |
| Temperature Control Accuracy | ±5 °C |
| Rated Power | 4 kW |
| Heating Time to Max Temp | 90 min |
| Heating Element | Nickel-Chromium Resistance Wire |
| Internal Chamber Dimensions | 325 × 200 × 125 mm (L × W × H) |
| Control Method | Analog On/Off or PID Controller (External) |
| Insulation Material | Lightweight Refractory Insulating Brick |
| Chimney Port | Adjustable Rear-Mounted Flue |
| Viewing Port | Centered on Door |
| Door Mechanism | Counterweighted Hinged Lid |
| Thermal Sensor Interface | Standard Thermocouple Insertion Port (Type K recommended) |
| Brand | MingShen Science |
|---|---|
| Origin | Henan, China |

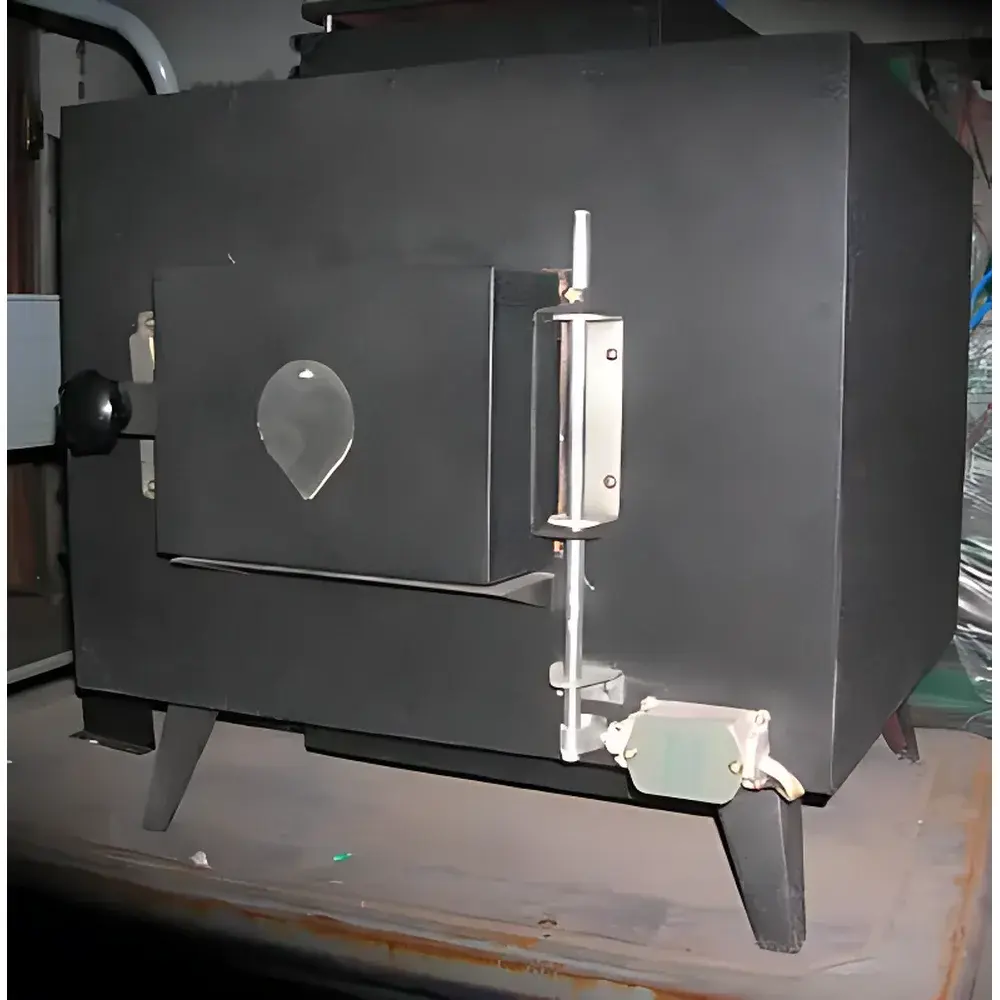

| Model | SRJX-4-13 |
| Type | Box-Type Muffle Furnace |
| Max Temperature | 1350 °C |
| Operating Temperature | ≤1300 °C |
| Control Accuracy | ±5 °C |
| Max Power | 5 kW |
| Heating Rate | 1300 °C in ≤120 min |
| Heating Element | Silicon Carbide (SiC) Rods |
| Internal Chamber Dimensions | 250 × 150 × 100 mm |
| External Dimensions | 630 × 530 × 510 mm |
| Net Weight | 130 kg |
| Input Voltage | AC 220 V, 50 Hz |
| Thermocouple Compatibility | Type S (Pt–Rh/Pt, 0–1600 °C) |
| Controller | SWK-S Digital PID Temperature Controller with 0–220 V Phase-Angle Controlled Output |
| Load Capacity | 5 kW |
| Display Accuracy | Class 0.5 |
| Brand | MingShen Science |
|---|---|
| Origin | Henan, China |
| Model | JXL-620 |
| Type | Box-type Muffle Furnace |
| Max Temperature | 1000 °C |
| Temperature Control Accuracy | ±5 °C |
| Max Power | 3.5 kW |
| Heating Rate to Max Temp | ≤20 min |
| Heating Method | Resistance Wire (Ni-Cr Alloy) |
| Internal Chamber Dimensions | 300 × 200 × 120 mm |
| Thermal Sensor | K-type Thermocouple (NiCr-NiSi) |
| Control System | Microprocessor-based with 20-Stage Programmable Ramp/Soak Profile |
| Display | Chinese LCD with Touch Keypad |
| Insulation Material | Polycrystalline Ceramic Fiber |
| Voltage | 220 V ±10% |
| Net Weight | 55 kg |
| External Dimensions | 680 × 600 × 670 mm (L×W×H) |
| Brand | MingShen Science |
|---|---|
| Origin | Henan, China |

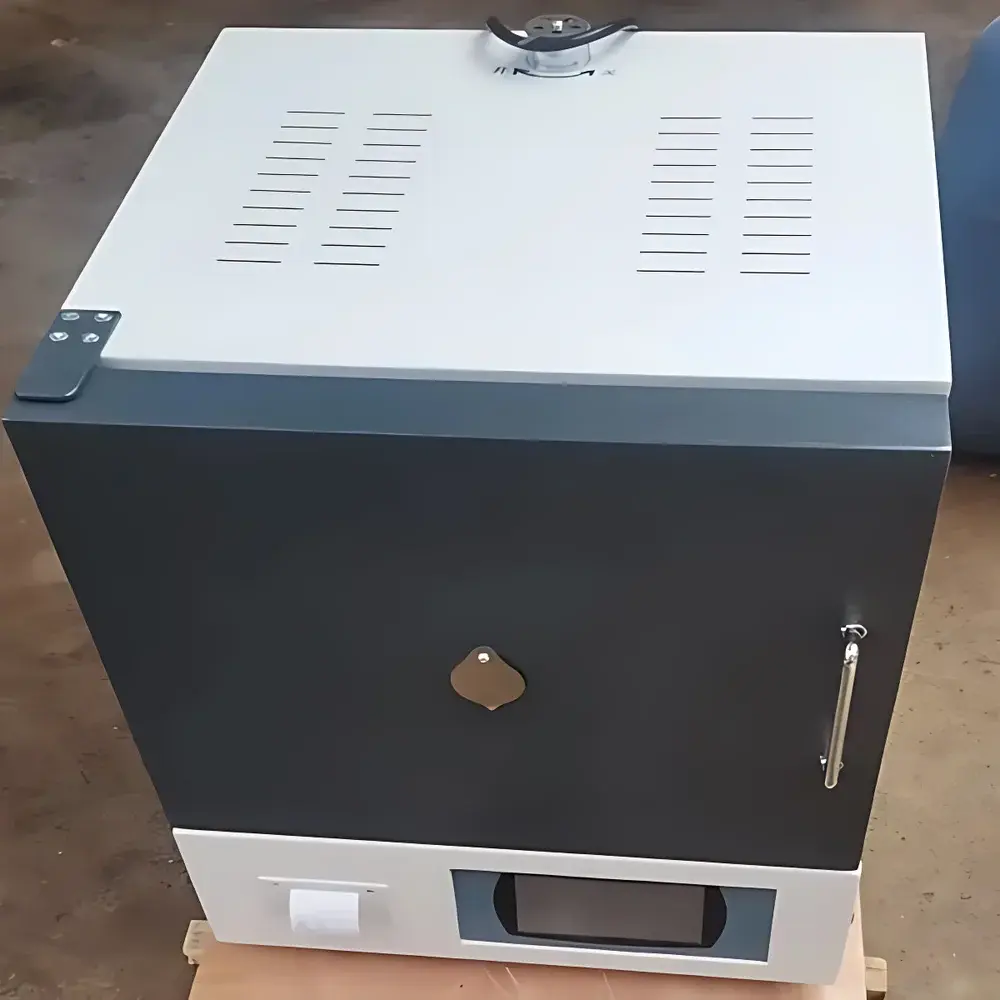

| Model | DMF300 |
| Temperature Range | Ambient to 1000 °C |
| Temperature Accuracy | ±1 °C |
| Temperature Resolution | 1 °C |
| Max. Power | 3.5 kW |
| Supply Voltage | 220 V ±10%, 50/60 Hz |
| Dimensions (W×D×H) | 550×550×550 mm |
| Net Weight | 30 kg |
| Safety Protections | Thermocouple fault detection (open/short/reversed), over-temperature cutoff, automatic heating circuit disconnection |
| Compliance | GB/T 212–2008 |
| Brand | MingShen Science |
|---|---|
| Origin | Henan, China |
| Model | 101-1A |
| Instrument Type | General-Purpose Forced-Air Oven |
| Temperature Range | 10–250 °C |
| Temperature Uniformity | ±2.5% |
| Temperature Fluctuation | ±1 °C |
| Temperature Resolution | ±1 °C |
| Control Range | 50–300 °C |
| External Dimensions | 760 × 530 × 670 mm |
| Interior Chamber Dimensions | 450 × 450 × 350 mm |
| Chamber Material | Galvanized Steel with Heat-Resistant Coating |
| Heating Method | Forced-Air Circulation |
| Operating Ambient Temperature | 0–55 °C |
| Power Supply | 220 V, 50 Hz |
| Brand | MingShen Science |
|---|---|
| Origin | Henan, China |
| Model | KH-3 |
| Temperature Control Range | 100–1000 °C |
| Temperature Measurement Accuracy | Class 0.2 |
| Temperature Control Stability | ±10 °C |
| Furnace Length | 700 mm |
| Isothermal Zone Length | ≥200 mm |
| Conveyor Speed | 15–70 mm/min |
| Isothermal Uniformity at 815 °C | ±10 °C over ≥150 mm |
| Heating Time (RT → 815 °C) | ≤45 min |
| Rated Power | 3 kW |
| Supply Voltage | 220 V ± 22 V, 50 Hz ± 1 Hz |
| Dimensions (L×W×H) | 1200 × 420 × 505 mm |
| Net Weight | 70 kg |
