| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VF 75085 C |
| Configuration | Upright (Cabinet-style) |
| Effective Volume | 754 L |
| Internal Dimensions (W×D×H) | 1600 × 620 × 760 mm |
| External Dimensions (W×D×H) | 2102 × 910 × 1056 mm |
| Power Supply | 230 V / 50 Hz |
| Energy Consumption | 11.8 kWh/d at –86 °C |
| Operating Temperature Range | –86 °C to –50 °C |
| Ambient Temperature Range | 15 °C to 28 °C |
| Refrigerants | R-290 (0.145 kg, GWP = 3) + R-170 (0.090 kg, GWP = 6) |
| Net Weight | 332 kg |
| Cool-down Time | ≤5 h (from +20 °C to –86 °C) |
| Warm-up Time | 19 h (from –86 °C to 0 °C) |
| Door Ports | Two Ø13 mm pass-throughs for Pt100 sensors |
| Insulation | High-vacuum multilayer panel system (8-layer) |
| Cooling System | Water-cooled condenser with optional external chiller |
| Backup Power Support | Built-in rechargeable battery for alarm continuity during power failure |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VS 30 O |
| Timer Range | 1 min – 99.9 h |
| Oscillation Frequency | 20–250 rpm |
| Amplitude | 32 mm |
| Platform Quantity | 1 |
| Operating Ambient Temperature | 10–50 °C |
| Tray Dimensions (W × D) | 676 × 540 mm |
| Max Load Capacity | 30 kg |
| Power Consumption | 0.09 kW |
| External Dimensions (W × D × H) | 705 × 607 × 160 mm |
| Weight | 40 kg |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VS 8 B |
| Instrument Type | Air-Bath Incubated Shaker / Platform Shaker |
| Timer Range | 1 min to 99:59 h |
| Oscillation Frequency | 20–300 rpm |
| Oscillation Amplitude | 20 mm |
| Number of Platforms | 1 |
| Max Load Capacity | 8 kg |
| Power Consumption | 0.07 kW |
| Dimensions (W×D×H) | 350 × 355 × 160 mm |
| Power Supply | 230 V, 50/60 Hz |
| Platform Material | Anodized Aluminum |
| Housing Material | Electrogalvanized Steel with Powder Coating |
| Motor | AC Motor with Overload Protection |
| Speed Stability | Load-Independent Constant Speed |
| Optional Interfaces | RS-232 |
| Optional Accessories | Non-slip Mat (A000041), Anti-slip Tray Holder (A000042), Oscillation Tray (A000047), Universal Tray (A000048) |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VC 1200 W |
| Temperature Range | -20 °C to 80 °C |
| Temperature Stability | ±0.05 K |
| Dimensions | 450 × 550 × 650 mm |
| Power Consumption | 3.3 kW (max) |
| Heating Power | 2.25 kW (max) |
| Pump Flow Rate | 28 L/min @ 0.9 bar |
| Reservoir Volume | 15 L |
| Cooling Medium | Water or water/glycol mixture (non-flammable) |
| Interface Options | RS-232/485, Profibus, Ethernet-USB, analog I/O, digital contact modules |
| Control System | PID-based electronic controller with TFT display, 150-segment programmable scheduler |
| Compliance | CE, RoHS, conforms to EN 61000-6-2/-6-4 EMI/EMC standards |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VC 7000 W |
| Temperature Range | −20 °C to 80 °C |
| Temperature Stability | ±0.1 K |
| Dimensions (W×D×H) | 650 × 670 × 1250 mm |
| Power Consumption | 7.0 kW @ 20 °C |
| Pump Flow Rate | 37 L/min @ 3.2 bar |
| Fluid Capacity | 64 L |
| Weight | 122 kg |
| Cooling Medium | Water or Water/Glycol Mixture (non-flammable) |
| Brand | LAUDA |
|---|---|
| Origin | Germany |

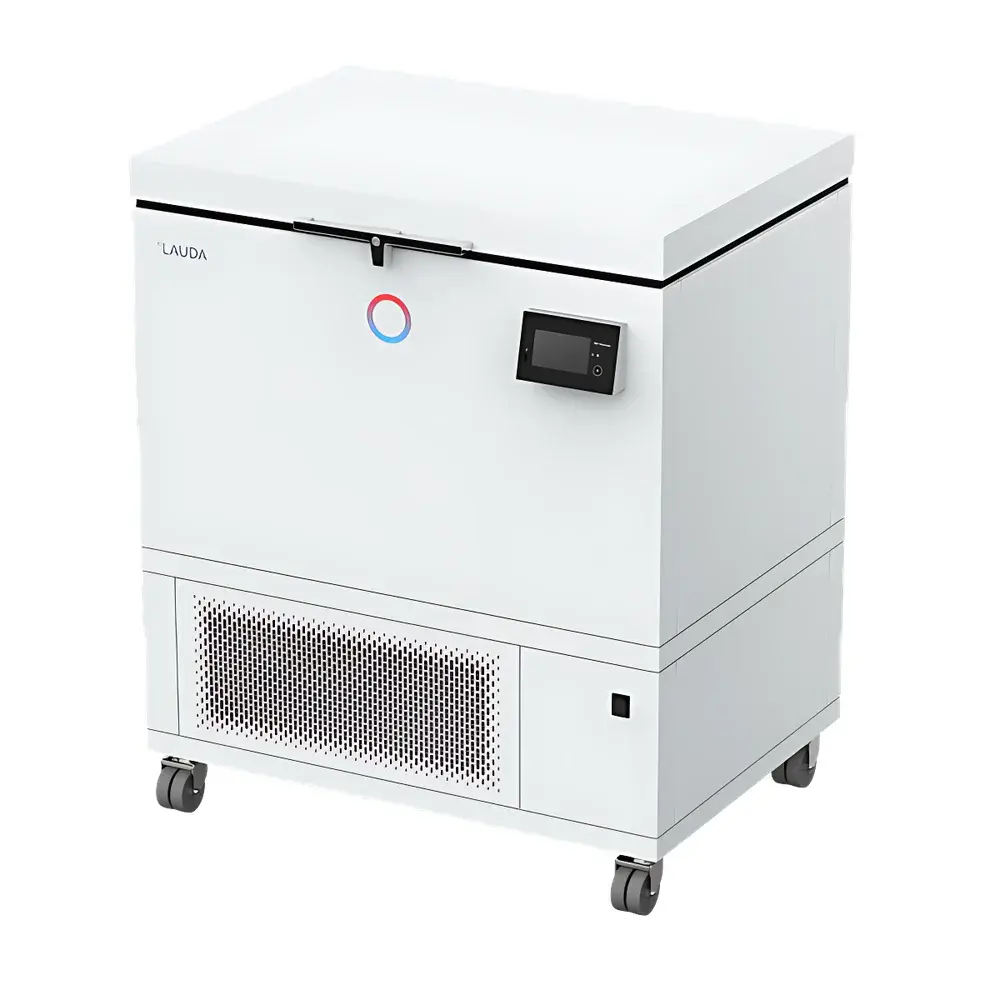

| Model | VF 20085 C |
| Configuration | Horizontal |
| Effective Volume | 205 L |
| Internal Dimensions (W×D×H) | 790 × 520 × 500 mm |
| External Dimensions (W×D×H) | 960 × 790 × 1130 mm |
| Power Supply | 230 V / 50 Hz |
| Energy Consumption | 11.2 kWh/d at −86 °C |
| Operating Temperature Range | −86 to −50 °C |
| Ambient Temperature Range | 15 to 28 °C |
| Cool-down Time (20 °C → −86 °C) | ≤3 h |
| Defrost Time (−86 °C → 0 °C) | 11 h |
| Refrigerants | R-290 (0.145 kg, GWP = 3) + R-170 (0.068 kg, GWP = 6) |
| Net Weight | 210 kg |
| Vacuum-Insulated Panels (VIPs) | Integrated |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VC 10000 W |
| Temperature Range | -20 °C to 80 °C |
| Temperature Stability | ±0.1 K |
| Temperature Uniformity | ±0.1 K |
| Dimensions | 650 × 670 × 1250 mm |
| Power Consumption | 10 kW @ 20 °C |
| Refrigeration Capacity | up to 10.8 kW |
| Heating Capacity | up to 15.8 kW |
| Fluid Reservoir Volume | 64 L |
| Max. Pump Flow Rate | 37 L/min @ 3.2 bar |
| Interface Options | RS-232/485, Profibus, Ethernet-USB, Analog I/O, Digital Contact Module |
| Control System | PID-based electronic controller with programmable logic (150 segments), TFT color display, SmartCool digital cooling management |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | UT 3505 W |
| Temperature Range | −5 °C to 60 °C |
| Temperature Stability | ±0.5 K |
| Cooling/Heating Power | 35 kW |
| IP Rating | IP54 |
| Power Supply | 400 V / 3~ / 50 Hz or 460 V / 3~ / 60 Hz |
| Ambient Operating Range | −15 °C to 50 °C |
| Heat Transfer Fluid | Water or Water/Glycol (non-flammable) |
| Communication Interface | Ethernet with Modbus TCP/IP |
| Display | LCD with plain-text menu navigation |
| Pump Pressure | Digital display |
| Inlet/Outlet Ports | Stainless steel |
| Integrated Components | High-performance pump, stainless-steel heat exchanger, water-cooled condenser, particulate filter, Pt100 sensor input, 4–20 mA analog setpoint interface, digital I/O (ON/OFF, level alarm), optional external solenoid valve support |
| Brand | LAUDA |
|---|---|
| Origin | Germany |

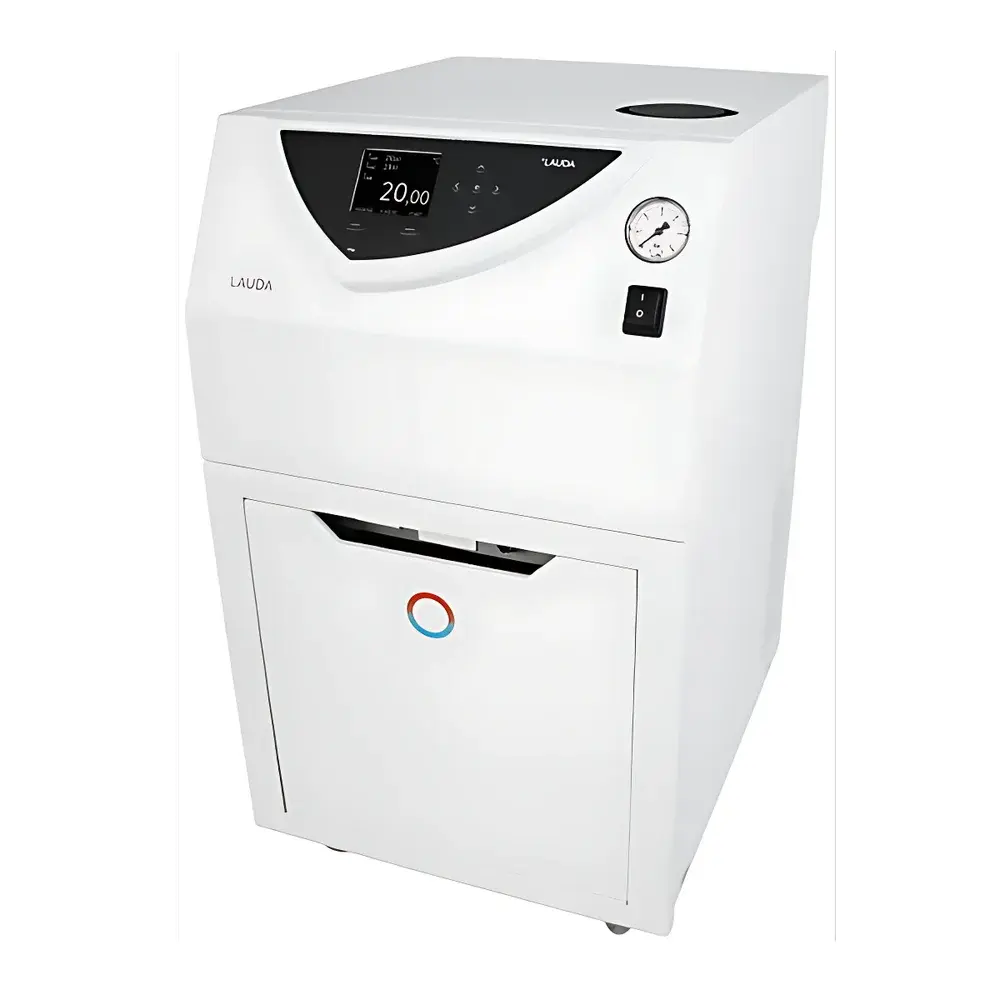

| Model | VC 3000 W |
| Temperature Range | -20 °C to 80 °C |
| Temperature Stability | ±0.05 K |
| Dimensions | 550 × 650 × 970 mm |
| Power Consumption | 3.0 kW @ 20 °C |
| Pump Flow Rate | 37 L/min @ 3.2 bar |
| Reservoir Volume | 33 L |
| Cooling Medium | Water or Water/Glycol (non-flammable) |
| Interface Options | RS-232/485, Profibus, Ethernet-USB, Analog I/O, Digital Contact Modules |
| Control System | PID-based electronic controller with TFT display, 150-segment programmable scheduler, SmartCool digital cooling management |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VS 15 O |
| Timer Range | 1 min – 99:59 h |
| Oscillation Frequency | 20–300 rpm |
| Amplitude | 30 mm |
| Tray Quantity | 1 |
| Operating Ambient Temperature | 10–50 °C |
| Tray Dimensions (W × D) | 330 × 330 mm |
| Max. Load Capacity | 8 kg |
| Power Consumption | 0.07 kW |
| Amplitude (additional spec) | 10 mm |
| Frequency Range (extended spec) | 20–500 rpm |
| Dimensions (W × D × H) | 350 × 355 × 160 mm |
| Weight | 11 kg |
| Power Supply | 230 V, 50/60 Hz |
| Motor | AC motor with overload protection |
| Construction | Anodized aluminum platform, electrogalvanized steel housing with powder coating |
| Control Interface | Dual LCD display, membrane keypad with symbolic icons |
| Brand | LAUDA |
|---|---|
| Origin | Germany |

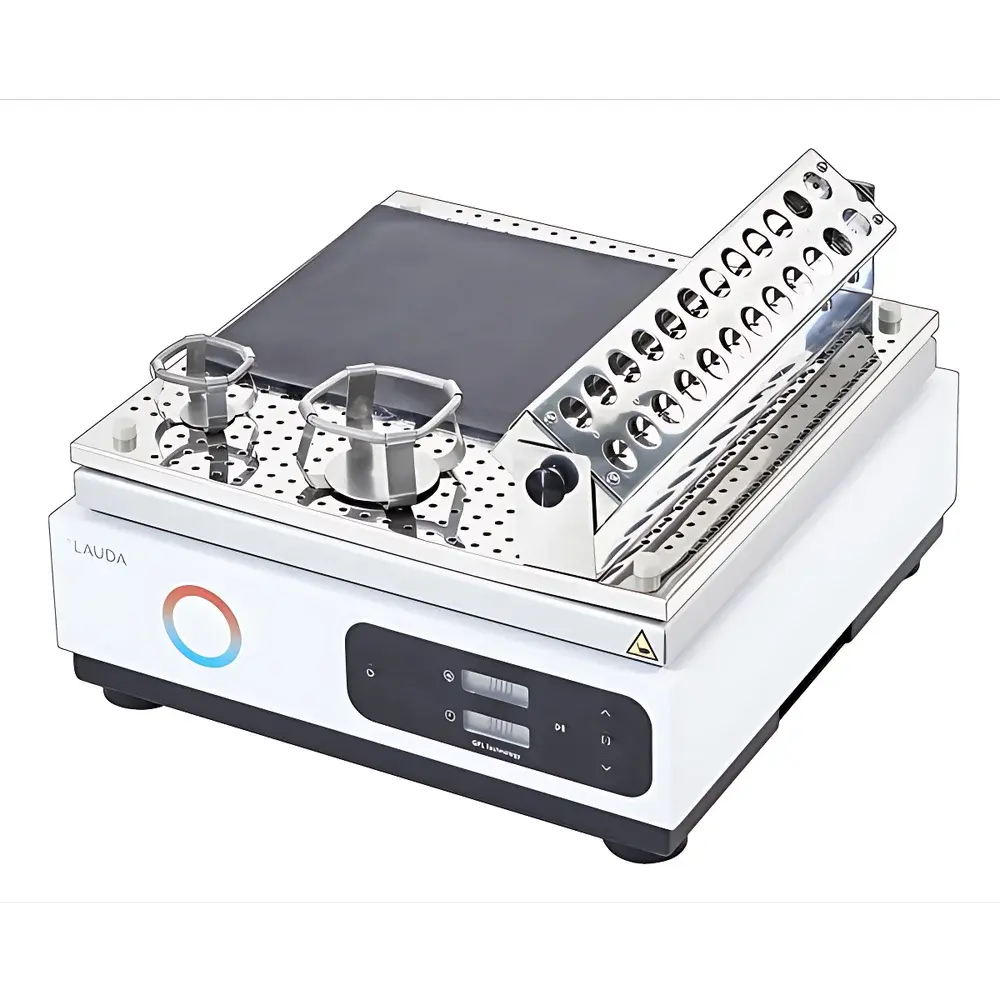

| Model | VS 8 O |
| Timer Range | 1 min – 99:59 h |
| Oscillation Frequency | 20–500 rpm |
| Amplitude | 10 mm |
| Platform Quantity | 1 |
| Operating Ambient Temperature | 10–50 °C |
| Tray Dimensions (W × D) | 330 × 330 mm |
| Max Load Capacity | 8 kg |
| Power Consumption | 0.07 kW |
| Dimensions (W × D × H) | 350 × 355 × 160 mm |
| Weight | 11 kg |
| Voltage/Frequency | 230 V, 50/60 Hz |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VS 15 T |
| Timer Range | 1 min to 99:59 h |
| Oscillation Frequency | 2–50 rpm |
| Amplitude | 3° |
| Tray Quantity | 1 |
| Tray Dimensions (W × D) | 450 × 450 mm |
| Max Load Capacity | 15 kg |
| Ambient Temperature Range | 10–50 °C |
| Power Consumption | 0.09 kW |
| Net Weight | 19 kg |
| Housing Material | Electrogalvanized Steel with Powder Coating |
| Tray Material | Anodized Aluminum |
| Drive Motor | AC Motor with Overload Protection |
| Speed Control | Digital, Stepless, 0.5 rpm Resolution |
| Interface Option | RS-232 (Optional) |
| Noise Level | Low |
| Design | Compact, Balanced, Maintenance-Free Architecture |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VS 15 R |
| Timer Range | 1 min to 99:59 h |
| Oscillation Frequency | 2–50 rpm |
| Amplitude | 3° |
| Tray Quantity | 1 |
| Operating Ambient Temperature | 10–50 °C |
| Tray Dimensions (W × D) | 450 × 450 mm |
| Max Load Capacity | 15 kg |
| Power Consumption | 0.09 kW |
| External Dimensions (W × D × H) | 480 × 487 × 160 mm |
| Weight | 17 kg |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VS 20 OH |
| Timer Range | 1 min – 99.9 h |
| Oscillation Frequency | 1–20 rpm |
| Ambient Temperature Range | 10–40 °C |
| Max. Power Consumption | 0.1 kW |
| Max. Load Capacity | 20 kg |
| Dimensions (W×D×H) | 770 × 700 × 715 mm |
| Weight | 68 kg |
| Construction | Powder-coated, electrogalvanized steel housing |
| Drive | Overload-protected DC motor with dynamic mass balancing |
| Bearing System | Dual-side ball-bearing tilt frame with sliding hub drive |
| Clamp Mechanism | Height-adjustable stainless steel clamps, accommodates vessels up to Ø110 mm × H270 mm |
| Sample Capacity | Up to 12 round or square containers under uniform loading |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VF 55085 C |
| Configuration | Upright |
| Effective Volume | 556 L |
| Internal Dimensions (W×D×H) | 1180 × 620 × 760 mm |
| External Dimensions (W×D×H) | 1671 × 910 × 1056 mm |
| Power Supply | 230 V / 50 Hz |
| Energy Consumption | 9.7 kWh/d at −86 °C |
| Operating Temperature Range | −86 to −50 °C |
| Ambient Temperature Range | 15 to 28 °C |
| Refrigerants | R-290 (0.145 kg, GWP = 3) + R-170 (0.090 kg, GWP = 6) |
| Net Weight | 280 kg |
| Cooling Time (20 °C → −86 °C) | ≤ 4 h |
| Door Ports | Two Ø13 mm pass-throughs for Pt100 sensors |
| Insulation | Multilayer vacuum insulation panels (VIPs) with supplementary high-performance polyurethane foam |
| Brand | LAUDA |
|---|---|
| Origin | Germany |

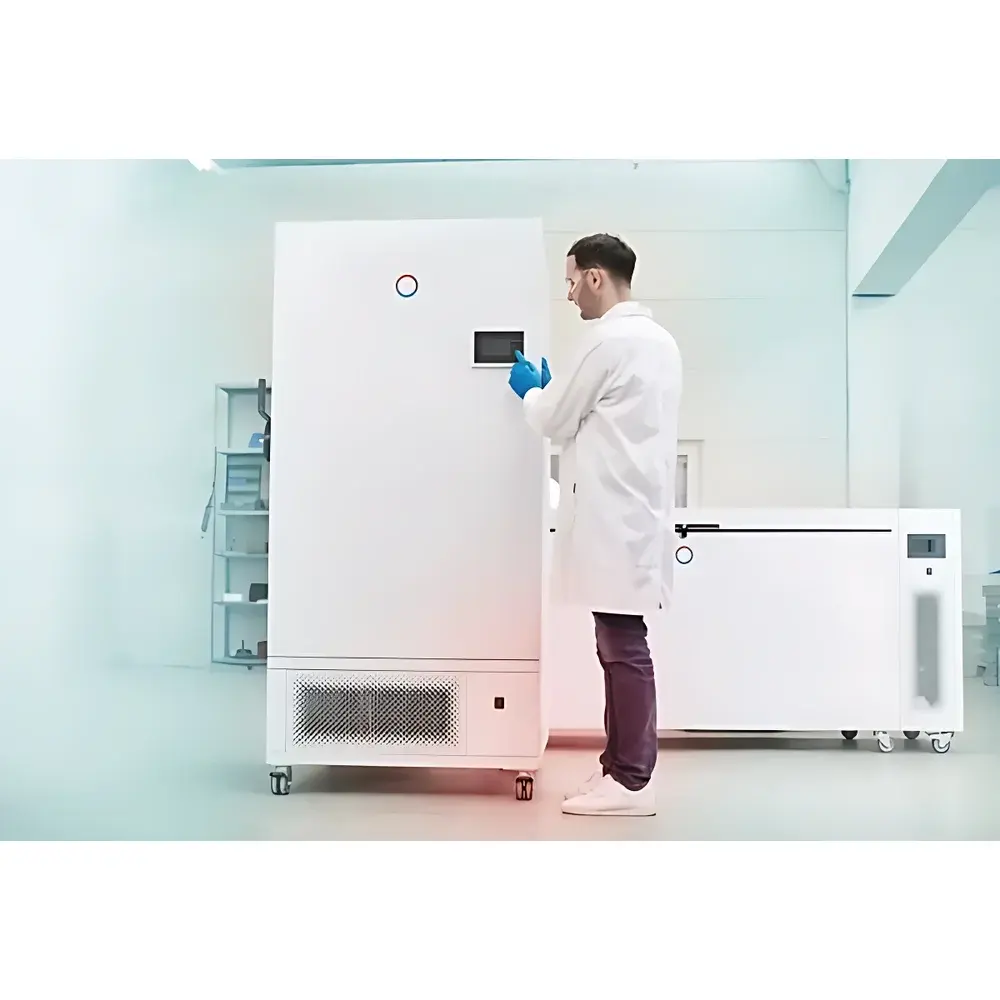

| Model | VF 70085 |
| Instrument Type | Upright |
| Effective Volume | 731 L |
| Internal Dimensions (W×D×H) | 738 × 750 × 1320 mm |
| External Dimensions (W×D×H) | 980 × 1165 × 1965 mm |
| Power Supply | 230 V / 50 Hz |
| Rated Energy Consumption | 15.5 kWh/d at −86 °C |
| Operating Temperature Range | −86 to −50 °C |
| Ambient Temperature Range | 15 to 28 °C |
| Cooling Time (20 °C → −86 °C) | 7 h |
| Defrost Time (−86 °C → 0 °C) | 25 h |
| Refrigerants | R-290 (0.145 kg, GWP = 3), R-170 (0.090 kg, GWP = 6) |
| Net Weight | 387 kg |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VC 5000 W |
| Temperature Range | −20 °C to +80 °C |
| Temperature Stability | ±0.05 K |
| Dimensions (W×D×H) | 550 mm × 650 mm × 970 mm |
| Power Consumption | 5.0 kW @ 20 °C |
| Pump Flow Rate | up to 37 L/min @ 3.2 bar |
| Reservoir Volume | 33 L |
| Cooling Medium | Water or water/glycol mixture (non-flammable) |
| Interface Options | RS-232/485, Profibus, Ethernet-USB, Analog I/O, Digital Contact Module |
| Control System | PID-based electronic controller with TFT display, 150-segment programmable scheduler |
| Compliance | CE, RoHS, conforms to EN 61000-6-2/-6-4 EMI/EMC standards |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VS 15 B |
| Timer Range | 1 min to 99:59 h |
| Oscillation Frequency | 20–300 rpm |
| Amplitude | 30 mm |
| Platform Quantity | 1 |
| Max Load Capacity | 15 kg |
| Platform Dimensions (W × D) | 450 × 450 mm |
| Ambient Temperature Range | 10–50 °C |
| Power Consumption | 0.07 kW |
| Overall Dimensions (W × D × H) | 480 × 487 × 160 mm |
| Weight | 18 kg |
| Brand | LAUDA |
|---|---|
| Origin | Germany |

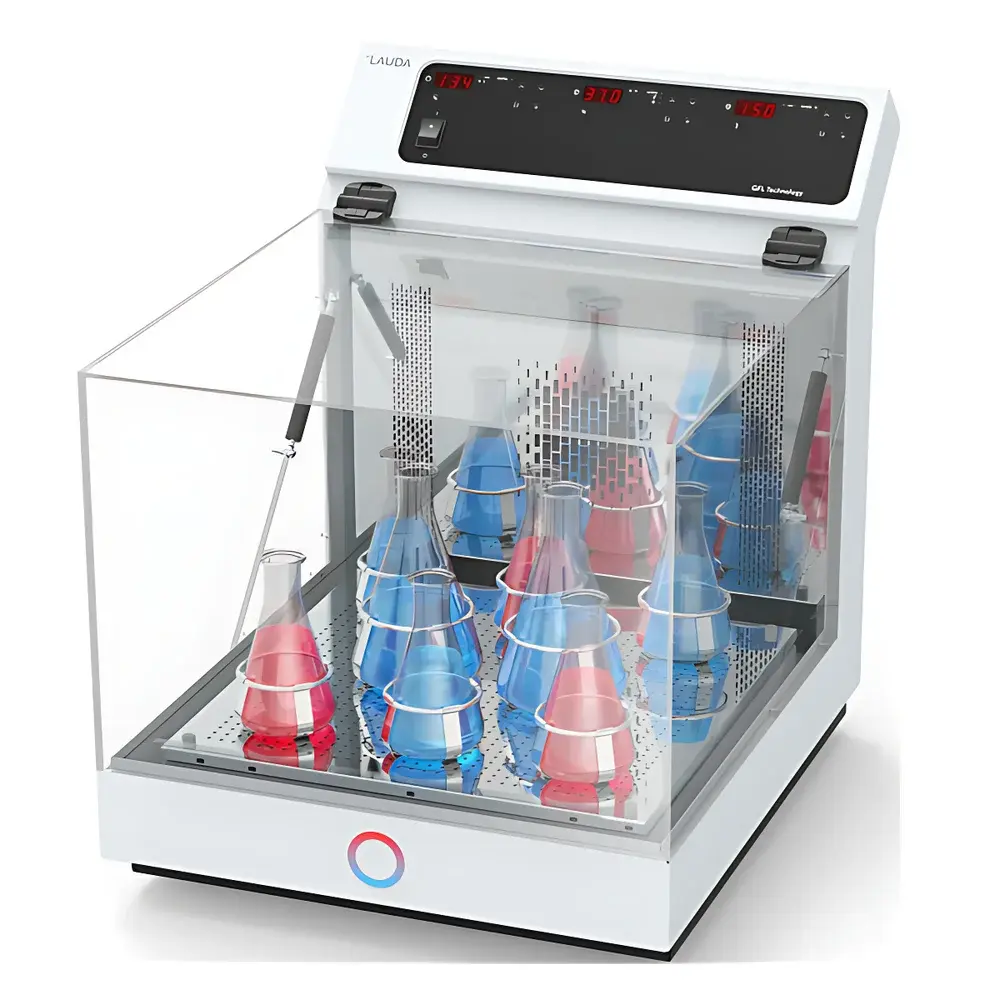

| Model | VS 60 OI |
| Timer Range | 1 min – 999 h |
| Oscillation Frequency | 20–250 rpm |
| Amplitude | 30 mm |
| Temperature Range | 28–70 °C (water-cooled: 20–70 °C) |
| Chamber Volume | 68 L |
| Temperature Stability | ±0.2 °C |
| Power Supply | 230 V, 50/60 Hz |
| Max. Load | 12 kg |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VS 45 OI |
| Timer Range | 1 min – 999 h |
| Oscillation Frequency | 20–250 rpm |
| Amplitude | 25 mm |
| Temperature Range | 28–70 °C (20–70 °C with external cooling) |
| Chamber Volume | 45 L |
| Temperature Stability | ±0.2 °C |
| Tray Dimensions (W × D) | 420 × 270 mm |
| Internal Dimensions (W × D × H) | 420 × 270 × 320 mm |
| External Dimensions (W × D × H) | 710 × 650 × 710 mm |
| Weight | 72 kg |
| Power Supply | 230 V, 50/60 Hz |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VF 20040 C |
| Type | Upright Ultra-Low Temperature Freezer (≥ –60 °C) |
| Effective Volume | 205 L |
| Internal Dimensions (W×D×H) | 790 × 520 × 500 mm |
| External Dimensions (W×D×H) | 960 × 790 × 1130 mm |
| Power Supply | 230 V / 50 Hz |
| Energy Consumption | 7 kWh/d at –40 °C |
| Cooling Time (20 °C → –40 °C, empty) | ≤ 3 h |
| Hold Time (–40 °C → 0 °C, power off) | ≥ 6 h |
| Refrigerant | R-1270 (GWP = 3), 0.145 kg |
| Net Weight | 188 kg |
| Ambient Operating Range | 15–28 °C |
| Temperature Range | –40 to 0 °C |
| Port Diameter | 2 × Ø13 mm (for Pt100 probes) |
| Compressor | Hermetic, maintenance-free |
| Insulation | High-vacuum multilayer panel system |
| Door Seal | Magnetic gasket, frost-resistant |
| Data Logging | Built-in, non-volatile memory |
| Connectivity | Ethernet (IIoT-ready), RS-485 |
| Brand | LAUDA |
|---|---|
| Origin | Germany |

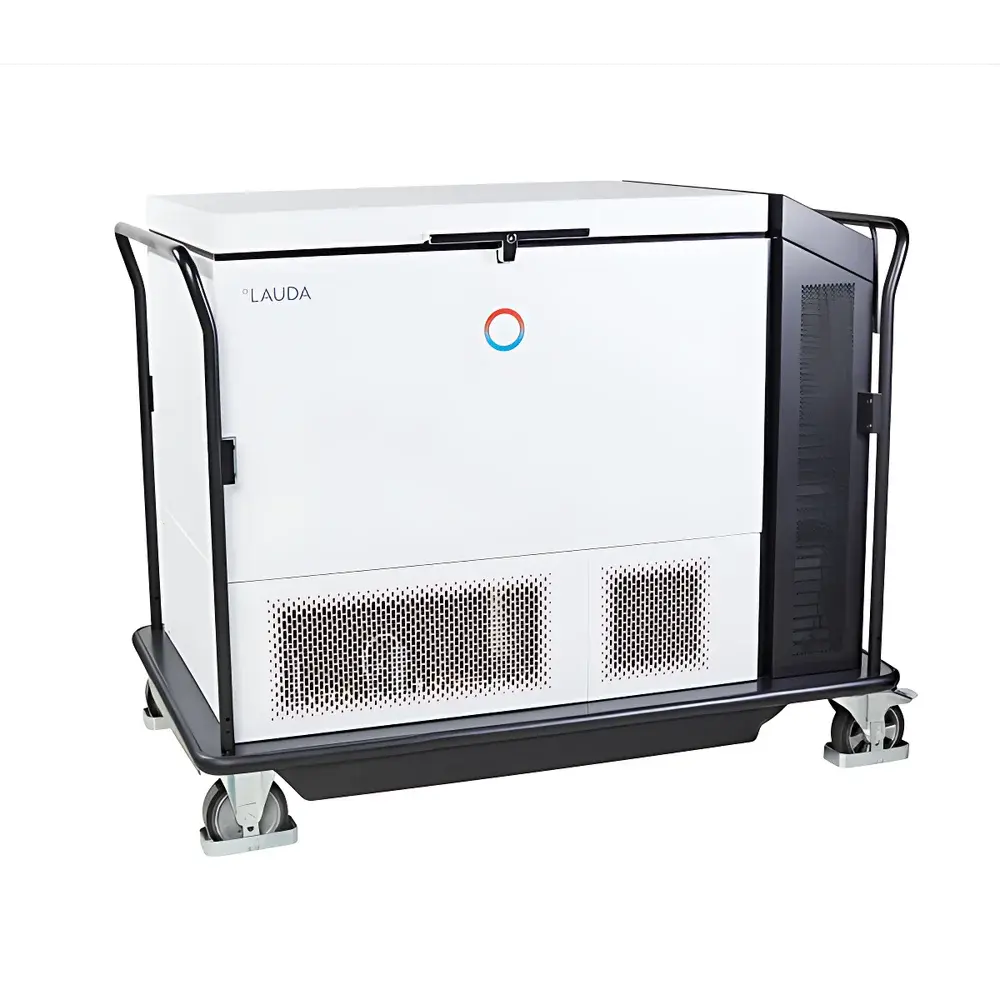

| Model | M 270 |
| Cabinet Type | Horizontal |
| Internal Dimensions | 900 × 600 × 500 mm |
| External Dimensions | 1471 × 933 × 1217 mm |
| Net Weight | 325 kg |
| Power Supply | 230 V / 50 Hz |
| Operating Temperature Range | −86 °C to −50 °C |
| Temperature Stability | ±3 °C |
| Primary Refrigerant | R-290 (0.145 kg, GWP = 3) |
| Secondary Refrigerant | R-170 (0.068 kg, GWP = 6) |
| Battery Technology | Lithium Iron Phosphate (LiFePO₄) |
| Battery Runtime at −80 °C | Up to 4 h |
| Display | 4.3″ Touchscreen with Password-Protected User Access |
| Data Logger | Integrated, Compliant with GDP & GLP Requirements |
| Insulation | Vacuum Insulation Panels (VIP) |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | VS 150 OI |
| Timer Range | 1 min – 999 h |
| Oscillation Frequency | 20–250 rpm |
| Amplitude | 25–30 mm |
| Temperature Range | 28–70 °C (ambient-cooled: 20–70 °C) |
| Number of Shaking Platforms | 4 |
| Internal Volume | 150 L |
| Platform Load Capacity | 20 kg |
| Temperature Stability | ±0.2 °C |
| Power Supply | 230 V, 50/60 Hz |
| Heating Power | 0.5 kW |
| Max. Power Consumption | 0.65 kW |
| Internal Dimensions (W×D×H) | 450 × 450 × 338 mm |
| External Dimensions (W×D×H) | 559 × 687 × 628 mm |
| Construction | Stainless steel interior cabinet, door lining & shaking platform |
| Cooling Coil | Integrated for sub-ambient operation |
| Interface | RS232 serial port |
| Safety | Dual-stage thermal cut-off (electronic PID + mechanical limiter), door-interlocked shutoff of heating & shaking |
Show next
