| Brand | LECO |
|---|---|
| Origin | USA |
| Manufacturer | LECO Corporation |
| Type | Imported |
| Model | MSX255 |
| Instrument Category | Metallographic Cutting Machine |
| Blade Diameter | 300 mm (12 in) |
| Motor Power | 4 kW (5.4 HP) |
| Safety | Interlocked Guard with Automatic Shutdown |
| Control | Manual Z-axis Lever, Manual X/Y Stage Adjustment |
| Cooling | External Coolant Recovery Tank |
| Enclosure | Sealed Spindle Housing & Sealed Electronic Control Cabinet |
| Illumination | Integrated LED Worklight |
| Braking | Electronic Brake System |
| Stage | T-slot Table (350 mm × 250 mm) |
| Brand | LECO |
|---|---|
| Origin | Germany |
| Manufacturer | LECO Corporation |
| Product Type | Imported Instrument |
| Model | VC-50 |
| Instrument Category | Precision Cutting Machine |
| Maximum Sample Diameter | 38 mm (1.5 in) |
| Blade Thickness Options | 0.25 mm or 0.36 mm |
| Rotational Speed Range | 0–500 rpm |
| Compatible Blade Diameters | 102 mm (4 in) or 127 mm (5 in) |
| Blade Material Options | Diamond or Aluminum Oxide |
| Sample Clamping | Integrated Vise for ≤38 mm Samples |
| Feed Mechanism | Manual Micrometer-Driven Slide with Counterweight Loading System |
| Safety Feature | Automatic Shutdown |

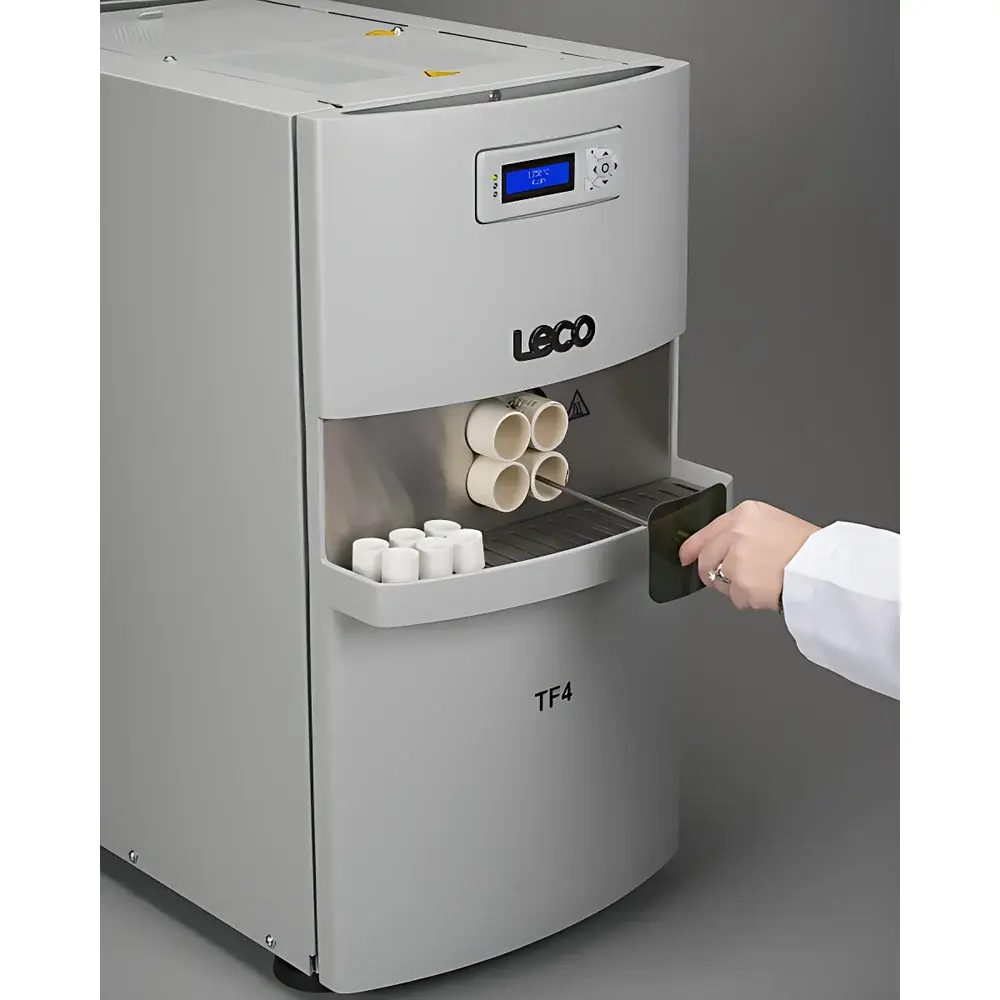

| Brand | LECO |
|---|---|
| Origin | USA |
| Manufacturer | LECO Corporation |
| Type | Tube Furnace |
| Model | TF4 |
| Maximum Temperature | 1350 °C |
| Temperature Control Accuracy | ±0.5 °C |
| Rated Power | 3520 W |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Internal Chamber Dimensions | 69 cm (L) × 36 cm (W) × 72 cm (H) |
| Configuration Options | 2-Tube or 4-Tube Modular Arrangement |
| Primary Application | Pre-conditioning of Ceramic Crucibles for Combustion-Based Elemental Analysis (C/S, O/N/H) |
| Brand | LECO |
|---|---|
| Origin | USA |
| Manufacturer | LECO Corporation |
| Type | Imported Equipment |
| Model | PX500 |
| Dimensions (L×W×D) | 635 mm × 533 mm × 711 mm |
| Number of Platen Stations | 1 |
| Platen Diameter Options | 10 in, 12 in, 250 mm, 300 mm |
| Speed Range | 0–600 rpm (adjustable in 25-rpm increments) |
| Fluid Dispensing | Programmable 5-channel reagent metering system for polishing slurries and abrasives |
| Control Interface | Capacitive touchscreen with icon-based navigation |
| Safety | Dedicated emergency stop button located directly below display |
| Base Design | Helical bowl-shaped base with integrated self-cleaning mechanism |
| Sample Holder Motion | Programmable slow-rotation mode for safe mounting/dismounting of mounted specimens |
| Brand | LECO |
|---|---|
| Origin | USA |
| Manufacturer | LECO Corporation |
| Type | Hot Mounting Press |
| Model | MX400 |
| Mounting Principle | Thermosetting Resin Compression Molding |
| Max. Simultaneous Stations | 3 Independent Mounting Modules (via Optional Auxiliary Units) |
| Temperature Range | Ambient to 200 °C (adjustable in 1 °C increments) |
| Pressure Range | 0–12 MPa (adjustable in 0.1 MPa increments) |
| Cycle Time | Typically 8–15 min per mount (dependent on resin type, specimen size, and process parameters) |
| Mold Compatibility | Standard 25 mm, 30 mm, 32 mm, 40 mm, and 50 mm diameter molds (including multi-cavity and specialty geometries) |
