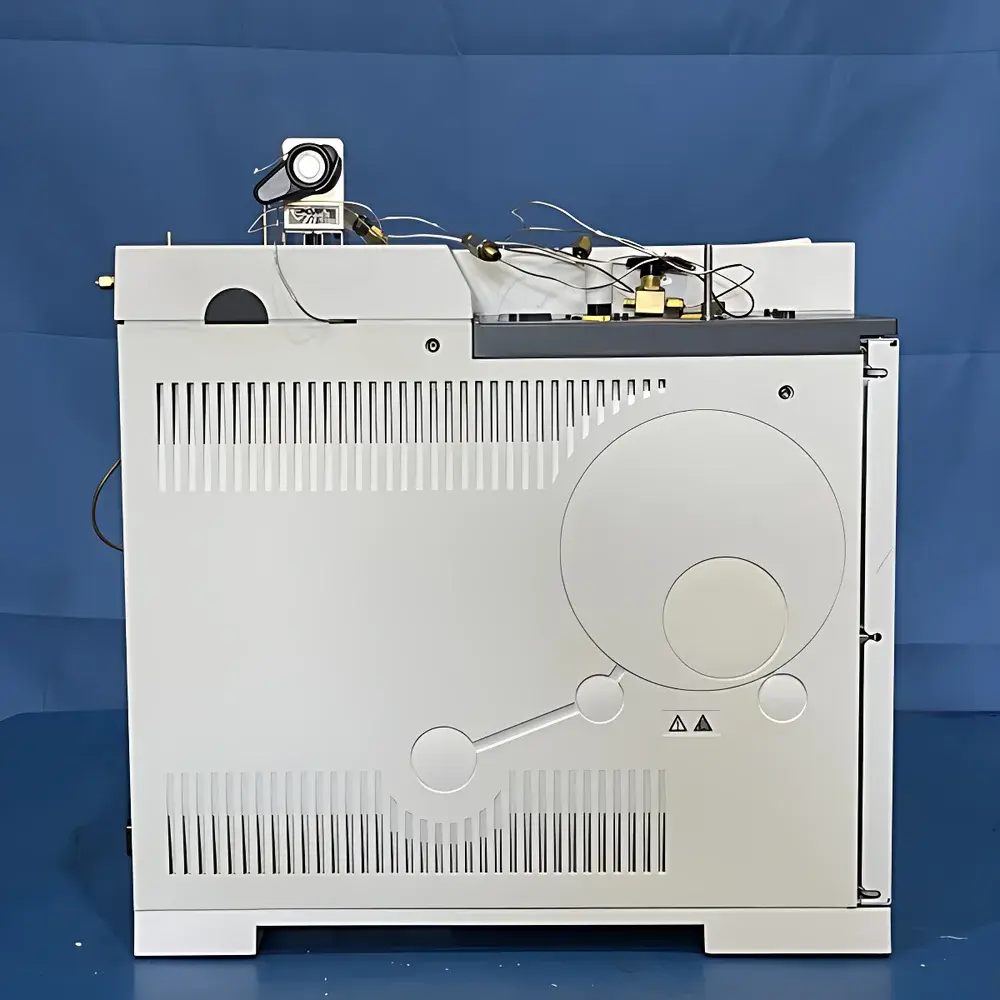

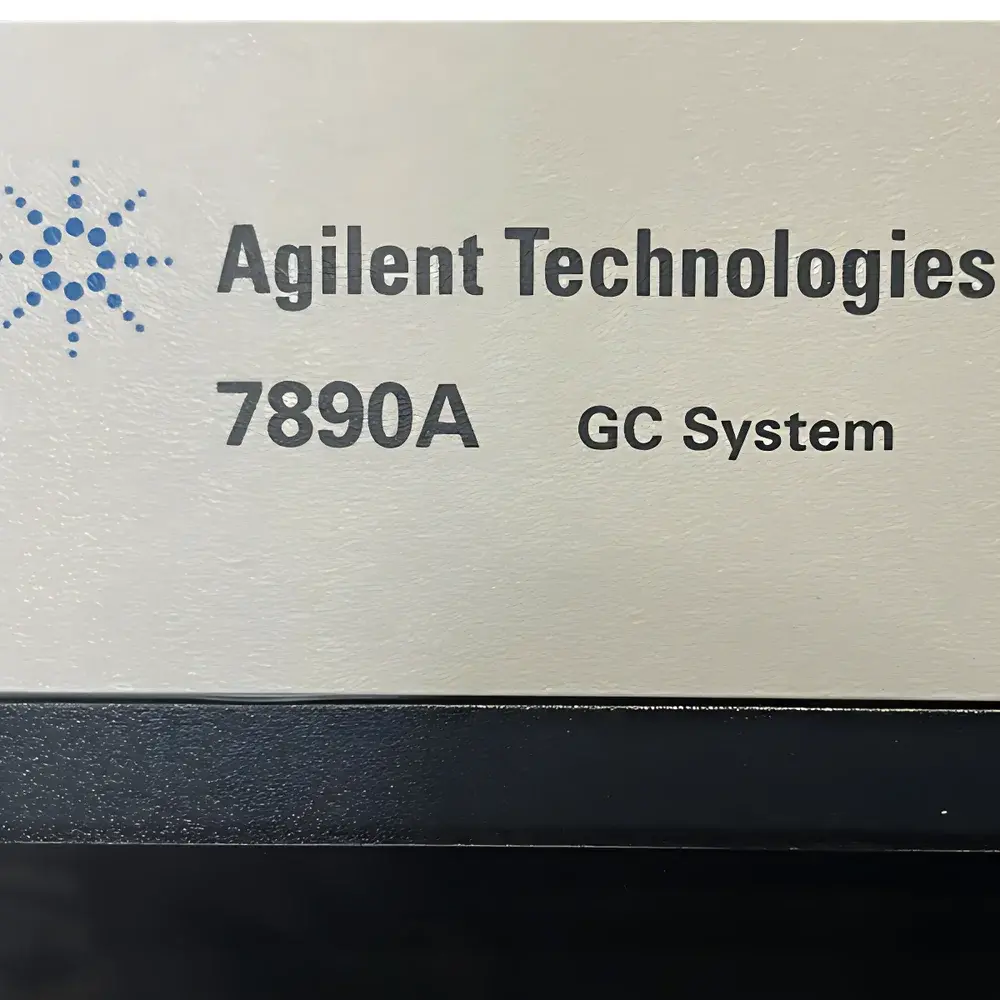

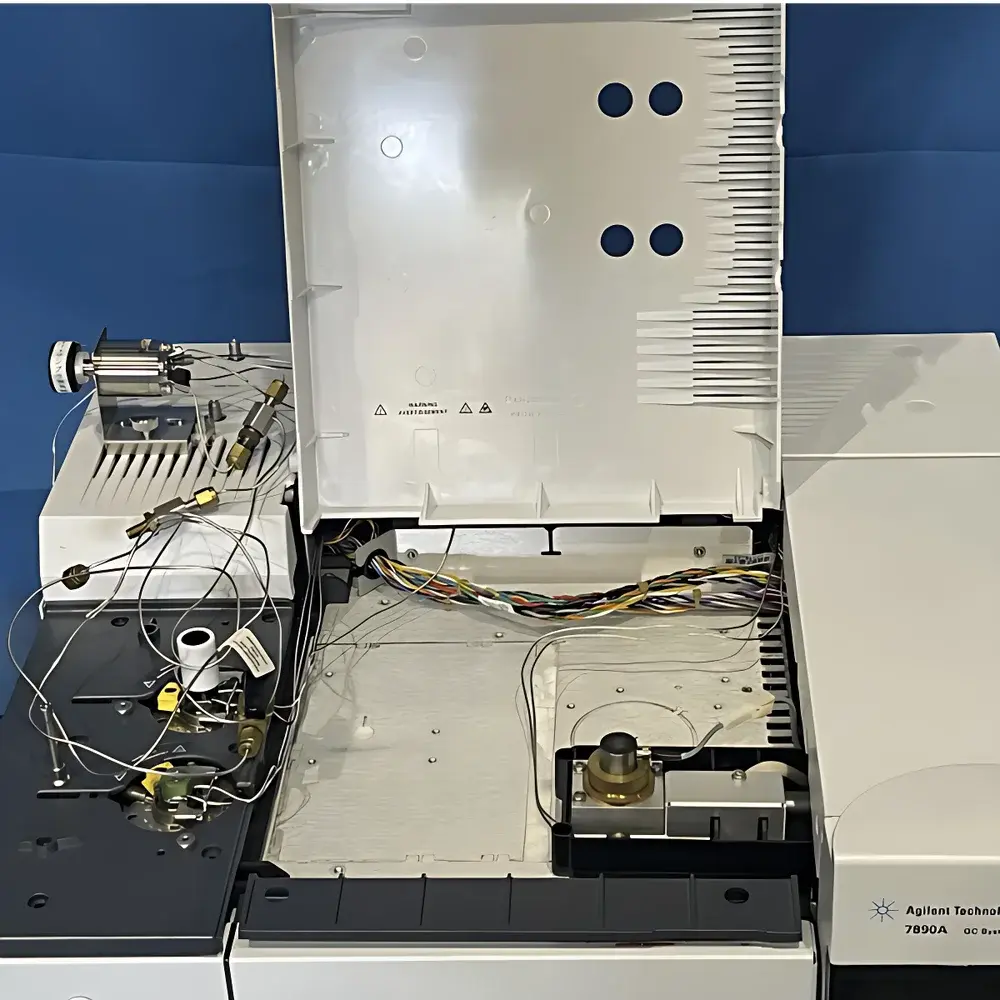

Agilent 7890A Used Gas Chromatograph
| Brand | Agilent Technologies |
|---|---|
| Origin | USA |
| Model | 7890A |
| Configuration | Dual Inlet / Triple Detector (incl. TCD) |
| EPC Channels | Up to 16 |
| Temperature Range | –80 °C to 450 °C (with LN₂ cooling) |
| Retention Time Reproducibility | < 0.008% RSD |
| Peak Area Reproducibility | < 1% RSD |
| Column Oven Dimensions | 28 × 31 × 16 cm |
| Max Ramp Rate | 120 °C/min |
| Cooling from 450 °C to 50 °C | 4.0 min (standard), 3.5 min (with insert) |
| Pressure Control Precision | ±0.001 psi (0–99.999 psi range) |
| Data Acquisition Rate | Up to 500 Hz (FID) |
| Supported Detectors | FID, TCD, Micro-ECD, NPD, FPD, SCD, NCD, MSD (via interface) |
Overview
The Agilent 7890A Used Gas Chromatograph is a high-performance, network-capable analytical instrument engineered for precision, robustness, and long-term operational reliability in regulated and research laboratory environments. As the direct successor to the widely deployed 6890N platform, the 7890A integrates fifth-generation Electronic Pneumatic Control (EPC) architecture with advanced thermal management and modular detector compatibility to deliver exceptional chromatographic resolution, retention time locking (RTL), and method transfer fidelity. Its core measurement principle relies on differential partitioning of volatile and semi-volatile analytes between a mobile gas phase (carrier gas: He, H₂, or N₂) and a stationary phase coated inside fused-silica capillary columns. Separation occurs under precisely controlled temperature gradients and pressure profiles—enabling reproducible elution order, quantitative peak integration, and identification via retention index correlation or hyphenated detection.
Key Features
- Dual independent inlet configuration supporting simultaneous operation of S/SL, PTV, PCOC, VI, or PPIP modules—each fully EPC-controlled for pressure, flow, and temperature.
- Triple-detector capability (up to four detector signals), including optional TCD installation on the left side of the GC chassis—enabling multi-modal detection without hardware compromise.
- Fifth-generation EPC system delivering pressure setpoint accuracy of ±0.001 psi across 0–99.999 psi, with automatic compensation for ambient temperature and barometric pressure fluctuations.
- Column oven with ultra-stable thermal control (±0.01 °C per 1 °C ambient change), 20-programmable temperature ramps, and rapid cooling (450 °C → 50 °C in ≤4.0 min).
- Microplate Flow Control (MFC) technology enabling leak-free, high-integrity column switching, heart-cutting, backflush, and multidimensional GC configurations.
- Integrated diagnostics and resource monitoring: real-time EPC status, leak test automation, firmware health logging, and event-driven maintenance alerts accessible via LAN or front-panel interface.
- Full compatibility with Agilent ChemStation and OpenLab CDS software—supporting 21 CFR Part 11 compliance when deployed with audit trail, electronic signature, and role-based access controls.
Sample Compatibility & Compliance
The 7890A accommodates a broad spectrum of sample matrices—including environmental extracts (EPA Methods 502.2, 524.2, 8021B), pharmaceutical impurities (ICH Q2(R2)), petrochemical hydrocarbons (ASTM D3606, D5186), food volatiles (AOAC 995.12), and forensic toxicology specimens. Its universal inlet design supports liquids, gases, headspace vials, purge-and-trap concentrates, and thermal desorption tubes. All EPC modules, detectors, and oven electronics comply with IEC 61000-4 electromagnetic immunity standards and UL/CSA safety certifications. When operated with validated methods and properly maintained hardware, the system meets GLP and GMP requirements for routine QC testing, provided data integrity protocols (e.g., audit trail activation, secure user authentication, and raw data archiving) are implemented per laboratory SOPs.
Software & Data Management
Control and data acquisition are managed through Agilent’s industry-standard OpenLab CDS or legacy ChemStation platforms. These applications provide context-sensitive method building, automated calibration curve generation, peak deconvolution (for co-eluting components), and customizable reporting templates compliant with ISO/IEC 17025 documentation requirements. Instrument diagnostics—including EPC valve actuation counts, detector filament hours, and column inlet pressure drift—are logged automatically and exportable as CSV or PDF. Remote monitoring via Ethernet enables centralized fleet management across multi-site laboratories. For regulated environments, optional 21 CFR Part 11 packages include electronic signatures, audit trail review tools, and system suitability test (SST) enforcement—ensuring full traceability from injection to final report.
Applications
The 7890A serves as a foundational platform for targeted and untargeted analysis across diverse sectors. Environmental labs deploy it for VOC screening in groundwater (Method 8260D) and SVOC profiling in soil (Method 8270E), leveraging its FID/TCD dual detection and robust backflush capability. Pharmaceutical QA/QC groups rely on its RTL functionality to maintain method consistency across instrument replacements and site transfers—critical for stability-indicating assays. Petrochemical refineries use its high-temperature oven and hydrogen carrier gas optimization for simulated distillation (ASTM D2887) and hydrocarbon type analysis (ASTM D5186). Forensic labs utilize NPD and Micro-ECD configurations for pesticide residue confirmation and drug metabolite profiling, while food safety labs apply FPD and SCD for sulfur-containing flavor compound quantitation and adulterant screening.
FAQ
Is this unit refurbished or serviced prior to resale?
Yes—each 7890A undergoes comprehensive functional verification, EPC recalibration, detector sensitivity validation, and column oven thermal profiling by certified Agilent-trained technicians. A full diagnostic report and calibration certificate accompany shipment.
What warranty and post-purchase support is included?
All units ship with a standard 12-month parts-and-labor warranty covering critical subsystems (oven, EPC modules, detector electronics). Extended service plans—including preventive maintenance contracts and priority remote diagnostics—are available upon request.
Can this GC be integrated into an existing LIMS or ELN infrastructure?
Yes—via OpenLab CDS or ChemStation’s ODBC-compliant database export, REST API endpoints (OpenLab Connect), and native instrument driver support for Thermo Fisher, Waters, and LabVantage LIMS platforms.
Are original Agilent consumables and spare parts still available?
Yes—Agilent maintains active supply chains for all 7890-series consumables (inlet liners, septa, ferrules, detector jets, filaments) and field-replaceable assemblies (EPC modules, oven heaters, detector PCBs) through authorized distribution channels worldwide.
Does the system include software licenses and installation media?
Each unit ships with a valid, transferable license for Agilent OpenLab CDS Basic Edition (including instrument control, data acquisition, and reporting). Full ChemStation or OpenLab Advanced licenses may be purchased separately or bundled at time of order.
