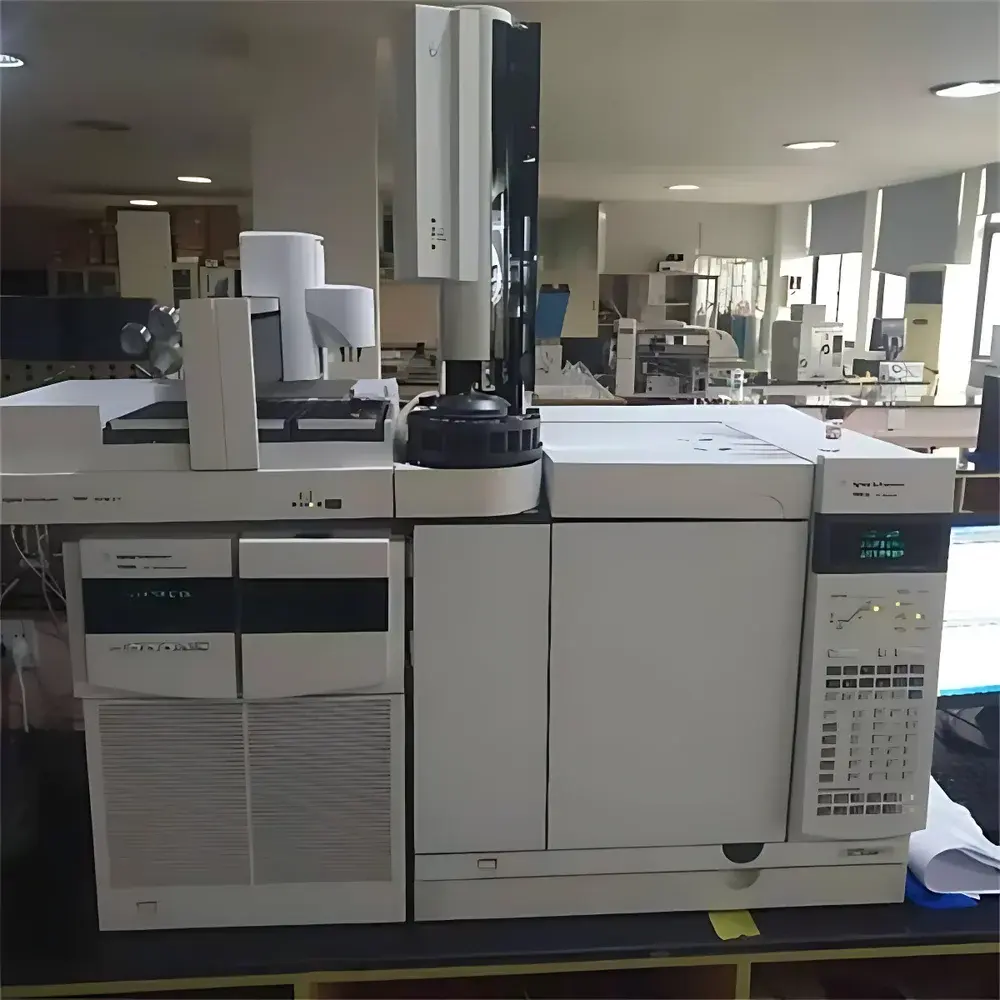

Agilent 7890B GC + 7000C/D Triple Quadrupole Gas Chromatography-Mass Spectrometry System (Refurbished)

Overview

The Agilent 7890B GC + 7000C/D Triple Quadrupole Gas Chromatography-Mass Spectrometry (GC-MS/MS) system is a rigorously refurbished, factory-aligned analytical platform engineered for high-sensitivity quantitative and qualitative analysis of trace-level organic compounds in complex matrices. This configuration integrates the thermally stable, EPC-controlled Agilent 7890B gas chromatograph with the robust triple quadrupole mass spectrometer — either the 7000C (optimized for ultra-low IDL performance) or the 7000D (featuring dynamic MRM acquisition and legacy method compatibility). The system operates on electron ionization (EI) with a heated, gold-coated extractor ion source, enabling reproducible ion formation across diverse sample types. Its core measurement principle relies on selective precursor ion isolation in Q1, collision-induced dissociation (CID) in the pressurized collision cell (Q2), and product ion detection in Q3 — delivering exceptional specificity, reduced chemical noise, and sub-femtogram detection limits using octafluoronaphthalene (OFN) as reference standard (IDL ≤ 4 fg).

Key Features

• Triple quadrupole architecture with independently heated dual curved-rod mass filters and a six-rod collision/reaction cell for optimized CID efficiency and low-background operation
• Heated, gold-plated EI extractor ion source — maintains consistent ion transmission under extended runtime and minimizes carbon buildup during high-throughput analysis
• Tri-axial high-energy dynode electron multiplier (HED-EM) detector providing stable gain response over >10⁶ dynamic range
• Integrated vacuum system: turbomolecular pump (split-flow design) backed by oil-sealed rotary vane pump; MS and GC interfaces maintained at independent, programmable temperatures
• Agilent G7693A autosampler with liquid-phase injection, headspace capability, and SPME support — compatible with standard 2 mL vials and programmable injection parameters (volume, speed, wash cycles)
• MassHunter Workstation software with full GLP/GMP-compliant audit trail, electronic signatures (21 CFR Part 11 ready), and automated MRM optimization workflows
• Early Maintenance Feedback (EMF) system monitors consumables usage, vacuum integrity, and detector gain — triggering configurable alerts for scheduled service intervals
• JetClean ion source upgrade option available — reduces manual cleaning frequency by up to 80% while preserving sensitivity and retention time stability

Sample Compatibility & Compliance

This refurbished GC-MS/MS system supports broad-spectrum applications across environmental, food safety, clinical toxicology, and pharmaceutical QC laboratories. It is validated for use with aqueous extracts, solvent-based residues, headspace volatiles, and SPME-fiber desorption samples. The inert flow path (Siltek-treated liners, deactivated columns, and low-bleed inlet seals) ensures minimal analyte degradation and carryover. Method compliance includes EPA SW-846 Methods 8270D (semivolatiles), 1613B (PCBs), and 1631E (dioxins/furans); ASTM D5845 (petroleum hydrocarbons); USP chromatographic system suitability criteria; and ISO/IEC 17025 requirements for measurement uncertainty estimation. All refurbished units undergo full functional verification against Agilent’s OEM specifications, including tune report validation (mass accuracy ±0.1 u, resolution ≥1,000 FWHM), retention time locking (RTL) reproducibility (<0.02 min RSD), and IDL confirmation per OFN protocol.

Software & Data Management

MassHunter Data Acquisition and Quantitative Analysis software provides end-to-end control from instrument tuning and method development through reporting and data archival. The enhanced MRM optimizer automates dwell time allocation, collision energy ramping, and declustering potential selection based on compound class libraries (e.g., pesticide, PAH, PCB databases). All raw data files (.d format) are stored with embedded metadata: instrument configuration, sequence logs, calibration curves, and EMF event history. Audit trails record user actions, parameter changes, and report generation timestamps — fully exportable in CSV or PDF for regulatory submission. Integration with LIMS via OpenLab CDS or third-party middleware enables automated sample queue management and result dissemination. Data integrity safeguards include write-protected archives, role-based access controls, and encrypted backup protocols compliant with FDA 21 CFR Part 11 Annex 11 expectations.

Applications

• Regulatory environmental testing: quantification of pesticides in soil/water per EU SANTE/2021/11183 and EPA Method 8270D
• Food contaminant screening: mycotoxins (aflatoxins, ochratoxin A), veterinary drug residues, and process contaminants (acrylamide, furan)
• Forensic toxicology: targeted analysis of opioids, benzodiazepines, and synthetic cannabinoids in biological matrices
• Pharmaceutical impurity profiling: identification and quantification of genotoxic impurities at ≤1 ppm levels per ICH M7 guidelines
• Industrial hygiene monitoring: workplace air sampling for volatile organic compounds (VOCs) and polycyclic aromatic hydrocarbons (PAHs)
• Method transfer support: Retention Time Locking (RTL) enables seamless migration of validated methods between Agilent GC platforms globally

FAQ

Is this system eligible for Agilent-certified refurbishment documentation?
Yes — each unit ships with a Certificate of Refurbishment detailing component-level replacements, performance verification reports, and firmware revision history.
What level of technical support is included post-purchase?
Standard offering includes 12 months of remote diagnostics and application support from certified Agilent field engineers; extended service contracts (including on-site preventive maintenance) are available.
Can legacy GC/MSD methods be migrated to the 7000D platform?
Yes — the 7000D supports direct import and execution of SIM and Scan methods developed for Agilent 5975/5977 MSD systems without re-optimization.
Does the system meet GLP/GMP data integrity requirements?
All MassHunter configurations are pre-configured for 21 CFR Part 11 compliance, including electronic signatures, audit trail activation, and secure user authentication — validated per laboratory SOPs prior to shipment.
What consumables are recommended for routine operation?
Agilent-certified components only: HP-5ms Ultra Inert columns, G3440-60011 inert liner kits, G1099-62000 gold-plated ion source parts, and 5977-series trap clean kits — all tracked via EMF for proactive replacement scheduling.
