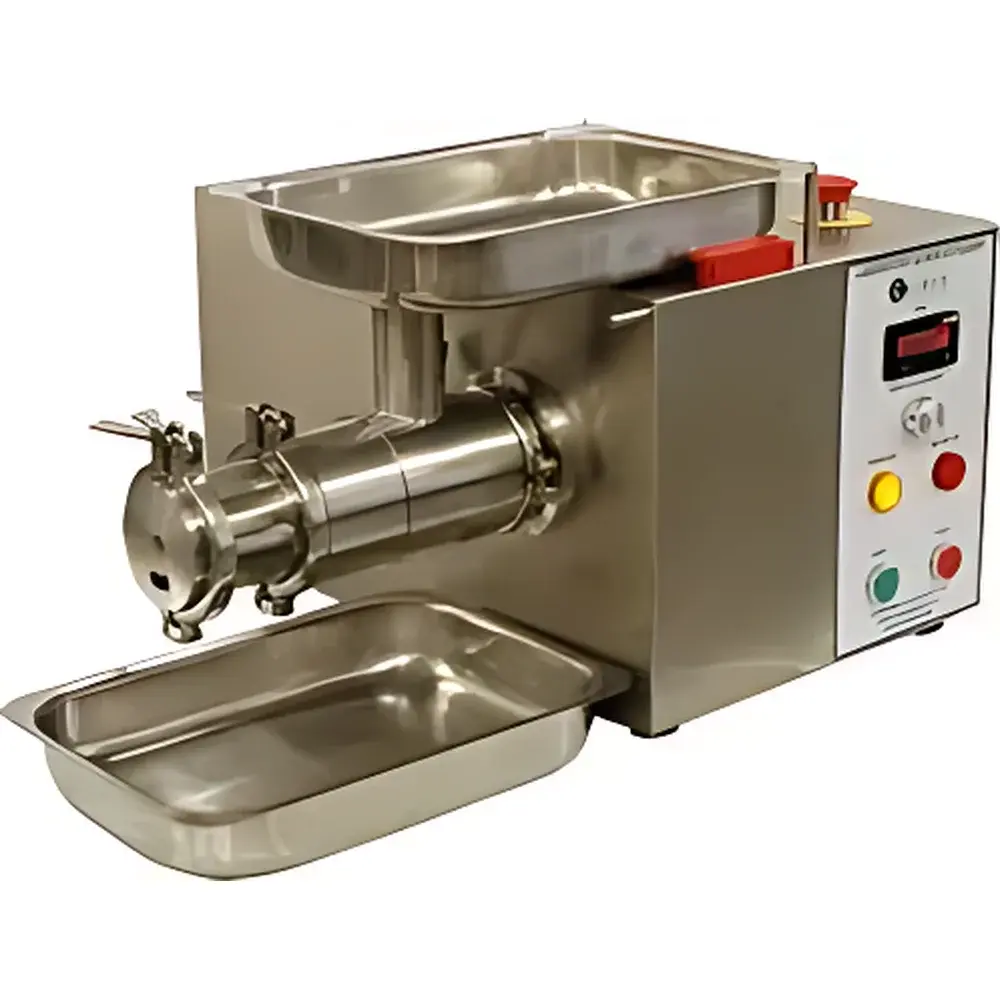

Caleva VDE Variable-Density Extruder

Overview

The Caleva VDE (Variable-Density Extruder) is a patented, laboratory-scale extrusion system engineered specifically for advanced formulation development in pharmaceutical microsphere and pellet manufacturing—particularly within wet granulation and extrusion-spheronization workflows. Unlike conventional single-orientation extruders, the VDE implements a dual-axis mechanical architecture enabling both radial and axial extrusion modes within one compact platform. Its core innovation lies in independent, precise adjustment of die orifice diameter (0.2–2.0 mm) and orifice depth (0.5–6.0 mm radially; up to 8.0 mm axially), allowing systematic control over extrudate density, aspect ratio, and mechanical integrity without hardware substitution. This parametric flexibility directly supports Design of Experiments (DoE)-driven optimization of downstream spheronization efficiency, particle size distribution, and drug release profiles—critical for high-potency or low-dose oral solid dosage forms.

Key Features

• Dual-mode extrusion capability: Switch seamlessly between radial and axial configurations using standardized, interchangeable die plates—no recalibration required.
• Independent die geometry control: Adjust orifice diameter and depth as orthogonal variables to decouple density from cross-sectional area, enabling targeted densification (e.g., for extended-release matrix pellets).
• High-fidelity process reproducibility: Precision-machined 316 stainless steel extrusion barrel, screw, and die assemblies ensure batch-to-batch consistency across R&D scales.
• Thermally responsive barrel: Integrated insulated jacket permits active temperature control (heating or cooling) during extrusion—essential for thermolabile APIs or viscosity-sensitive binders.
• GLP-aligned operational safety: Full electro-mechanical interlocks prevent operation unless guards are secured; emergency stop circuitry complies with IEC 60204-1.
• Tool-free maintenance: All product-contact components—including screw, die plate, and barrel liner—are accessible and removable without specialized tools, minimizing downtime between formulations.

Sample Compatibility & Compliance

The VDE accommodates a broad spectrum of wet mass formulations, including hydrophilic polymer blends (e.g., HPMC, MCC, PVP), plasticized systems (e.g., Eudragit®-based matrices), and high-viscosity pastes containing >40% w/w solids. Its adjustable die geometry enables robust extrusion of low-moisture, high-density masses—common in hot-melt extrusion (HME) pre-formulation studies—and low-viscosity slurries used in immediate-release microsphere development. The system is designed and validated for use under Good Laboratory Practice (GLP) frameworks and supports audit-ready documentation when integrated with compliant data acquisition systems. While not certified for GMP manufacturing, its construction (316 SS, FDA-compliant surface finish Ra ≤ 0.8 µm) and traceable parameter logging align with early-phase regulatory expectations per ICH Q5C and USP .

Software & Data Management

The VDE operates via an intuitive, tactile HMI panel supporting manual setpoint control of screw speed (0–150 rpm), barrel temperature (ambient to 80 °C), and run duration. Optional analog/digital I/O ports allow integration with third-party SCADA or LIMS platforms for automated data capture—including torque, motor current, and thermal profile—enabling full traceability per FDA 21 CFR Part 11 requirements when paired with validated software. All parameter changes are timestamped and logged locally on non-volatile memory, with export capability via USB for offline analysis in MATLAB®, JMP®, or Python-based DoE suites.

Applications

• Optimization of extrudate density for controlled-release multiparticulate systems (e.g., reducing dosing frequency via enhanced drug loading density).
• Rapid screening of binder type/concentration effects on extrudate friability and spheronization yield.
• Development of high-potency low-dose pellets requiring narrow PSD and minimal fines generation.
• Feasibility assessment of novel excipient systems prior to pilot-scale extrusion trials.
• Comparative benchmarking against legacy extruders (e.g., Caleva Multi-Lab, Freund Vector) using standardized test formulations per ASTM D3800-22.

FAQ

Can the VDE be used for hot-melt extrusion (HME)?

Yes—its thermally jacketed barrel supports continuous temperature control up to 80 °C, making it suitable for low-temperature HME feasibility studies and polymer plasticization trials.
Is calibration certification included with delivery?

A factory-issued dimensional verification report for all critical die components is provided; on-site torque and temperature sensor calibration services are available upon request.
What is the recommended maintenance interval for the screw and die assemblies?

Under typical R&D usage (≤4 hrs/day), inspection and surface passivation of 316 SS components are advised every 200 operating hours.
Does the VDE support IQ/OQ documentation packages?

Yes—Caleva provides configurable qualification templates aligned with ISO 9001 and ASTM E2500-22 for installation and operational qualification.
Can axial and radial dies be interchanged without realignment?

Yes—the modular die carrier system maintains concentricity and axial alignment within ±5 µm tolerance across all die configurations, eliminating recalibration.
