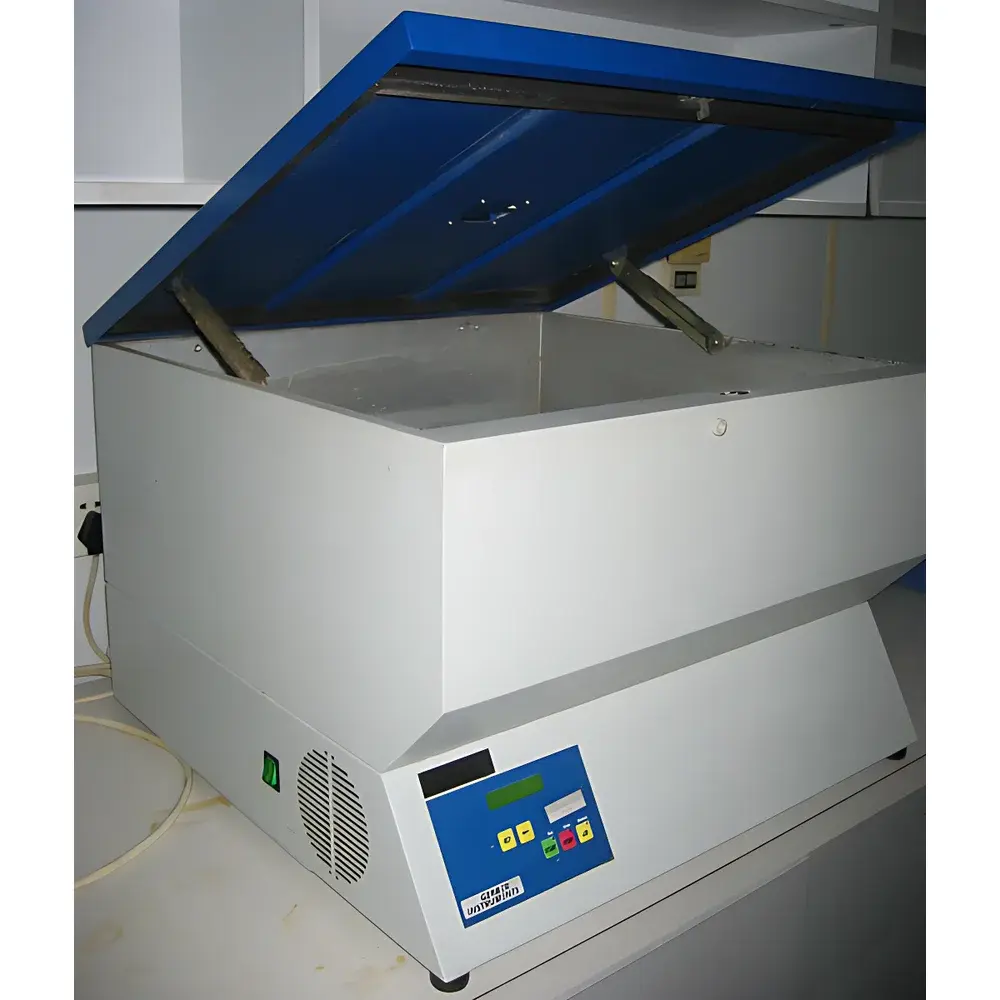

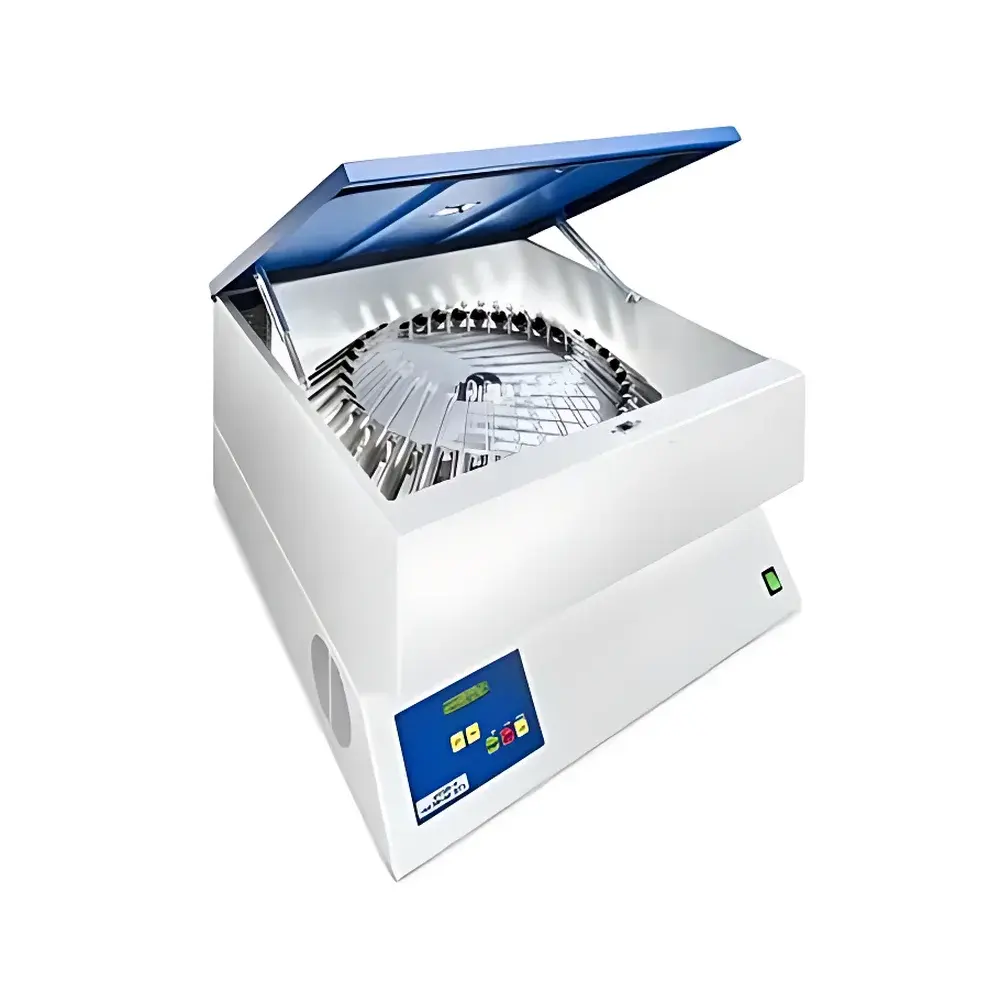

GERBER Universal Gerber Centrifuge
| Brand | GERBER |
|---|---|
| Origin | Switzerland |
| Model | Universal |
| Speed Range | 200–1100 rpm (fixed 1300 rpm option available) |
| Temperature Control | Up to 65 °C (heating only) |
| Timer Range | 0–255 minutes |
| Sample Capacity | 12 positions for Mohr and solubility methods |
| Method Selection | Gerber, Mohr, Babcock, and solubility methods |
| Safety Features | Automatic lid lock, electronic braking, imbalance detection and auto-shutdown |
| Compliance | Designed for routine dairy and food quality control per ISO 8570, IDF 128, AOAC 920.132, and FDA Grade A standards |
Overview
The GERBER Universal Gerber Centrifuge is a precision-engineered, thermally regulated centrifugal analyzer purpose-built for standardized fat, protein, lactose, and solubility determinations in dairy and liquid food matrices. Operating on the principle of differential sedimentation under controlled rotational force and thermal conditioning, it enables reproducible separation of cream, casein, or insoluble residues from homogenized milk, cream, whey, infant formula, and plant-based beverages. Unlike general-purpose centrifuges, the Universal model integrates method-specific rotor geometry, calibrated temperature profiles, and timed acceleration/deceleration protocols aligned with internationally recognized reference procedures—including the Gerber method (ISO 8570), Mohr method (IDF 128), Babcock method (AOAC 920.132), and solubility index assays (ISO 8571). Its fixed-angle, aluminum-alloy rotor is designed to maintain consistent g-force distribution across all 12 sample positions during simultaneous processing—critical for inter-laboratory comparability and regulatory audit readiness.
Key Features
- Multi-method platform supporting Gerber (fat), Mohr (protein), Babcock (fat in cream), and solubility index protocols without hardware modification
- Thermally stabilized chamber with PID-controlled heating element (max 65 °C), ensuring precise incubation prior to and during centrifugation for optimal phase separation
- Adjustable speed range from 200 to 1100 rpm, with an additional fixed 1300 rpm setting optimized for rapid Babcock-type separations
- Digital timer with 1-second resolution, programmable from 0 to 255 minutes—enabling full compliance with method-specified dwell times
- Integrated safety architecture: electromagnetic lid interlock, dynamic imbalance sensing (±2 g threshold), and regenerative electronic braking that halts rotation within <8 seconds
- Corrosion-resistant stainless-steel housing and anodized aluminum rotor compatible with common dairy reagents (sulfuric acid, amyl alcohol, potassium hydroxide)
Sample Compatibility & Compliance
The GERBER Universal accommodates standard Gerber butyrometers (10–11 mL), Mohr tubes (15 mL), Babcock flasks (17.6 mL), and solubility test cylinders (25 mL) in dedicated rotor inserts. It meets mechanical and procedural requirements of ISO/IEC 17025-accredited laboratories performing routine dairy testing under GLP conditions. Instrument validation documentation supports traceability to NIST-traceable torque and temperature standards. The system is routinely deployed in facilities subject to USDA AMS, EU Regulation (EC) No 853/2004, and FDA Grade A Milk Program inspections—where adherence to defined centrifugation parameters directly impacts product release decisions.
Software & Data Management
While the Universal operates via intuitive front-panel controls (no embedded OS), it supports external data capture through optional RS-232 or USB-to-serial interfaces. Laboratory Information Management Systems (LIMS) can log run parameters—including speed, temperature, duration, method ID, and operator code—via ASCII protocol. Audit trails comply with FDA 21 CFR Part 11 when paired with validated third-party data acquisition software. All method configurations are stored in non-volatile memory, retaining settings after power cycles and eliminating recalibration between shifts.
Applications
- Routine fat quantification in raw milk, pasteurized milk, UHT milk, and flavored dairy beverages per Gerber or Babcock protocols
- Casein and total protein determination in skim milk powder and whey protein concentrates using the Mohr method
- Solubility index assessment of instantized milk powders and nutritional blends (ISO 8571)
- Quality control of cream, butter oil, and condensed milk products during production and incoming raw material inspection
- Method transfer and proficiency testing across multi-site dairy cooperatives requiring harmonized centrifugation conditions
FAQ
Is the GERBER Universal compliant with ISO 8570 for Gerber fat testing?
Yes—the instrument’s speed accuracy (±10 rpm), temperature stability (±1.5 °C at 65 °C), and rotor geometry have been verified against ISO 8570 Annex B requirements.
Can the same rotor be used for both Gerber and Mohr methods?
Yes—interchangeable rotor inserts accommodate both 10-mL butyrometers and 15-mL Mohr tubes without tooling changes.
Does the system support GLP-compliant electronic recordkeeping?
When integrated with validated LIMS or data acquisition software, it supports full electronic signatures, change history, and audit trail generation per 21 CFR Part 11.
What maintenance is required to sustain calibration integrity?
Annual verification of rotational speed (with certified tachometer), temperature uniformity (using calibrated probe array), and brake response time is recommended per GERBER Service Bulletin SB-UNI-2023.
Is the 1300 rpm setting validated for official testing?
The 1300 rpm mode is intended for internal process optimization and rapid screening; official reporting must use the method-specified speeds defined in ISO, IDF, or AOAC references.
