Gerhardt Vapodest 200 Automated Kjeldahl Distillation System

Overview

The Gerhardt Vapodest 200 is a fully automated, programmable steam distillation system engineered for high-precision Kjeldahl nitrogen analysis in compliance with ISO 8968, AOAC 981.10, and ASTM D1122–22. It operates on the principle of controlled steam distillation—where alkaline-treated digests are subjected to precisely regulated steam flow to liberate ammonia, which is subsequently trapped in boric acid and quantified via titration. Designed for integration into routine quality control and research laboratories, the Vapodest 200 delivers reproducible, traceable, and auditable distillation performance across diverse matrices including cereals, dairy products, feedstuffs, soils, environmental waters, pharmaceuticals, and chemical intermediates. Its microprocessor-controlled architecture ensures deterministic timing, pressure modulation, and reagent dosing—eliminating operator variability while maintaining full alignment with GLP and GMP documentation requirements.

Key Features

• Programmable steam generation with adjustable output (10–100% capacity), enabling optimization for volatile analytes such as ethanol, formaldehyde, volatile fatty acids, phenols, sulfur compounds, and SO₂.
• Automated alkali addition via precision metering pump—calibrated for consistent NaOH or NaOCH₃ delivery to 250/400/800 mL digestion tubes or 250/500/750 mL wide-neck Kjeldahl flasks.
• Steam standby mode with thermal overprotection and real-time pressure regulation—ensuring stable vapor supply without thermal shock or condensate carryover.

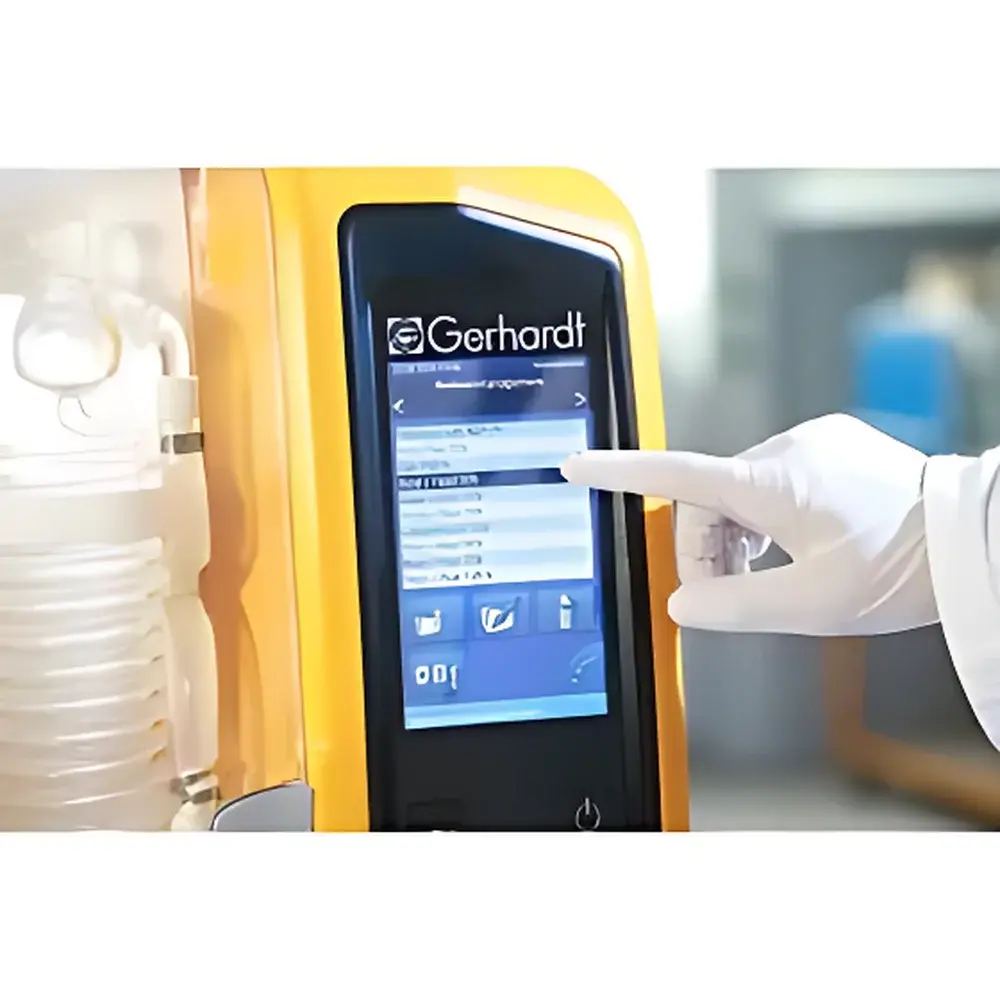

• Integrated LCD interface with step-by-step visual workflow guidance, audible/visual fault alerts (e.g., low coolant, blocked condenser, insufficient alkali), and password-protected method storage for up to 20 user-defined programs.
• Corrosion-resistant polymer housing and modular glass/plastic distillation heads—designed for long-term exposure to aggressive alkaline vapors and acidic condensates.
• Compliant with EN ISO 9001:2000 throughout design, manufacturing, and final inspection—certified for CE marking under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD).

Sample Compatibility & Compliance

The Vapodest 200 accommodates standard Kjeldahl digestion vessels—including Gerhardt KB, CSB, and SMA series digesters—and supports both colorimetric and potentiometric endpoint detection. It meets critical regulatory expectations for method validation: recovery rates exceed 99.5% across certified reference materials (e.g., BCR-211, NIST SRM 8414), repeatability remains ≤±1% RSD at 1–10 mg N levels, and detection capability extends to 0.1 mg N per sample. The system is routinely deployed in laboratories subject to FDA 21 CFR Part 11 requirements when paired with compliant titration modules featuring electronic signature, audit trail, and data integrity controls. All operational parameters—including steam duration, alkali volume, delay intervals, and pressure setpoints—are configurable, logged, and exportable in CSV format for internal QA review or external accreditation audits (e.g., ISO/IEC 17025).

Software & Data Management

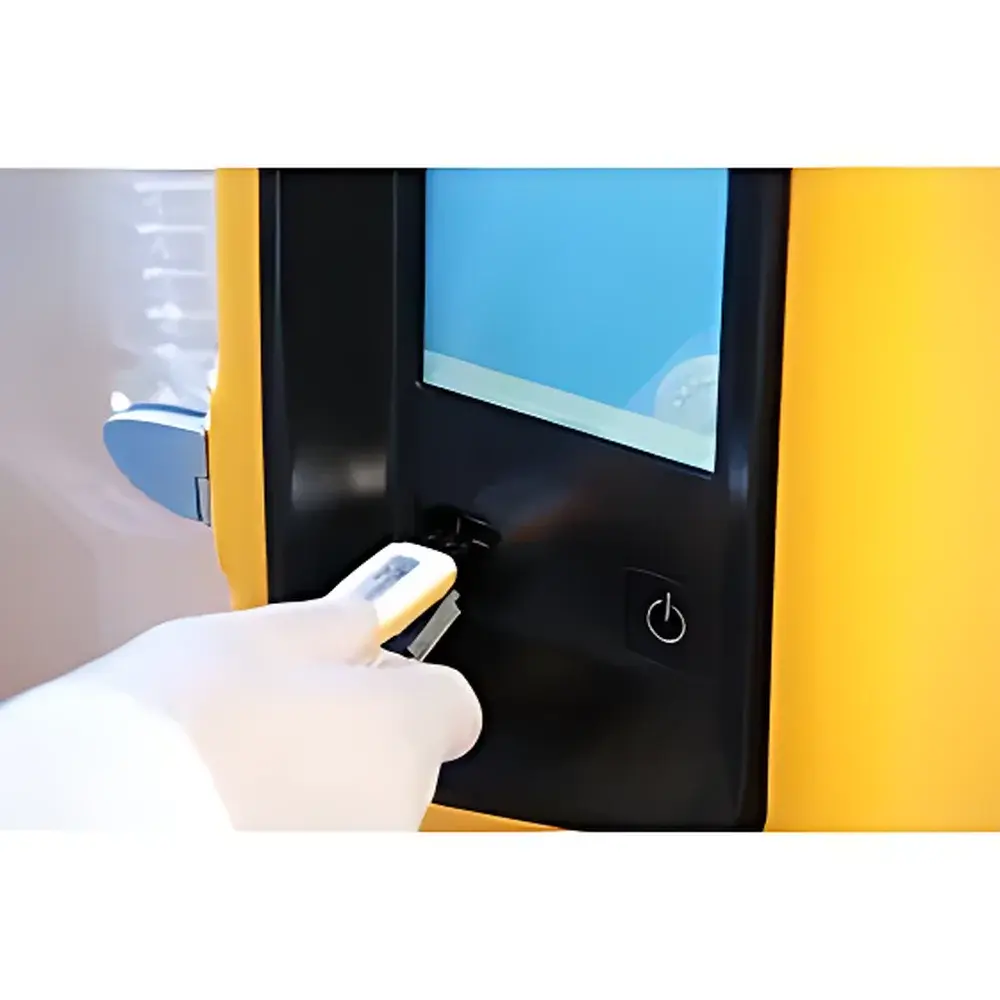

While the Vapodest 200 operates as a standalone distillation unit, its embedded firmware supports seamless integration with third-party titration systems (e.g., Metrohm 905 Titrando, Hanna HI902C) via RS-232 or USB virtual COM port. Method files store complete distillation profiles—including ramp times, hold phases, and safety interlock thresholds—with timestamped execution logs retained in non-volatile memory. Data export functions comply with LIMS-ready formats; no proprietary software installation is required. For laboratories implementing full Kjeldahl workflows, Gerhardt offers optional connectivity kits enabling bidirectional communication between digestion, distillation, and titration modules—supporting automated result calculation, uncertainty propagation per GUM guidelines, and electronic batch record generation aligned with Annex 11 principles.

Applications

The Vapodest 200 is validated for quantitative determination of total nitrogen, crude protein (×6.25), true protein, non-protein nitrogen, ammoniacal nitrogen, nitrate/nitrite-derived nitrogen, and volatile basic nitrogen (VBN). Beyond nitrogen, it performs standardized steam distillations for volatile acidity (AOAC 942.05), formaldehyde (ISO 1442), sulfides (APHA 4500-S²⁻), phenols (ISO 6439), sulfur dioxide (AOAC 990.28), and ethanol (OIV-MA-AS313-01A). Its adaptive steam control makes it especially suitable for alcohol distillation where optimal steam saturation (~70%) minimizes co-distillation artifacts—a requirement specified in OIV and EU Regulation No. 1308/2013 for wine authenticity testing.

FAQ

What digestion systems are compatible with the Vapodest 200?
The Vapodest 200 interfaces directly with Gerhardt KB, CSB, and SMA digestion units, as well as standard 250/400/800 mL digestion tubes and 250/500/750 mL wide-neck Kjeldahl flasks.
Does the system support GLP-compliant data handling?
Yes—when integrated with validated titration hardware supporting 21 CFR Part 11, the Vapodest 200 contributes to full audit trails, electronic signatures, and secure data archiving.
Can steam pressure be adjusted during distillation?
Yes—steam output is continuously tunable from 10% to 100% via software, allowing dynamic adjustment for multi-analyte protocols or matrix-specific optimization.
What cooling water specifications are required?
Minimum flow rate: 2 L/min; maximum allowable: 5 L/min. The system includes flow-sensor-based interlocks to halt operation if coolant supply falls below threshold.
Is preventive maintenance documentation available?
Yes—Gerhardt provides bilingual (English/German) service manuals, calibration checklists, and spare parts catalogs covering all consumables, including steam generator elements, condenser gaskets, and alkali pump tubing.
