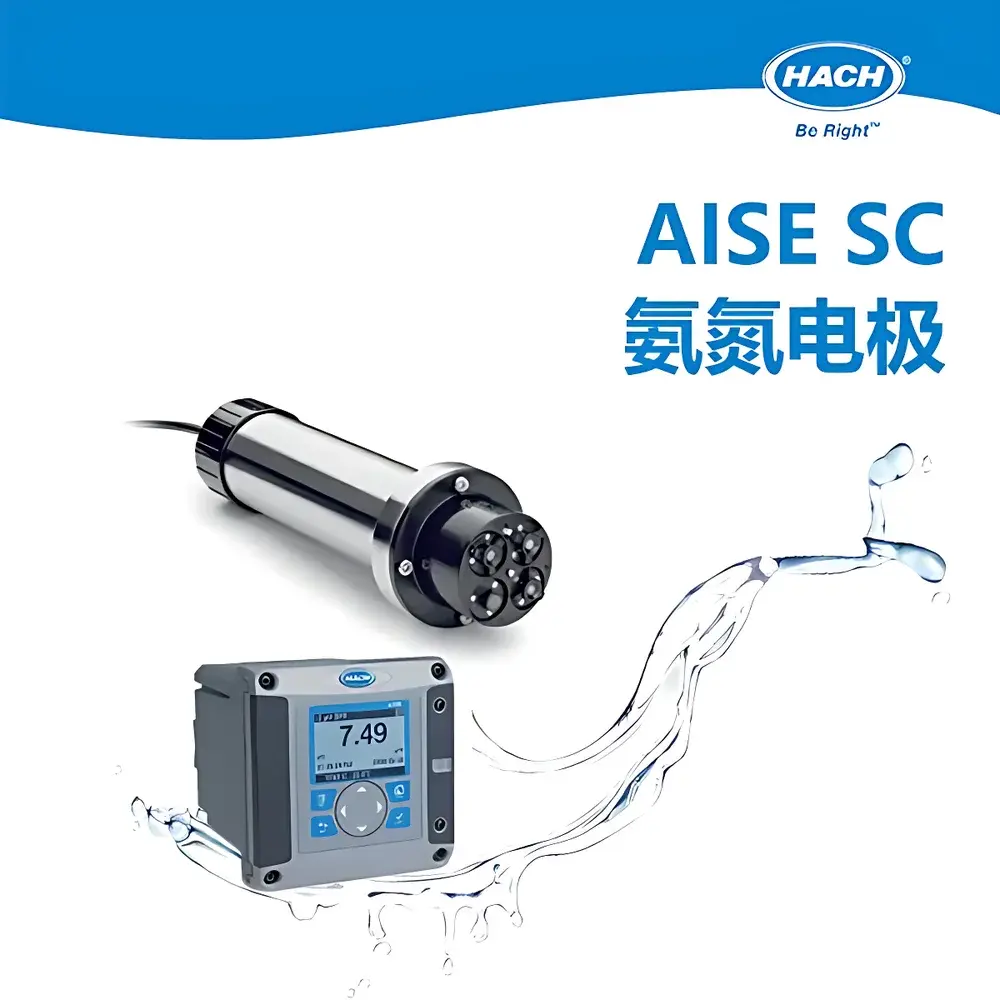

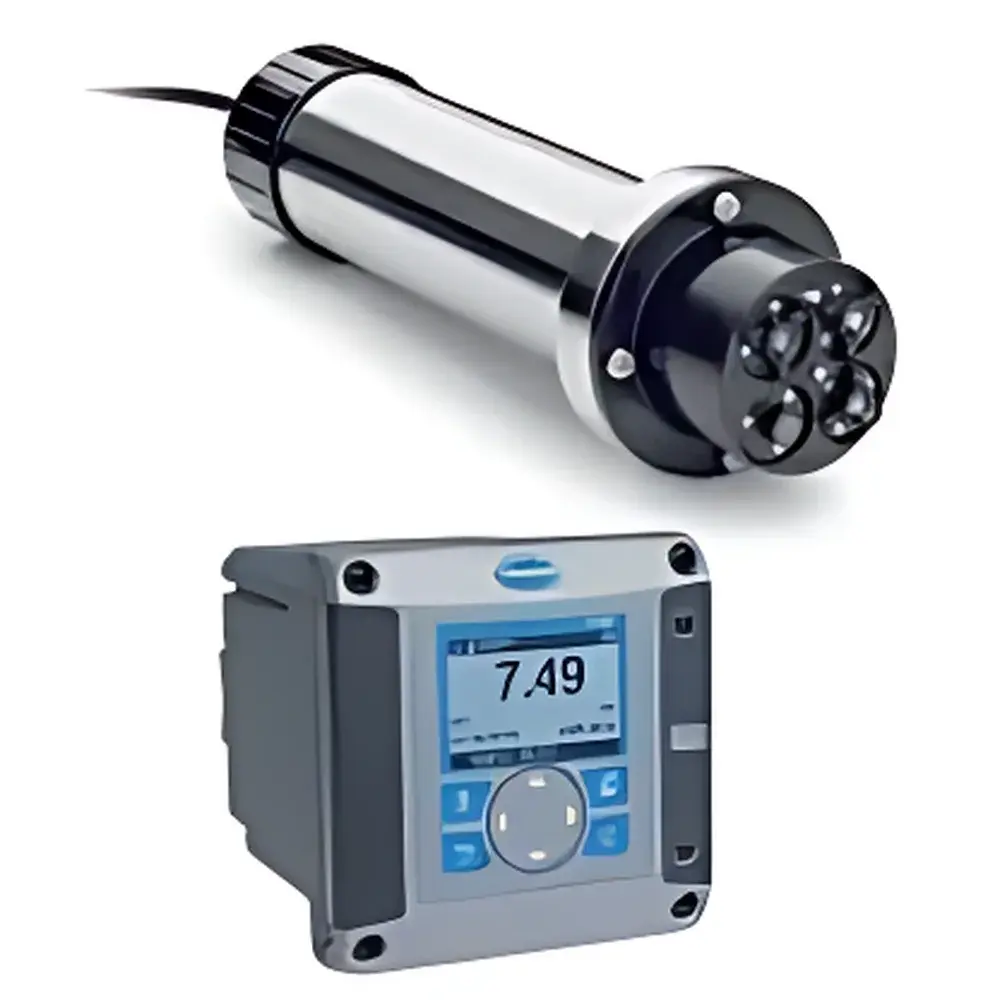

HACH AISE sc Ammonia Nitrogen Analyzer

Overview

The HACH AISE sc Ammonia Nitrogen Analyzer is an online, continuous-monitoring instrument engineered for reliable quantification of ammonium-nitrogen (NH₄–N) in municipal and industrial wastewater streams. It operates on the ion-selective electrode (ISE) principle—specifically utilizing a potassium-selective electrode (K⁺-ISE) in conjunction with a pH reference electrode and integrated temperature sensor within a single, field-replaceable CARTRICAL™ cartridge. This tri-electrode architecture enables real-time compensation for ionic strength, pH drift, and thermal variation—critical variables that otherwise degrade accuracy in conventional ammonia ISE systems. Unlike colorimetric or enzymatic methods, the AISE sc delivers stable, interference-resistant measurements without reagents, sample digestion, or chemical conditioning. Its design targets demanding applications including nitrification control in activated sludge aeration basins, effluent compliance monitoring, and industrial discharge surveillance where regulatory limits—such as those stipulating ≤30% industrial contribution to municipal influent—require traceable, auditable data.

Key Features

• Integrated CARTRICAL™ sensor cartridge housing K⁺-selective electrode, pH reference electrode, and PT1000 temperature sensor—enabling cross-parameter correction and eliminating inter-electrode calibration drift.
• Proprietary matrix calibration algorithm automatically compensates for common interferents (e.g., Na⁺, Ca²⁺, Mg²⁺) without manual intervention or secondary ion measurement.
• No sample pre-treatment required: direct immersion or flow-cell installation supports unattended 24/7 operation under variable turbidity, suspended solids, and organic load conditions.
• Durable hydrophobic membrane coating extends sensor service life in abrasive or biofouling-prone environments—validated through accelerated aging tests per ASTM D7263.
• Fully compatible with HACH’s digital SC series controllers (e.g., SC200, SC1000), supporting Modbus TCP, Ethernet/IP, and HART 7 for seamless integration into SCADA and DCS architectures.
• Optional automated mechanical cleaning module (pneumatic wiper or ultrasonic transducer) reduces maintenance frequency by up to 70% compared to manual cleaning protocols.

Sample Compatibility & Compliance

The AISE sc analyzer is validated for use in raw sewage, secondary effluent, nitrification basin return streams, and mixed liquor—with demonstrated stability across pH 6.0–9.0 and conductivity ranges of 0.5–20 mS/cm. It meets performance criteria outlined in ISO 15683:2022 (Water quality — Determination of ammonium — Potentiometric method using ion-selective electrodes) and supports compliance reporting under EPA Method 350.1 (Ammonia—Ion Selective Electrode). Data integrity conforms to FDA 21 CFR Part 11 requirements when deployed with SC1000 controllers featuring audit-trail-enabled firmware and electronic signature capability. The system supports GLP/GMP-aligned operational qualification (OQ) documentation templates for regulated facilities.

Software & Data Management

Firmware-driven diagnostics continuously monitor electrode impedance, slope stability, and membrane hydration status—triggering predictive maintenance alerts via SC platform event logs. All calibration events, drift corrections, and raw sensor outputs are timestamped and stored locally with ≥30 days of high-resolution history (1-min intervals). Data export supports CSV, PDF report generation, and OPC UA integration for enterprise-level LIMS or MES synchronization. Remote configuration and firmware updates are performed over secure TLS 1.2 connections, preserving cybersecurity posture per IEC 62443-3-3 Level 2 guidelines.

Applications

• Nitrification process control in municipal wastewater treatment plants—optimizing DO setpoints and carbon dosing based on real-time NH₄–N depletion kinetics.
• Industrial pretreatment monitoring at POTW (Publicly Owned Treatment Works) influent points to enforce 30% industrial flow contribution thresholds.
• Effluent compliance verification for NPDES permits requiring sub-1.0 mg/L NH₄–N reporting with documented uncertainty budgets.
• Biological nutrient removal (BNR) system troubleshooting—correlating NH₄–N transients with ORP and nitrate trends to diagnose denitrification bottlenecks.
• Recycled water reuse schemes where ammonia speciation impacts chloramine residual stability and DBP formation potential.

FAQ

Does the AISE sc require daily calibration?
No—matrix-based auto-compensation and stable CARTRICAL™ electrode chemistry enable calibration intervals of 7–14 days under typical wastewater conditions; extended intervals (up to 30 days) are achievable with automated cleaning and low-fouling installations.
Can it measure total ammonia (NH₃ + NH₄⁺) or only ammonium-nitrogen (NH₄–N)?
It reports NH₄–N concentration directly; total ammonia can be inferred using simultaneous pH and temperature inputs via Nernst equation conversion—functionality embedded in SC controller firmware.
Is the sensor compatible with hydrogen sulfide (H₂S)-rich environments?
Yes—the hydrophobic membrane and silver/silver chloride reference system resist sulfide poisoning; however, continuous exposure >2 mg/L H₂S may reduce K⁺-ISE lifetime—recommended mitigation includes upstream aeration or periodic sensor regeneration.
What validation documentation is provided for regulatory submissions?
HACH supplies IQ/OQ protocols, metrological traceability statements (NIST-traceable standards), and method validation reports aligned with ISO/IEC 17025 accredited testing laboratories.
