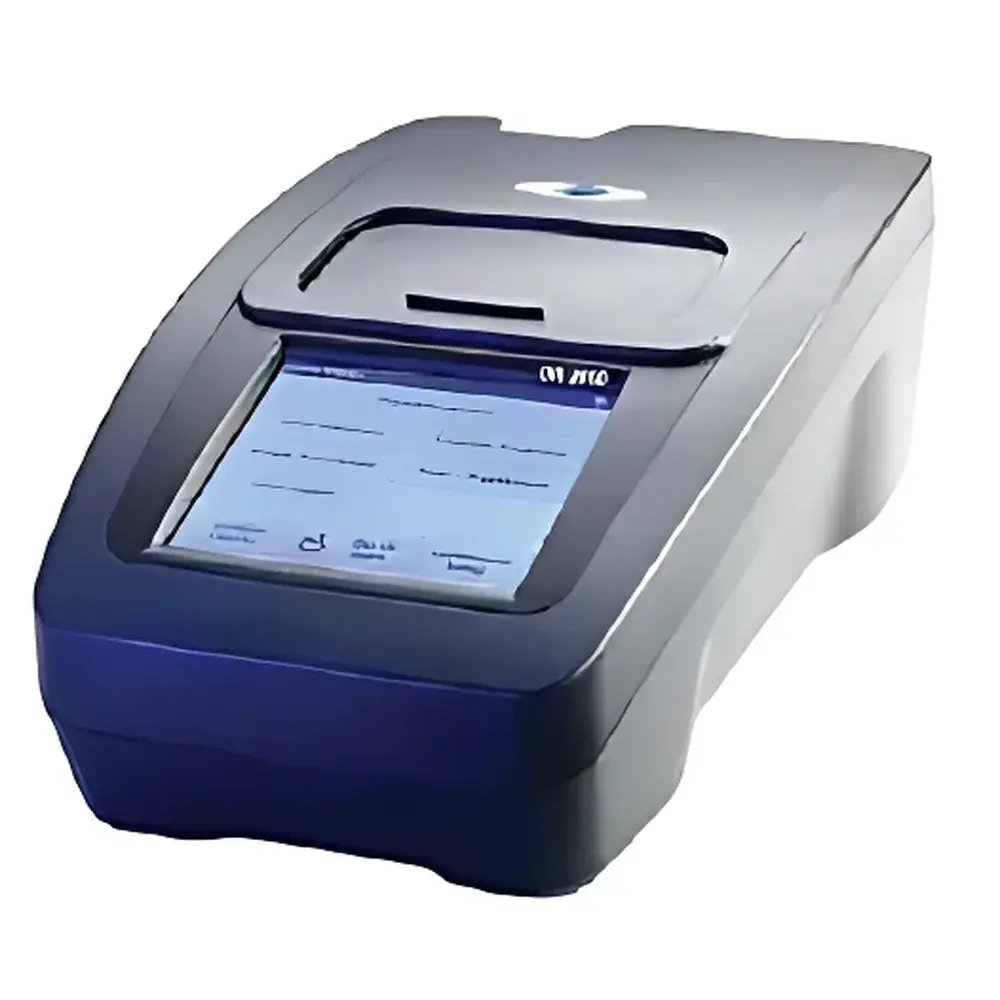

Hach DR2800 Portable Spectrophotometer

Overview

The Hach DR2800 Portable Spectrophotometer is a dual-role photometric analyzer engineered for high-precision, method-standardized water quality testing in both laboratory and field-deployed environments. It operates on the principle of absorbance photometry—measuring light attenuation at specific wavelengths following chemical reaction with analyte-specific reagents. Its optical architecture features a tungsten-halogen light source and a monochromator system delivering precise wavelength selection across a broad spectral range (340–900 nm) with 5 nm bandwidth, ensuring compliance with classical colorimetric methodologies defined in ASTM D1293, ISO 7027, USP , and EPA-approved methods for nutrients, metals, disinfectants, and organic indicators. Designed to meet GLP and routine QC requirements, the DR2800 supports traceable, repeatable measurements without manual wavelength setup—each test method triggers automatic wavelength selection, zeroing, and blank correction.

Key Features

• Touchscreen interface with intuitive, icon-driven navigation and bilingual (English/Chinese) menu options—optimized for rapid method selection and real-time data entry.
• Integrated barcode recognition system that automatically identifies Hach TNTplus® reagent vials, loads corresponding calibration curves, and configures measurement parameters—eliminating manual method selection errors.
• Dual power architecture: rechargeable lithium-ion battery (enabling >8 hours continuous operation in field mode) and universal AC adapter (100–240 V, 47–63 Hz) with interchangeable plug adapters for global deployment.
• Modular optical path design with three standardized adapters (A/B/C types) supporting diverse sample vessels—including 10 mL square cuvettes, multi-path flow cells, 1-inch round vials, and sealed ampoules—ensuring compatibility with Hach’s full portfolio of certified reagent systems.
• Onboard data management: stores up to 500 test records with timestamp, operator ID, sample name, method ID, raw absorbance values, and final concentration results—all exportable via USB 1.1 to standard PCs using Hach’s DataStream™ software or generic spreadsheet tools.
• Self-diagnostic optics and auto-wavelength calibration ensure long-term photometric stability; no external calibration standards required for routine verification.

Sample Compatibility & Compliance

The DR2800 is validated for use with over 240 Hach-certified colorimetric methods covering critical water quality parameters including but not limited to: ammonia (Nesslerization and salicylate), nitrate/nitrite (cadmium reduction and diazotization), phosphate (ascorbic acid reduction), chlorine (DPD), silica (molybdate blue), iron (1,10-phenanthroline), manganese (periodate oxidation), and total hardness (calmagite). All methods are aligned with U.S. EPA, APHA Standard Methods (23rd ed.), ISO, and ASTM protocols. The instrument meets IEC 61010-1 safety requirements for laboratory equipment and is designed to support audit-ready workflows under FDA 21 CFR Part 11 when used with compliant data handling procedures and electronic signature controls.

Software & Data Management

Data capture and transfer are streamlined through native USB 1.1 connectivity—no drivers required for Windows/macOS/Linux systems. Test results export as CSV or XML files compatible with LIMS integration, Excel analysis, or regulatory reporting templates. Firmware updates are performed via USB flash drive, enabling seamless deployment of new methods or compliance patches without service visits. While the DR2800 does not include built-in network connectivity or cloud synchronization, its structured data format supports automated ingestion into enterprise QA/QC platforms. Audit trails (e.g., method changes, calibration events) are logged internally and retrievable alongside measurement records.

Applications

The DR2800 serves as a primary analytical tool across municipal wastewater treatment plants (for process control of nitrification/denitrification), drinking water distribution systems (residual chlorine and turbidity monitoring), industrial effluent compliance (heavy metal discharge verification), environmental field surveys (stream and groundwater nutrient profiling), and academic teaching laboratories (standard method validation and student training). Its ruggedized portability—housed in an impact-resistant carrying case with integrated storage for cuvettes, reagents, and adapters—makes it suitable for unattended operation in remote sampling stations or mobile lab vans.

FAQ

Does the DR2800 require annual factory calibration?
No—its self-calibrating optical system eliminates mandatory annual recalibration; however, users must perform daily blank verification and periodic performance checks per Hach Method Validation Guidelines.
Can third-party reagents be used with the DR2800?
Yes, but method accuracy and compliance cannot be guaranteed unless the reagent chemistry matches Hach’s certified reaction stoichiometry and spectral response profiles.
Is the DR2800 compliant with 21 CFR Part 11 for electronic records?
The instrument itself is not Part 11–validated out-of-the-box; however, when paired with appropriate procedural controls (e.g., password-protected user accounts, electronic signatures via external software, and secure audit log retention), it can be incorporated into a compliant data governance framework.
What is the expected lifetime of the rechargeable battery?
Under normal usage (2–3 field days per week), the Li-ion battery maintains ≥80% capacity for approximately 500 charge cycles (typically 2–3 years).
How are firmware updates distributed?
Hach releases firmware updates quarterly via its official support portal; updates are delivered as executable .bin files loaded directly from USB media—no internet connection required during installation.
