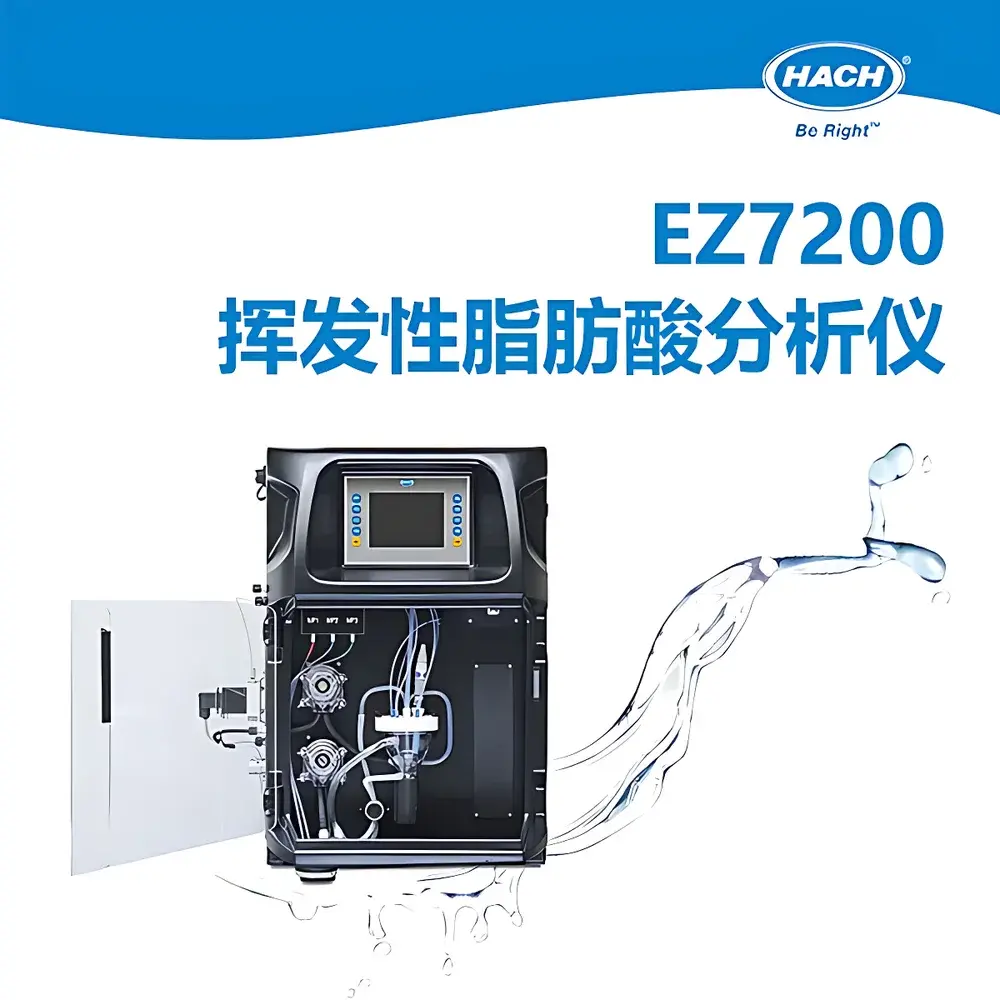

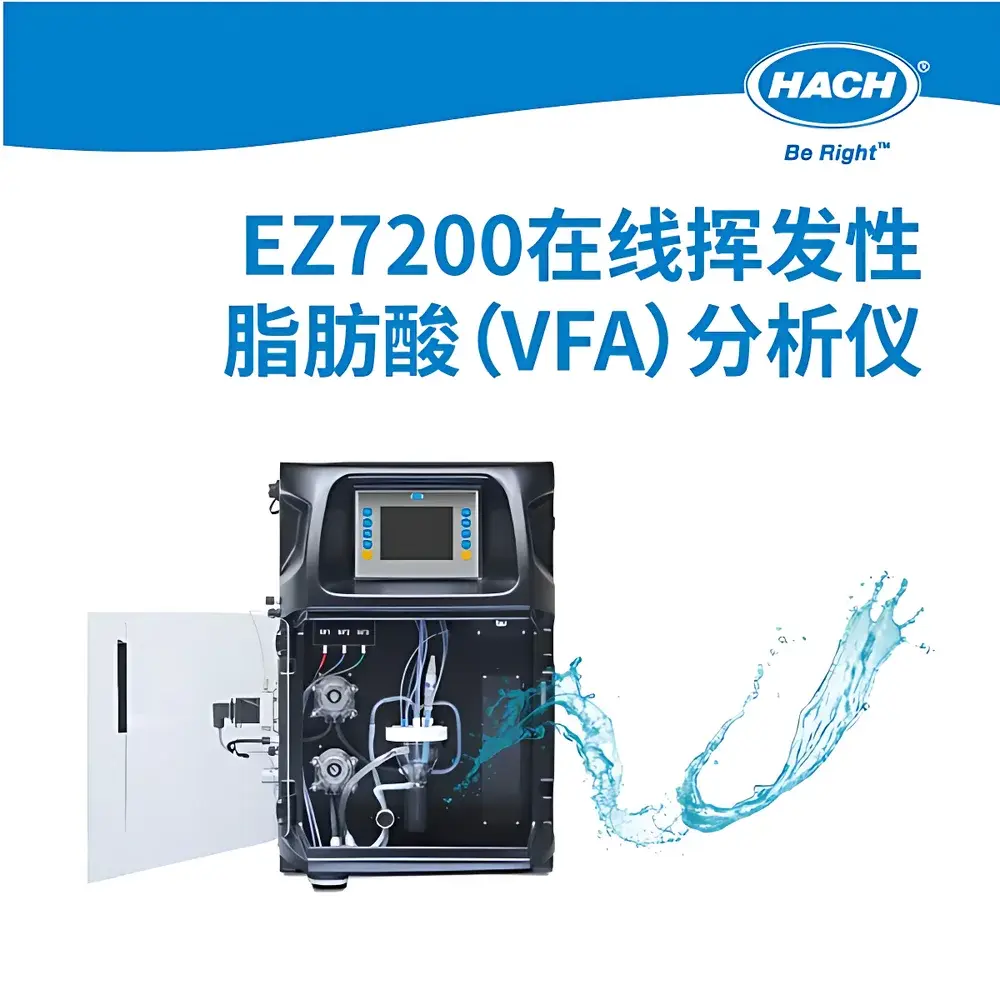

HACH EZ7200 Online Volatile Fatty Acids (VFA) Analyzer
| Brand | HACH |
|---|---|
| Origin | Imported |
| Manufacturer Status | Original Equipment Manufacturer (OEM) |
| Model | EZ7200.99001102 |
| Measurement Principle | Acid-Base Titration |
| Measured Parameters | Volatile Fatty Acids (VFAs), Bicarbonate, Total Alkalinity, Partial Alkalinity |
| Channel Capacity | Up to 8 Streams |
| Compliance | Designed for Continuous Process Monitoring in Anaerobic Digestion Systems |
| Application Scope | Wastewater Treatment Plants, Sludge Digestion Facilities, Pilot-Scale Anaerobic Reactors |
Overview
The HACH EZ7200 Online Volatile Fatty Acids (VFA) Analyzer is an industrial-grade, fully automated process analyzer engineered for continuous, real-time quantification of key acid-base equilibrium parameters in anaerobic digestion systems. It operates on a validated acid-base titration principle—specifically, potentiometric endpoint detection following controlled acid addition—to determine concentrations of volatile fatty acids (acetic, propionic, butyric, and valeric acids collectively), bicarbonate alkalinity, total alkalinity, and partial alkalinity. Unlike offline GC or enzymatic methods, the EZ7200 delivers representative, time-resolved data directly from process streams without sample dilution, filtration, or derivatization. Its deployment enables early detection of metabolic imbalances—such as VFA accumulation exceeding buffering capacity—thereby supporting proactive intervention before digester instability, pH collapse, or biogas yield reduction occurs. The system is purpose-built for integration into municipal and industrial wastewater treatment facilities where regulatory compliance, operational resilience, and energy recovery optimization are critical.
Key Features
- Automated acid-base titration with high-precision dosing pumps and calibrated glass pH electrodes for robust endpoint detection
- Multi-stream capability supporting up to eight independent process lines via programmable valve sequencing and shared reagent manifold
- Onboard calibration verification using certified standard solutions with automatic drift compensation and log-based audit trail
- Rugged, IP65-rated enclosure suitable for wet, corrosive environments typical of headspace zones near digesters and dewatering buildings
- Self-diagnostic routines for electrode health monitoring, tubing blockage detection, and reagent level tracking with configurable alarm thresholds
- Modular design enabling field-replaceable fluidic cartridges, minimizing downtime during routine maintenance
Sample Compatibility & Compliance
The EZ7200 accepts raw or clarified anaerobic digester liquor, centrate, and sidestream liquors within a temperature range of 5–40 °C and suspended solids content ≤ 15,000 mg/L (with optional inline filtration). It meets functional requirements aligned with ISO 11923 (water quality — determination of alkalinity by titration) and supports GLP-compliant operation through secure user authentication, electronic signature support, and 21 CFR Part 11–ready audit logs when connected to HACH’s INsite™ or third-party SCADA platforms. All wetted materials—including PTFE, borosilicate glass, and EPDM seals—are chemically resistant to organic acids, sulfides, and low-pH conditions encountered in unstable digesters.
Software & Data Management
The analyzer interfaces natively with HACH’s INsite™ Process Intelligence Platform via Modbus TCP or OPC UA, enabling centralized configuration, remote diagnostics, and historical trend visualization. Raw titration curves, calculated VFA concentrations (reported as mg/L as CH₃COOH), alkalinity profiles, and diagnostic flags are timestamped and stored locally (SD card) for ≥30 days and synchronized to enterprise historians. Data export complies with CSV and XML formats compatible with LIMS and asset management systems. Firmware updates are delivered over secure HTTPS, and all configuration changes are version-controlled with rollback capability.
Applications
- Early-warning monitoring of VFA/alkalinity ratio trends in full-scale mesophilic and thermophilic digesters
- Optimization of feedstock loading rates and co-digestion ratios in food waste or agricultural biogas plants
- Performance validation during commissioning and troubleshooting of new anaerobic membrane bioreactors (AnMBRs)
- Supporting regulatory reporting under EPA 40 CFR Part 503 (biosolids standards) and EU Directive 2000/76/EC for digestate quality assurance
- Integration with model-based control systems (e.g., IWA ADM1-derived controllers) for adaptive alkalinity dosing and biogas composition forecasting
FAQ
What sample pretreatment is required prior to analysis?
No filtration or centrifugation is needed for typical digester liquors; however, installations handling high-fiber or scum-laden streams may require optional 100 µm inline filtration.
Can the EZ7200 distinguish individual VFAs (e.g., acetate vs. propionate)?
No—it reports total VFA concentration expressed as acetic acid equivalent; speciation requires complementary techniques such as gas chromatography (GC-FID).
How frequently does the system perform calibration and maintenance?
Automatic daily zero-point verification is performed; full multi-point calibration is recommended weekly or after reagent replacement, with intervals adjustable based on site-specific validation protocols.
Is remote access supported for troubleshooting and parameter adjustment?
Yes—via secure VPN-enabled web interface or HACH Connect cloud service, with role-based permissions and session logging enabled by default.
