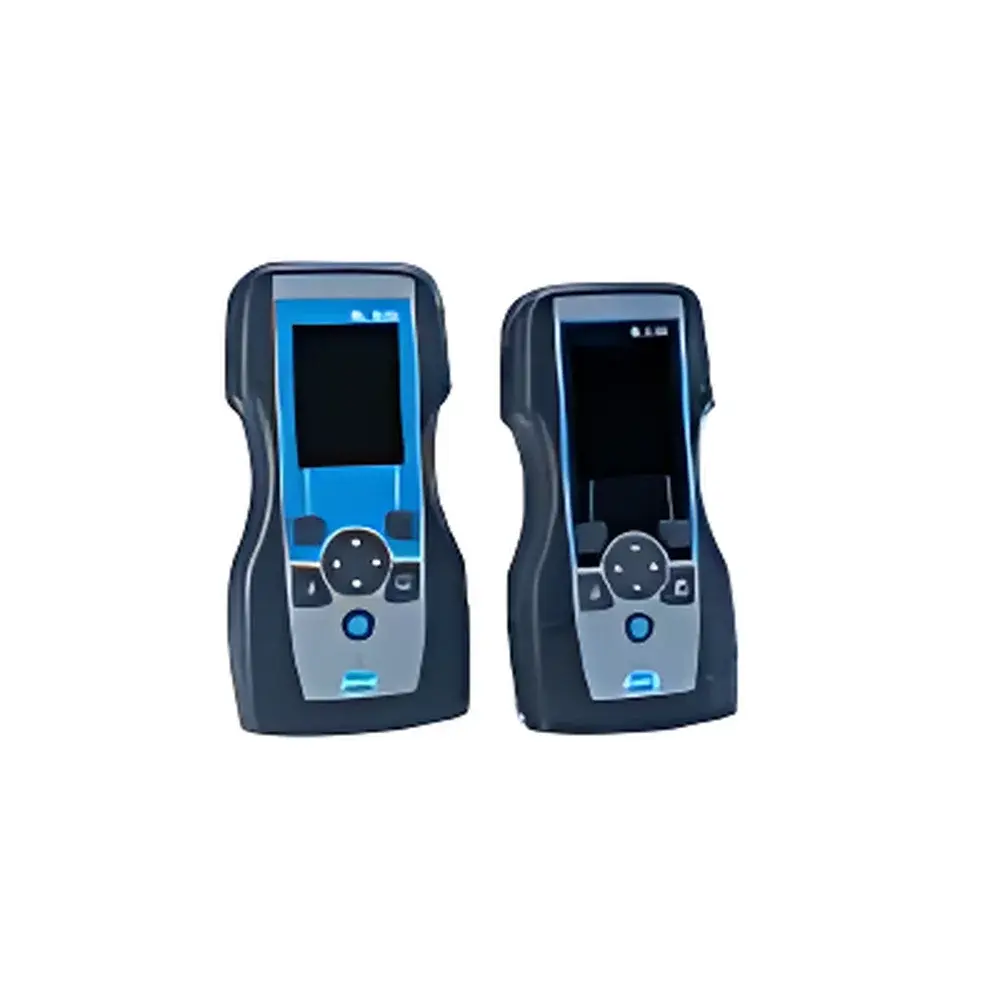

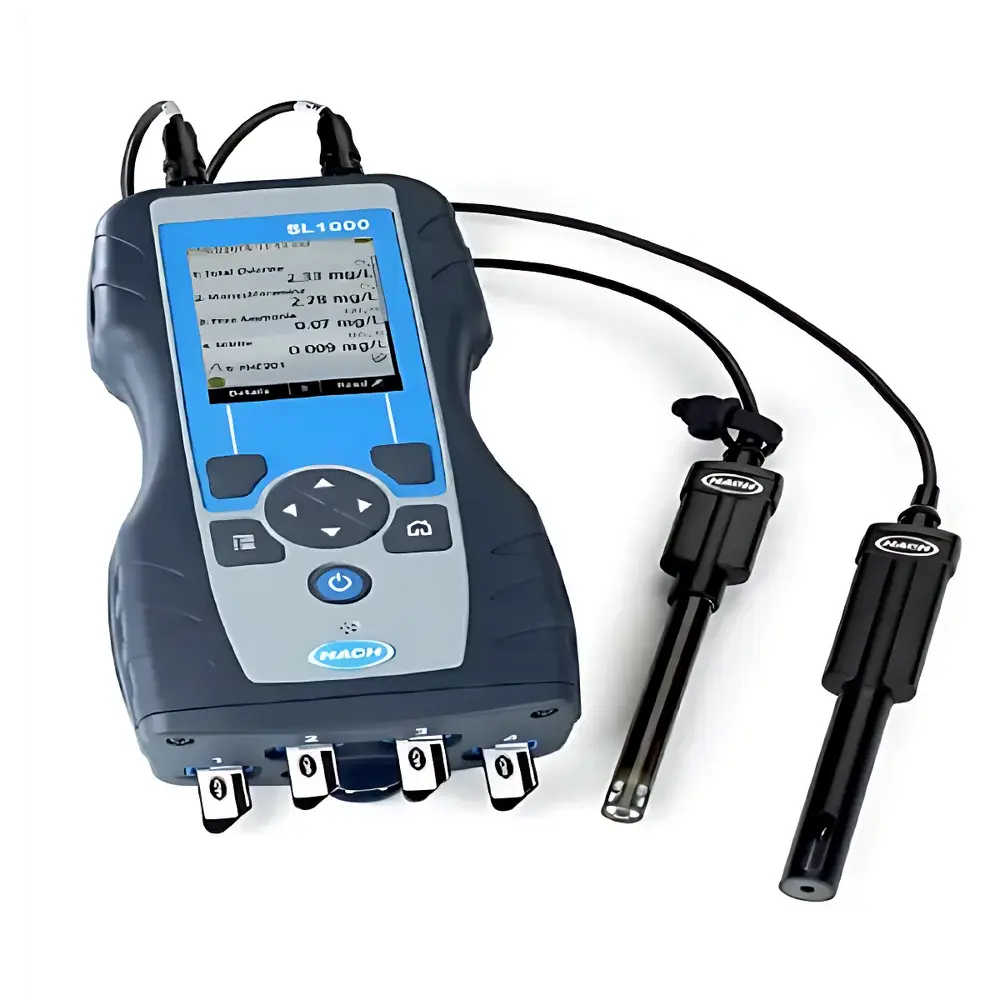

Hach SL1000/250 Portable Multi-Parameter Analyzer

Overview

The Hach SL1000/250 Portable Multi-Parameter Analyzer is an engineered solution for field-deployable and laboratory-based water quality assessment, integrating microfluidic cartridge-based chemistry (Chemkey® technology) with embedded electrochemical sensor modules. Designed around a dual-measurement architecture—colorimetric photometry and potentiometric/amperometric electrochemistry—the instrument enables concurrent analysis of up to six water quality parameters in a single sample aliquot. Its core measurement principle relies on precise microvolume fluid handling (<100 µL per test), pre-formulated reagent containment within disposable Chemkey® cartridges, and temperature-compensated optical detection (525–850 nm LED array) coupled with calibrated solid-state electrochemical transducers. This architecture eliminates manual reagent addition, volumetric dilution, and pipetting steps—primary sources of inter-operator variability in conventional wet-chemistry methods—thereby enhancing reproducibility and reducing total analytical time per sample to under 90 seconds for full six-parameter runs.

Key Features

• Simultaneous multi-parameter capability: Supports concurrent colorimetric and electrochemical measurements—including pH, conductivity, dissolved oxygen, temperature, and ISE-based ions—without hardware switching or module reconfiguration.
• Chemkey® microfluidic cartridge system: Each sealed, single-use cartridge contains all reagents, reaction chambers, and optical path components required for a defined parameter set; eliminates calibration drift from reagent aging and ensures lot-to-lot consistency traceable to NIST-traceable standards.
• Integrated environmental compensation: Real-time thermal equilibration of optical and electrochemical sensors via Peltier-controlled thermal management; automatic pressure and salinity compensation for DO and conductivity readings per ISO 5814 and ASTM D1129.
• Ruggedized portable design: IP67-rated enclosure with shock-absorbing polymer housing, 7-inch capacitive touchscreen interface, and internal rechargeable Li-ion battery supporting ≥12 hours of continuous operation at 25°C.
• Regulatory-ready data integrity: Full audit trail functionality compliant with FDA 21 CFR Part 11 requirements, including electronic signatures, user-level access control, and immutable timestamped result logs exportable in CSV, PDF, or XML formats.

Sample Compatibility & Compliance

The SL1000/250 accepts raw, filtered, or clarified aqueous samples across municipal drinking water, wastewater effluent, industrial process streams, and surface water matrices. Sample volume requirement is 10–15 mL per analysis cycle, compatible with standard 15–50 mL polypropylene vials. All Chemkey® cartridges are certified to meet ISO/IEC 17025:2017 method validation criteria for precision (RSD ≤3.5% at mid-range concentrations), accuracy (recovery 95–105% for spiked reference materials), and detection limit performance per EPA Method 334.0 (chlorine), EPA Method 350.1 (ammonia), and ISO 15839 (phosphate). The instrument platform is validated for GLP and GMP environments and supports routine IQ/OQ/PQ protocols aligned with ASTM D511, D1293, and D888.

Software & Data Management

Instrument control, method execution, and data review are managed through Hach’s proprietary Insight™ Software Suite (v4.2+), deployable on Windows 10/11 or as a cloud-hosted SaaS instance. The software enforces method-defined acceptance criteria (e.g., absorbance linearity thresholds, electrode response stability windows) and auto-rejects out-of-spec results with root-cause annotations. Raw sensor outputs, calibration histories, cartridge lot tracking, and operator metadata are stored in an encrypted SQLite database with optional synchronization to enterprise LIMS via HL7 or RESTful API. Firmware updates include cryptographic signature verification and rollback protection to maintain regulatory compliance continuity.

Applications

• Municipal water treatment: Rapid verification of disinfectant residuals (free/total chlorine, monochloramine) and corrosion indicators (copper, alkalinity, hardness) during distribution system monitoring.
• Wastewater compliance reporting: On-site determination of ammonia nitrogen, nitrite, phosphate, and DO for NPDES permit adherence and biological treatment optimization.
• Pharmaceutical facility utilities: Monitoring of purified water (PW) and water-for-injection (WFI) systems per USP and EU Annex 1 requirements using trace-metal–validated copper and iron cartridges.
• Food & beverage process control: Real-time peracetic acid quantification in CIP rinse validation and pH/conductivity trending for cleaning cycle endpoint detection.
• Environmental field surveys: Battery-powered deployment for lake, river, and groundwater characterization without dependency on AC power or external reagent storage.

FAQ

What regulatory standards does the SL1000/250 support for data integrity?

The instrument meets FDA 21 CFR Part 11 requirements for electronic records and signatures, including role-based user authentication, audit trail generation, and non-erasable result archiving.
Can Chemkey® cartridges be used beyond their printed expiration date?

No—cartridge shelf life is strictly enforced by firmware; expired lots are disabled upon insertion to ensure metrological validity and method compliance.
Is the SL1000/250 suitable for seawater or high-salinity samples?

Yes—conductivity and DO modules include automatic salinity compensation per ISO 7888 and ASTM D888; however, chloride interference in colorimetric chlorine assays requires sample dilution per Method 334.0.
How is calibration maintained across multiple field deployments?

Each cartridge contains factory-applied calibration curves verified against primary standards; no field recalibration is required unless sensor diagnostics indicate drift exceeding ±2% of full scale.
Does the analyzer support custom method development?

No—only pre-validated, Hach-certified Chemkey® methods are enabled; custom assay development is restricted to Hach’s Application Development Lab under ISO 17025 accreditation.
