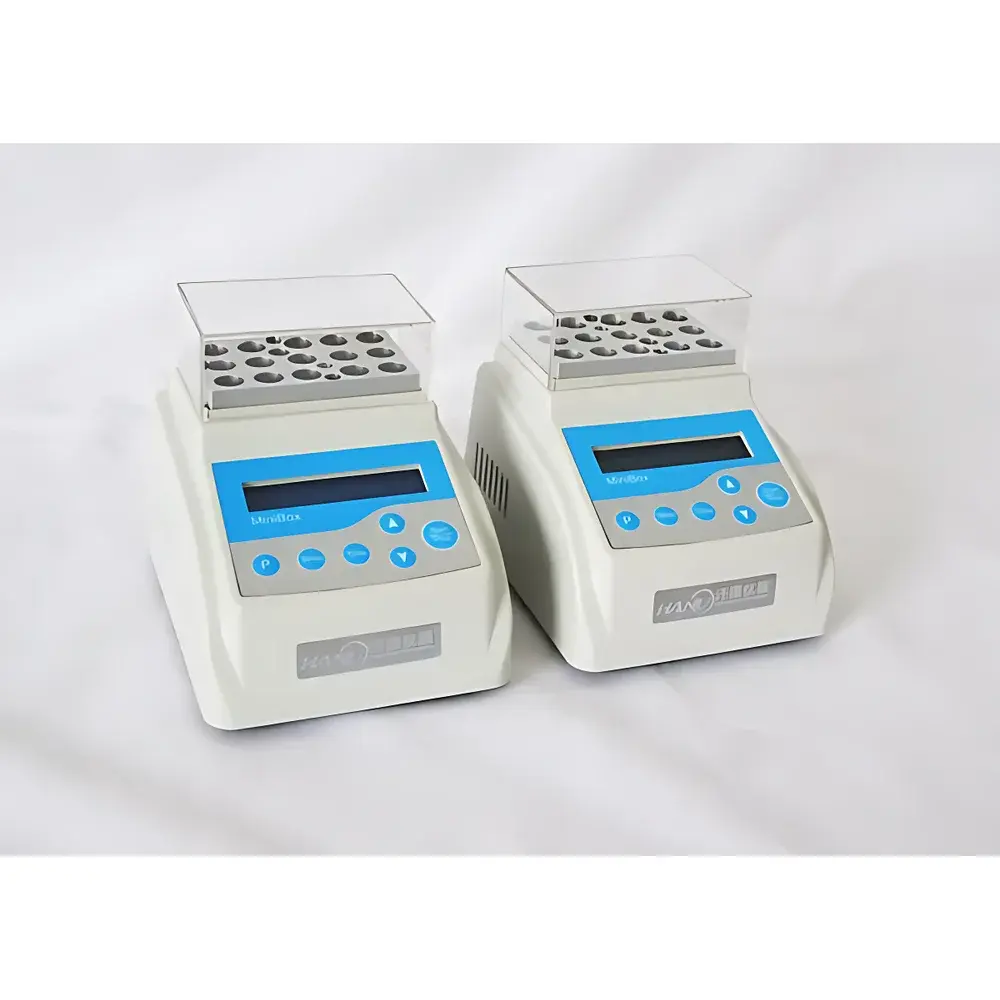

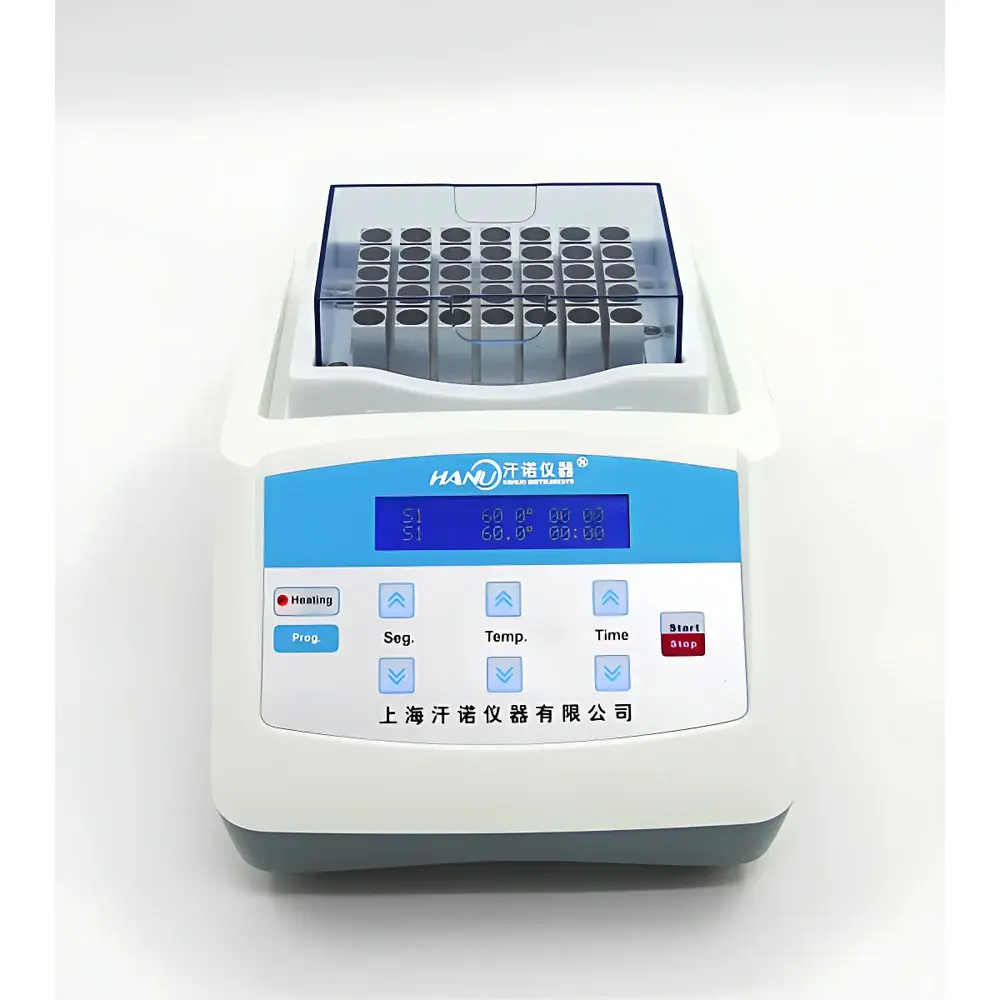

Hanuo MINIB-100 Mini Portable Metal Block Heater

Overview

The Hanuo MINIB-100 Mini Portable Metal Block Heater is a compact, microprocessor-controlled dry bath system engineered for precise and stable thermal incubation of small-volume samples in resource-constrained or mobile laboratory environments. Unlike water baths or circulating ovens, this device employs direct conductive heating via an aluminum heating block—ensuring rapid thermal response, minimal evaporation risk, and contamination-free operation. Its design adheres to fundamental principles of solid-state heat transfer, where temperature uniformity across the block surface is maintained through optimized thermal mass distribution and PID-controlled resistive heating elements. The unit operates exclusively on 24 V DC power, enabling seamless integration with vehicle power systems (e.g., 12 V car outlets via included DC-DC converter), field-deployable diagnostic kits, or battery-backed portable labs—making it especially suitable for point-of-care testing, environmental sampling, and academic fieldwork where AC infrastructure is unavailable.

Key Features

• Ultra-compact footprint (110 × 156 × 92 mm) and sub-1 kg mass—designed for benchtop portability, glove box integration, or transport in standard lab carry cases
• Dual digital display showing real-time block temperature (0.1°C resolution) and countdown timer (up to 99 h 59 min)
• Integrated safety architecture: automatic over-temperature cutoff at 105°C, self-diagnostic error detection, and audible alarm for fault conditions (e.g., sensor disconnect, thermal runaway)
• User-accessible temperature offset calibration function—enabling traceable adjustment against NIST-traceable reference thermometers per ISO/IEC 17025 laboratory requirements
• Modular block system with seven standardized interchangeable inserts (MINI-A through MINI-G), supporting common tube formats from 0.2 mL PCR strips to 50 mL conical tubes—facilitating rapid decontamination, autoclaving, and cross-application flexibility
• Low-noise, fanless convection design—eliminating airflow-induced sample disturbance and reducing electromagnetic interference in sensitive instrumentation setups

Sample Compatibility & Compliance

The MINIB-100 accommodates a wide range of sample containers without requiring consumables or fluid media. Compatible formats include thin-walled PCR tubes, microcentrifuge tubes (0.2–50 mL), cuvettes (8–12.5 mm pathlength), and custom-insert configurations upon request. All aluminum blocks are anodized for chemical resistance and ease of cleaning with ethanol, 70% isopropanol, or low-concentration sodium hypochlorite solutions. The device complies with IEC 61010-1:2010 safety standards for electrical equipment used in laboratory environments and meets RoHS Directive 2011/65/EU for hazardous substance restrictions. While not certified for medical device use under FDA 21 CFR Part 820, its temperature stability (±0.5°C at 100°C) and uniformity (≤±0.5°C across active zone) support routine QC/QA procedures aligned with CLSI EP10-A3 and ASTM E2875-22 guidelines for thermal performance verification.

Software & Data Management

The MINIB-100 operates as a standalone instrument with no embedded firmware update capability or USB/Bluetooth connectivity. All parameter settings—including target temperature, hold time, and calibration offset—are configured locally via tactile membrane buttons and retained in non-volatile memory during power cycling. For laboratories requiring audit-ready records, external data logging is supported using third-party thermocouple-based dataloggers (e.g., Omega OM-DAQPRO-5300 series) connected to the block’s auxiliary PT100 output port (available on optional configuration). This analog output enables compliance with GLP/GMP documentation requirements when paired with validated software platforms that enforce 21 CFR Part 11-compliant electronic signatures and audit trails.

Applications

• Enzyme reaction incubation (e.g., restriction digests, ligations, phosphatase treatments) at defined temperatures between ambient +5°C and 100°C
• Sample thawing and pre-warming of reagents prior to chromatographic injection or spectrophotometric analysis
• Controlled denaturation studies in molecular biology workflows, including DNA melting curve simulations
• Stabilization of temperature-sensitive standards during calibration of handheld pH meters or conductivity probes
• Mobile environmental testing—soil extract incubation, microbial enrichment, or field-based ELISA plate warming prior to colorimetric readout
• Teaching laboratories: demonstration of Arrhenius kinetics, enzyme thermal inactivation, and heat capacity concepts using reproducible, low-power hardware

FAQ

Is the MINIB-100 compatible with standard laboratory power supplies?
No—it requires a regulated 24 V DC input only. An AC/DC adapter (100–240 V AC input, 24 V DC output) is included; direct connection to mains voltage will damage the unit.

Can multiple modules be used simultaneously?
No—only one module can be installed at a time. Swapping modules takes less than 10 seconds and does not require tools.

What is the recommended recalibration interval?
Hanuo recommends annual verification using a calibrated reference thermometer traceable to national standards, particularly after mechanical shock or extended operation above 85°C.

Does the unit support ramp-and-hold temperature profiles?
No—it provides single-setpoint thermostatic control only. Programmable multi-step profiles require external controllers interfaced via the analog output.

Are replacement modules available separately?
Yes—all seven standard module types (MINI-A through MINI-G) are sold individually with part numbers listed in the official Hanuo technical datasheet v3.2 (2024).
