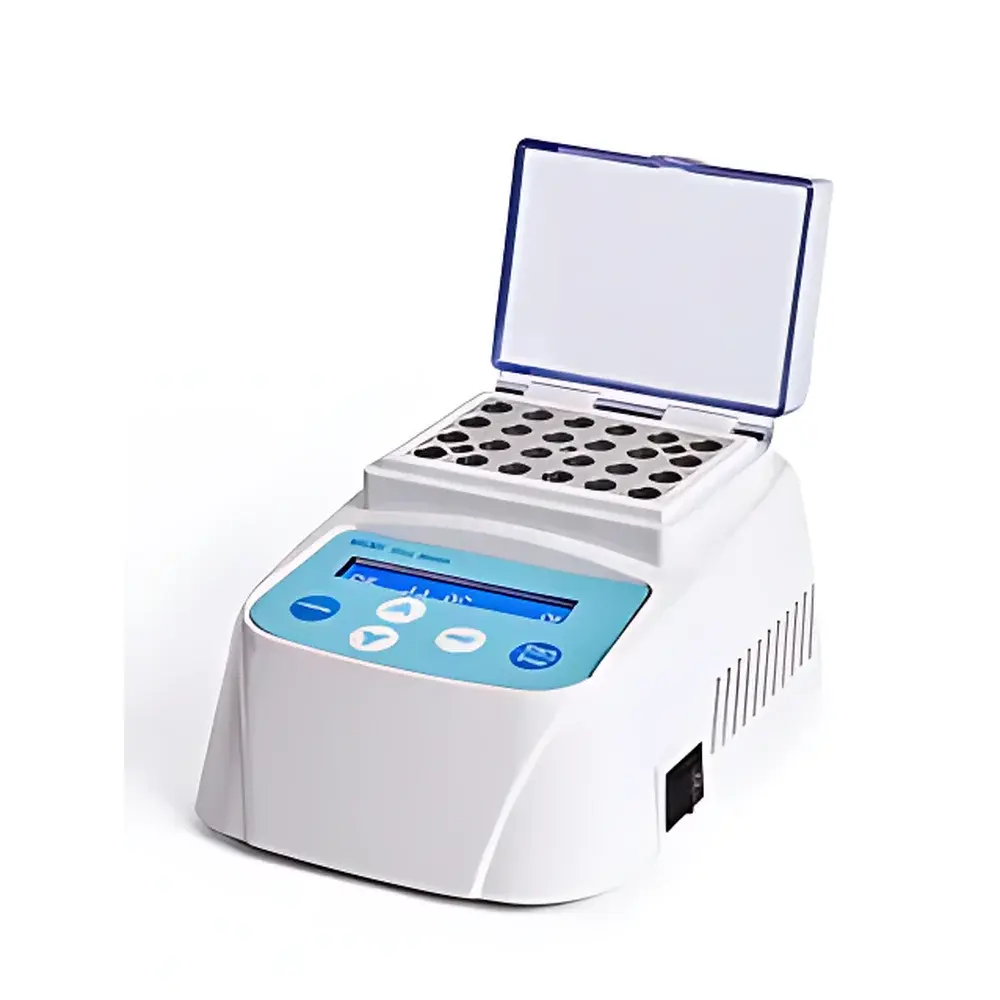

Hanuo MINIC-100I Refrigerated Metal Block Heater with Programmable Thermoelectric Heat Lid

Overview

The Hanuo MINIC-100I is a compact, thermoelectrically driven refrigerated metal block heater engineered for precise, bidirectional thermal control of biological and chemical samples in benchtop laboratory environments. Unlike conventional resistive-heating-only metal baths, the MINIC-100I integrates Peltier-based cooling and heating elements within a single aluminum alloy block, enabling stable operation across a full range of −10°C to 100°C. Its core architecture relies on high-gain PID feedback control, continuously monitoring block temperature via multiple calibrated platinum resistance sensors (PT1000) embedded beneath each module interface. This ensures rapid thermal equilibration, minimal overshoot, and long-term stability—critical for applications such as enzyme kinetics, nucleic acid hybridization, protein denaturation studies, and post-PCR hold protocols. The device features an independently controllable thermoelectric heat lid, adjustable from OFF to +10°C, which suppresses condensation during low-temperature incubation and prevents sample evaporation during extended high-temperature reactions.

Key Features

• Thermoelectric (Peltier) dual-mode operation: simultaneous heating and active cooling without compressors or refrigerants
• Programmable heat lid with independent temperature setpoint and ±0.5°C accuracy
• Multi-point sequential programming: up to five distinct temperature/time stages per protocol, repeatable for up to 99 cycles
• Four operational safety layers: hardware overtemperature cutoff (120°C), software thermal lockout, auto-recovery after power interruption, and configurable 4°C post-run hold
• Real-time display of block temperature, setpoint, elapsed time, remaining time, and heat lid status—all resolved to 0.1°C
• Modular interchangeability: ten standardized aluminum blocks (e.g., ESC-04 for 96-well PCR plates, ESC-05 for microtiter formats) with validated thermal uniformity ≤±0.3°C at 37°C
• Auto-preheat function minimizes ramp delay before protocol initiation; startup delay configurable from 0 to 60 minutes
• Firmware-upgradable controller supporting GLP-compliant audit trail logging when paired with optional RS232/USB data export

Sample Compatibility & Compliance

The MINIC-100I accommodates standard labware including 0.2 mL PCR tubes, 0.5 mL and 1.5/2.0 mL microcentrifuge tubes, 96-well PCR plates, and flat-bottom 96-well ELISA plates. All modules are CNC-machined from high-conductivity 6061-T6 aluminum and anodized for corrosion resistance. Thermal validation follows ASTM E2251-22 (Standard Practice for Calibration of Thermal Analyzers) and ISO 8573-1 Annex B for block uniformity assessment. Device firmware supports user-defined calibration offsets per module type, traceable to NIST-traceable reference thermometers. While not FDA 21 CFR Part 11–certified out-of-box, the system meets baseline requirements for GxP-aligned environments when deployed with documented SOPs, periodic verification (per USP Analytical Instrument Qualification), and electronic log export for review by QA personnel.

Software & Data Management

The embedded controller provides standalone operation with no PC dependency. For integrated lab informatics, optional USB-to-serial adapter enables ASCII command protocol communication (SCPI-like syntax) compatible with LabVIEW, Python (pySerial), and MATLAB. Logged data includes timestamped temperature readings at 1-second intervals, protocol execution status, and fault event codes (e.g., “HLD_ERR”, “BLK_OVR”). Audit trails record operator ID (via optional RFID badge reader integration), parameter changes, and calibration events—supporting ISO/IEC 17025 clause 5.9.1 (Control of Records). Firmware version 2.3+ adds CSV export capability with UTC timestamps and ISO 8601 formatting.

Applications

• PCR setup and pre-amplification incubation requiring precise 4°C hold and rapid 95°C denaturation ramp
• Enzyme-linked immunosorbent assay (ELISA) plate incubation at 37°C with condensation-free heat lid operation
• Controlled cooling of restriction digests prior to ligation or transformation steps
• Temperature-dependent solubility screening of small-molecule crystallization trials
• Stability testing of biologics under accelerated degradation conditions (e.g., 40°C/75% RH simulated stress)
• Cell lysate pre-warming prior to centrifugation or affinity purification

FAQ

Does the MINIC-100I support external temperature probes for sample-in-tube monitoring?
No—the system measures block surface temperature only. For direct sample temperature validation, users must perform separate correlation studies using immersed PT100 probes.
Can the heat lid be disabled during cooling protocols?
Yes. The heat lid operates independently and may be set to OFF mode while the block cools to sub-ambient temperatures.
Is calibration documentation provided with shipment?
Each unit ships with a factory calibration certificate listing block uniformity and accuracy test points at 4°C, 25°C, 37°C, and 95°C, traceable to a DAkkS-accredited metrology lab.
What maintenance is required for long-term reliability?
Annual inspection of thermal interface paste between Peltier elements and aluminum block is recommended; no consumables or scheduled service intervals are specified.
Are custom modules available for non-standard tube formats?
Yes—Hanuo offers OEM module design services with lead times of 4–6 weeks; minimum order quantity applies.
