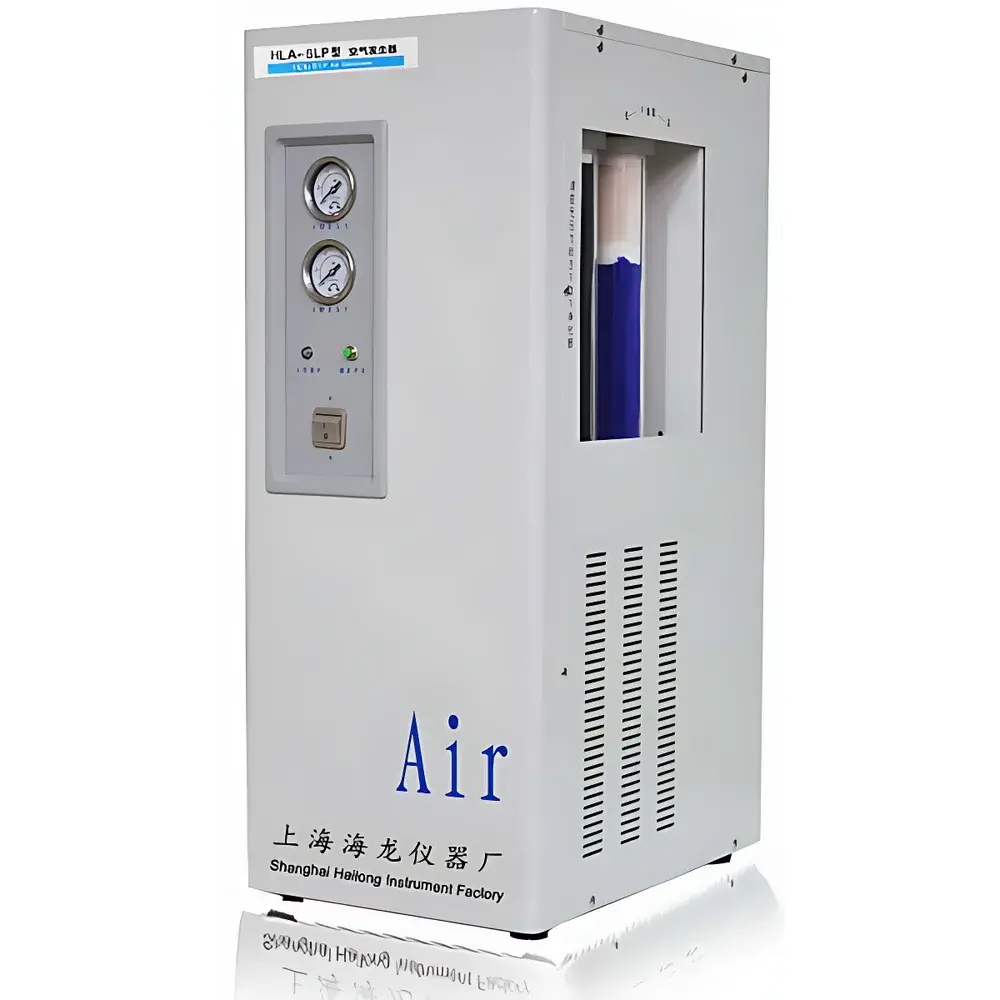

HLA Air Generator (Oil-Free Air Compressor)

Overview

The HLA Air Generator is an engineered oil-free compressed air solution specifically designed for laboratory environments requiring continuous, ultra-pure, and hydrocarbon-free air supply. Unlike conventional oil-lubricated compressors, the HLA series employs a dry-running, maintenance-free scroll or piston compressor architecture—eliminating the risk of oil carryover, aerosol contamination, or downstream filter saturation. Its core purification mechanism centers on the proprietary HL-A adsorption system: a multi-stage, regenerative carbon-based media assembly that selectively captures and retains volatile organic compounds—including aliphatic and aromatic hydrocarbons, esters, aldehydes, and trace lubricant vapors—ensuring output air meets stringent purity requirements for sensitive analytical applications such as gas chromatography (GC), Fourier-transform infrared spectroscopy (FTIR), and flame ionization detection (FID). The system operates without consumable cartridges or scheduled media replacement, relying instead on passive thermal desorption and flow-directed regeneration during normal duty cycles.

Key Features

• Oil-free compression technology with low-vibration motor and HAJ-01 anti-vibration mounting—ensuring mechanical stability and minimizing transmission of micro-vibrations to adjacent instrumentation.
• Integrated HL-A hydrocarbon removal module: achieves consistent <0.1 ppm(v/v) total hydrocarbon content at outlet, validated against ISO 8573-5 Annex B methodology.
• Electropolished stainless-steel gas path (316L grade), ultrasonically cleaned prior to assembly—preventing metallic leaching, particulate shedding, or surface oxidation under humid conditions.
• Automated condensate drainage system with level-sensing float valve and corrosion-resistant stainless reservoir—eliminates manual draining and prevents iron oxide (rust) contamination in effluent air streams.
• Dual-stage pressure regulation with precision diaphragm regulators and redundant overpressure protection (mechanical relief valve + electronic cut-off)—delivering stable output pressure within ±0.01 MPa tolerance across variable flow demand.
• Low-startup-pressure design reduces inrush current and mechanical stress on compression elements, extending service life beyond 20,000 operating hours under typical lab duty cycles (10–30% duty factor).

Sample Compatibility & Compliance

The HLA Air Generator is compatible with all standard laboratory gas interfaces (CGA-590, BS4550, DIN 477) and integrates seamlessly into centralized air distribution networks. Its output air quality conforms to ISO 8573-1:2010 Class 1 (solid particles), Class 4 (water), and Class 1 (oil aerosol and vapor), making it suitable for use with GC carrier gas systems, FTIR purge lines, and particle-free cleanroom support. While not certified to FDA 21 CFR Part 11 out-of-the-box, the unit’s fixed-parameter operation (no user-modifiable calibration constants or data logging) renders it inherently compliant with GLP/GMP documentation requirements when deployed in validated environments. All models are CE-marked per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and meet RoHS 2011/65/EU material restrictions.

Software & Data Management

The HLA series operates as a stand-alone, firmware-controlled system with no embedded software interface, touchscreen, or network connectivity. This architecture eliminates cybersecurity vulnerabilities, firmware update dependencies, and data integrity concerns associated with connected lab devices. Operational status is indicated via LED panel (power, pressure, fault), and all critical parameters—including inlet hydrocarbon load (<100 ppm), outlet purity (<0.1 ppm), pressure setpoints (0.4 MPa / 0.45 MPa dual-port configuration), and ambient temperature/humidity limits (0–40 °C / <85% RH)—are factory-configured and non-adjustable to ensure repeatable performance. For audit-trail compliance, users may integrate external pressure transducers and data loggers (e.g., Omega OM-DAQPRO-5300) via analog 4–20 mA outputs (available on HLA-08LP variant) to record operational history in accordance with ISO/IEC 17025 clause 7.7.

Applications

• Carrier gas supply for capillary GC and GC-MS systems requiring hydrocarbon-free helium or nitrogen alternatives.
• Purge gas for FTIR spectrometers, especially those equipped with DTGS or MCT detectors sensitive to IR-absorbing organics.
• Combustion air for FID, NPD, and TCD detectors where baseline drift or ghost peaks may originate from hydrocarbon impurities.
• Instrument air for pneumatic actuators, auto-samplers, and robotic liquid handlers in regulated QC/QA laboratories.
• Zero-air generation for environmental air monitoring calibrations (per EPA Method TO-15 and ASTM D6196).
• Support gas for laser-based particle counters and optical particle sizers where sub-micron contamination must be excluded.

FAQ

What is the expected service life of the HL-A adsorption module?
The HL-A system is designed for lifetime operation without replacement; its carbon media undergoes continuous in-situ regeneration during normal airflow and thermal cycling. No scheduled maintenance or media change is required under specified inlet hydrocarbon conditions (<100 ppm).

Can the HLA-08LP supply multiple GC systems simultaneously?
Yes—the HLA-08LP delivers up to 80 L/min at 0.6 MPa, sufficient to support three to four mid-range GC systems with typical combined demand of 25–35 L/min, provided piping diameter and length are optimized per ISO 8573-1 Annex C guidelines.

Is dew point control active or passive?
Dew point is passively controlled via integrated refrigerated air drying (HLA-2LP/5LP/10LP) or coalescing/membrane separation (HLA-08LP), achieving 0–40 °C dew point without external chillers or desiccant towers.

Does the unit require external ventilation or exhaust ducting?
No—heat dissipation is managed via convection-cooled aluminum heat sinks and low-noise axial fans (≤45 dB[A]); installation requires only 10 cm clearance on all sides for ambient airflow.

Are pressure setpoints user-adjustable?
Factory-set dual-pressure outputs (0.4 MPa and 0.45 MPa) are fixed for analytical instrument compatibility; fine-tuning is not supported to preserve calibration traceability and regulatory compliance.
