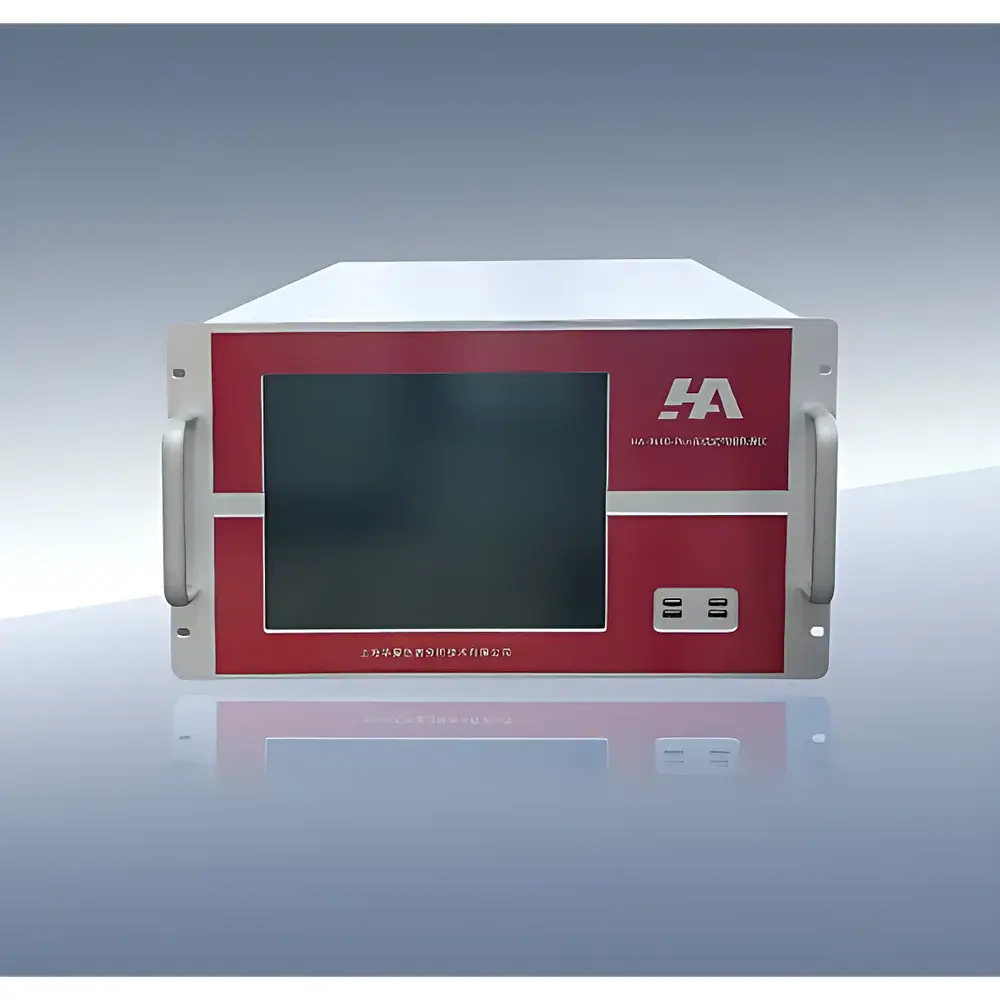

HuaiAi HA-9660-Plus Online Gas Chromatograph for Ultra-High-Purity Electronic Specialty Gases

Overview

The HuaiAi HA-9660-Plus is an online gas chromatograph engineered specifically for continuous, real-time analysis of ultra-high-purity electronic specialty gases (ESGs) in semiconductor, flat panel display (FPD), photovoltaic, and data storage manufacturing environments. It operates on the fundamental principle of gas-phase separation followed by selective detection—utilizing capillary column chromatography coupled with a pulsed discharge helium ionization detector (PDHID S Pro+) optimized for sub-part-per-trillion (pptv) detection of permanent gases (e.g., O₂, N₂, H₂, CO, CO₂, CH₄) and hydride species (e.g., PH₃, AsH₃, B₂H₆, SiH₄) in high-purity carrier matrices such as Ar, He, Ne, N₂, and H₂. Unlike conventional benchtop GCs, the HA-9660-Plus integrates process-compatible hardware architecture—including welded stainless-steel microfluidic manifolds, electropolished internal surfaces, and zero-dead-volume fittings—to minimize adsorption, memory effects, and background contamination. Its design conforms to industry-critical requirements for long-term stability, drift-free baseline performance, and compliance with ISO 8573-8 (compressed air purity classes) and SEMI F57 (specifications for electronic specialty gases).

Key Features

• Electrical–pneumatic isolation architecture: Complete physical separation between high-voltage electronics and gas-handling modules eliminates electromagnetic interference (EMI), prevents cross-contamination, and enhances operational safety in Class 1 cleanroom environments.
• PDHID S Pro+ detector: Delivers stable, linear response across five orders of magnitude with detection limits ≤50 pptv for O₂ and N₂ in argon; features active helium purity monitoring and automatic pulse optimization for extended lamp lifetime and reproducible sensitivity.
• Online integration capability: Supports 24/7 unattended operation via 4–20 mA analog outputs, Modbus TCP/IP, and OPC UA interfaces; compatible with DCS/SCADA systems for real-time feedforward control of gas purification units.
• Thermal management system: Dual-zone oven with independent PID control ensures precise column temperature uniformity (±0.1 °C) over the full operating range (8 °C above ambient to 400 °C), critical for retention time stability in multi-component ESG analysis.
• Modular channel configuration: Field-upgradable from single-channel (dedicated to one gas matrix) to up to four parallel analytical channels—each with independent carrier flow control (1–1000 mL/min), column selection, and detector tuning—enabling simultaneous monitoring of multiple process lines.

Sample Compatibility & Compliance

The HA-9660-Plus is validated for direct injection of electronic-grade gases meeting ASTM D7612–22 and SEMI C37 specifications. It accommodates sample pressures from 100 kPa to 1.6 MPa (gauge) and supports both pressure-programmed and flow-controlled injection modes. All wetted materials comply with ASTM A269 TP316L (electropolished) and perfluoroelastomer (FFKM) sealing standards. The instrument meets CE marking requirements under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD); its firmware architecture supports audit trails, user access levels, and electronic signatures in alignment with FDA 21 CFR Part 11 and EU Annex 11 for GMP-regulated environments.

Software & Data Management

Control and data acquisition are managed via HuaiAi ChromoView™ v4.2 software—a Windows-based platform compliant with IEC 62443-3-3 for industrial cybersecurity. The software provides method development tools with retention time locking, automated calibration curve generation (linear/nonlinear), and integrated uncertainty propagation reporting per ISO/IEC 17025. Raw chromatograms and processed results are stored in vendor-neutral .cdf format (NetCDF 4.0), enabling seamless import into LIMS (e.g., LabVantage, Thermo Fisher SampleManager) and statistical process control (SPC) platforms. All data modifications are logged with timestamp, operator ID, and reason code—fully traceable for GLP/GMP audits.

Applications

• Semiconductor fabrication: Continuous monitoring of dopant gases (e.g., PH₃, AsH₃, BF₃) and etchant gases (e.g., ClF₃, NF₃) for chamber purge validation and endpoint detection.
• Flat panel display production: Quantification of residual moisture and oxygen in TFT-LCD and OLED deposition chambers using ultra-low-background He carrier gas streams.
• Photovoltaic manufacturing: In-line verification of silane (SiH₄) decomposition byproducts (e.g., Si₂H₆, Si₃H₈) during PECVD processes to optimize film stoichiometry.
• HDD and MEMS fabrication: Detection of metal carbonyls (e.g., Ni(CO)₄) and halogenated hydrocarbons in sputtering and etch gas supplies to prevent particle generation.
• Lithography support: Real-time analysis of ArF/KrF excimer laser gas mixtures (e.g., Ne/Ar/F₂) to maintain spectral purity and laser output stability.
• R&D laboratories: Method development for emerging ESGs including fluorinated ketones (e.g., C₅F₁₀O), nitrous oxide (N₂O), and deuterated precursors used in advanced node patterning.

FAQ

What detection limit can the PDHID S Pro+ achieve for oxygen in argon?
Typical detection limit is 20–50 pptv (signal-to-noise ratio ≥3) under optimized carrier gas purity and column conditioning protocols.
Is the HA-9660-Plus suitable for analyzing corrosive gases such as NF₃ or ClF₃?
Yes—when equipped with nickel-plated stainless-steel columns and FFKM-sealed valves; optional passivated inlet modules are available for extended service life.
Can the instrument be integrated into a Fab-wide MES without custom coding?
Yes—pre-certified drivers for Siemens Desigo CC, Yokogawa CENTUM VP, and Rockwell FactoryTalk are included; OPC UA server is preconfigured with SEMI EDA/GEM-compliant data models.
Does the system support automated calibration with certified standard gas mixtures?
Yes—programmable multi-point calibration sequences with mass-flow-controlled dilution; calibration history and certificate metadata are embedded in each result file.
What maintenance intervals are recommended for uninterrupted 24/7 operation?
Detector lamp replacement every 18–24 months; column reconditioning every 6 months; full pneumatic system leak check and filter replacement every 3 months—documented in built-in maintenance scheduler.
