HuaiAi HA-9680-D Industrial Explosion-Proof Online Gas Chromatograph

Overview

The HuaiAi HA-9680-D Industrial Explosion-Proof Online Gas Chromatograph is engineered for continuous, real-time hydrocarbon and volatile organic compound (VOC) analysis in hazardous process environments. Designed specifically for Zone 1 and Zone 2 classified areas per IEC 60079 standards, it employs capillary column separation coupled with flame ionization detection (FID) or thermal conductivity detection (TCD), depending on configuration. Its core architecture follows the principle of intrinsic safety by physical separation: the analytical gas path—including oven, column, injector, and detector—is fully isolated within an explosion-proof enclosure rated Ex db IIC T4 Gb, while the control electronics reside in a second, independently certified explosion-proof cabinet. This dual-module design eliminates spark pathways between high-voltage electronics and flammable sample streams, enabling reliable operation in refineries, ethylene crackers, syngas units, and natural gas processing plants where ambient temperatures, pressure transients, and combustible vapor concentrations demand rigorous ATEX/IECEx-aligned engineering.

Key Features

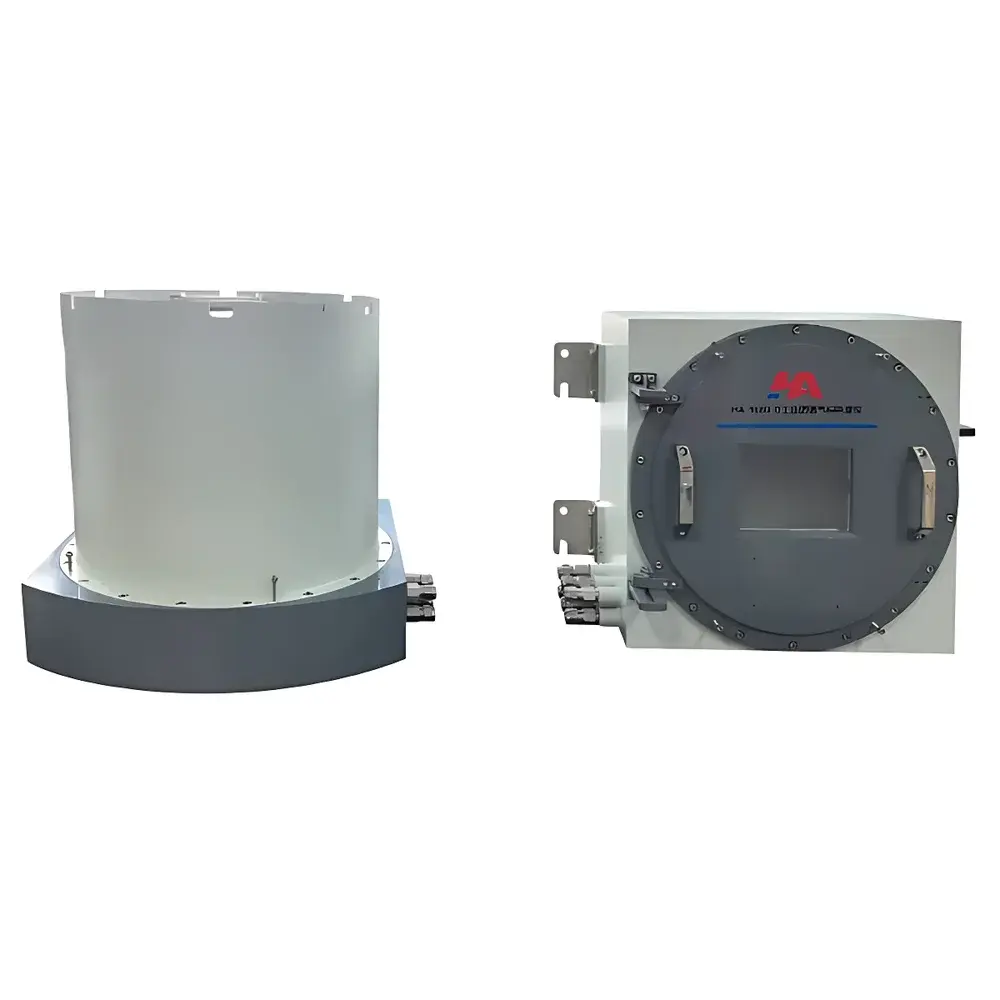

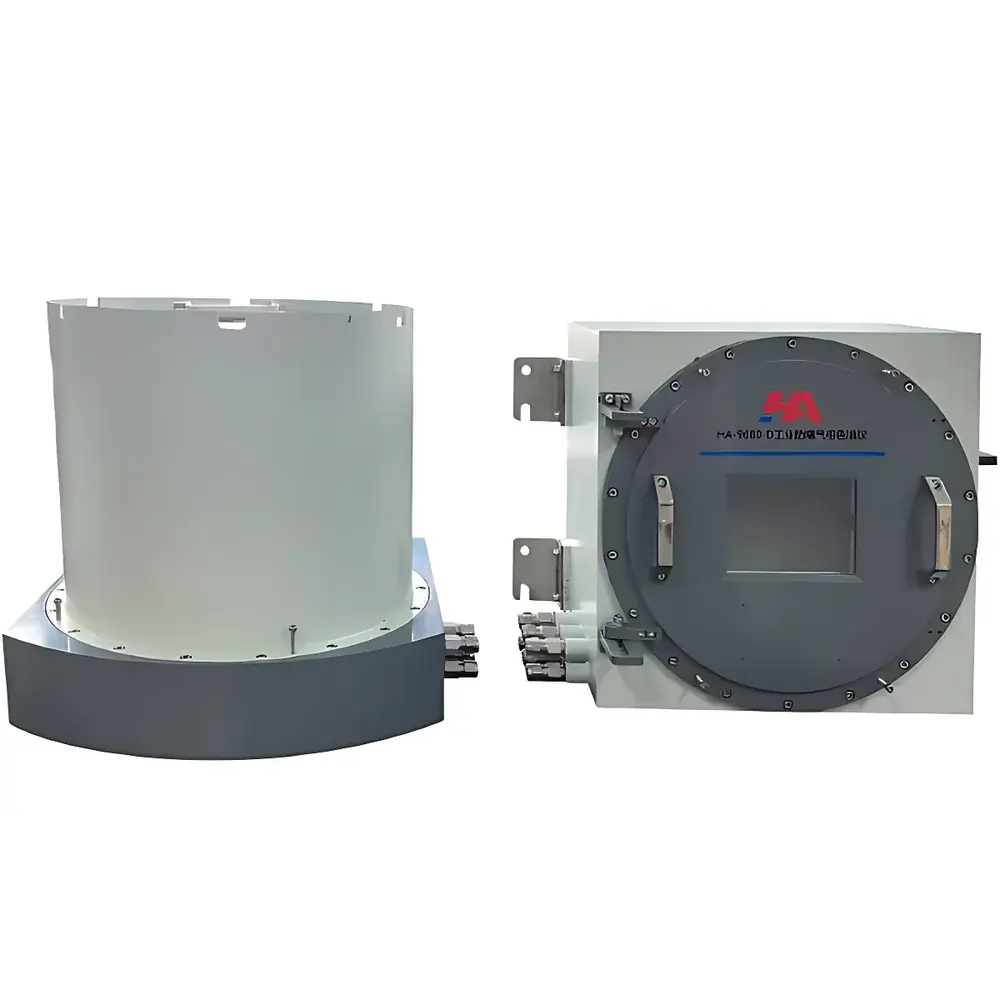

• Two physically separated, independently certified explosion-proof modules: (1) gas-path module housing column oven, injection system, and detector; (2) control & data acquisition module housing power supply, PLC, and communication interfaces
• IP66-rated enclosures for dust-tight and high-pressure water jet resistance—suitable for outdoor, offshore, and semi-enclosed industrial installations
• Programmable temperature ramping up to 10 °C/min across a stable operating range of 0–300 °C, supporting fast-cycle analyses for light-end hydrocarbons (C1–C6) and sulfur compounds
• Precision pneumatic control system with digital mass flow controllers (MFCs) for carrier gas (N₂, He, H₂), make-up gas, and detector gases—pressure regulation accuracy ±0.005 MPa within 0–0.6 MPa range
• Modular injector design supporting split/splitless modes with pressure setpoint range 0–0.3 MPa and total flow control from 0–500 mL/min
• Embedded Ethernet and 4G/LTE connectivity; supports remote monitoring, firmware updates, and diagnostic logging via secure HTTPS API and dedicated WeChat Mini Program interface
• Mounting flexibility: wall-mounted or floor-standing configurations; compact footprint (< 0.8 m²) enables retrofit into legacy analyzer shelters without structural modification

Sample Compatibility & Compliance

The HA-9680-D is validated for direct analysis of raw process streams including refinery off-gases, flare gas, sour gas, hydrogen reformate, and liquefied petroleum gas (LPG) blends. Sample introduction utilizes heated, stainless-steel sampling lines with backflush capability to minimize condensable carryover. All wetted materials comply with NACE MR0175/ISO 15156 for sour service. The instrument meets GB 3836.1–2010 (China’s mandatory explosion protection standard), and its Ex db IIC T4 Gb certification confirms suitability for Group IIC atmospheres containing hydrogen, acetylene, and ethylene. It also satisfies IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) for industrial electromagnetic compatibility. While not FDA 21 CFR Part 11–certified out-of-the-box, audit-ready data logs—including method parameters, calibration history, and raw chromatograms—are timestamped, user-identified, and stored locally with optional cloud backup for GLP/GMP-aligned QA/QC workflows.

Software & Data Management

The embedded chromatography data system (CDS) runs on a real-time Linux OS with deterministic scheduling for sub-second peak detection and retention time locking. Method development and sequence management are performed via browser-based GUI accessible from any authenticated workstation. All chromatographic data—including baseline-corrected peak integrals, retention indices, and qualitative library matches (NIST MS Search or custom spectral libraries)—are exported in ASTM E1947-compliant .cdf format. Audit trails record every user action (e.g., method edit, calibration run, report generation) with immutable timestamps and operator ID. Data integrity safeguards include write-once storage partitions, SHA-256 hash verification of archived files, and configurable auto-purge policies aligned with ISO/IEC 17025 clause 7.5.2. Integration with DCS/SCADA systems is supported via OPC UA (PubSub over MQTT) and Modbus TCP protocols for real-time alarm forwarding and setpoint synchronization.

Applications

• Continuous monitoring of C₂–C₅ olefin/paraffin ratios in fluid catalytic cracking (FCC) unit overheads
• Sulfur speciation (H₂S, COS, mercaptans) in amine-treated natural gas feedstocks per ISO 8573-5
• Hydrogen purity verification in PEM electrolyzer output streams (ASTM D7165)
• Flare gas composition tracking for environmental reporting (EPA Method 25A, EN 15467)
• BTX (benzene, toluene, xylene) concentration trending in reformate stabilizer overheads
• Real-time detection of trace chlorinated solvents in solvent recovery vents (OSHA PEL compliance)

FAQ

What hazardous area classifications does the HA-9680-D support?
It is certified Ex db IIC T4 Gb per GB 3836.1–2010 and IEC 60079-0, suitable for Zone 1 and Zone 2 locations where explosive gas atmospheres may occur during normal operation or infrequent fault conditions.

Can the instrument operate unattended for extended periods?
Yes—it features automatic leak detection, column conditioning cycles, and self-diagnostic routines for detector stability, oven temperature uniformity, and pressure regulator response. Scheduled maintenance alerts are issued at configurable intervals (e.g., every 500 runtime hours).

Is third-party calibration validation supported?
The system includes NIST-traceable electronic pressure and temperature calibrators; all analog inputs accept external reference signals for field verification per ISO/IEC 17025 Section 6.5.

How is cybersecurity addressed in remote access functionality?
WeChat Mini Program access requires two-factor authentication (SMS + device binding); web portal uses TLS 1.3 encryption, role-based permissions, and session timeouts. No default credentials or open Telnet/FTP services are enabled.

Does the HA-9680-D support integration with Emerson DeltaV or Honeywell Experion DCS?
Yes—native OPC UA PubSub over MQTT and Modbus TCP drivers are preloaded; DCS tag mapping templates and alarm configuration files are provided upon commissioning.
