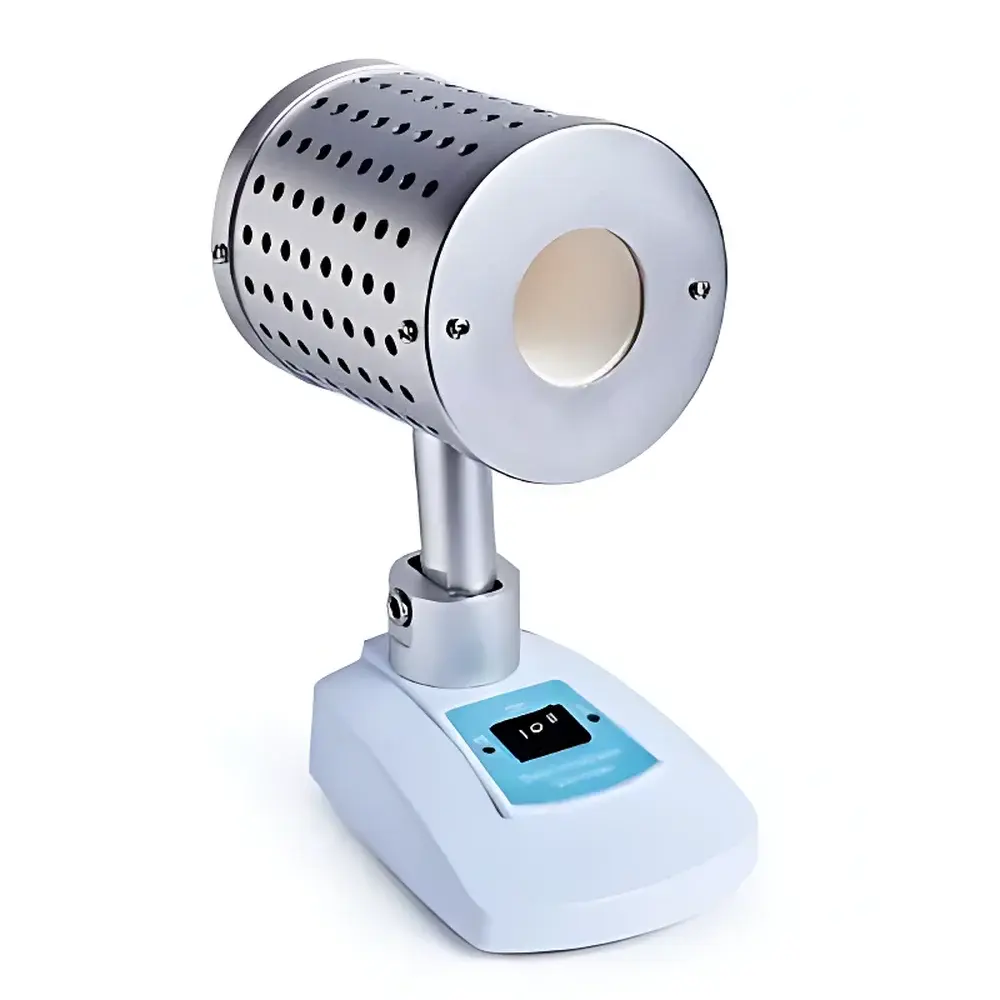

Infrared Inoculation Loop Sterilizer JY-800

Overview

The JY-800 Infrared Inoculation Loop Sterilizer is an electrically powered, ceramic-heated benchtop device engineered for rapid, flame-free sterilization of microbiological inoculation loops, needles, and small metallic transfer tools. Unlike open-flame methods such as alcohol burners, this instrument employs high-intensity infrared radiation emitted from a precisely engineered ceramic heating element housed within a thermally insulated vertical chamber. The principle of operation relies on resistive heating of the ceramic core to sustained temperatures exceeding 800 °C, enabling instantaneous thermal denaturation of proteins and nucleic acids in microbial contaminants upon contact. Its design conforms to biosafety Level 1 and Level 2 laboratory requirements, and it is validated for use inside anaerobic chambers—eliminating the need for external flame sources that compromise oxygen-free environments.

Key Features

• Ultra-rapid sterilization cycle: Achieves complete microbial inactivation in 5–7 seconds at peak operating temperature (825 °C ±50 °C), verified per ISO 15189 Annex A.3 for non-flame sterilization efficacy.
• Adjustable-angle heating head: Enables ergonomic positioning for left- or right-handed users and facilitates integration into tight workspaces, including glove boxes and anaerobic chambers.
• Ceramic deep-chamber architecture: Features a tapered ceramic funnel geometry that directs heat downward and confines organic residue within the lower third of the heating zone—minimizing aerosol generation and preventing splatter-induced cross-contamination.
• Precision thermal regulation: Integrated PID-controlled circuitry maintains standby temperature at 480 °C with ±5 °C stability, reducing thermal cycling stress on the heating element and extending service life beyond 10,000 cycles under standard usage.
• Compact footprint and cleanable surface: Stainless steel housing with smooth, non-porous finish complies with ISO 14644-1 Class 7 cleanroom-compatible cleaning protocols; weight (1.3 kg) supports portability across laminar flow hoods and biosafety cabinets.

Sample Compatibility & Compliance

The JY-800 accommodates stainless steel, nickel-chromium, and platinum-iridium inoculation loops and needles with outer diameters up to φ14 mm. It is not intended for plastic, coated, or temperature-sensitive polymer tools. The device meets IEC 61010-1:2010 safety requirements for electrical equipment used in laboratory settings and is CE-marked per the Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU). While not classified as a medical device under FDA 21 CFR Part 820, its performance aligns with CLSI M22-A3 recommendations for non-flame sterilization validation in clinical microbiology laboratories. Routine verification can be performed using biological indicators (e.g., Bacillus stearothermophilus spore strips) per ISO 11138-3.

Software & Data Management

The JY-800 operates as a standalone analog-controlled instrument with no embedded firmware, software interface, or digital data logging capability. Temperature setpoints and operational status are managed via hardware-based thermostatic regulation only. This design intentionally eliminates electronic complexity to ensure reliability in high-humidity or electromagnetically noisy environments (e.g., near centrifuges or PCR cyclers). For GLP/GMP-regulated workflows requiring audit trails, users may document sterilization events manually in lab notebooks or integrate timestamps via external environmental monitoring systems compliant with FDA 21 CFR Part 11 when paired with validated electronic loggers.

Applications

• Routine sterilization of inoculation loops and needles in clinical microbiology labs, academic teaching facilities, and pharmaceutical QC microbiology suites.
• Continuous-use sterilization in anaerobic workstations where open flames pose explosion hazards or oxygen-level instability.
• High-throughput plating operations requiring consistent dwell-time control between transfers—reducing operator variability compared to manual flaming.
• Training environments emphasizing biosafety best practices, especially where alcohol lamp handling presents fire or burn risks.
• Field-deployable microbiology units (e.g., mobile diagnostic labs) due to low power draw (200 W), wide input voltage tolerance (±10%), and absence of consumables.

FAQ

Is the JY-800 suitable for sterilizing glass Pasteur pipettes or plastic loops?
No. Only metal loops and needles with maximum outer diameter φ14 mm are compatible. Glass and polymer materials may crack, melt, or release hazardous fumes under infrared exposure above 800 °C.
Can the unit be operated continuously for extended periods?
Yes—its thermal management system permits uninterrupted operation for up to 8 hours per shift under ambient conditions ≤35 °C and ≤70% RH, provided the cooling vents remain unobstructed.
Does the device require calibration or scheduled maintenance?
No routine calibration is mandated; however, visual inspection of the ceramic chamber for carbon buildup and periodic cleaning with ethanol-dampened lint-free wipes is recommended every 500 cycles to preserve emissivity and thermal uniformity.
What safety certifications does the JY-800 hold?
It carries CE marking under EN 61010-1:2010 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and complies with RoHS 2011/65/EU restrictions on hazardous substances.
Is there a version compatible with larger-diameter tools?
Yes—the JY-800D variant (φ35 mm capacity, 100 mm heating zone) is available separately; contact technical support for dimensional drawings and installation clearance requirements.
