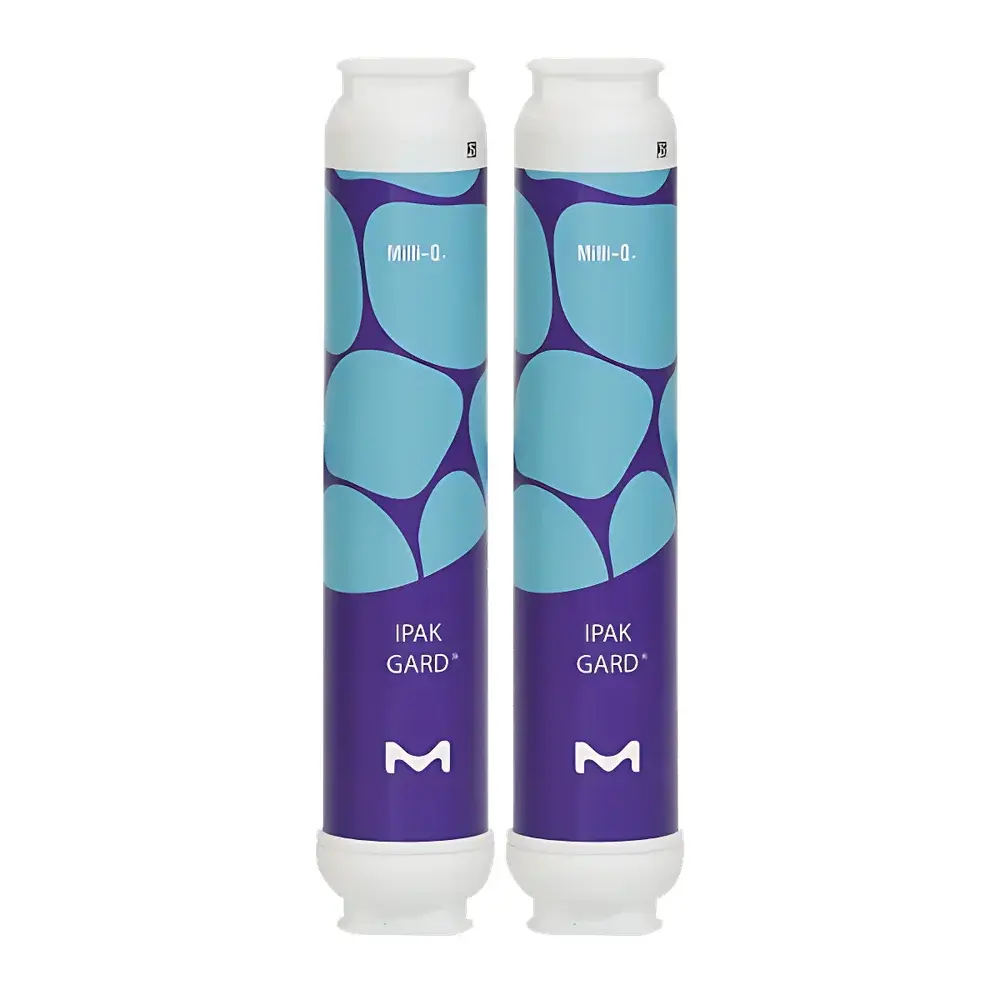

IPAK Gard® Pre-Treatment Cartridge for Milli-Q Ultra Pure Water Systems
| Brand | Milli-Q |
|---|---|
| Origin | France |
| Manufacturer | Merck KGaA |
| Model | IPAKGARDH2 |
| Purified Water Grade | Type I (ASTM D1193-20) |
| Resistivity | 18.2 MΩ·cm @ 25 °C |
| Heavy Metals & Soluble Silica | <0.1 ppb |
| Total Organic Carbon (TOC) | <5 ppb |
| Microbial Count & Endotoxins | <0.001 EU/mL |
| Particles (>0.1 µm) | <1 particle/mL |
Overview
The IPAK Gard® Pre-Treatment Cartridge is an engineered component designed exclusively for integration into Milli-Q® ultra-pure water purification systems manufactured by Merck KGaA. As the first line of defense in a multi-stage water purification architecture, this cartridge operates upstream of the reverse osmosis (RO) membrane and downstream of the primary sediment filter. Its function is not to generate Type I ultrapure water directly, but to ensure consistent feedwater quality—thereby extending RO membrane service life, minimizing fouling, and maintaining long-term system stability. The cartridge employs a dual-action filtration mechanism: pleated polypropylene depth filtration combined with catalytic granular activated carbon (GAC), enabling simultaneous removal of particulates, colloids, chlorine, chloramines, and low-molecular-weight organic contaminants. This design conforms to the operational requirements specified in ISO 3696:1987 and ASTM D1193-20 for Type I reagent water production systems.
Key Features
- Pleated microfiber membrane structure providing high surface area and extended service life under variable municipal feedwater conditions
- Catalytically impregnated granular activated carbon optimized for chlorine/chloramine reduction without leaching carbon fines
- Optional polyphosphate bead variant (IPAK Gard® ScaleGuard) available for hard water regions to sequester Ca²⁺/Mg²⁺ ions and inhibit RO membrane scaling
- Pre-sterilized housing compliant with ISO 11140-1 for low endotoxin release (<0.001 EU/mL eluate)
- Trace-metal–free construction validated per USP and EP 2.2.44 for ultrapure water system compatibility
- Integrated RFID tag (on select configurations) for automated usage tracking and maintenance scheduling within Milli-Q Connect software
Sample Compatibility & Compliance
The IPAK Gard® cartridge is validated for use with all Milli-Q® IQ 7000, RiOS, and Advantage A10 series systems. It is certified for compliance with ISO 14644-1 Class 5 (ISO Class 5) cleanroom assembly environments and meets material biocompatibility requirements per ISO 10993-5. All wetted components are USP Class VI compliant and extractables testing follows ICH Q5C guidelines. The cartridge supports GLP/GMP workflows through documented traceability, lot-specific certificates of analysis (CoA), and full alignment with FDA 21 CFR Part 11 data integrity principles when paired with Milli-Q® system audit trail logs.
Software & Data Management
When installed in a connected Milli-Q® system, the IPAK Gard® cartridge interfaces with Milli-Q® Connect cloud platform via embedded NFC or RFID. System firmware automatically registers installation date, tracks cumulative flow volume, and triggers predictive replacement alerts based on real-time pressure differential monitoring across the cartridge. Usage history—including inlet/outlet conductivity, TOC excursions, and flow rate deviations—is archived in encrypted format and exportable as CSV or PDF reports compliant with ALCOA+ data governance standards. Audit trails include user ID, timestamp, and action type (e.g., “Cartridge replaced – Lot #XZ8821”), satisfying regulatory review requirements for pharmaceutical QC laboratories.
Applications
- HPLC and UHPLC mobile phase preparation where sub-ppb chloride and TOC levels prevent column degradation and baseline drift
- Cell culture media formulation requiring endotoxin-free water to avoid false activation of TLR4 pathways
- ICP-MS sample dilution and calibration where heavy metal carryover must remain below instrument detection limits
- Next-generation sequencing library preparation where nucleic acid integrity depends on absence of oxidative contaminants
- Pharmaceutical stability studies conducted under ICH Q5C conditions requiring documented water quality consistency over multi-month timelines
FAQ
What is the typical service life of an IPAK Gard® cartridge?
Under standard European municipal feedwater conditions (chlorine ≤ 1.5 mg/L, turbidity ≤ 0.5 NTU), the recommended replacement interval is every 6 months or after 3,000 L of processed water—whichever occurs first. Service life is dynamically adjusted in-system based on real-time pressure drop and flow metrics.
Can IPAK Gard® cartridges be used with non-Milli-Q® water purification systems?
No. These cartridges are dimensionally and hydraulically engineered for Milli-Q® system manifolds and pressure profiles. Use with third-party systems may compromise sealing integrity, flow uniformity, or contaminant removal efficiency—and voids Merck’s performance warranty.
Is the IPAK Gard® ScaleGuard variant suitable for all hard water applications?
ScaleGuard is specifically validated for feedwater with calcium hardness >150 mg/L as CaCO₃ and alkalinity >100 mg/L as CaCO₃. For waters exceeding 300 mg/L total hardness, supplemental antiscalant dosing or pretreatment softening is advised prior to IPAK Gard® installation.
How is microbial retention verified for this pre-treatment stage?
While the IPAK Gard® cartridge is not rated as a sterilizing-grade filter, its carbon bed and pleated membrane reduce heterotrophic plate count (HPC) by ≥3-log₁₀ under validated challenge conditions (Pseudomonas fluorescens ATCC 13525 at 10⁶ CFU/mL). Final microbial control is achieved downstream via UV oxidation and 0.22 µm final filtration in the Milli-Q® system.
