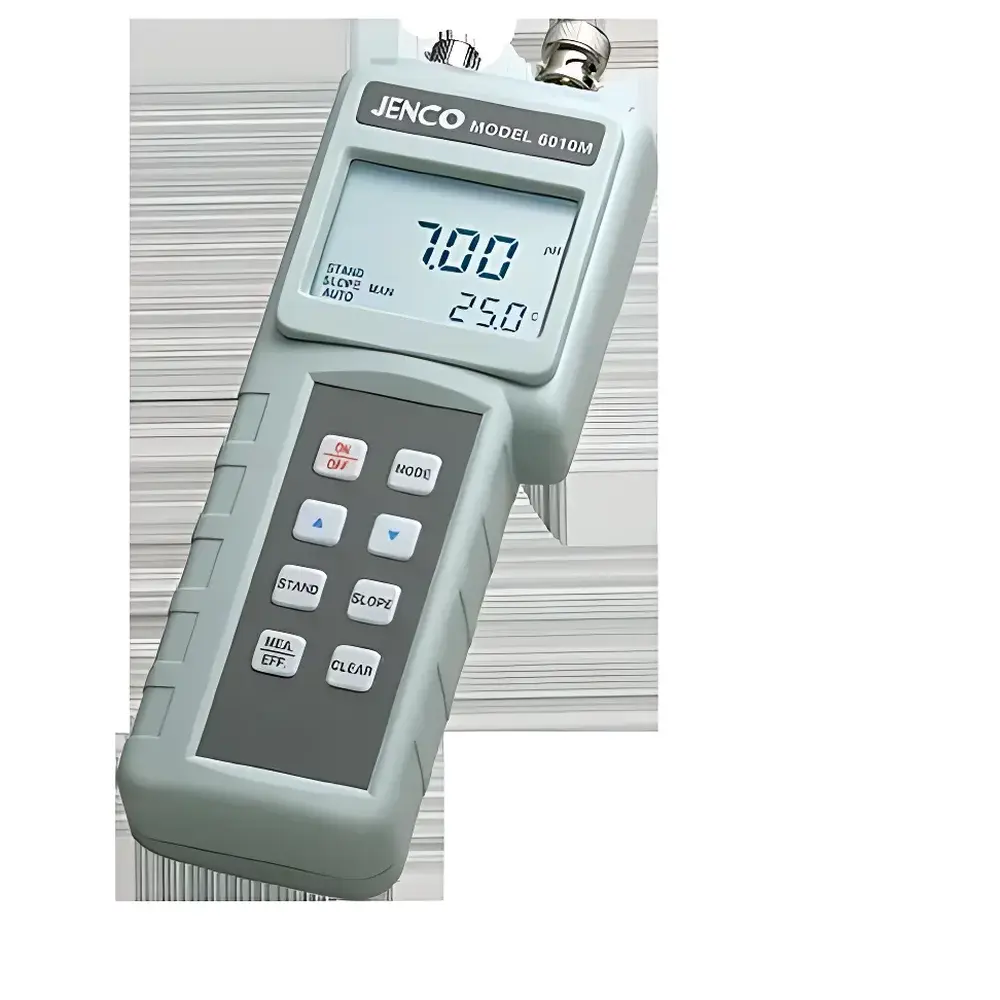

JENCO 6010M Portable pH/ORP/Temperature Meter

Overview

The JENCO 6010M is a precision-engineered portable pH/ORP/temperature meter designed for field-deployable and benchtop use in industrial process monitoring, environmental sampling, wastewater treatment, and quality control laboratories. It operates on the fundamental electrochemical principle of potentiometric measurement: pH is determined via the Nernst equation using a glass electrode and reference junction, while ORP (Oxidation-Reduction Potential) is measured as the open-circuit voltage difference between a noble metal sensing electrode (typically platinum or gold) and a stable reference electrode—both referenced to the standard hydrogen electrode (SHE). Integrated temperature compensation ensures thermodynamic accuracy across the full operational range (–10.0 to 130.0 °C), supporting both automatic (ATC) and manual (MTC) modes. The instrument conforms to ISO 7027 (for turbidity-related validation protocols) and meets essential requirements for GLP-compliant data acquisition when paired with traceable calibration standards.

Key Features

• Touch-responsive keypad with audible feedback for tactile confirmation in glove-operated or low-visibility environments
• Dual-standard calibration support: pre-programmed calibration points aligned with both NIST-traceable and USA buffer standards (e.g., pH 4.01, 7.00, 10.01 at 25 °C)
• Non-volatile memory retains calibration coefficients and user settings after power loss—no reconfiguration required upon restart
• IP67-rated housing provides dust-tight and immersion-resistant protection (up to 1 m for 30 min), enabling reliable operation in humid, washdown, or outdoor industrial zones
• Auto-endpoint detection with configurable hold time (1–10 sec) eliminates subjective judgment in endpoint stabilization, improving inter-operator reproducibility
• Simultaneous real-time display of pH, ORP, and temperature on a high-contrast LCD with backlight—optimized for readability under variable ambient lighting

Sample Compatibility & Compliance

The 6010M supports a broad range of aqueous and semi-aqueous matrices, including municipal and industrial effluents, cooling tower water, boiler feedwater, food processing rinse solutions, and pharmaceutical buffer preparations. Electrode compatibility includes standard BNC-input pH/ORP probes (e.g., JENCO 6010 series combination electrodes, Pt-ring ORP sensors, and ruggedized industrial pH electrodes with double-junction reference systems). The device complies with IEC 61000-4 electromagnetic immunity standards and satisfies essential safety requirements per UL 61010-1 and CSA C22.2 No. 61010-1 for laboratory and light industrial use. While not intrinsically safe for Zone 0/1 hazardous areas, it is routinely deployed in Class I, Division 2 environments when used with appropriate barrier-protected electrode cables.

Software & Data Management

Data logging is performed internally with timestamped storage for up to 500 measurement records, accessible via USB-C interface (cable included). Exported CSV files are compatible with LIMS platforms and statistical analysis tools (e.g., JMP, Minitab, Excel). Firmware updates are delivered through JENCO’s official calibration management portal—supporting version-controlled firmware revision history and audit-ready update logs. Although the 6010M does not include native 21 CFR Part 11 compliance features (e.g., electronic signatures or role-based access), its deterministic calibration memory, uneditable raw measurement timestamps, and non-resettable internal clock meet foundational ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) for regulated QC workflows when documented within a site-specific SOP.

Applications

• Real-time verification of neutralization efficiency in chemical dosing systems
• Monitoring redox potential during chlorine dioxide or ozone disinfection in potable water distribution networks
• Validation of cleaning-in-place (CIP) cycle endpoints in biopharmaceutical manufacturing
• Field assessment of acid mine drainage (AMD) and sediment pore-water chemistry
• Calibration cross-checking of fixed online pH transmitters using portable reference-grade instrumentation
• Teaching laboratories requiring NIST-aligned electrochemical fundamentals instruction

FAQ

Does the 6010M support two-point or three-point pH calibration?
Yes—it supports up to three-point pH calibration using any combination of NIST or USA standard buffers, with slope and offset diagnostics displayed post-calibration.
Can the unit measure ORP without simultaneous pH reading?
Yes—ORP mode operates independently; pH and temperature readings may be disabled in setup to optimize battery life during dedicated redox surveys.
Is the device compatible with differential pH electrodes or ISFET sensors?
No—it accepts only traditional glass-body combination electrodes and single-element ORP sensors with standard BNC connectors; ISFET or differential electrode interfaces require external signal conditioning.
What is the battery life under typical field usage?
With alkaline AA batteries, continuous operation exceeds 200 hours; auto-power-off (configurable: 10/30/60 min) extends service life significantly.
How is temperature compensation applied in ORP measurements?
ORP values are reported as raw mV; no inherent temperature correction is applied, as redox potential is thermodynamically non-linear with temperature—users must apply empirical or Nernst-derived corrections externally if required.
