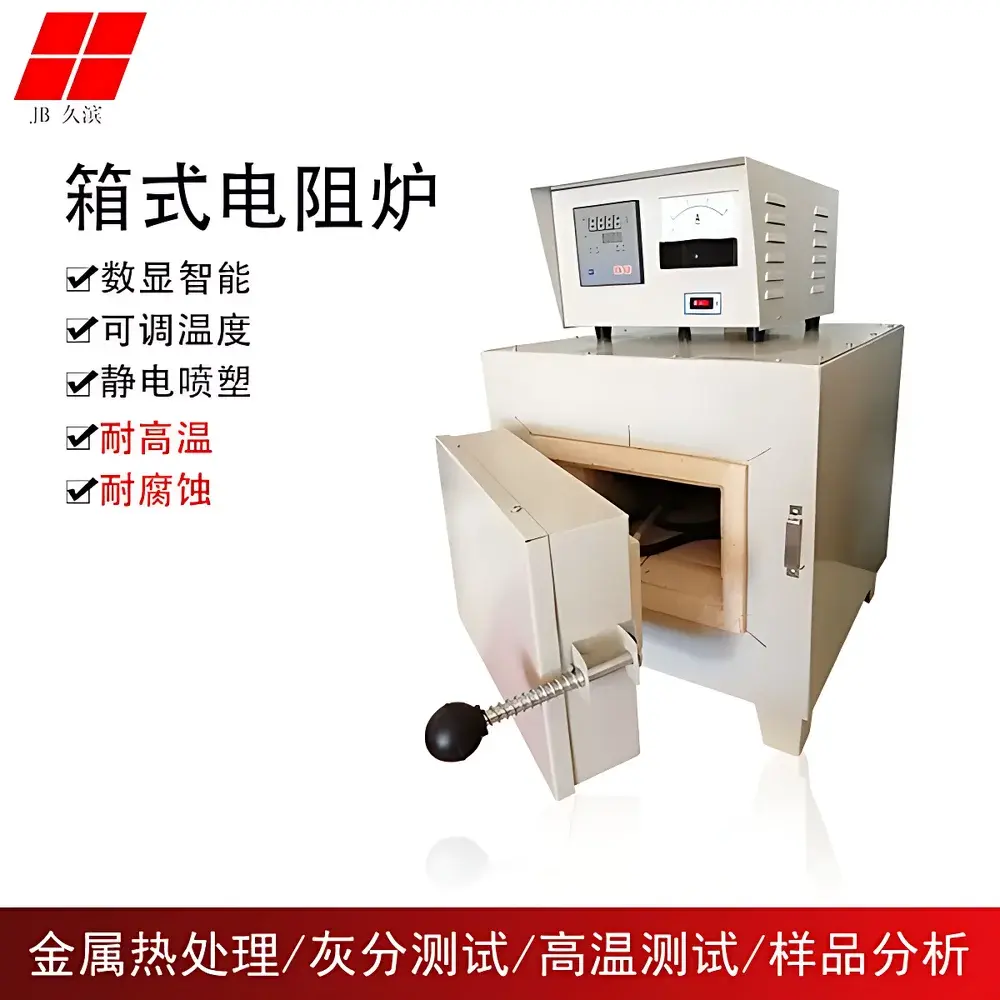

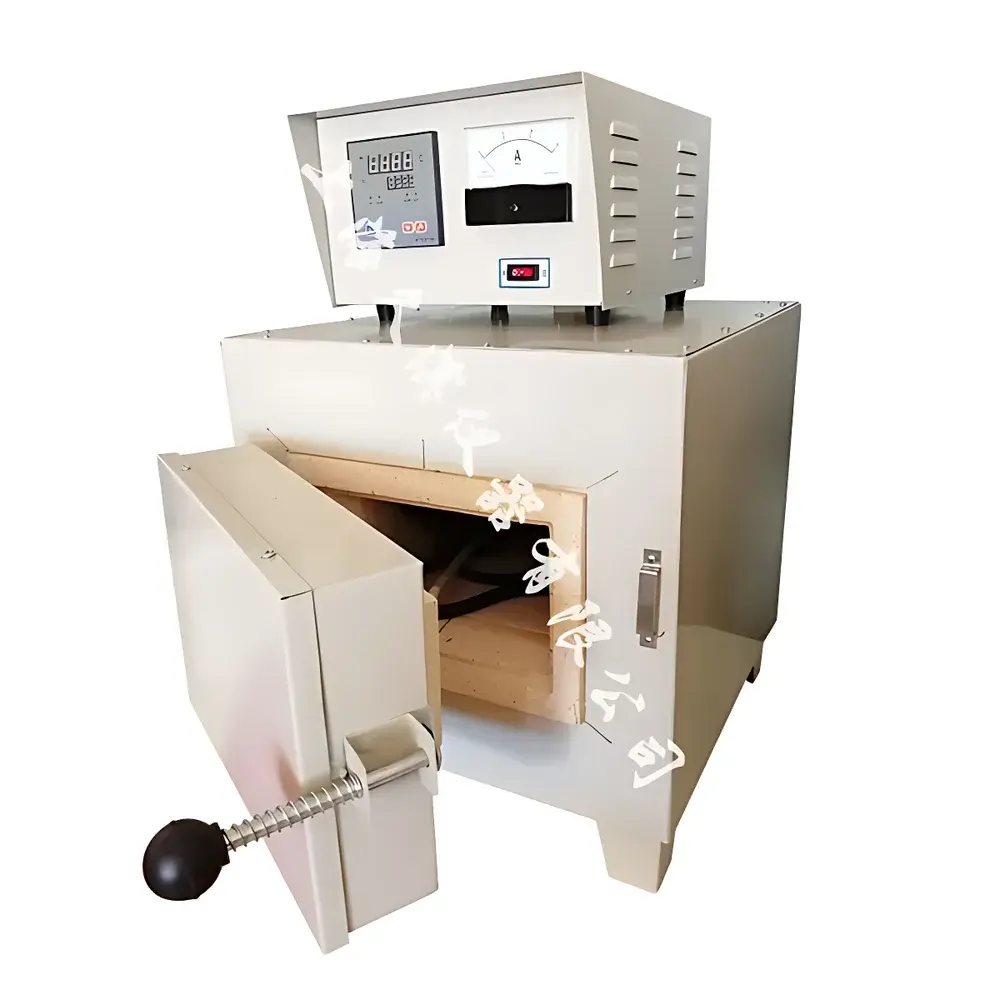

Jiubin Instruments JB-MF1000 Intelligent Digital Muffle Furnace
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-MF1000 |
| Temperature Range | Ambient to 1000 °C |
| Control Accuracy | ±1 °C (typical at steady state) |
| Heating Element | Kanthal A1 alloy wire |
| Chamber Volume | 12 L (standard configuration) |
| Power Supply | 220 V AC, 50/60 Hz |
Overview
The Jiubin Instruments JB-MF1000 is an intelligent digital muffle furnace engineered for precision thermal processing in academic research laboratories, quality control environments, and industrial R&D settings. Operating on resistive heating principles, it utilizes high-purity ceramic fiber insulation and a robust Kanthal A1 heating element to achieve stable, uniform temperature distribution across its 12-liter chamber. The furnace complies with fundamental thermal stability requirements defined in ASTM E1142 (Standard Terminology Relating to Thermal Analysis) and supports routine applications including ash content determination (per ISO 1171 and ASTM D3174), loss-on-ignition (LOI) analysis, calcination of catalyst precursors, and heat treatment of ceramic and metallurgical samples. Its sealed muffle design isolates the sample chamber from combustion byproducts and external air currents—ensuring reproducible oxidative or inert-atmosphere thermal profiles when used with optional gas purge kits.
Key Features
- Microprocessor-based PID temperature controller with digital LED display and real-time setpoint adjustment via membrane keypad
- Programmable multi-segment ramp-soak profiles (up to 8 segments) supporting controlled heating/cooling cycles
- Ceramic fiber insulation (density: ~128 kg/m³) providing low thermal mass and rapid heat-up times (typically <30 min to 1000 °C)
- Double-layer steel housing with integrated cooling fins and over-temperature protection (independent mechanical cut-off at 1050 °C)
- Front-loading door with high-temperature silicone gasket and counterbalanced hinge for ergonomic access and thermal sealing
- Compliance-ready architecture: supports audit trails and parameter logging when interfaced with validated LIMS or SCADA systems
Sample Compatibility & Compliance
The JB-MF1000 accommodates standard crucibles (alumina, porcelain, platinum, and quartz) up to Ø90 mm × 60 mm height. Its chamber geometry ensures radial temperature uniformity within ±5 °C at 1000 °C (verified per IEC 60068-2-2 test protocol). The furnace meets general safety requirements outlined in IEC 61010-1 for electrical equipment used in laboratory environments. While not intrinsically rated for hazardous area use, optional nitrogen or argon purge fittings enable operation under inert conditions—facilitating applications governed by USP , ISO 5725 (accuracy and precision of measurement methods), and GLP-compliant thermal decomposition protocols. Routine calibration verification is supported using NIST-traceable thermocouples (Type S or K) inserted through dedicated port openings.
Software & Data Management
The JB-MF1000 operates as a standalone instrument but features RS-485 communication interface (Modbus RTU protocol) for integration into centralized lab automation networks. Optional PC software enables remote monitoring, data export in CSV format, and generation of time-temperature logs compliant with FDA 21 CFR Part 11 requirements when deployed with electronic signature modules and system validation documentation. All operational parameters—including actual vs. setpoint temperature, elapsed time, segment status, and fault codes—are timestamped and stored in non-volatile memory for traceability during internal audits or regulatory inspections.
Applications
- Residue and ash quantification in food, pharmaceutical, and environmental samples (e.g., soil, sludge, feedstuffs)
- Thermal gravimetric pre-treatment prior to XRF, ICP-OES, or SEM-EDS analysis
- Pre-sintering of oxide ceramics and solid-state battery cathode materials
- Moisture and volatile content analysis in polymers and composites per ASTM D792 and ISO 3451
- Calibration of thermogravimetric analyzers (TGA) and differential scanning calorimeters (DSC)
- Heat treatment of metallographic specimens for microstructural stabilization
FAQ
What is the maximum continuous operating temperature?
The JB-MF1000 is rated for continuous operation at 1000 °C. Short-term excursions up to 1050 °C are permitted for no more than 30 minutes per cycle, provided ambient conditions remain within specification.
Can this furnace be used under inert or reducing atmospheres?
Yes—when equipped with optional gas inlet/outlet ports and flow regulators, the unit supports purging with nitrogen, argon, or forming gas (5% H₂/95% N₂) to suppress oxidation during thermal processing.
Is the temperature uniformity verified and documented?
Uniformity mapping reports (per IEC 60068-2-2 Annex B) are available upon request for specific chamber configurations and load conditions.
Does the furnace support GLP-compliant data integrity practices?
With appropriate configuration—including user access controls, electronic signatures, and audit trail activation—the system can meet core GLP and GMP data handling expectations as defined in OECD Principles of Good Laboratory Practice.
What maintenance is required to sustain accuracy over time?
Annual verification using calibrated reference thermocouples and visual inspection of insulation integrity and door seal performance are recommended. Heater resistance checks should be performed every 500 operational hours in high-frequency usage environments.
