KJ GROUP SYJ-D8000 Diamond Wire Band Saw Cutting System

Overview

The KJ GROUP SYJ-D8000 Diamond Wire Band Saw Cutting System is an engineered precision tool designed for controlled sectioning of heterogeneous, brittle, and composite materials in research, clinical, and industrial laboratories. It employs a continuous-loop diamond-impregnated band blade operating under tensioned linear motion—distinct from rotary saws or abrasive cut-off wheels—to achieve low-stress, high-fidelity cuts with minimal thermal distortion or microcracking. The system’s mechanical architecture integrates a variable-frequency AC motor driving the band at speeds up to 15 m/s, enabling optimization across material hardness and toughness profiles. Its dual-platform configuration—a fixed main work surface and a manually traversed sliding stage—supports both large-format specimens (e.g., geological cores or architectural concrete slabs) and high-resolution anatomical or biomaterial samples requiring precise orientation control. Designed for ISO 17025-aligned lab environments, the SYJ-D8000 meets structural and electrical safety requirements per IEC 61000-6-2/6-4 and complies with CE marking directives for machinery (2006/42/EC) when installed per specified environmental conditions.

Key Features

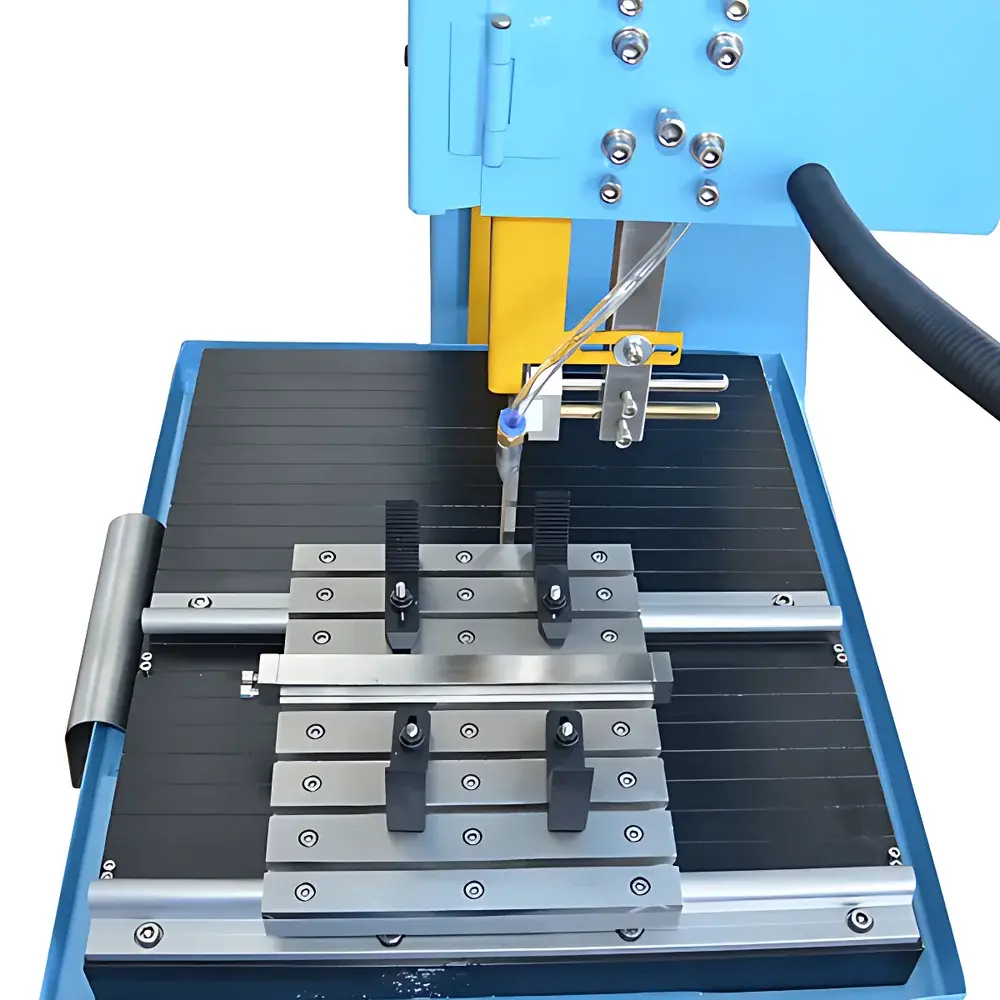

• Dual-Stage Precision Positioning: A rigid main platform (500 mm × 425 mm) accommodates oversized specimens; a calibrated sliding stage (240 mm × 200 mm) provides orthogonal Y-axis translation (>200 mm travel) for repeatable incremental feed during serial sectioning.
• Optimized Diamond Band Geometry: Standard blade features a 0.9 mm diamond-segmented cutting edge bonded to a 0.45 mm flexible steel backing, delivering consistent kerf width (~1.1 mm) and extended service life on ceramics, sintered carbides, and mineralized tissues.
• Recirculating Coolant Management: Integrated centrifugal pump and sealed reservoir maintain stable coolant flow without external plumbing—reducing lab infrastructure dependency while ensuring thermal stability and particulate suspension during prolonged cuts.
• Manual Feed Control with Mechanical Damping: Ergonomic handwheel actuation coupled with precision lead-screw translation ensures smooth, vibration-damped advancement—critical for maintaining planarity in histological or metallurgical thin-section preparation.
• Robust Structural Frame: Cast-iron base and reinforced aluminum alloy housing provide rigidity against torsional deflection during high-load cutting, preserving dimensional repeatability across multi-hour operation cycles.

Sample Compatibility & Compliance

The SYJ-D8000 supports a broad spectrum of sample classes defined by ASTM C1327 (Standard Terminology for Advanced Ceramics), ISO 5725 (Accuracy of measurement methods), and USP (Mechanical Testing of Medical Devices). Validated applications include: geological specimens (granite, basalt, shale cores); structural composites (CFRP, GFRP laminates); biomedical hard-tissue analogs (hydroxyapatite scaffolds, PMMA bone cement); and hybrid biological specimens requiring simultaneous soft/hard tissue preservation (e.g., osteointegrated dental implants, vascular calcifications, or decalcified joint specimens). All cutting protocols align with GLP documentation standards, supporting audit-ready traceability when paired with laboratory notebook systems. Electrical grounding compliance (IEC 61000-6-2) and enclosure IP2X-rated protection ensure safe operation in shared academic or contract research facilities.

Software & Data Management

The SYJ-D8000 operates via embedded firmware-controlled panel interface—no external PC or proprietary software is required. All operational parameters (motor speed, runtime, emergency stop logs) are retained in non-volatile memory and accessible via diagnostic mode. While the system does not feature network connectivity or digital data export, its tactile controls and visual status indicators meet FDA 21 CFR Part 11 “electronic record” baseline requirements for manual entry environments. For labs implementing LIMS integration, optional RS-232 or USB-to-serial adapters enable timestamped event logging (e.g., start/stop, fault codes) into third-party laboratory information management systems compliant with ISO/IEC 17025 Clause 7.11.

Applications

• Geoscience: Sectioning of drill cores, petrographic thin sections, and paleontological fossils with minimal edge chipping.
• Materials Science: Cross-sectional analysis of thermal barrier coatings, ceramic matrix composites, and additive-manufactured metal parts.
• Biomedical Engineering: Preparation of undecalcified bone-implant interfaces, dental prostheses (zirconia crowns, titanium abutments), and cardiovascular stent-tissue cross-sections.
• Clinical Histopathology: Serial slicing of plastinated human cadaveric specimens for anatomical education and surgical simulation training.
• Automotive QA: Dimensional verification of elastomeric seals, gaskets, and polymer-based damping components under production-line constraints.

FAQ

What types of diamond band blades are compatible with the SYJ-D8000?
The system accepts standard 2780 mm circumference diamond band blades with 10 mm nominal width and 0.45 mm base thickness. Custom blade geometries (e.g., variable segment concentration or alternative matrix formulations) may be installed provided tensile strength and pulley clearance specifications are maintained.
Is the SYJ-D8000 suitable for cutting hydrated biological tissues without fixation?
Yes—when used with chilled coolant and reduced wire speed (≤8 m/s), the system enables sectioning of fresh-frozen or lightly fixed soft/hard tissue composites, such as porcine knee joints or human mandibular specimens containing integrated titanium screws.
Does the unit require compressed air or external exhaust ventilation?
No. The SYJ-D8000 operates without pneumatic assistance and generates negligible airborne particulates when coolant flow is maintained; standard laboratory fume hood use is not required.
Can the sliding stage be retrofitted with motorized actuation?
Not natively. The mechanical design relies on manual feed for operator feedback and force modulation; motorization would compromise the system’s certification under current CE and IEC safety classifications.
What maintenance intervals are recommended for long-term reliability?
Blade tension should be verified weekly; coolant reservoir fluid level and particulate filter integrity require inspection before each use; motor bearings are factory-lubricated for 10,000 hours and do not require periodic servicing.
