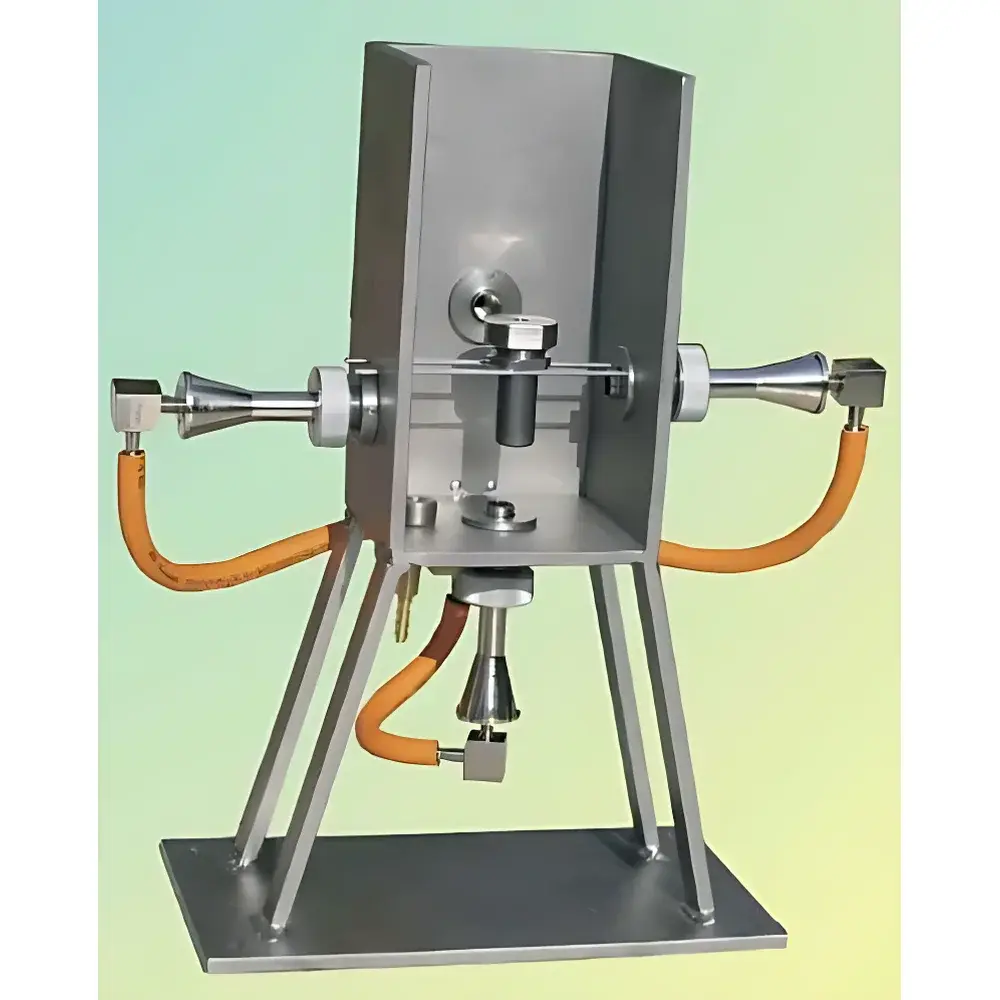

Koenen Test Apparatus (R&P, Germany)

Overview

The Koenen Test Apparatus is a precision-engineered thermal sensitivity testing system designed to assess the explosive hazard potential of solid, liquid, or pasty substances under highly confined, high-temperature conditions. Developed in accordance with internationally recognized test protocols—including UN Manual of Tests and Criteria, Part I, Section 11.5.1 (Test 1(b)) and Section 12.5.1 (Test 2(b)), EU Directive 67/548/EEC (as amended), and STANAG 4491 Edition 3, Annex C1—the apparatus evaluates whether a material undergoes violent decomposition or detonation when subjected to rapid, localized heating in a sealed steel tube. The test principle relies on controlled pyrolysis and thermal initiation within a standardized BAM-certified stainless steel reaction tube (24 mm inner diameter × 75 mm length × 0.5 mm wall thickness), simulating worst-case thermal insult scenarios encountered during transport, storage, or handling of hazardous materials.

Key Features

• Robust safety architecture featuring integrated blast shielding enclosure compliant with laboratory-scale explosive test containment requirements.
• Four independently regulated propane burners fed via a calibrated manifold system, each supplied from an industrial-grade propane cylinder equipped with a precision pressure regulator (500 mbar) and flowmeter.
• Modular heating assembly comprising a certified BAM-tested reaction tube, segmented thermally resistant wire plug (CrMn steel, spark generation threshold >800 °C), and interchangeable nozzle plates fabricated from high-temperature CrNiW alloy.
• Standardized nozzle plate orifice options ranging from 1.0 mm to 20 mm in discrete increments (1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20 mm), enabling precise control over flame impingement geometry and heat flux density.
• Dual-configurable wire plugs available in 10 mm and 20 mm aperture variants, optimized for differential confinement pressure development during thermal initiation.
• Designed for installation in dedicated, ventilated test chambers physically separated from operator observation areas; exhaust ducting must be installed to evacuate combustion byproducts post-test in compliance with local occupational health and safety regulations (e.g., OSHA 1910.120, EN 14175).

Sample Compatibility & Compliance

The Koenen apparatus accommodates samples in solid granular, crystalline, powdered, liquid, or semi-solid (pasty) form—provided they can be loaded into the standardized reaction tube without voids or air pockets that compromise thermal coupling. Sample mass is determined per test standard (typically 10–100 mg depending on density and expected reactivity). All components meet material traceability and dimensional tolerance requirements specified in UN ST/SG/AC.10/11/Rev.6 and BAM Guideline No. 5. The system supports full auditability for GLP-compliant laboratories and satisfies documentation prerequisites for regulatory submissions to ECHA, ATF, and national explosives licensing authorities. Calibration and verification procedures align with ISO/IEC 17025:2017 clause 6.5.2 for equipment used in safety-critical testing.

Software & Data Management

While the core Koenen test is manually executed per standardized procedure, optional digital instrumentation packages (available upon request) include thermocouple-based real-time temperature profiling (Type K, ±1.5 °C accuracy), high-speed video capture synchronized with ignition timing, and automated pressure transducer logging (0–100 bar range, 0.5% FS accuracy). Data output conforms to ASTM E2554-21 Annex A1 for raw test record retention and supports export to CSV or XML formats compatible with LIMS platforms. Full electronic audit trails—including user login, parameter settings, and timestamped event logs—are configurable to meet FDA 21 CFR Part 11 requirements when paired with validated software modules.

Applications

• Preliminary classification of new chemical entities under UN GHS Chapter 2.1 (Explosives) and CLP Regulation (EC) No. 1272/2008.
• Verification testing for military propellants, pyrotechnic compositions, and insensitive munitions (IM) formulations per STANAG 4491.
• Quality assurance of commercial blasting agents, fireworks compositions, and energetic intermediates prior to batch release.
• Root-cause analysis of thermal runaway incidents in process safety investigations (e.g., CCPS Guidelines).
• Supporting technical dossiers for transport classification under ADR/RID/IMDG Code Special Provision 288.

FAQ

What standards does the Koenen Test Apparatus comply with?
It fulfills UN Test 1(b) and 2(b) as defined in the UN Manual of Tests and Criteria, 6th Rev., Part I; EU Directive 67/548/EEC Annex V; and STANAG 4491 Edition 3, Annex C1.
Is BAM certification included with the reaction tubes?
Yes—each steel tube supplied under part number 785-1027 has undergone individual mechanical and metallurgical validation by BAM (Bundesanstalt für Materialforschung und -prüfung) and is accompanied by a traceable certificate of conformity.
Can the apparatus be integrated into an existing safety-rated fume hood?
No—due to overpressure risk and combustion gas volume, installation requires a purpose-built, explosion-relieved test chamber with dedicated forced-air extraction rated ≥1200 m³/h and spark-proof ventilation components.
What maintenance intervals are recommended for the propane delivery system?
Regulators and flowmeters require annual recalibration per ISO/IEC 17025; burner nozzles should be inspected for carbon fouling before each test series and ultrasonically cleaned if residue exceeds 5 µm surface roughness.
Are consumables supplied with initial purchase?
Standard configuration includes one set of reaction tubes, five 10 mm wire plugs, six nozzle plates (2 mm and 6 mm apertures), four burners, one ignition nozzle, and one mounting fixture—all referenced under part numbers 785-0000 through 785-1052.
