Q-LAB QUV/SP UV Aging Test Chamber

Overview

The Q-LAB QUV/SP UV Aging Test Chamber is an industry-standard fluorescent ultraviolet (UV) accelerated weathering instrument engineered for precision, reproducibility, and regulatory compliance in materials science laboratories. Unlike broad-spectrum xenon arc or carbon arc systems, the QUV/SP employs calibrated fluorescent UV lamps to replicate the most photochemically active portion of terrestrial sunlight—specifically the 295–400 nm spectral region—where polymer degradation, pigment fading, surface chalking, gloss loss, and embrittlement are predominantly initiated. Its core measurement principle relies on controlled UV irradiance exposure combined with tightly regulated thermal and moisture cycling to accelerate photodegradation mechanisms observed under real-world outdoor conditions. Designed for R&D labs, QC departments, and third-party testing facilities, the QUV/SP delivers high-fidelity aging data essential for material qualification, formulation optimization, and durability benchmarking across coatings, plastics, adhesives, sealants, roofing membranes, and photovoltaic components.

Key Features

• Solar Eye® Irradiance Control System: Standard on the QUV/SP, this closed-loop feedback system continuously monitors and adjusts lamp output to maintain user-defined irradiance setpoints (e.g., 0.73 W/m² @ 340 nm for UVA-340 lamps), compensating for lamp aging, ambient temperature fluctuations, and inter-lamp variability—ensuring test repeatability across batches and laboratories.
• Multi-Lamp Compatibility: Supports five standardized lamp types: UVA-340 (best match to solar UV below 365 nm), UVA-351 (simulates UV through window glass), UVB-313 (high-intensity, aggressive UV for rapid screening), QFS-40 (for ISO 11507 “QUV” cycle), and Cool White Fluorescent (for indoor light stability testing per ASTM D4674 and ASTM F1945).
• Precise Thermal Management: Independent black panel thermometer (BPT) and chamber air temperature control enable accurate simulation of surface heating effects during UV exposure. BPT range: 35–80°C; chamber air range: 35–70°C—both programmable and logged with ±0.5°C accuracy.
• Condensation Humidity Simulation: A proprietary water-jacketed condensation cycle generates 100% RH at elevated temperatures using deionized or distilled water (tap water compatible with optional filtration). Condensate forms uniformly on specimen surfaces—mimicking dew formation without mineral deposits or spotting—critical for evaluating hydrolytic degradation and blistering.
• Robust Architecture & Traceability: Stainless steel construction, NIST-traceable calibration options, and full audit trail support for GLP/GMP environments. All firmware and calibration records comply with FDA 21 CFR Part 11 requirements when paired with Q-LAB’s optional Q-Support software suite.

Sample Compatibility & Compliance

The QUV/SP accommodates flat-panel specimens up to 127 mm × 254 mm (5″ × 10″) with standard rack capacity for 48 samples (optional racks available). It supports rigid and semi-rigid substrates—including coated metals, extruded polymers, laminated composites, and encapsulated PV cells—without requiring special fixturing. The system is validated against more than 30 internationally recognized standards, including ASTM D4329 (plastics), ASTM D4587 (coatings), ISO 11507 (paints and varnishes), IEC 61345 (PV module UV pre-conditioning), and AATCC TM186 (textile UV/moisture resistance). Its design aligns with the fundamental principles of ASTM G151 (accelerated exposure apparatus) and ASTM G154 (fluorescent UV exposure protocols), ensuring data acceptance by regulatory bodies, OEMs, and certification agencies worldwide.

Software & Data Management

The QUV/SP operates via an intuitive front-panel interface with real-time display of irradiance, black panel temperature, chamber temperature, and cycle phase. For advanced data governance, it integrates seamlessly with Q-LAB’s Q-Support™ software (Windows-based), enabling remote monitoring, automated report generation (PDF/CSV), multi-user access control, electronic signature workflows, and full 21 CFR Part 11-compliant audit trails—including user actions, parameter changes, calibration events, and alarm logs. All test parameters and results are timestamped and digitally signed to support ISO/IEC 17025 accreditation requirements. Raw sensor data is stored in non-proprietary formats for third-party analysis and long-term archival.

Applications

• Accelerated UV durability validation of automotive clearcoats, aerospace primers, and marine topcoats
• Photostability assessment of medical device polymers (ISO 10993-12 compliant exposure protocols)
• Qualification of roofing membranes per ASTM D4799 (UV + spray + condensation cycles)
• Screening of photovoltaic encapsulant yellowing and delamination per IEC 61215 Clause 10.11
• Development of UV-stabilized packaging films for pharmaceutical and food applications
• Correlation studies between QUV/SP output and outdoor Florida or Arizona exposure data using Q-LAB’s proprietary correlation models
• Failure analysis of elastomeric sealants per ASTM C793 and ASTM C1519

FAQ

What is the difference between UVA-340 and UVB-313 lamps?
UVA-340 lamps emit a spectrum closely matching solar UV from 295–365 nm and are recommended for realistic outdoor simulation. UVB-313 lamps extend output down to 280 nm and produce higher photon flux—ideal for rapid pass/fail screening but may induce non-representative degradation pathways.
Does the QUV/SP require external cooling water or compressed air?
No. The QUV/SP is air-cooled and self-contained. Only standard 120/230 VAC power and a water source for condensation are required.
Can I run cyclic tests combining UV, condensation, and dark periods?
Yes. The QUV/SP supports fully programmable multi-step cycles—including UV-only, UV+condensation, and dark+condensation phases—with independent timing and temperature setpoints for each segment.
How often must lamps be replaced?
Per Q-LAB’s warranty, lamps are guaranteed for 5,000 hours of operation at nominal irradiance. Actual replacement interval depends on usage intensity and irradiance setpoint; Solar Eye® ensures consistent output throughout lamp life.
Is calibration traceable to NIST?

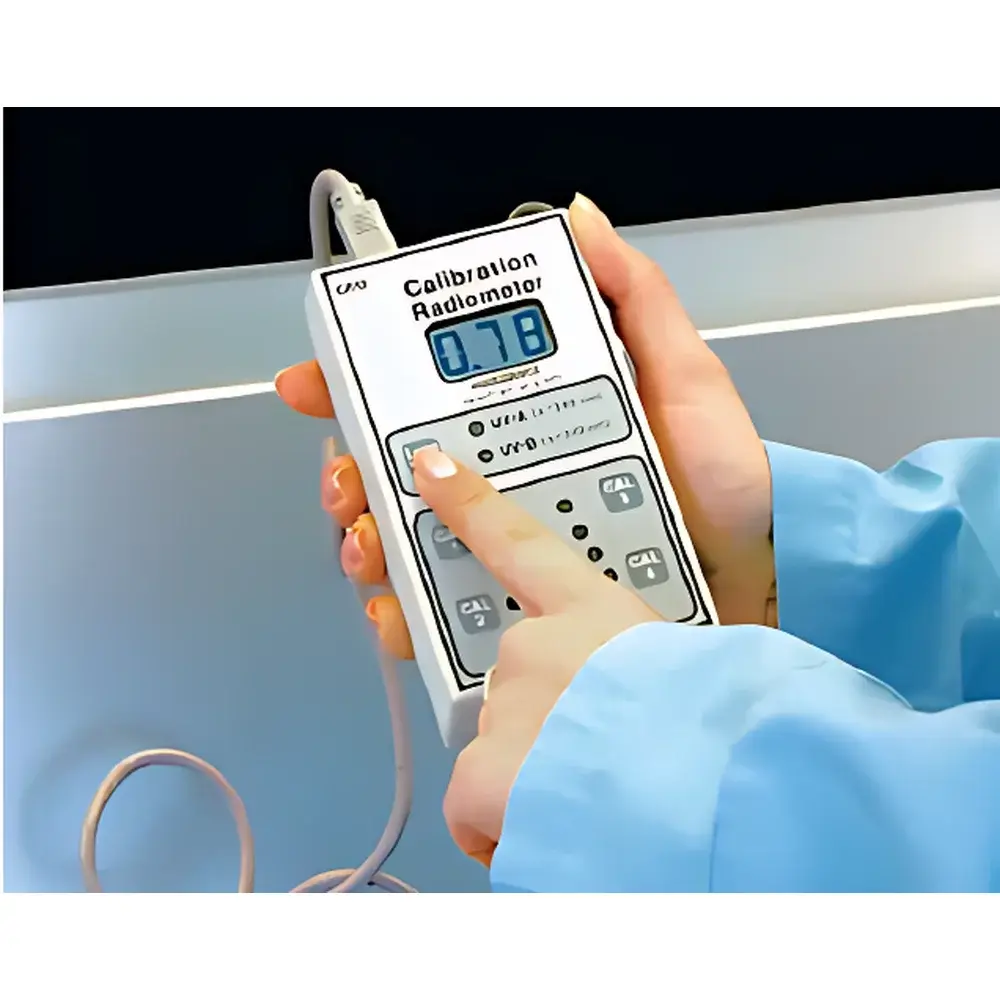

Yes. Optional NIST-traceable irradiance and temperature calibration services are available directly from Q-LAB or authorized service partners, with full documentation provided per ISO/IEC 17025 requirements.
