Q-Lab QUV/Spray Water Repurification System

Overview

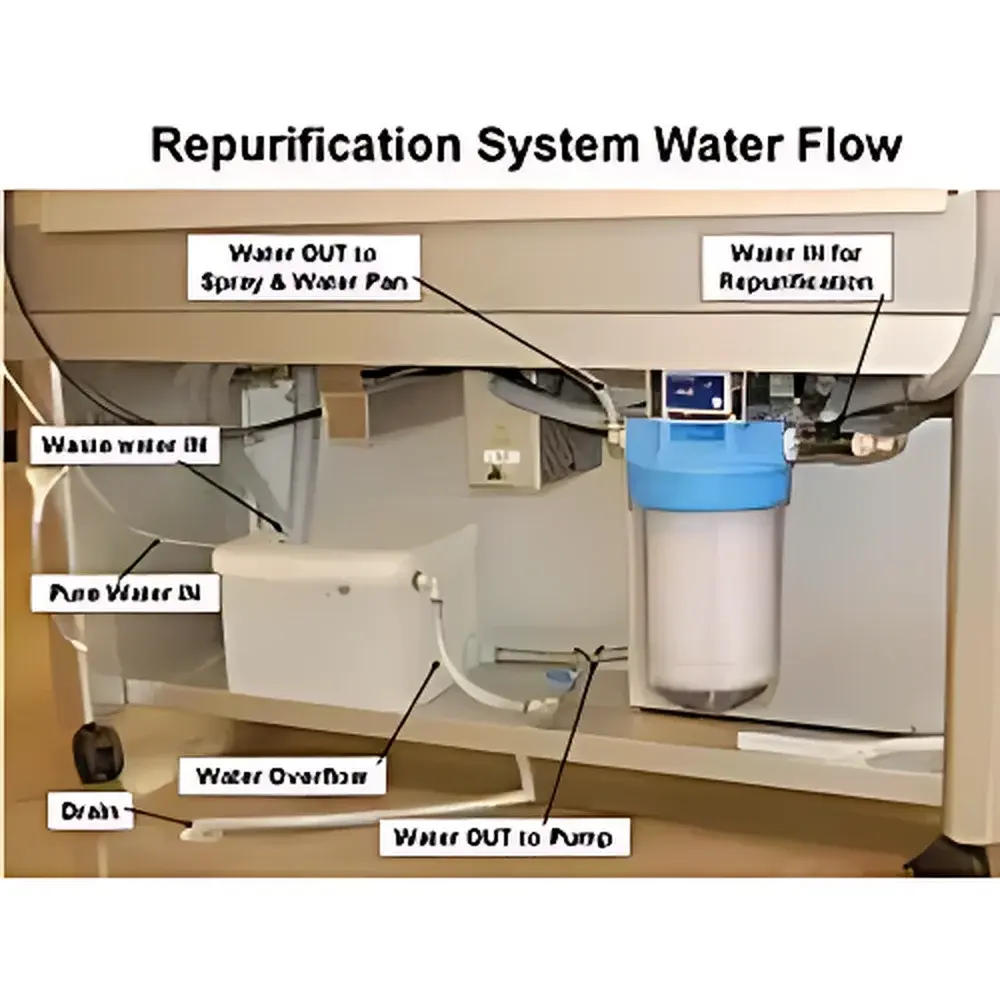

The Q-Lab QUV/Spray Water Repurification System is an engineered recirculation and re-purification subsystem designed exclusively for integration with QUV/spray accelerated weathering testers. Unlike primary water purification systems (e.g., reverse osmosis or deionization units), this system operates as a closed-loop reconditioning module—reprocessing used spray water to meet ASTM D1193-20 Type I ultrapure water specifications prior to reintroduction into the spray circuit. It does not generate purified water from raw feed; rather, it maintains water quality within the tester’s internal reservoir by continuously removing ionic contaminants, particulates, and organic residues accumulated during cyclic exposure. The system leverages a proprietary re-purification cartridge containing mixed-bed ion exchange resin and sub-micron depth filtration media, coupled with integrated flow control and automatic level regulation via float valve. Its architecture eliminates daily manual refilling and reduces net consumption of high-purity water by >95% under standard 4-hour daily spray protocols—translating to ~1,680 L/day water savings versus once-through operation.

Key Features

• Recirculating re-purification design compliant with ASTM D1193-20 Type I water quality requirements for critical UV exposure testing
• Integrated re-purification cartridge (V-4979-K) with dual-stage mixed-bed ion exchange and 0.1 µm absolute-rated depth filtration
• Automated reservoir level maintenance via fail-safe float valve—compensates for evaporation (~8 L/day) without operator intervention
• Factory-installed configuration (V-4990-K) or field-upgrade kit (V-60007-K) for seamless integration with existing QUV/spray units
• No external drain requirement under normal operation; optional overflow drain recommended for mechanical safety redundancy
• Real-time water quality monitoring interface compatible with Q-Lab’s standard diagnostic firmware (TDS sensor output)
• Cartridge service life exceeding 2–3 years under typical usage (dependent on initial feed water quality and spray duration)

Sample Compatibility & Compliance

The QUV/Spray Water Repurification System is validated exclusively for use with Q-Lab’s QUV/spray testers operating in ISO 4892-3, ASTM G154, and IEC 61215-compliant test cycles. It ensures consistent water purity across repeated spray phases—critical for eliminating artifact formation (e.g., mineral spotting, silica deposition, or ionic interference) on polymer, coating, and photovoltaic test specimens. While the system itself is not certified to ISO 9001 or ISO/IEC 17025, its design aligns with GLP-relevant operational controls: traceable cartridge replacement logs, TDS-based endpoint detection (≥5 ppm triggers replacement), and firmware-stamped event records for audit readiness. Feed water must be pre-treated to ≤50 ppm TDS to prevent premature cartridge exhaustion; municipal tap water is not acceptable without upstream softening or RO pretreatment.

Software & Data Management

The re-purification system interfaces directly with the QUV/spray controller’s embedded diagnostics suite. TDS readings are logged alongside cycle parameters (spray duration, UV irradiance, condensation time) and stored in the instrument’s internal non-volatile memory. Export is supported via USB or Ethernet (Q-Lab’s Q-Support software) in CSV format for integration into LIMS or QA documentation workflows. All cartridge change events—including date/time stamp, operator ID (if configured), and pre/post-replacement TDS values—are automatically archived. The system supports FDA 21 CFR Part 11–compliant audit trails when deployed with Q-Lab’s optional Q-Support Enterprise license and network authentication.

Applications

This system is deployed in laboratories conducting long-term durability assessments of automotive clearcoats, architectural sealants, aerospace composites, and solar panel encapsulants where repeatable, contaminant-free spray exposure is essential. It enables multi-week continuous testing without degradation in water quality—preventing false failure modes linked to calcium carbonate scaling or sodium chloride residue. In regulated environments (e.g., Tier 1 automotive suppliers), the reduced variability in spray water composition improves inter-laboratory reproducibility and supports ISO/IEC 17025 method validation requirements. Academic research groups utilize the system to isolate UV/photochemical degradation mechanisms independent of aqueous ionic effects.

FAQ

Can this system replace a primary RO/DI water source?
No. It is strictly a re-purification unit and requires feed water meeting minimum quality thresholds (≤50 ppm TDS, low hardness). A dedicated primary purification system remains necessary.
What triggers re-purification cartridge replacement?
A TDS reading exceeding 5 ppm, measured at the reservoir outlet, indicates exhausted ion exchange capacity and mandates immediate cartridge replacement.
Is microbial control included in the re-purification process?
The system does not incorporate UV sterilization or biocidal treatment; it relies on low-nutrient, low-temperature recirculation and regular cartridge replacement to suppress microbial proliferation.
Does the system require periodic calibration?
The TDS sensor is factory-calibrated and requires no user calibration; however, quarterly verification against a NIST-traceable conductivity standard is recommended for GLP compliance.
Can the re-purification system be retrofitted to older QUV models?
Yes—V-60007-K is the authorized upgrade kit for QUV/spray units manufactured after 2012; compatibility verification with serial number is required prior to installation.
