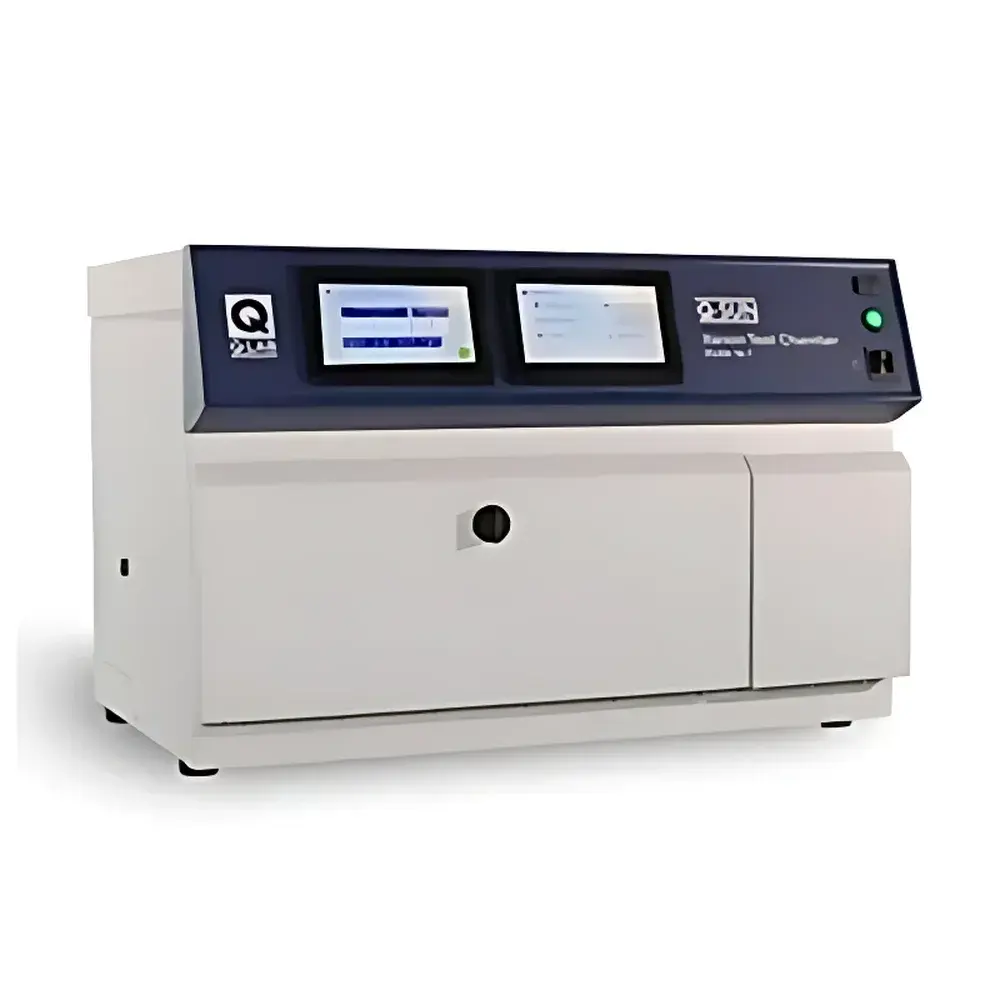

Q-LAB Q-SUN Xe-1 Xenon Arc Weathering Test Chamber

Overview

The Q-LAB Q-SUN Xe-1 Xenon Arc Weathering Test Chamber is a compact, air-cooled benchtop instrument engineered for accelerated light stability and weathering evaluation of polymeric, coated, and organic materials. It employs a single long-life xenon arc lamp to reproduce the full solar spectrum—from ultraviolet (UV) through visible to near-infrared (NIR)—enabling high-fidelity simulation of natural sunlight exposure conditions. Unlike narrowband UV sources, the xenon arc lamp delivers spectrally continuous irradiance, making it the reference method for assessing photochemical degradation mechanisms such as fading, chalking, gloss loss, cracking, and embrittlement. The system integrates optical filtering to tailor spectral output, allowing users to emulate either outdoor daylight (Daylight Filter), indoor window-glass filtered sunlight (Window Glass Filter), or extended UV-rich spectra (Extended UV Filter). This spectral fidelity ensures correlation with real-world service life under diverse climatic and architectural exposure scenarios.

Key Features

• Single-lamp architecture optimized for cost-effective operation without compromising spectral accuracy or test reproducibility.
• Sliding sample tray (251 mm × 457 mm) enabling rapid specimen loading, visual inspection, and retrieval—compatible with flat panels, molded parts, and small 3D components.
• Direct indoor exhaust capability eliminates need for external ductwork; supports flexible laboratory integration.
• Programmable exposure duration from 1 to 9999 hours, supporting both short-term screening and long-duration durability validation.
• Robust filter system using Q-LAB’s proprietary fused silica and borosilicate glass filters—designed for long-term spectral stability and minimal drift over years of operation.
• Integrated irradiance monitoring (calibrated per ISO 4892-2 Annex B) ensures consistent photon flux delivery across test cycles.
• User-accessible lamp replacement mechanism requiring no tools—minimizing downtime and technician dependency.

Sample Compatibility & Compliance

The Q-SUN Xe-1 accommodates a broad range of material forms including paints, coatings, plastics, textiles, adhesives, inks, automotive trim, cosmetic packaging, and medical device housings. Its compact footprint and low thermal load make it suitable for quality control labs, R&D facilities, and academic institutions where space and budget constraints preclude larger chamber configurations. The instrument meets internationally recognized standards for accelerated weathering testing, including ISO 4892-1 (general principles), ISO 4892-2 (xenon-arc method), and ISO 11341 (paints and varnishes—determination of resistance to artificial weathering). While humidity control is not integrated into the Xe-1 model, its open-air design allows optional integration with external humidification systems when required by specific test protocols. All operational parameters—including irradiance setpoints, exposure time, and filter selection—are traceable and documentable for GLP/GMP-aligned workflows.

Software & Data Management

The Q-SUN Xe-1 operates via a front-panel digital interface with intuitive menu navigation and password-protected parameter locking. Although it does not feature embedded PC-based software or network connectivity, all exposure settings—including total accumulated irradiance (J/m²) and elapsed time—are logged internally with timestamped records accessible via display review. For laboratories requiring electronic data capture, Q-LAB provides calibration certificates traceable to NIST standards and supports integration with third-party LIMS or ELN platforms via manual export of test logs. The system’s design prioritizes audit readiness: lamp usage hours, filter installation dates, and operator ID fields can be manually annotated in lab notebooks aligned with 21 CFR Part 11-compliant documentation practices.

Applications

• Evaluation of pigment and dye photostability in printing inks, automotive coatings, and textile dyes.
• Comparative assessment of polymer UV stabilizers and HALS additives in polyolefins, PVC, and engineering resins.
• Validation of weatherability claims for architectural sealants, roofing membranes, and exterior plastic enclosures.
• Pre-screening of new formulations prior to outdoor exposure in ASTM G7, ISO 877, or Florida/Arizona field sites.
• Regulatory support for FDA-compliant packaging materials and ISO 10993-12 biocompatibility assessments involving light-induced leachables.
• Correlation studies between accelerated xenon exposure and real-time aging in transportation, aerospace, and consumer electronics sectors.

FAQ

What spectral filters are available for the Q-SUN Xe-1, and how do they differ?

The standard configuration includes Daylight (ISO 4892-2 Type A), Window Glass (Type B), and Extended UV (Type C) filters—each altering the UV cutoff and NIR transmission to match distinct end-use environments.
Is humidity control integrated into the Xe-1 model?

No. The Xe-1 is a dry-exposure-only chamber. Humidity cycling requires external humidification equipment or migration to the Q-SUN Xe-3 series.
Can the Xe-1 accommodate three-dimensional samples?

Yes—the sliding tray design permits placement of low-profile 3D parts up to 50 mm in height, provided they remain within the defined irradiance uniformity zone.
How often must the xenon lamp be replaced?

Typical lamp service life is 1,500–2,000 hours under standard irradiance settings; replacement is indicated when irradiance output falls below 90% of initial calibrated value.
Does the instrument comply with FDA or pharmaceutical regulatory requirements?

While not certified for cGMP production environments, the Xe-1 supports IQ/OQ documentation packages and generates auditable exposure records suitable for ICH Q1B photostability testing protocol development.
