Q-LAB Q-SUN Xe-3 Xenon Arc Weathering Test Chamber

Overview

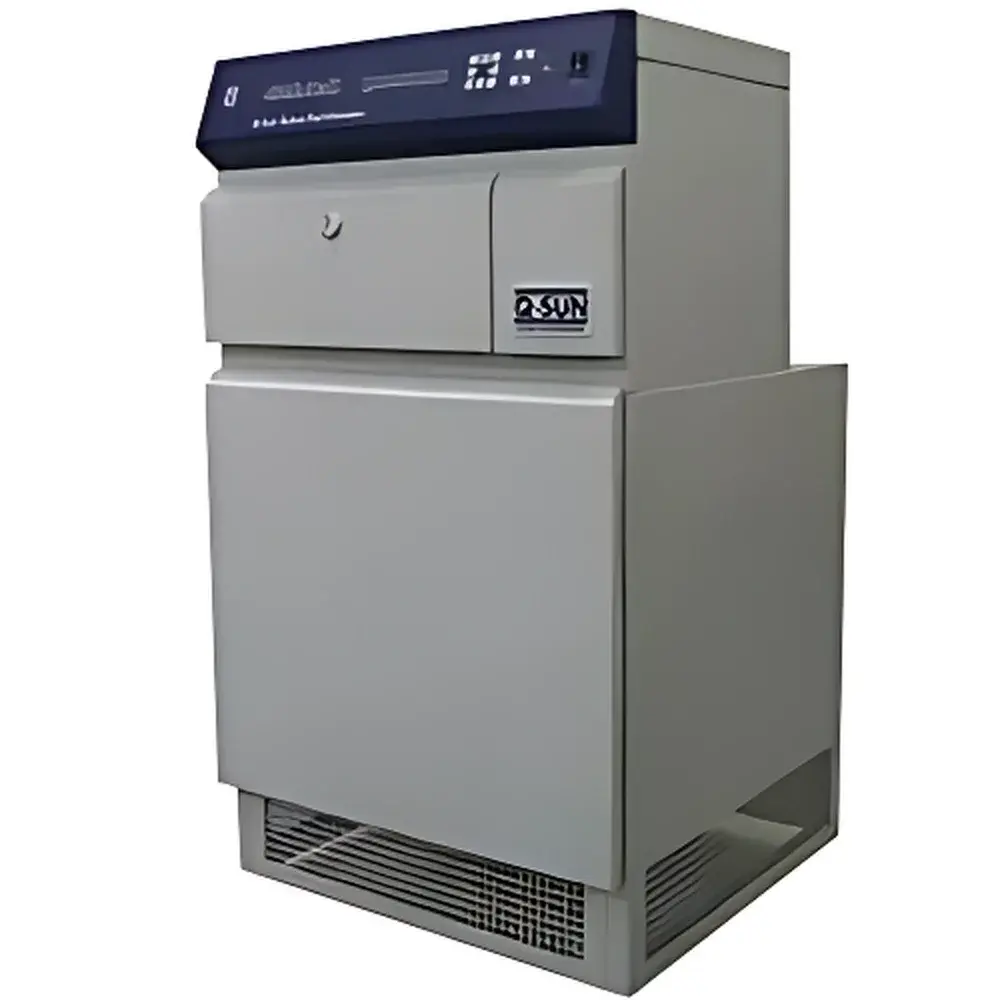

The Q-LAB Q-SUN Xe-3 Xenon Arc Weathering Test Chamber is an air-cooled, benchtop-to-floor-standing environmental test system engineered for high-fidelity simulation of full-spectrum solar radiation—including ultraviolet (UV), visible, and near-infrared (NIR) wavelengths—under controlled temperature and humidity conditions. Unlike narrowband UV fluorescent sources, xenon arc lamps emit a continuous spectrum closely matching natural sunlight (AM 1.5G), making them the internationally recognized reference light source for accelerated weathering per ASTM G155, ISO 4892-2, and IEC 60068-2-9. The Q-SUN Xe-3 employs three 1800 W air-cooled xenon lamps in parallel configuration to deliver uniform irradiance across large sample areas, enabling reproducible photochemical degradation studies critical for evaluating color stability, gloss retention, chalking, cracking, and embrittlement in polymers, coatings, textiles, automotive interiors, and architectural materials.

Key Features

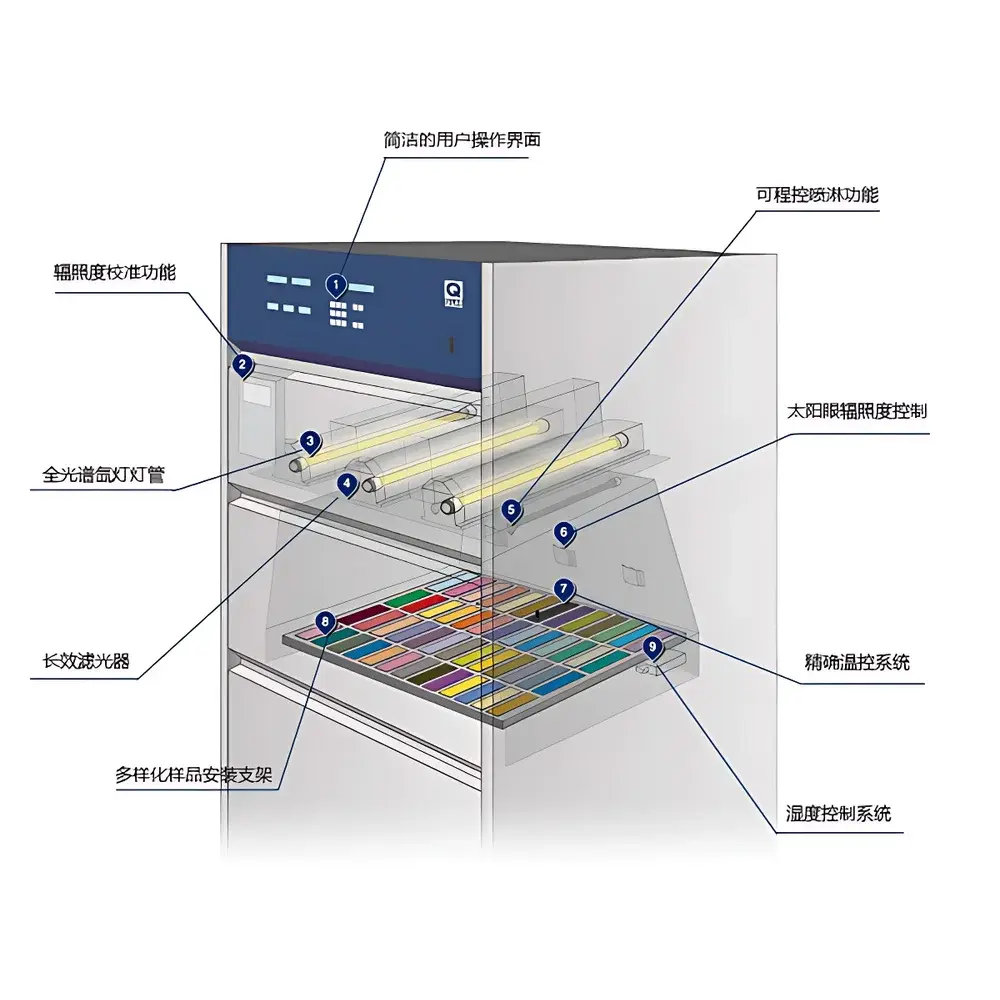

• Triple-lamp xenon arc optical system delivering high-intensity, spectrally stable irradiance over extended test durations
• Interchangeable optical filters (Daylight, Window Glass, Extended UV) to replicate distinct exposure environments—outdoor direct sun, through-window indoor exposure, or UV-accelerated testing per ISO 105-B02 and AATCC TM16
• Long-life quartz filters with minimal spectral drift over >5 years of operation; validated performance documented in Q-Lab Technical Report LX-5060
• Sliding drawer-style sample tray accommodating both flat-panel specimens (up to 65 × 120 cm) and three-dimensional components without reorientation
• Integrated touchscreen controller with real-time monitoring of irradiance (W/m² @ 340 nm or 420 nm), black panel temperature, chamber temperature, and relative humidity
• Compliance-ready data logging supporting audit trails, user access levels, and exportable CSV reports—designed to meet GLP and GMP documentation requirements

Sample Compatibility & Compliance

The Q-SUN Xe-3 supports standardized specimen geometries per ASTM D7869, ISO 11341, and GB/T 16422.2, including rigid panels (0.5–10 mm thick), flexible films, molded parts, and textile swatches mounted on rigid backings. Its open-chamber design permits direct placement of oversized or irregularly shaped samples up to 150 mm in height. All operational parameters—including irradiance setpoints, temperature ramp profiles, and humidity cycles—are programmable to align with industry-specific test protocols such as SAE J2527 (automotive exterior), ISO 11341 (paints and varnishes), or AATCC TM16-2021 (textile colorfastness). The system is fully compliant with FDA 21 CFR Part 11 when configured with optional electronic signature and audit trail modules.

Software & Data Management

The embedded Q-Sun Touchscreen Controller runs proprietary firmware supporting multi-step test sequences, automatic lamp aging compensation, and real-time deviation alerts. All sensor readings—including irradiance, black standard temperature (BST), chamber air temperature, and RH—are timestamped and stored internally for ≥30 days. Data export via USB or Ethernet enables integration into LIMS or enterprise QA systems. Optional Q-Lab’s SunTest™ PC software provides advanced analysis tools—including spectral power distribution (SPD) visualization, cumulative dose tracking, and comparative degradation curve plotting—while maintaining traceability to NIST-traceable radiometric calibrations.

Applications

This instrument serves laboratories engaged in R&D, quality assurance, and regulatory compliance across sectors including automotive OEMs and Tier-1 suppliers (interior trim, headlamp lenses, sealants), aerospace composites manufacturers (radome coatings, cabin materials), architectural product developers (cladding, roofing membranes), textile producers (apparel, upholstery, technical fabrics), and paint & coating formulators. It is routinely deployed for qualification testing against OEM specifications (e.g., Ford CETP, GMW14124), international standards (ISO 4892-2, IEC 60068-2-5), and customer-specific durability benchmarks requiring correlation to real-world service life.

FAQ

What filter should I select for outdoor exposure simulation?
For general outdoor applications, the Daylight filter (Q/B) is recommended per ASTM G155 Cycle 1 and ISO 4892-2 Method A.
How often must the xenon lamps be replaced?
Lamp replacement is typically required every ~1500 hours of operation; the controller tracks cumulative lamp time and triggers maintenance alerts.
Is calibration traceable to national standards?
Yes—Q-Lab provides NIST-traceable irradiance calibration certificates for each lamp/filter combination upon request.
Can the Q-SUN Xe-3 operate unattended for extended cycles?
Yes, with integrated safety interlocks, thermal cutoffs, and remote monitoring capability via Ethernet-enabled controllers.
Does the system support humidity control?
Humidity control is available as a factory-installed option and complies with ISO 4892-2 Annex B for wet/dry cycling protocols.
