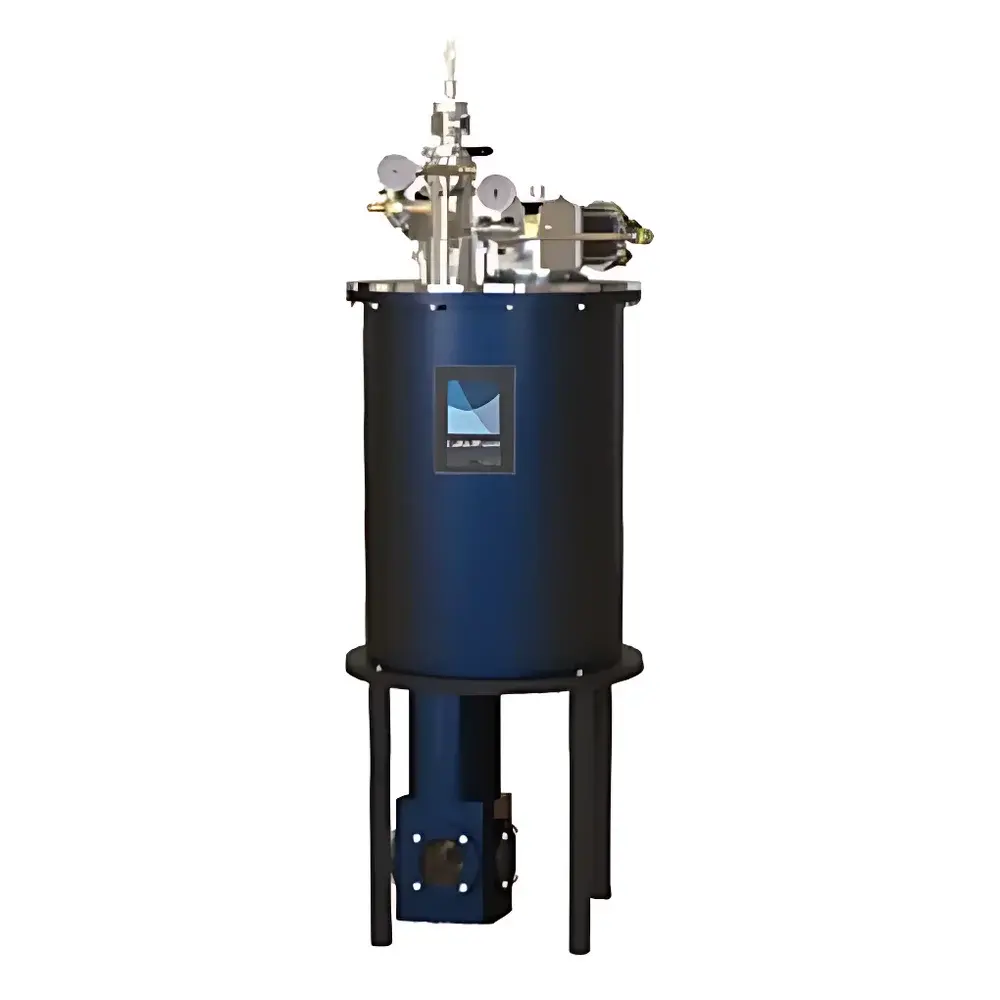

Lake Shore SHI-950 Top-Loading Cryogenic Thermostat

Overview

The Lake Shore SHI-950 is a top-loading, closed-cycle cryogenic thermostat engineered for high-reproducibility low-temperature experiments requiring operational flexibility and long-term thermal stability. Unlike traditional liquid helium dewars, the SHI-950 eliminates cryogen dependency by integrating a high-efficiency pulse-tube or Gifford-McMahon cryocooler—mounted directly above the sample chamber—to achieve base temperatures as low as 1.5 K via exchange gas thermal coupling. This design decouples the cooling circuit from the sample space, significantly reducing contamination risk and mechanical obstruction in heterogeneous or thermally resistive samples (e.g., powders, insulating ceramics, or irregularly shaped devices). The system supports continuous temperature control across an exceptionally wide range—from 1.5 K up to 800 K—enabling both cryogenic characterization and high-temperature annealing within a single platform. Optional integration of a ³He insert extends the low-temperature limit to 300 mK, satisfying requirements for quantum transport, superconducting qubit testing, and ultra-low-noise magnetotransport measurements.

Key Features

• Helium-free operation: Eliminates logistical constraints and safety hazards associated with liquid cryogens while maintaining stable, repeatable base temperatures.
• Top-loading architecture: Enables rapid (<10 min), tool-free sample exchange without breaking vacuum or warming the entire system—critical for high-throughput lab environments.
• Exchange-gas thermalization: Ensures uniform, non-contact cooling of diverse sample geometries—including low-thermal-conductivity solids, viscous liquids, and loosely packed powders—without direct cold-finger contact.
• Modular sample interface: Supports interchangeable sample probes (e.g., four-probe DC, RF, THz, X-ray-compatible) and customizable sample stages, including rotating stages for angular-dependent measurements.
• Optical access flexibility: Standard 108 mm square window block accommodates user-selectable optical windows spanning X-ray to THz spectral ranges (e.g., sapphire, CaF₂, polyethylene, quartz), with anti-reflection coatings available per wavelength band.
• Thermal and mechanical robustness: Rigid stainless-steel construction, vibration-damped cryocooler mounting, and precision-machined flange interfaces ensure compatibility with high-field magnets (up to 16 T), synchrotron beamlines, and ultra-high-vacuum (UHV) systems.

Sample Compatibility & Compliance

The SHI-950 is designed for broad materials science and condensed matter physics applications. Its large 51 mm internal diameter sample chamber (customizable upon request) accepts standard cryogenic sample holders, custom-machined fixtures, and multi-probe assemblies. All electrical feedthroughs comply with IEC 61000-4 immunity standards; vacuum flanges conform to ISO-KF and CF specifications. The system meets GLP-compliant documentation requirements for traceable calibration records and supports optional audit-ready temperature logging per FDA 21 CFR Part 11 when integrated with Lake Shore’s CrossBridge™ software. Electrical interfaces—including DC, BNC, SMA, and triaxial configurations—are rated for operation under static magnetic fields up to 2 T (with magnetic shielding options available).

Software & Data Management

Lake Shore’s proprietary CryoSoft™ control suite provides real-time monitoring and closed-loop PID regulation of temperature, pressure, and cryocooler status. The software supports automated temperature ramps, hold profiles, and synchronized data acquisition from external instruments (via IEEE-488, USB-TMC, or Ethernet). CrossBridge™ enables secure, role-based access control, electronic signatures, and full audit trails—including timestamped parameter changes and calibration events—ensuring compliance with ISO/IEC 17025 and GMP laboratory workflows. Export formats include CSV, HDF5, and MATLAB-compatible binaries for post-processing in Python, Igor Pro, or Origin.

Applications

• Quantum device characterization (superconducting qubits, topological insulators, 2D materials)
• Low-temperature magnetotransport (Hall effect, Shubnikov–de Haas oscillations, quantum Hall regimes)
• THz and infrared spectroscopy of phonons and magnons
• X-ray diffraction and scattering studies under controlled thermal history
• Dielectric spectroscopy and ferroelectric hysteresis at sub-Kelvin temperatures
• Calibration of radiation-hardened sensors and cryogenic photodetectors

FAQ

Can the SHI-950 operate in high magnetic fields?
Yes—standard configurations support static fields up to 2 T; higher-field variants (up to 16 T) are available with magnet-compatible thermal anchoring and non-magnetic probe options.
Is vacuum integrity maintained during sample exchange?
Yes—the top-loading mechanism uses a pneumatically actuated gate valve and secondary isolation seal, preserving base pressure (<1×10⁻⁶ Torr) throughout the exchange process.
What is the recommended maintenance schedule for the cryocooler?
Lake Shore specifies a mean time between maintenance (MTBM) of 13,000 hours under typical operating conditions; preventive service includes cold-head reconditioning and helium gas replenishment.
Can I integrate third-party measurement hardware (e.g., lock-in amplifiers, VNA)?
Absolutely—the system provides standardized analog/digital I/O ports and SCPI command support for seamless synchronization with Keysight, Zurich Instruments, and Stanford Research Systems equipment.
Does the SHI-950 support automated temperature sweeps with data logging?
Yes—CryoSoft™ enables programmable multi-segment ramps with configurable dwell times, real-time derivative calculation, and concurrent logging of up to 32 channels at 10 Hz sampling rate.
