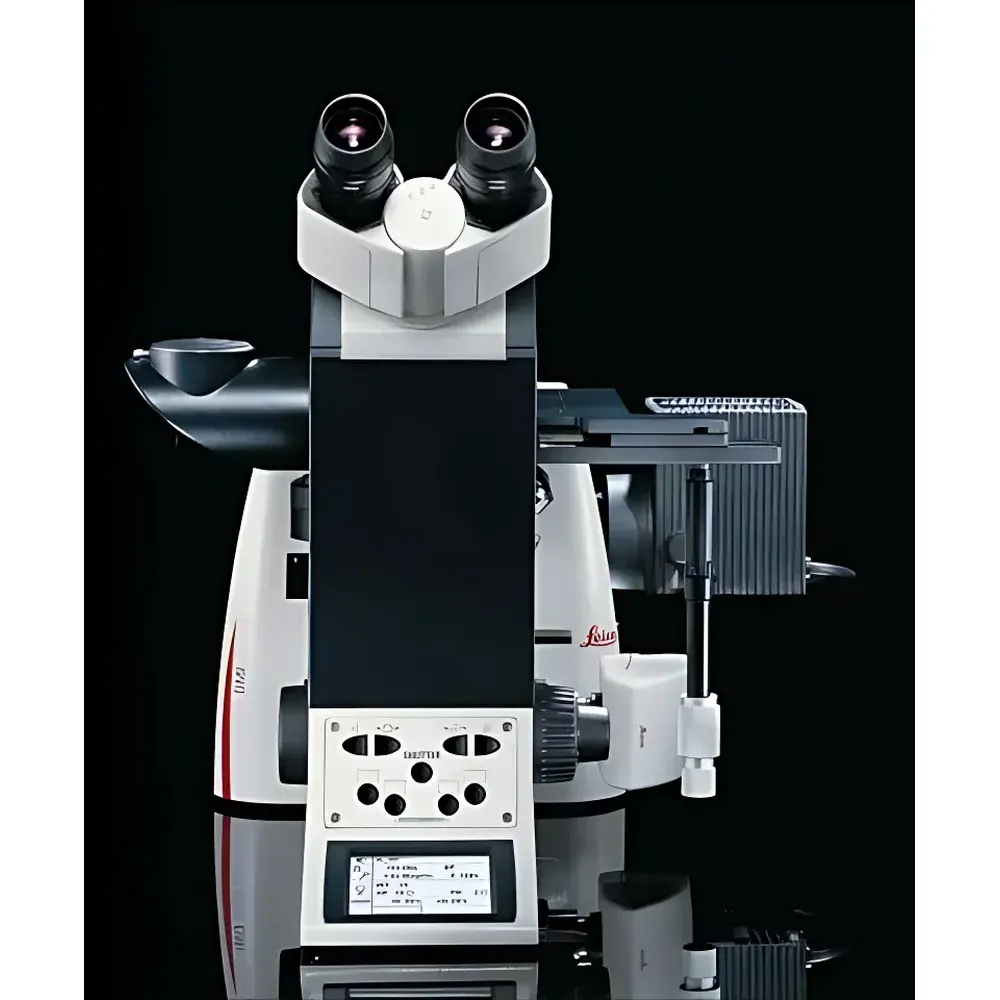

Leica DMI5000M Automated Inverted Metallurgical Microscope

Overview

The Leica DMI5000M is a research-grade automated inverted metallurgical microscope engineered for high-precision microstructural analysis of opaque, polished, and etched metallic and alloy specimens. Its optical architecture is built upon Leica’s proprietary HC (High Contrast) infinite-corrected optical system, incorporating axial and radial chromatic aberration correction across the entire visible spectrum. This dual-correction design eliminates stray light, enhances edge definition, and ensures consistent color fidelity and contrast—critical parameters in quantitative metallography where phase boundary delineation, grain size measurement, and inclusion characterization demand reproducible imaging performance. The DMI5000M supports both reflected-light observation modes—including brightfield, darkfield, differential interference contrast (DIC), and polarized light—as well as transmitted-light capabilities via optional condenser configurations. Its inverted configuration places the objective below the specimen plane, enabling unobstructed access to large, heavy, or thermally sensitive samples commonly encountered in foundry QA, failure analysis labs, and semiconductor packaging inspection.

Key Features

• Motorized 5-position objective turret with full M32 threading and electronic encoding—ensures precise, repeatable objective positioning and seamless integration with software-based magnification calibration.
• Programmable controller with seven user-defined function keys and dedicated hardware buttons for rapid access to frequently used routines (e.g., DIC alignment, brightness recall, stage homing).
• SmartMove remote interface for ergonomic, hands-free operation of focus and XY-stage movement—reducing operator fatigue during extended inspection sessions.
• Automated illumination management system that dynamically adjusts halogen lamp intensity, field diaphragm opening, and aperture diaphragm setting in real time, based on selected objective magnification and contrast method—minimizing photobleaching and optimizing signal-to-noise ratio.
• Parfocalized focusing mechanism with 1 µm step resolution and 9 mm total vertical travel—enabling accurate Z-stack acquisition for 3D surface profiling when combined with focus-stepping modules.
• Ceramic-coated mechanical stage (248 × 204 mm) with 100 × 60 mm travel range and interchangeable specimen holders accommodating diameters from 5 mm to 40 mm—suitable for bulk castings, wafer fragments, and cross-sectioned PCBs.

Sample Compatibility & Compliance

The DMI5000M accommodates a broad range of metallurgical and materials science specimens: polished steel sections, aluminum alloy weld zones, sintered tungsten carbide composites, nickel-based superalloy turbine blades, and copper interconnect layers in advanced packaging substrates. Its inverted geometry permits direct coupling with external metrology tools—including microhardness testers (e.g., Wilson VH3100), profilometers, and macro-viewing stations—without optical path interference. The system meets mechanical and electrical safety requirements per IEC 61000-6-2/6-4 and is manufactured under ISO 9001 quality management protocols. When operated with Leica LAS X software configured for audit trail, electronic signature, and data integrity controls, the platform supports compliance with FDA 21 CFR Part 11, EU Annex 11, and GLP/GMP documentation standards for regulated metallographic reporting.

Software & Data Management

The DMI5000M integrates natively with Leica Application Suite X (LAS X), a modular imaging platform supporting multi-channel fluorescence (via optional filter cubes), time-lapse acquisition, and morphometric analysis. LAS X provides full instrument control—including objective selection, illumination parameter recall, stage coordinate logging, and focus mapping—with metadata embedded directly into TIFF and OME-TIFF files. Image datasets can be exported to third-party quantification environments (e.g., MATLAB, ImageJ/Fiji, Thermo Scientific™ Avizo™) via standardized file formats. Optional modules include Extended Depth of Field (EDF) synthesis, grain boundary detection using trainable classifiers, and automated ASTM E112-compliant grain size enumeration. All software operations maintain timestamped logs of user actions, parameter changes, and hardware state transitions—essential for traceability in certified testing laboratories.

Applications

• Quantitative metallography per ASTM E3, E112, and ISO 643 for grain size, phase fraction, and inclusion rating.
• Failure analysis of fractured components—identifying cleavage facets, ductile dimples, or intergranular cracking in aerospace alloys.
• Quality assurance in additive manufacturing—evaluating porosity distribution, unmelted powder particles, and heat-affected zone microstructures in Ti-6Al-4V and Inconel® 718 builds.
• Semiconductor packaging inspection—assessing wire bond integrity, die attach voiding, and solder joint microstructure at up to 1000× magnification.
• Research in high-entropy alloys and nanostructured metals—leveraging DIC contrast for sub-micron strain field visualization and dislocation density estimation.

FAQ

Is the DMI5000M compatible with third-party digital cameras?
Yes—via C-mount or F-mount adapters, the microscope supports scientific CMOS and CCD cameras from vendors including Hamamatsu, PCO, and Basler, provided they conform to USB 3.0 or GigE Vision standards.
Can the system be upgraded to support fluorescence observation?
Fluorescence capability requires retrofitting with a dedicated epi-illuminator, filter cube turret, and appropriate excitation sources; this is not part of the base metallurgical configuration but is available as an OEM option.
Does the motorized stage support coordinate mapping for automated tile scanning?
Yes—the integrated motorized XY stage, when paired with LAS X Large Area Imaging module, enables programmable mosaic acquisition with sub-pixel stitching accuracy and automatic focus compensation per tile.
What maintenance intervals are recommended for the 12 V / 100 W halogen illumination system?
Lamp lifetime is rated at approximately 100 hours at full intensity; Leica recommends scheduled replacement every 80–90 hours in high-throughput labs and routine cleaning of collector optics every 200 operational hours.
Is remote desktop control supported for collaborative analysis?
LAS X supports secure remote access via VPN-configured Windows RDP or Leica’s proprietary WebScope interface, enabling real-time co-analysis with role-based permissions and session logging.
